本文介绍 gpdb 的 master 故障及恢复测试以及 segment 故障恢复测试。
环境介绍：
Gpdb 版本：5.5.0 二进制版本
操作系统版本：CentOS linux 7.0
Master segment: 192.168.1.225/24 hostname: mfsmaster
Stadnby segemnt: 192.168.1.227/24 hostname: server227
Segment 节点 1：192.168.1.227/24 hostname: server227
Segment 节点 2：192.168.1.17/24 hostname: server17
Segment 节点 3：192.168.1.11/24 hostname: server11
每个 segment 节点上分别运行一个 primary segment 和一个 mirror segment
一、查看原始状态

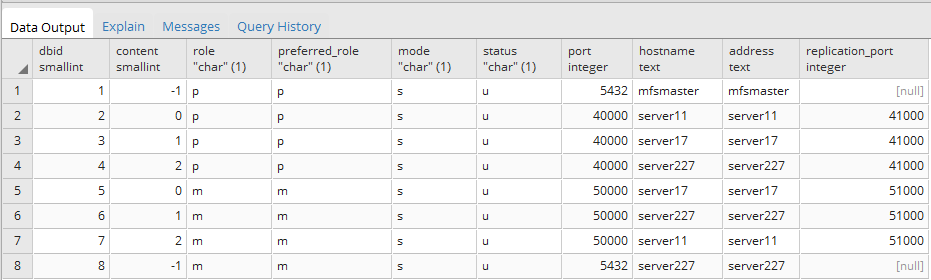

select * from gp_segment_configuration;
$ gpstate -f
20180320:13:50:38:021814 gpstate:mfsmaster:gpadmin-[INFO]:-Starting gpstate with args: -f
20180320:13:50:38:021814 gpstate:mfsmaster:gpadmin-[INFO]:-local Greenplum Version: ‘postgres (Greenplum Database) 5.5.0 build commit:67afa18296aa238d53a2dfcc724da60ed2f944f0’
20180320:13:50:38:021814 gpstate:mfsmaster:gpadmin-[INFO]:-master Greenplum Version: ‘PostgreSQL 8.3.23 (Greenplum Database 5.5.0 build commit:67afa18296aa238d53a2dfcc724da60ed2f944f0) on x86_64-pc-linux-gnu, compiled by GCC gcc (GCC) 6.2.0, 64-bit compiled on Feb 17 2018 15:23:55’
20180320:13:50:38:021814 gpstate:mfsmaster:gpadmin-[INFO]:-Obtaining Segment details from master…
20180320:13:50:38:021814 gpstate:mfsmaster:gpadmin-[INFO]:-Standby master details
20180320:13:50:38:021814 gpstate:mfsmaster:gpadmin-[INFO]:———————–
20180320:13:50:38:021814 gpstate:mfsmaster:gpadmin-[INFO]:- Standby address = server227
20180320:13:50:38:021814 gpstate:mfsmaster:gpadmin-[INFO]:- Standby data directory = /home/gpadmin/master/gpseg-1
20180320:13:50:38:021814 gpstate:mfsmaster:gpadmin-[INFO]:- Standby port = 5432
20180320:13:50:38:021814 gpstate:mfsmaster:gpadmin-[INFO]:- Standby PID = 22279
20180320:13:50:38:021814 gpstate:mfsmaster:gpadmin-[INFO]:- Standby status = Standby host passive
20180320:13:50:38:021814 gpstate:mfsmaster:gpadmin-[INFO]:————————————————————–
20180320:13:50:38:021814 gpstate:mfsmaster:gpadmin-[INFO]:–pg_stat_replication
20180320:13:50:38:021814 gpstate:mfsmaster:gpadmin-[INFO]:————————————————————–
20180320:13:50:38:021814 gpstate:mfsmaster:gpadmin-[INFO]:–WAL Sender State: streaming
20180320:13:50:38:021814 gpstate:mfsmaster:gpadmin-[INFO]:–Sync state: sync
20180320:13:50:38:021814 gpstate:mfsmaster:gpadmin-[INFO]:–Sent Location: 0/CF2C470
20180320:13:50:38:021814 gpstate:mfsmaster:gpadmin-[INFO]:–Flush Location: 0/CF2C470
20180320:13:50:38:021814 gpstate:mfsmaster:gpadmin-[INFO]:–Replay Location: 0/CF2C470
20180320:13:50:38:021814 gpstate:mfsmaster:gpadmin-[INFO]:————————————————————–
二、master 主从切换

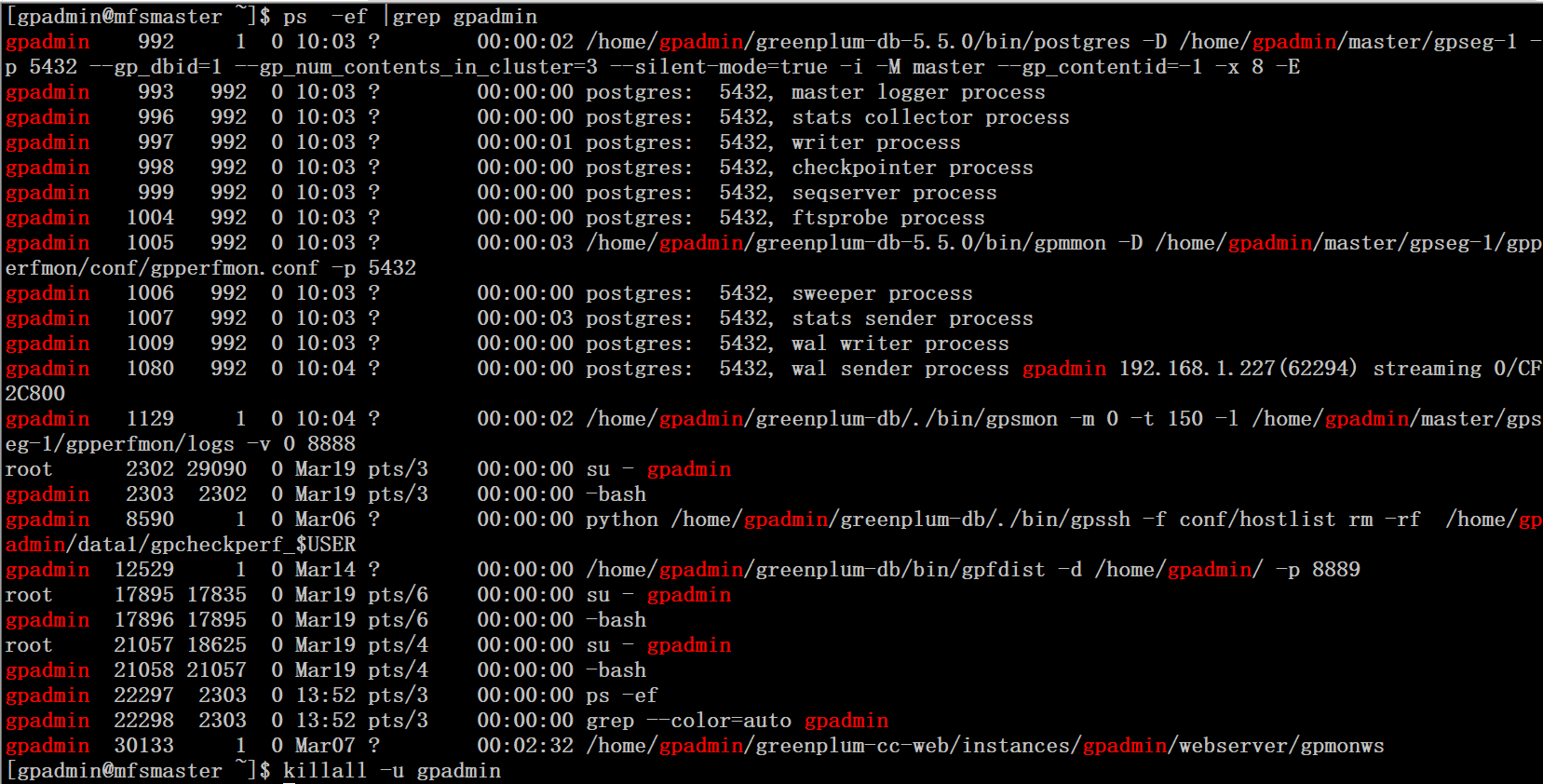

1、模拟当前主库宕机，这里直接采用 killall gpadmin 用户下的所有进程来模拟
2、在 master standby 节点（227 服务器上）进行执行切换命令，提升 227 为 master
$ gpactivatestandby -d master/gpseg-1/
20180320:13:53:20:030558 gpactivatestandby:server227:gpadmin-[INFO]:——————————————————
20180320:13:53:20:030558 gpactivatestandby:server227:gpadmin-[INFO]:-Standby data directory = /home/gpadmin/master/gpseg-1
20180320:13:53:20:030558 gpactivatestandby:server227:gpadmin-[INFO]:-Standby port = 5432
20180320:13:53:20:030558 gpactivatestandby:server227:gpadmin-[INFO]:-Standby running = yes
20180320:13:53:20:030558 gpactivatestandby:server227:gpadmin-[INFO]:-Force standby activation = no
20180320:13:53:20:030558 gpactivatestandby:server227:gpadmin-[INFO]:——————————————————
Do you want to continue with standby master activation? Yy|Nn (default=N):
> y
20180320:13:53:26:030558 gpactivatestandby:server227:gpadmin-[INFO]:-found standby postmaster process
20180320:13:53:26:030558 gpactivatestandby:server227:gpadmin-[INFO]:-Updating transaction files filespace flat files…
20180320:13:53:26:030558 gpactivatestandby:server227:gpadmin-[INFO]:-Updating temporary files filespace flat files…
20180320:13:53:26:030558 gpactivatestandby:server227:gpadmin-[INFO]:-Promoting standby…
20180320:13:53:26:030558 gpactivatestandby:server227:gpadmin-[DEBUG]:-Waiting for connection…
20180320:13:53:27:030558 gpactivatestandby:server227:gpadmin-[INFO]:-Standby master is promoted
20180320:13:53:27:030558 gpactivatestandby:server227:gpadmin-[INFO]:-Reading current configuration…
20180320:13:53:27:030558 gpactivatestandby:server227:gpadmin-[DEBUG]:-Connecting to dbname=’postgres’
20180320:13:53:27:030558 gpactivatestandby:server227:gpadmin-[INFO]:-Writing the gp_dbid file – /home/gpadmin/master/gpseg-1/gp_dbid…
20180320:13:53:27:030558 gpactivatestandby:server227:gpadmin-[INFO]:-But found an already existing file.
20180320:13:53:27:030558 gpactivatestandby:server227:gpadmin-[INFO]:-Hence removed that existing file.
20180320:13:53:27:030558 gpactivatestandby:server227:gpadmin-[INFO]:-Creating a new file…
20180320:13:53:27:030558 gpactivatestandby:server227:gpadmin-[INFO]:-Wrote dbid: 1 to the file.
20180320:13:53:27:030558 gpactivatestandby:server227:gpadmin-[INFO]:-Now marking it as read only…
20180320:13:53:27:030558 gpactivatestandby:server227:gpadmin-[INFO]:-Verifying the file…
20180320:13:53:27:030558 gpactivatestandby:server227:gpadmin-[INFO]:——————————————————
20180320:13:53:27:030558 gpactivatestandby:server227:gpadmin-[INFO]:-The activation of the standby master has completed successfully.
20180320:13:53:27:030558 gpactivatestandby:server227:gpadmin-[INFO]:-server227 is now the new primary master.
20180320:13:53:27:030558 gpactivatestandby:server227:gpadmin-[INFO]:-You will need to update your user access mechanism to reflect
20180320:13:53:27:030558 gpactivatestandby:server227:gpadmin-[INFO]:-the change of master hostname.
20180320:13:53:27:030558 gpactivatestandby:server227:gpadmin-[INFO]:-Do not re-start the failed master while the fail-over master is
20180320:13:53:27:030558 gpactivatestandby:server227:gpadmin-[INFO]:-operational, this could result in database corruption!
20180320:13:53:27:030558 gpactivatestandby:server227:gpadmin-[INFO]:-MASTER_DATA_DIRECTORY is now /home/gpadmin/master/gpseg-1 if
20180320:13:53:27:030558 gpactivatestandby:server227:gpadmin-[INFO]:-this has changed as a result of the standby master activation, remember
20180320:13:53:27:030558 gpactivatestandby:server227:gpadmin-[INFO]:-to change this in any startup scripts etc, that may be configured
20180320:13:53:27:030558 gpactivatestandby:server227:gpadmin-[INFO]:-to set this value.
20180320:13:53:27:030558 gpactivatestandby:server227:gpadmin-[INFO]:-MASTER_PORT is now 5432, if this has changed, you
20180320:13:53:27:030558 gpactivatestandby:server227:gpadmin-[INFO]:-may need to make additional configuration changes to allow access
20180320:13:53:27:030558 gpactivatestandby:server227:gpadmin-[INFO]:-to the Greenplum instance.
20180320:13:53:27:030558 gpactivatestandby:server227:gpadmin-[INFO]:-Refer to the Administrator Guide for instructions on how to re-activate
20180320:13:53:27:030558 gpactivatestandby:server227:gpadmin-[INFO]:-the master to its previous state once it becomes available.
20180320:13:53:27:030558 gpactivatestandby:server227:gpadmin-[INFO]:-Query planner statistics must be updated on all databases
20180320:13:53:27:030558 gpactivatestandby:server227:gpadmin-[INFO]:-following standby master activation.
20180320:13:53:27:030558 gpactivatestandby:server227:gpadmin-[INFO]:-When convenient, run ANALYZE against all user databases.
20180320:13:53:27:030558 gpactivatestandby:server227:gpadmin-[INFO]:——————————————————
3、测试提升后的主库是否正常
$ psql -d postgres -c ‘ANALYZE’

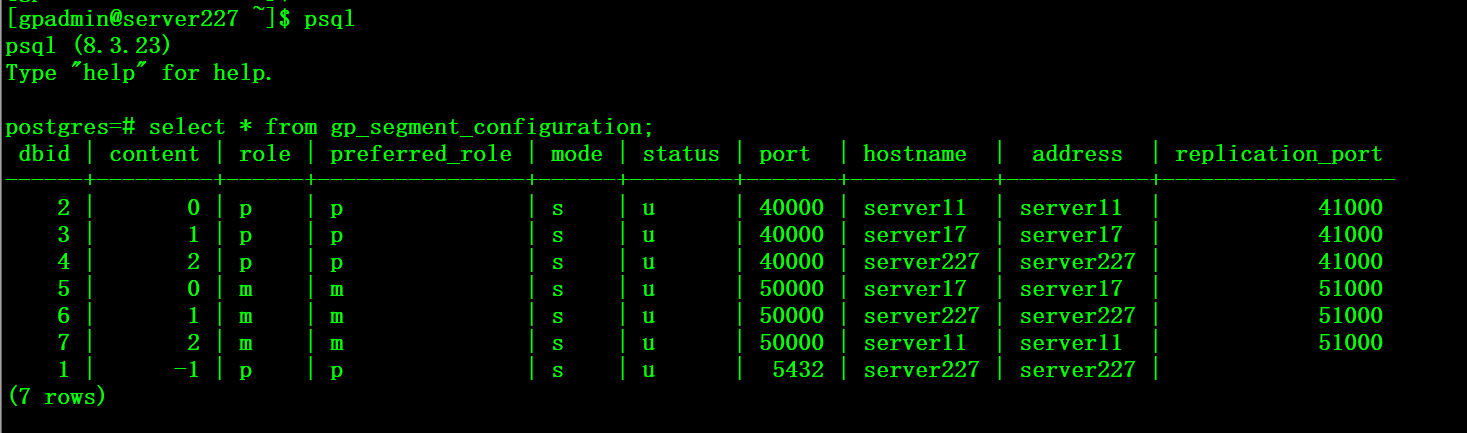

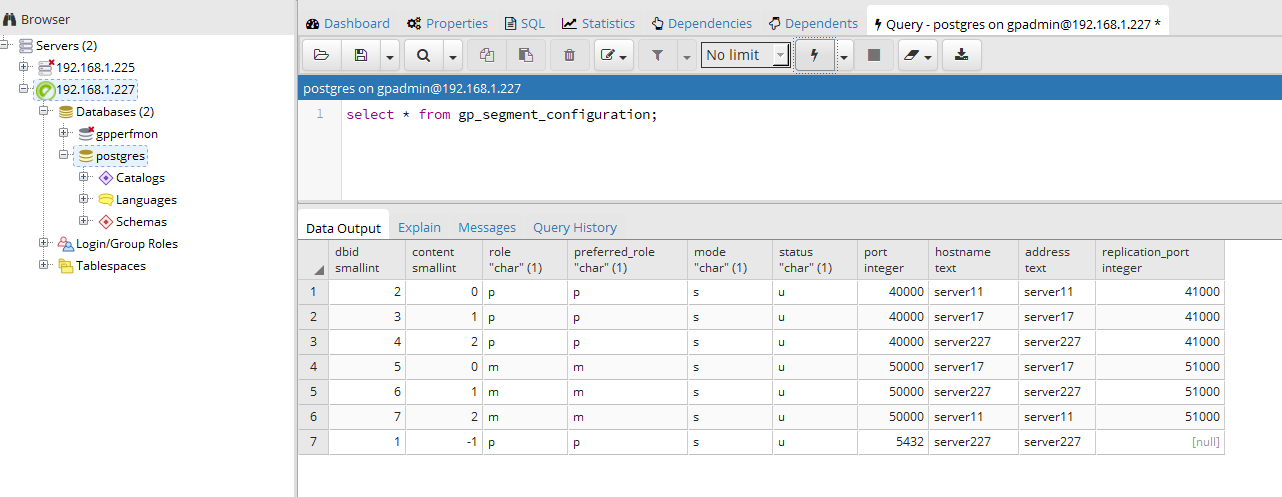

postgres=# select * from gp_segment_configuration;
4、这里可能需要同步配置一下 pg_hba.conf 文件，才能通过客户端进行远程连接
到这里我们已经完成了 master 节点的故障切换工作。
三、添加新的 master standby

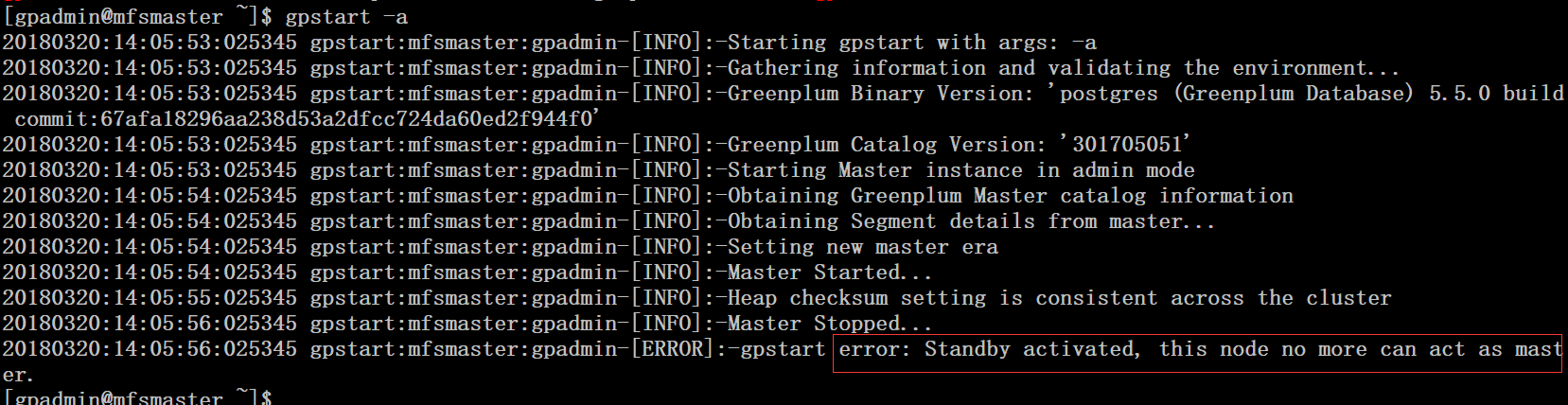

1、在 225 服务器上执行 gpstart - a 命令启动 gpdb 数据库的时候报错”error: Standby active, this node no more can act as master”。当 standby 提升为 master 的时候，原 master 服务器从故障中恢复过来，需要以 standby 的角色加入
2、在原 master 服务器 225 上的数据进行备份
$ cd master/
$ ls
gpseg-1
$ mv gpseg-1/ backup-gpseg-1
3、在当前 master 服务器 227 上进行 gpinitstandby 添加 225 为 standby
$ gpinitstandby -s mfsmaster

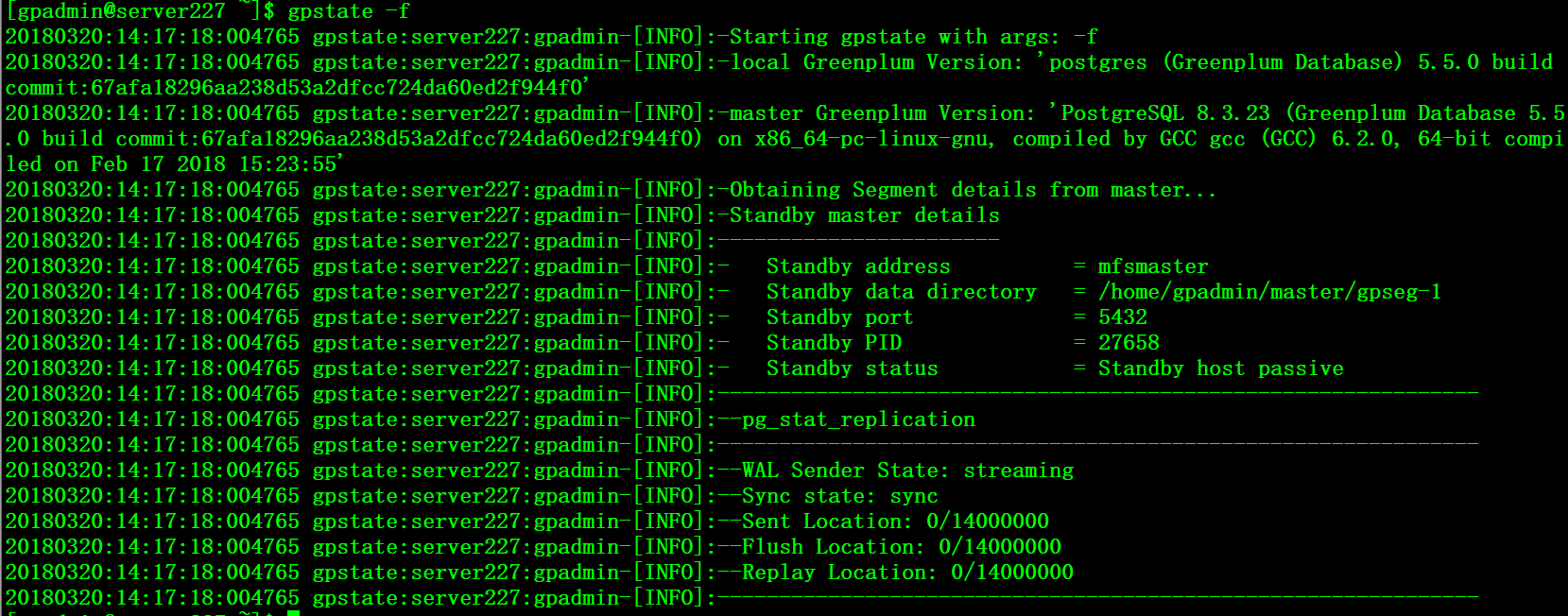

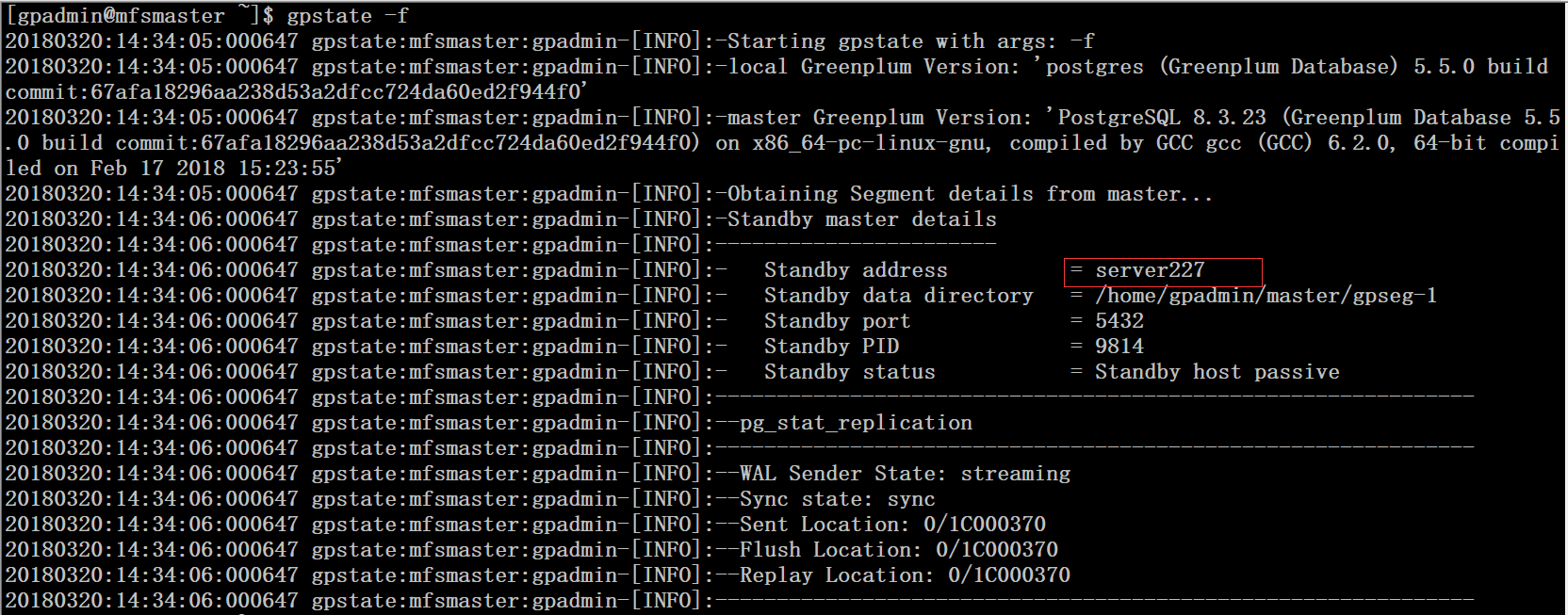

$ gpstate -f
四、primary segment 和 mirror segment 切换
1、首先我们来捋一下当前的数据库环境
Master segment: 192.168.1.227/24 hostname: server227
Stadnby segemnt: 192.168.1.225/24 hostname: mfsmaster
Segment 节点 1：192.168.1.227/24 hostname: server227
Segment 节点 2：192.168.1.17/24 hostname: server17
Segment 节点 3：192.168.1.11/24 hostname: server11
每个 segment 节点上分别运行一个 primary segment 和一个 mirror segment
2、接着我们采用同样的方式把 227 服务器上 gpadmin 用户的所有进行杀掉
$ killall -u gpadmin
3、在 225 服务器上执行切换 master 命令
$ gpactivatestandby -d master/gpseg-1/

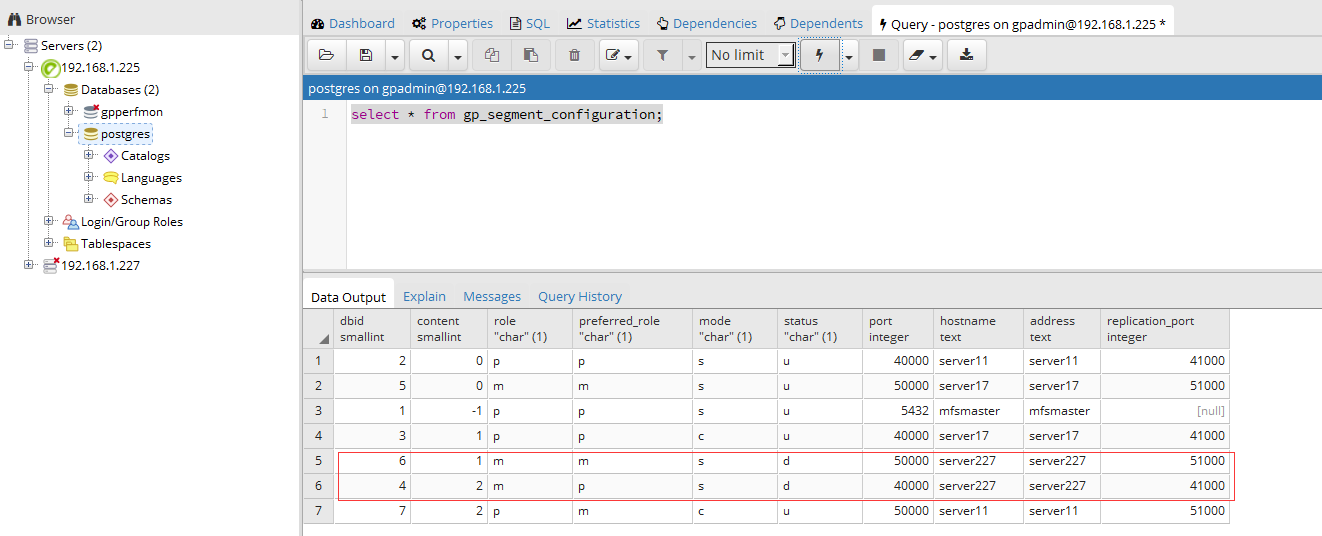

4、完成切换后使用客户端工具连接查看 segment 状态，可以看到 227 服务器上的 server227
的 primary 和 mirror 节点都已经宕机了。

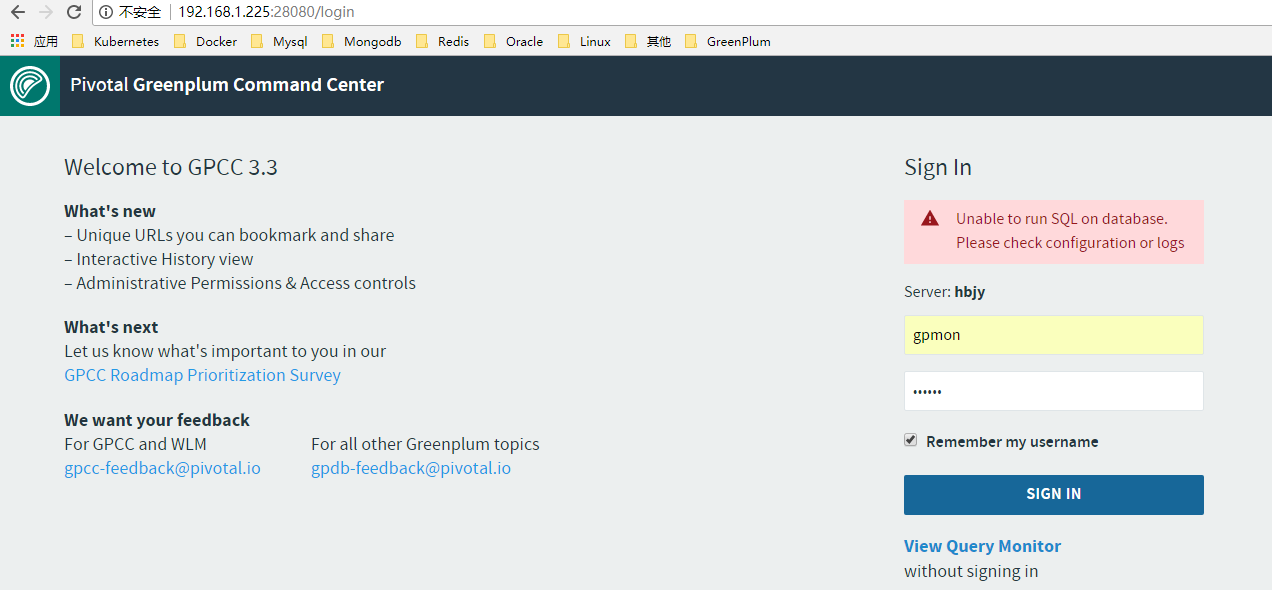

5、这里为了方面查看，我们使用 greenplum-cc-web 工具来查看集群状态
$ gpcmdr –start hbjy

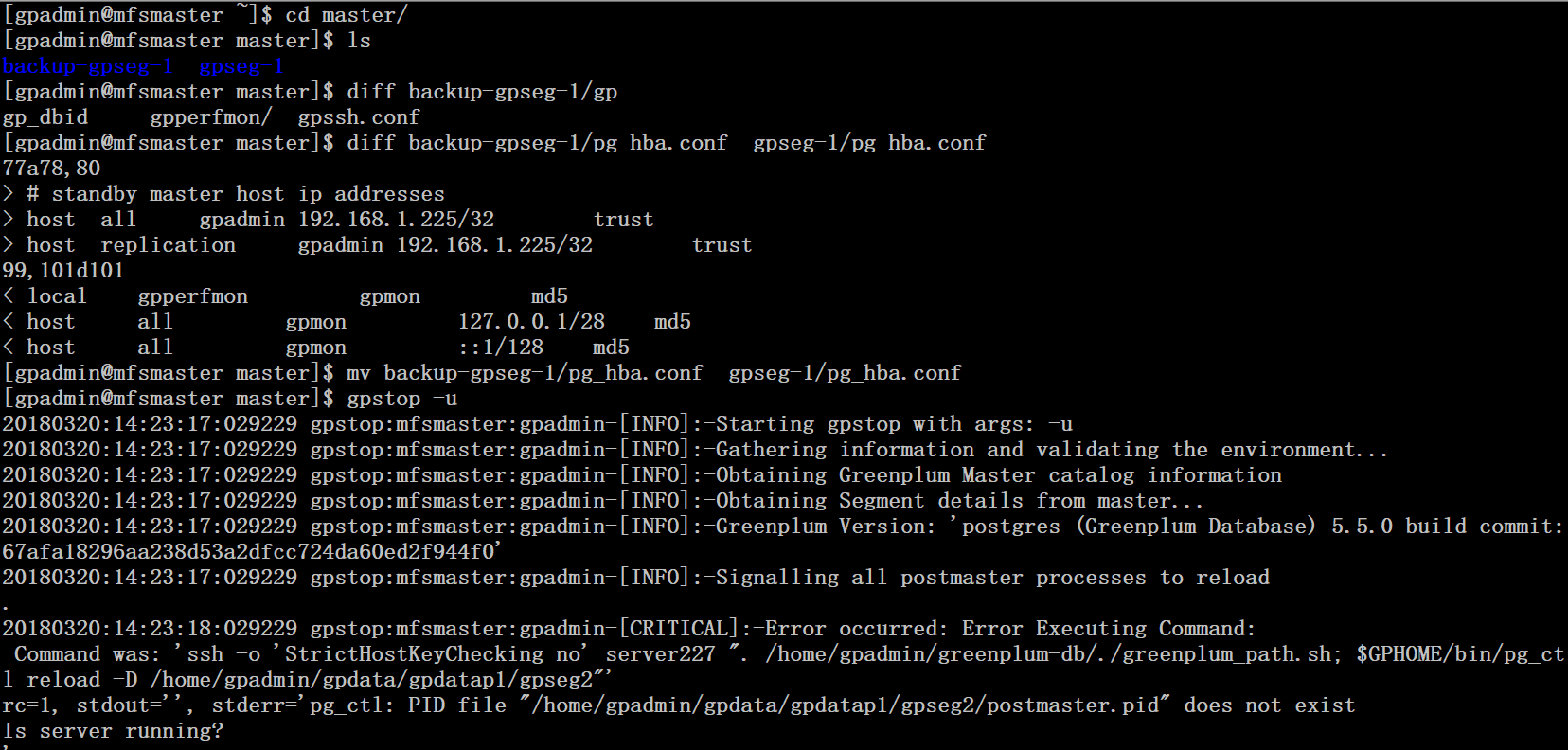

需要将 pg_hba.conf 文件还原回去，因为 227 上所有的 segment 已经宕掉，执行 gpstop - u 命令会有报错

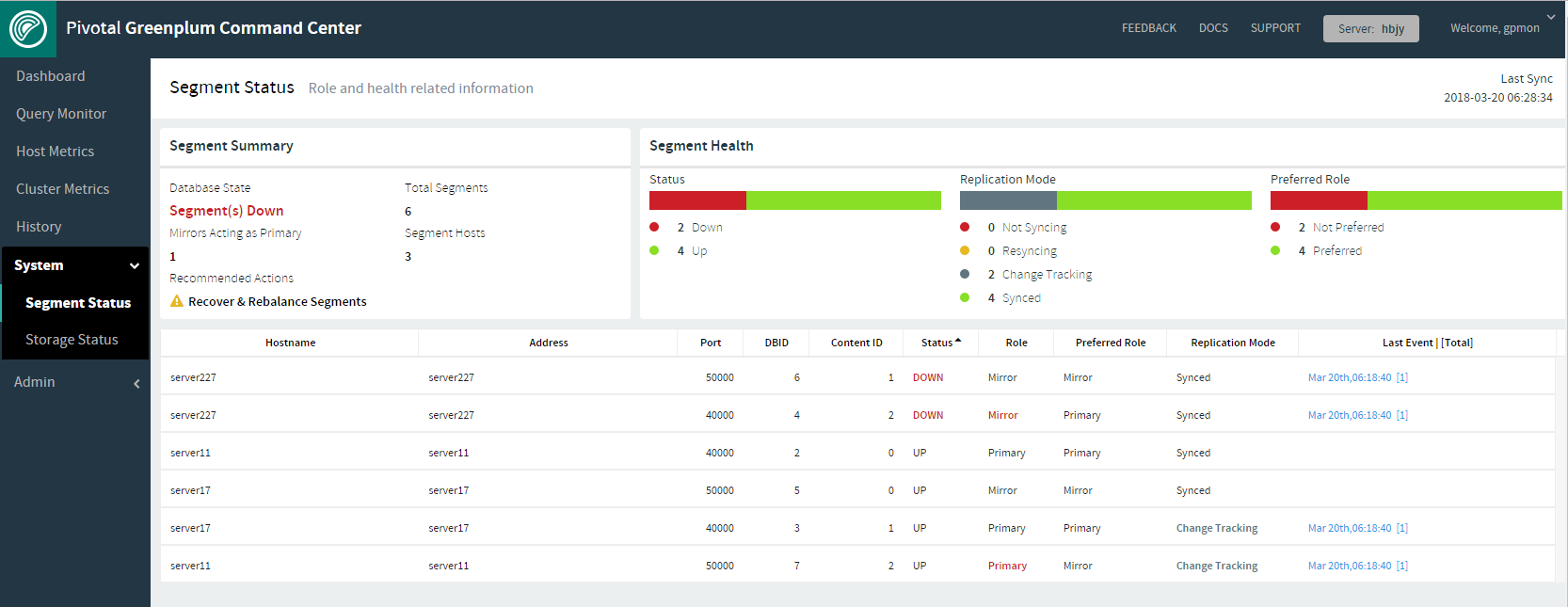

在 segment status 页面中可以看到当前 segment 的状态是异常的。server11 上有两组的 primary segment，这很危险，如果不幸 server11 也宕机了，整个集群的状态就变成不可用了。
6��将 server227 做为 master standby 重新加入集群
$ cd master/
$ mv gpseg-1/ backupgpseg-1
$ gpinitstandby -s server227
7、在 master 上重启集群
$ gpstop -M immediate
$ gpstart -a
8、在 master 上恢复集群
$ gprecoverseg

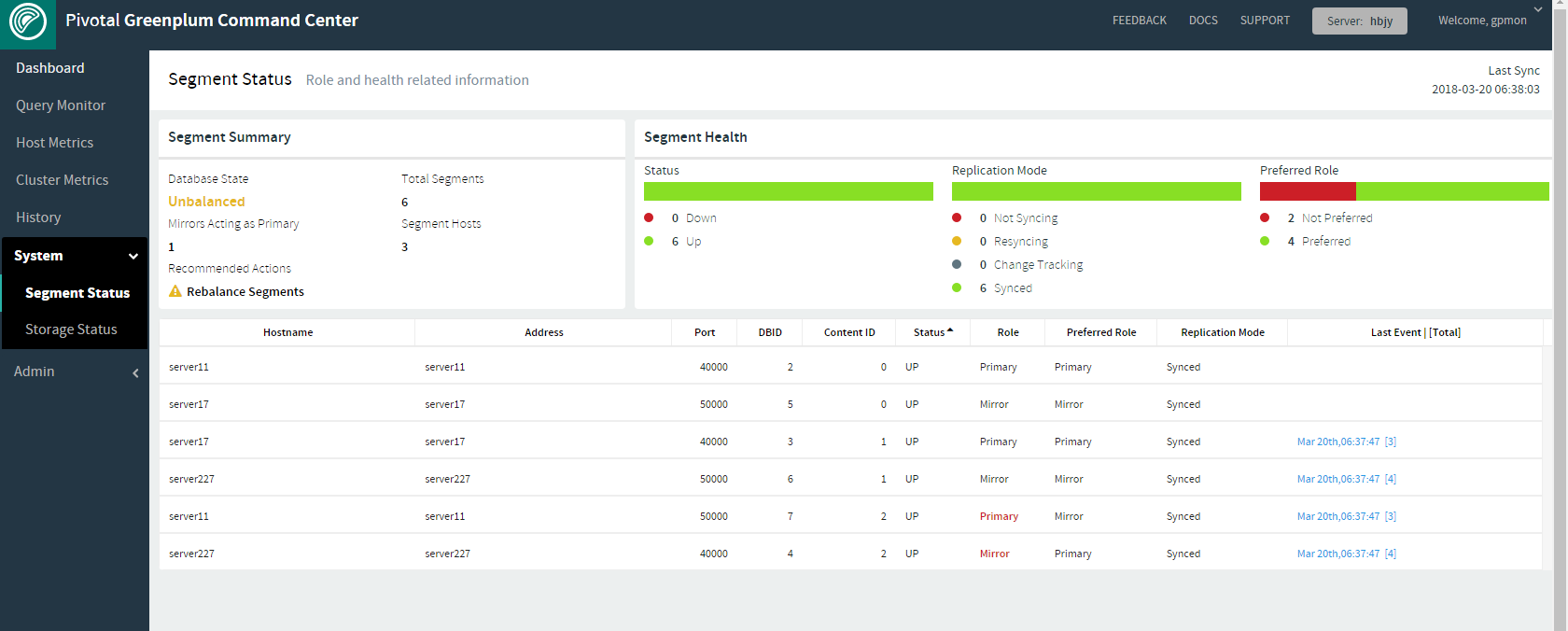

虽然所有的 segment 均已启动，但 server11 上有还是有两组的 primary segment

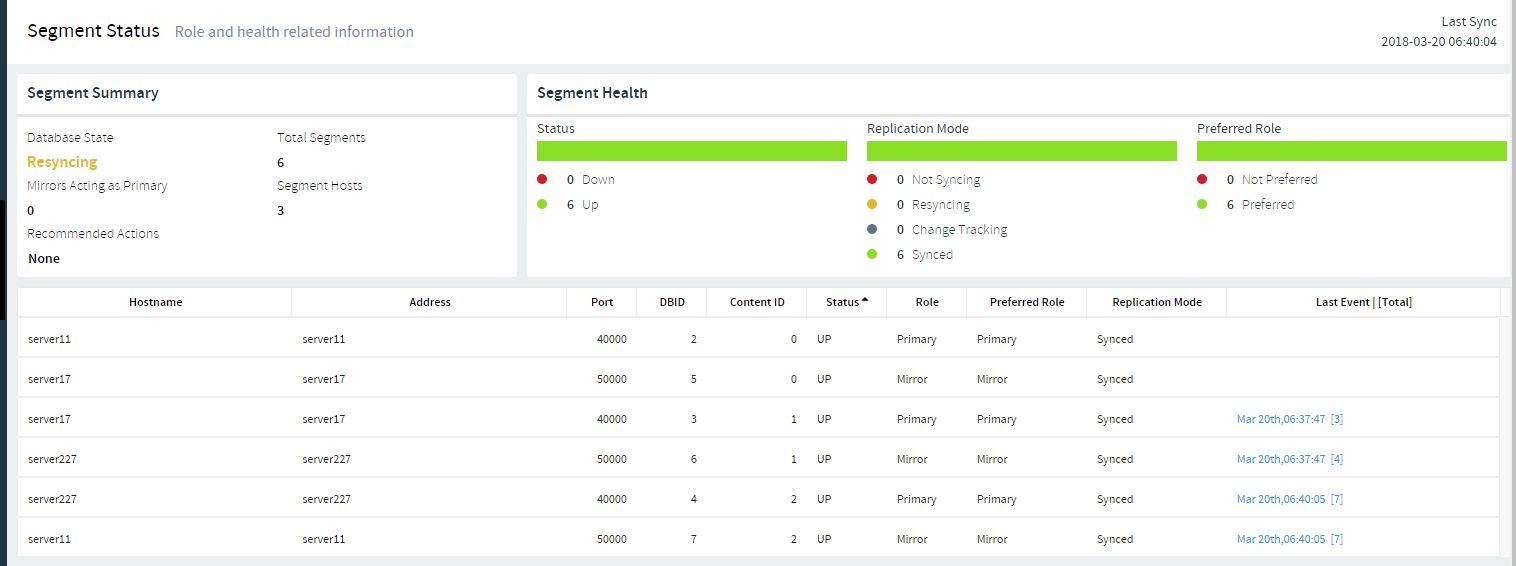

9、在 master 上恢复 segment 节点分布到原始状态
$ gprecoverseg -r
