共计 5179 个字符，预计需要花费 13 分钟才能阅读完成。
1. 介绍
PostgreSQL 提供了一个 copy 命令的便利数据加载工具，copy 命令源于 PostgreSQL 数据库，copy 命令支持文件与表之间的数据加载和表对文件的数据卸载。pg_bulkload 是一种用于 PostgreSQL 的高速数据加载工具，相比 copy 命令。最大的优势就是速度。优势在让我们跳过 shared buffer,wal buffer。直接写文件。pg_bulkload 的 direct 模式就是这种思路来实现的，它还包含了数据恢复功能，即导入失败的话，需要恢复。

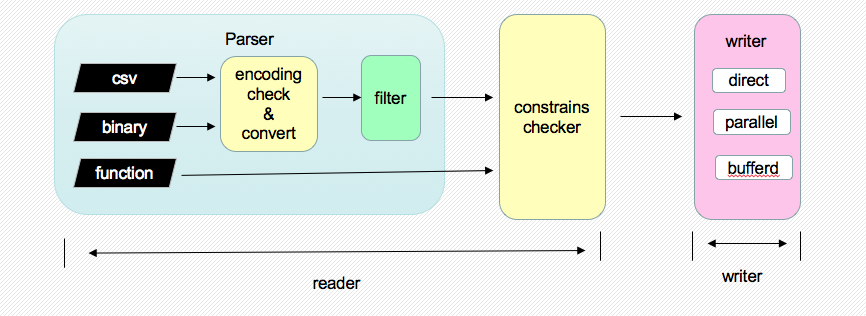

2. pg_bulkload 架构图
pg_bulkload 主要包括两个模块：reader 和 writer。reader 负责读取文件、解析 tuple，writer 负责把解析出的 tuple 写入输出源中。pg_bulkload 最初的版本功能很简单，只是加载数据。3.1 版本增加了数据过滤的功能。
3. pg_bulkload 安装
[root@Postgres201 ~]# unzip pg_bulkload-VERSION3_1_10.zip
[root@Postgres201 ~]# cd pg_bulkload-VERSION3_1_10
[root@Postgres201 pg_bulkload-VERSION3_1_10]# make
[root@Postgres201 pg_bulkload-VERSION3_1_10]# make install
安装完成；要使用它需要建 extension
[postgres@Postgres201 ~]$ psql lottu lottu
psql (9.6.0)
Type “help” for help.
lottu=# create extension pg_bulkload;
CREATE EXTENSION
4. pg_bulkload 参数
[postgres@Postgres201 ~]$ pg_bulkload –help
pg_bulkload is a bulk data loading tool for PostgreSQL
Usage:
Dataload: pg_bulkload [dataload options] control_file_path
Recovery: pg_bulkload -r [-D DATADIR]
Dataload options:
-i, –input=INPUT INPUT path or function
-O, –output=OUTPUT OUTPUT path or table
-l, –logfile=LOGFILE LOGFILE path
-P, –parse-badfile=* PARSE_BADFILE path
-u, –duplicate-badfile=* DUPLICATE_BADFILE path
-o, –option=”key=val” additional option
Recovery options:
-r, –recovery execute recovery
-D, –pgdata=DATADIR database directory
Connection options:
-d, –dbname=DBNAME database to connect
-h, –host=HOSTNAME database server host or socket directory
-p, –port=PORT database server port
-U, –username=USERNAME user name to connect as
-w, –no-password never prompt for password
-W, –password force password prompt
Generic options:
-e, –echo echo queries
-E, –elevel=LEVEL set output message level
–help show this help, then exit
–version output version information, then exit
5. pg_bulkload 的使用
创建测试表 tbl_lottu 和测试文件 tbl_lottu_output.txt
[postgres@Postgres201 ~]$ psql lottu lottu
psql (9.6.0)
Type “help” for help.
lottu=# create table tbl_lottu(id int,name text);
CREATE TABLE
[postgres@Postgres201 ~]$ seq 100000| awk ‘{print $0″|lottu”}’ > tbl_lottu_output.txt
1. 不使用控制文件使用参数
[postgres@Postgres201 ~]$ pg_bulkload -i /home/postgres/tbl_lottu_output.txt -O tbl_lottu -l /home/postgres/tbl_lottu_output.log -P /home/postgres/tbl_lottu_bad.txt -o “TYPE=CSV” -o “DELIMITER=|” -d lottu -U lottu
NOTICE: BULK LOAD START
NOTICE: BULK LOAD END
0 Rows skipped.
100000 Rows successfully loaded.
0 Rows not loaded due to parse errors.
0 Rows not loaded due to duplicate errors.
0 Rows replaced with new rows.
[postgres@Postgres201 ~]$ cat tbl_lottu_output.log
pg_bulkload 3.1.9 on 2018-07-12 13:37:18.326685+08
INPUT = /home/postgres/tbl_lottu_output.txt
PARSE_BADFILE = /home/postgres/tbl_lottu_bad.txt
LOGFILE = /home/postgres/tbl_lottu_output.log
LIMIT = INFINITE
PARSE_ERRORS = 0
CHECK_CONSTRAINTS = NO
TYPE = CSV
SKIP = 0
DELIMITER = |
QUOTE = “\””
ESCAPE = “\””
NULL =
OUTPUT = lottu.tbl_lottu
MULTI_PROCESS = NO
VERBOSE = NO
WRITER = DIRECT
DUPLICATE_BADFILE = /data/postgres/data/pg_bulkload/20180712133718_lottu_lottu_tbl_lottu.dup.csv
DUPLICATE_ERRORS = 0
ON_DUPLICATE_KEEP = NEW
TRUNCATE = NO
0 Rows skipped.
100000 Rows successfully loaded.
0 Rows not loaded due to parse errors.
0 Rows not loaded due to duplicate errors.
0 Rows replaced with new rows.
Run began on 2018-07-12 13:37:18.326685+08
Run ended on 2018-07-12 13:37:18.594494+08
CPU 0.14s/0.07u sec elapsed 0.27 sec
2. 导入之前先清理表数据
[postgres@Postgres201 ~]$ pg_bulkload -i /home/postgres/tbl_lottu_output.txt -O tbl_lottu -l /home/postgres/tbl_lottu_output.log -P /home/postgres/tbl_lottu_bad.txt -o “TYPE=CSV” -o “DELIMITER=|” -o “TRUNCATE=YES” -d lottu -U lottu
NOTICE: BULK LOAD START
NOTICE: BULK LOAD END
0 Rows skipped.
100000 Rows successfully loaded.
0 Rows not loaded due to parse errors.
0 Rows not loaded due to duplicate errors.
0 Rows replaced with new rows.
[postgres@Postgres201 ~]$ psql lottu lottu -c “select count(1) from tbl_lottu;”
count
——–
100000
(1 row)
3. 使用控制文件
新建控制文件 lottu.ctl
INPUT = /home/postgres/lotu01
PARSE_BADFILE = /home/postgres/tbl_lottu_bad.txt
LOGFILE = /home/postgres/tbl_lottu_output.log
LIMIT = INFINITE
PARSE_ERRORS = 0
CHECK_CONSTRAINTS = NO
TYPE = CSV
SKIP = 5
DELIMITER = |
QUOTE = “\””
ESCAPE = “\””
OUTPUT = lottu.tbl_lottu
MULTI_PROCESS = NO
WRITER = DIRECT
DUPLICATE_BADFILE = /home/postgres/tbl_lottu.dup.csv
DUPLICATE_ERRORS = 0
ON_DUPLICATE_KEEP = NEW
TRUNCATE = YES
使用控制文件进行加载操作
pg_bulkload /home/postgres/lottu.ctl -d lottu -U lottu
[postgres@Postgres201 ~]$ pg_bulkload /home/postgres/lottu.ctl -d lottu -U lottu
NOTICE: BULK LOAD START
NOTICE: BULK LOAD END
5 Rows skipped.
95 Rows successfully loaded.
0 Rows not loaded due to parse errors.
0 Rows not loaded due to duplicate errors.
0 Rows replaced with new rows.
6. 总结
pg_bulkload 是一种用于 PostgreSQL 的高速数据加载工具，相比 copy 命令。最大的优势就是速度。优势在让我们跳过 shared buffer,wal buffer。直接写文件。pg_bulkload 的 direct 模式就是这种思路来实现的。不足的是; 表字段的顺序要跟导入的文件报错一致。希望后续版本能开发。
