Oracle 19C 的下载和安装部署（图形安装和静默安装）
https://docs.oracle.com/en/database/oracle/oracle-database/19/ladbi/operating-system-checklist-for-oracle-database-installation-on-linux.html
Oracle Database 19c，也就是 12.2.0.3，最初在 livesql.oracle.com 上发布，是 Oracle Database 12c 和 18c 系列产品的最终版本，因此也是“长期支持”版本（以前称为“终端版本”）。“长期支持”意味着 Oracle Database 19c 提供 4 年的高级支持（截止到 2023 年 1 月底）和至少 3 年的延长支持（截至 2026 年 1 月底）。这个扩展的支持窗口对我们的很多客户至关重要，因为很多客户制定了相关的升级策略。有关最新的 Oracle 支持计划，请参阅 My Oracle Support 上的文档 ID 742060.1。截止目前，Oracle Database 19c 已经可以在 Oracle 数据库一体机上使用了。
Oracle12c 版本的说明：
Oracle12cR2=12.2.0.1
Oracle18C=12.2.0.2
Oracle19c=12.2.0.3
在 MOS 官方文章：Release Schedule of Current Database Releases (文档 ID 742060.1) 上，可以清晰的看到 Oracle 的版本计划。
Oracle Database 19c 的目标
Oracle Database 19c 是大多数客户准备要升级的版本，Oracle 已将 稳定性 作为此版本的核心目标。在 Oracle Database 19c 中，开发人员专注于修复已知问题，而不是添加新功能。在数年内我们已有数百人和数千台服务器每天 24 小时的运行测试。测试包括数据库的核心、安装程序，再到组成产品的子程序及实用工具的堆栈等所有方面。目标只有一个，保证数据库的稳定性。真正的为客户带来实惠。
在 Linux 上安装 Oracle Database 19c，需要 OL7、RHEL7、SLES12 及以上的更高版本。下面的内容来自官方文档
The following Linux x86-64 kernels are supported:
Oracle Linux 7.4 with the Unbreakable Enterprise Kernel 4: 4.1.12-112.16.7.el7uek.x86_64 or later
Oracle Linux 7.4 with the Unbreakable Enterprise Kernel 5: 4.14.35-1818.1.6.el7uek.x86_64 or later
Oracle Linux 7.4 with the Red Hat Compatible kernel: 3.10.0-693.5.2.0.1.el7.x86_64 or later
Red Hat Enterprise Linux 7.4: 3.10.0-693.5.2.0.1.el7.x86_64 or laterSUSE Linux Enterprise Server 12 SP3: 4.4.103-92.56-default or later
Oracle Enterprise Linux6 和 RedHat Linux6 并没有出现在官方给的列表中。随着时间的推移，不只是要升级操作系统，还要升级数据库。要做好升级规划。要不后期就会有意想不到的问题。19c 也就是 12.2.0.3，是 12c 系列里面的终极版本，重在稳定！
一：Oracle19C 安装包下载
下载地址如下：
https://edelivery.oracle.com

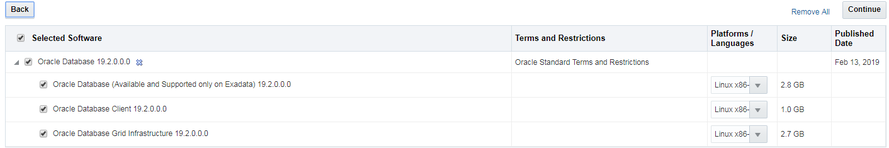

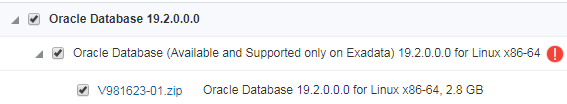

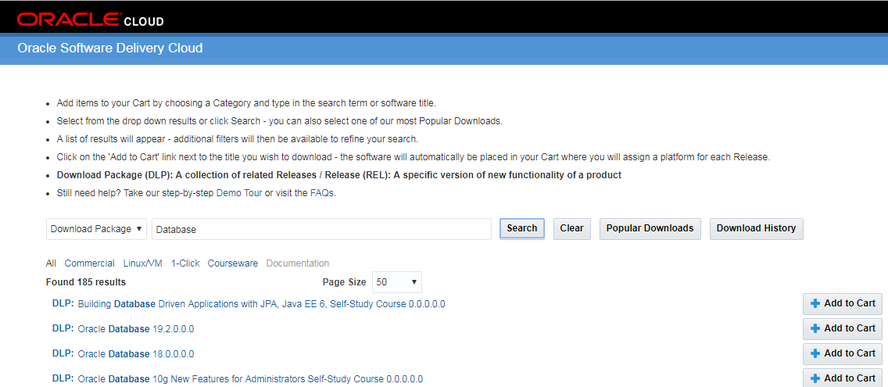

选择安装包

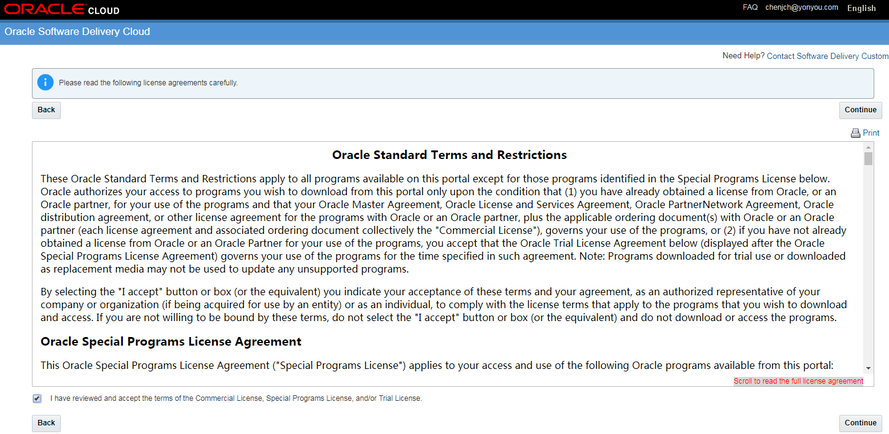

同意

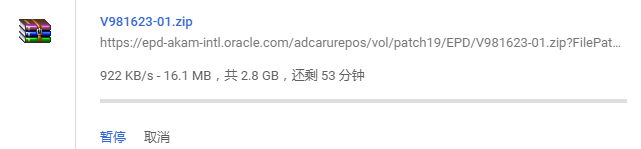

开始下载

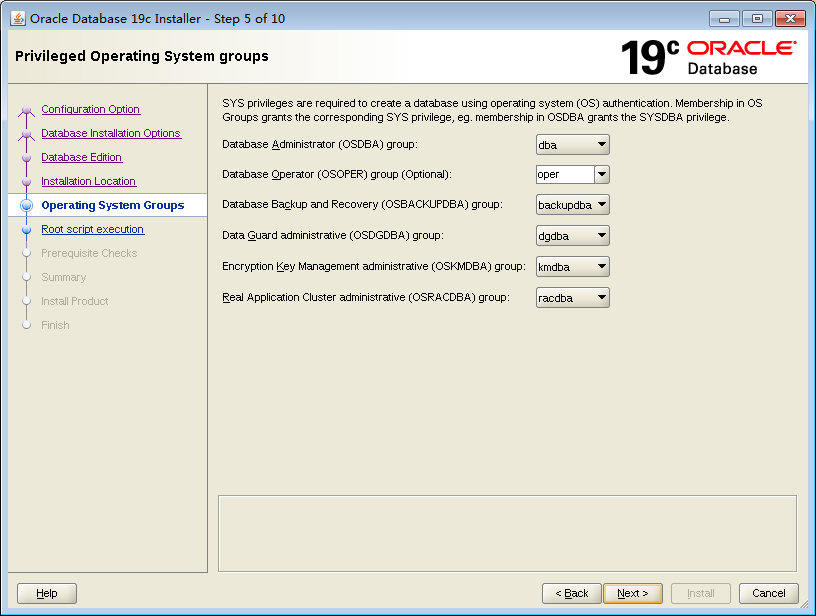

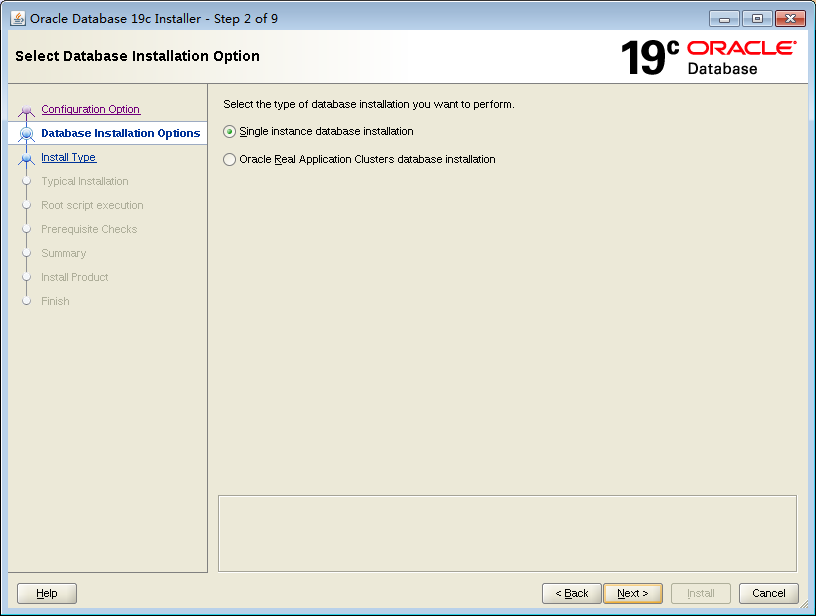

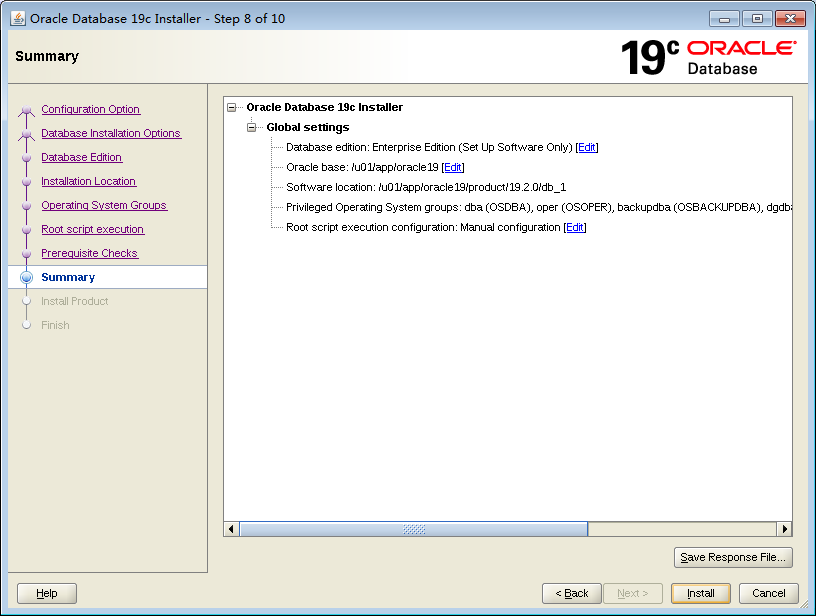

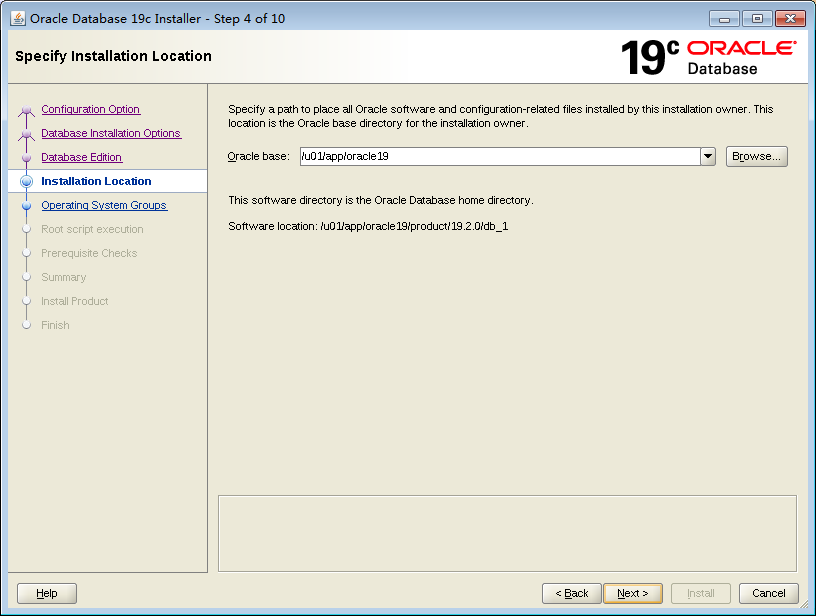

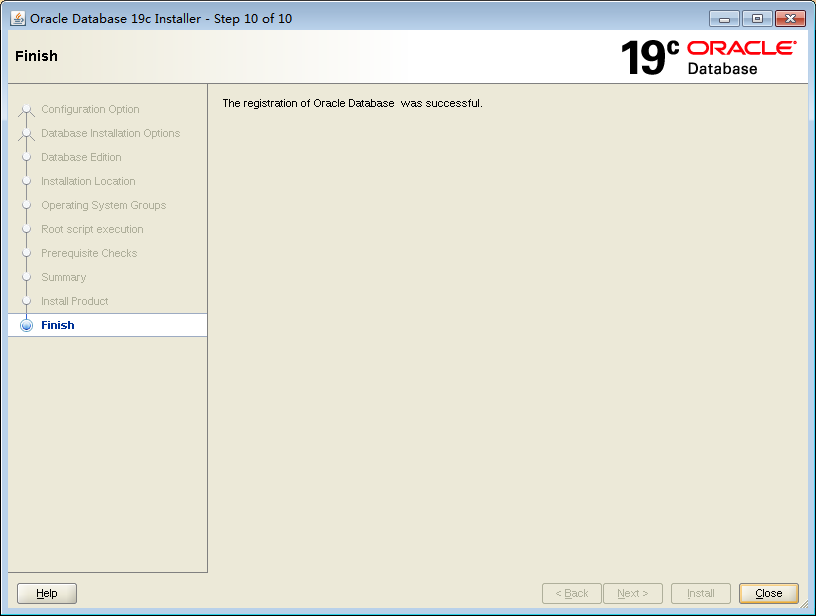

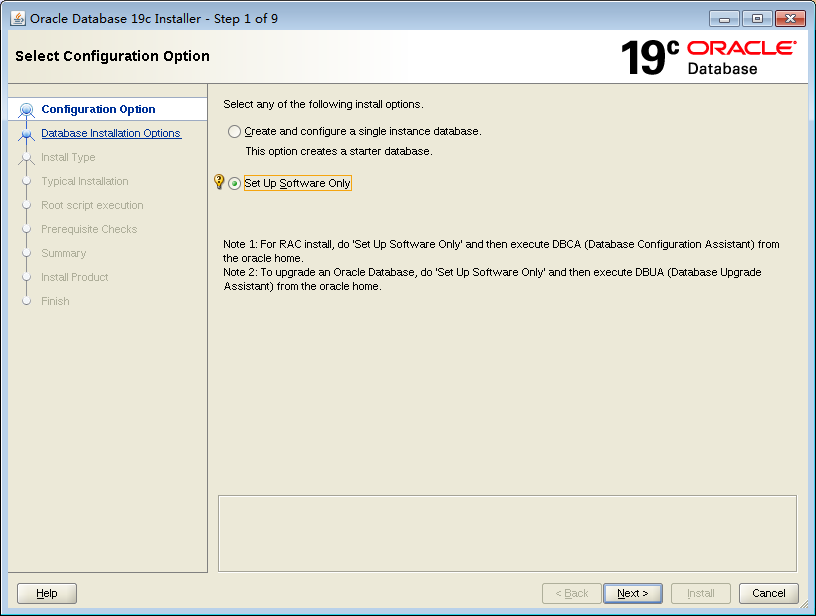

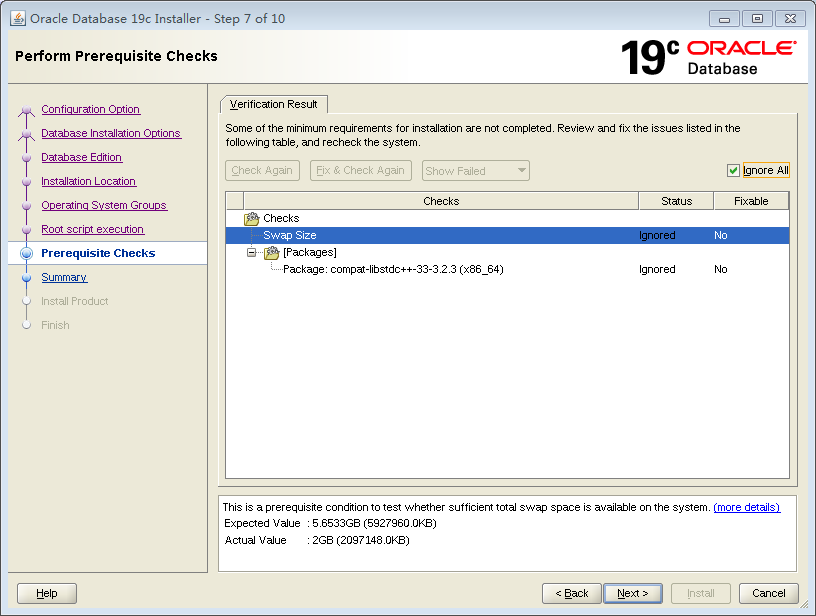

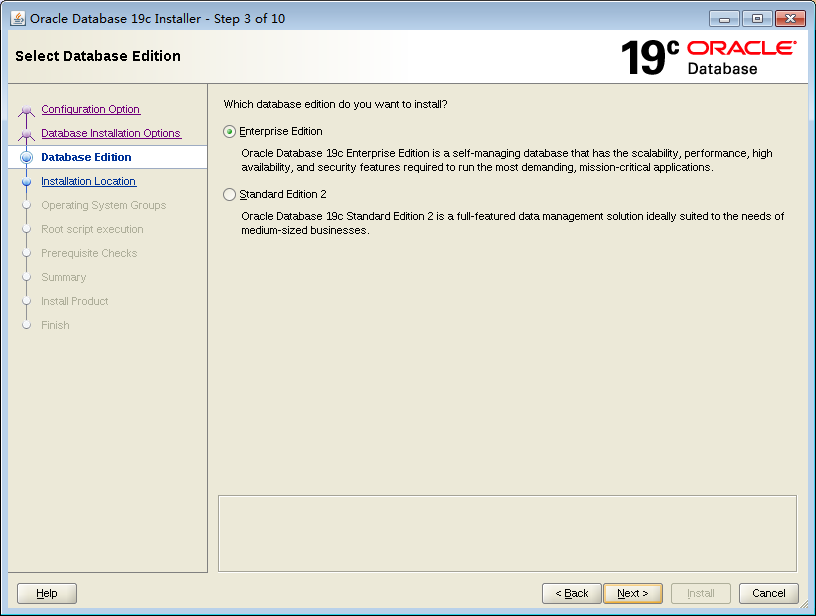

二：Oracle19C 图形化界面 安装
……

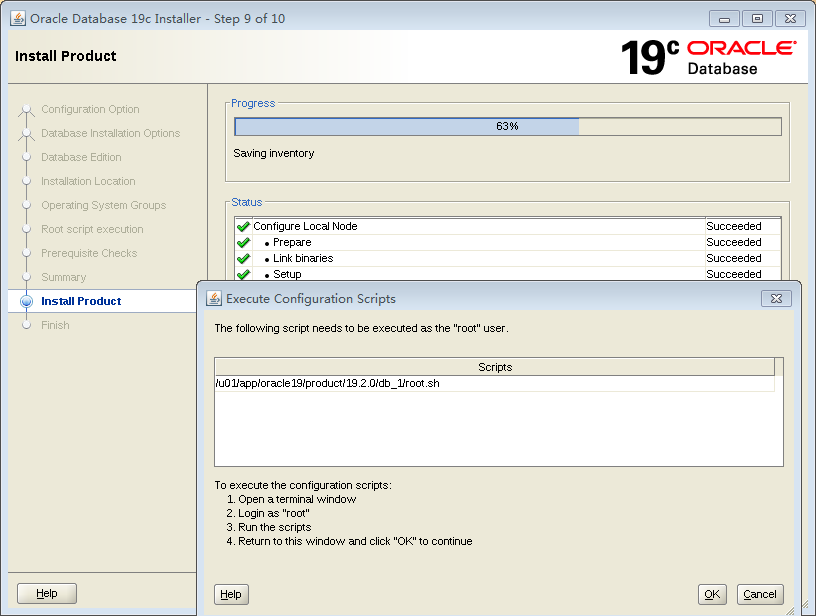

这里可以自动跑 root 脚本，不需要在单独跑 root 了
[root@oracle-server001 19]# /u01/app/oracle19/product/19.2.0/db_1/root.sh

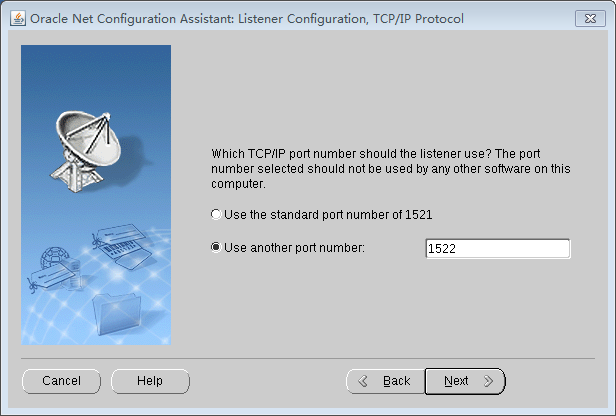

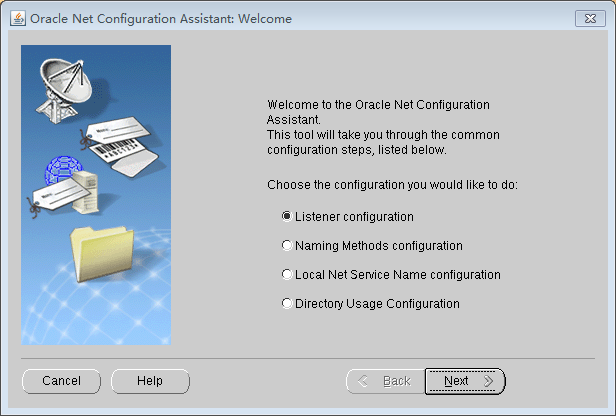

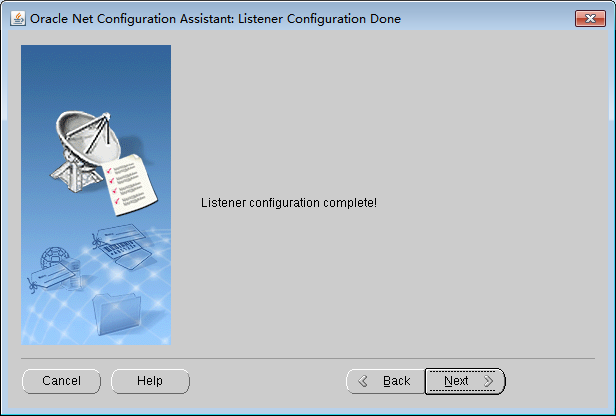

[oracle19@oracle-server001 db_1]$ netca

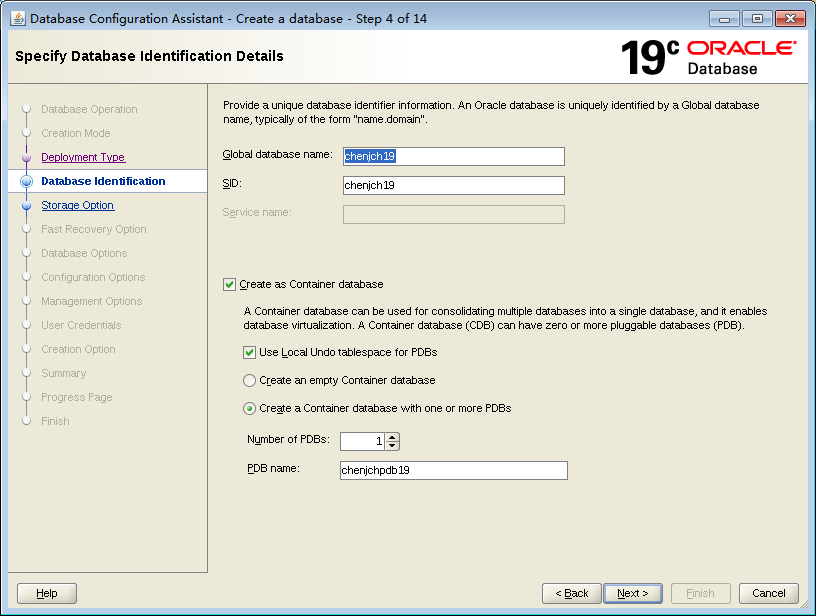

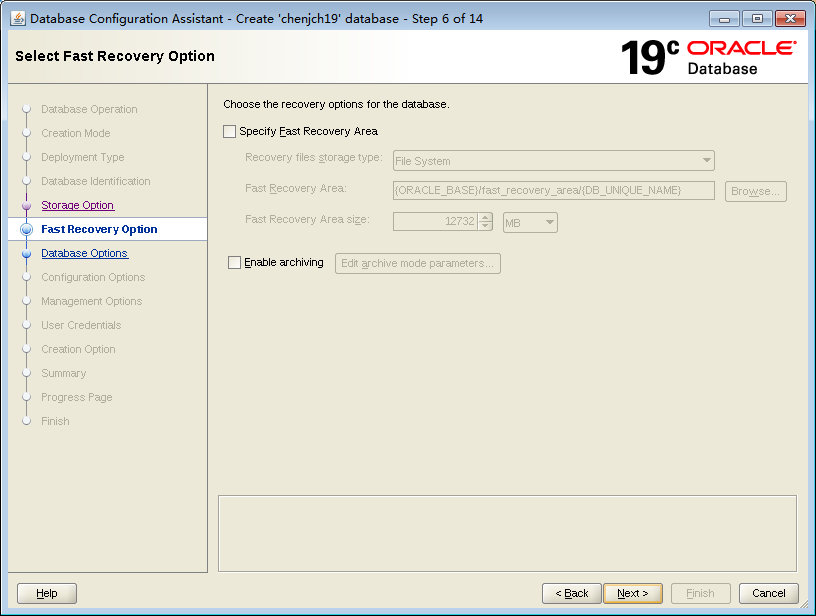

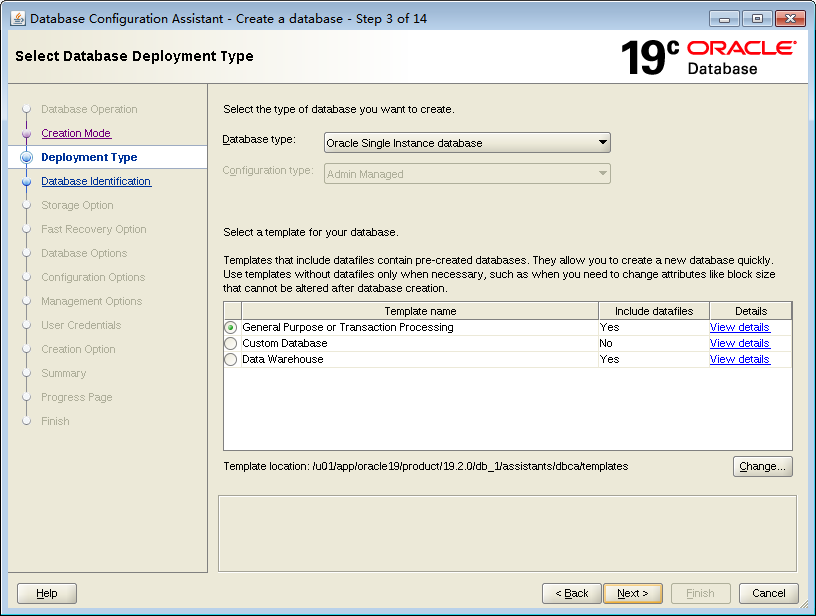

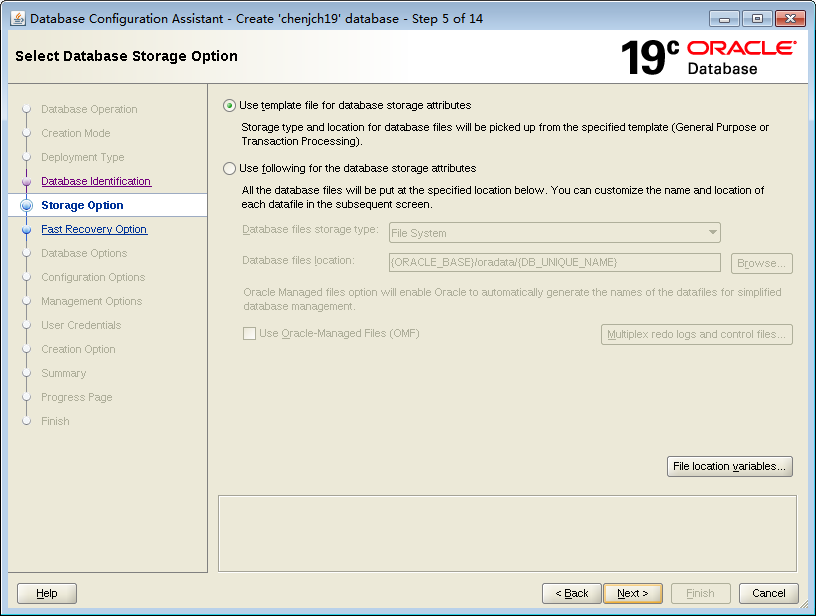

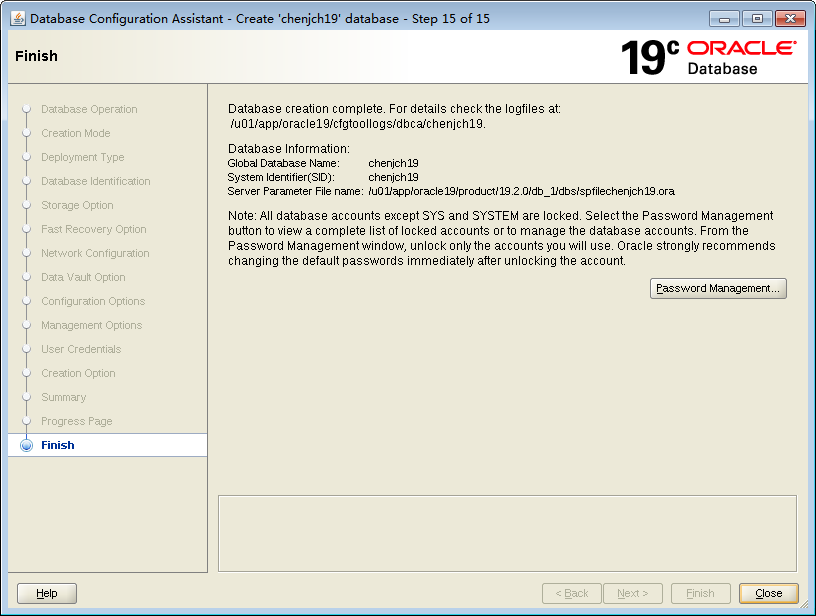

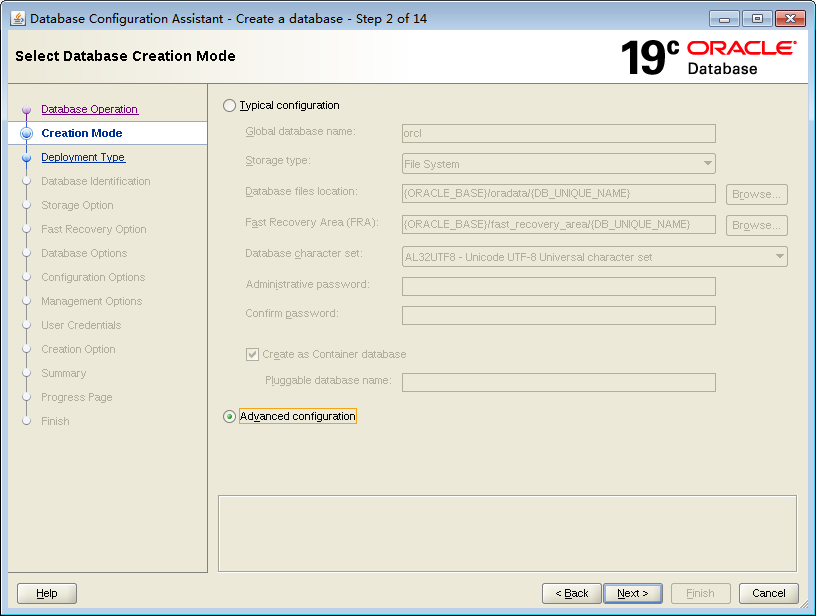

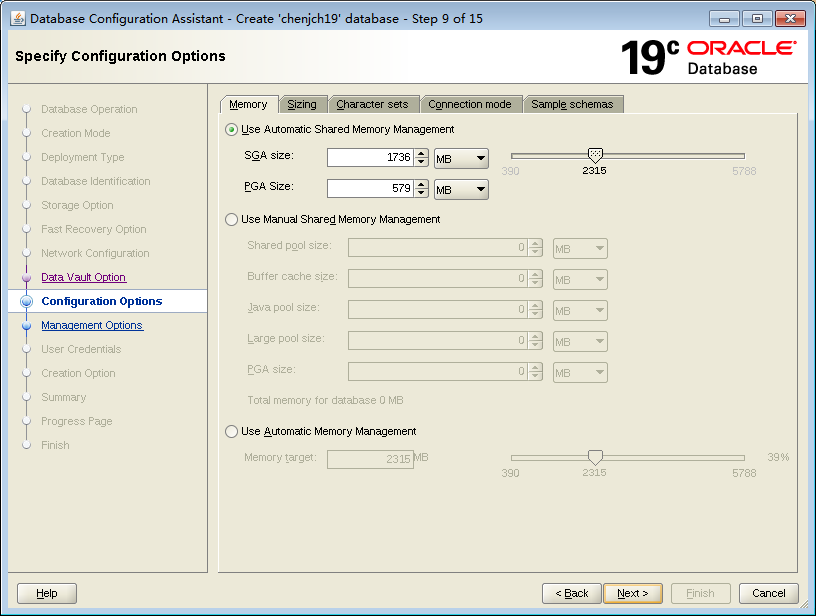

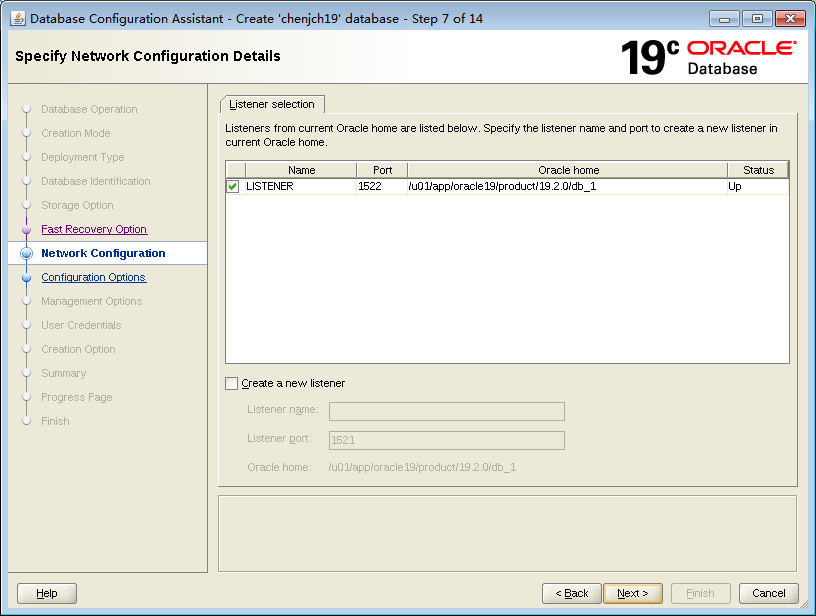

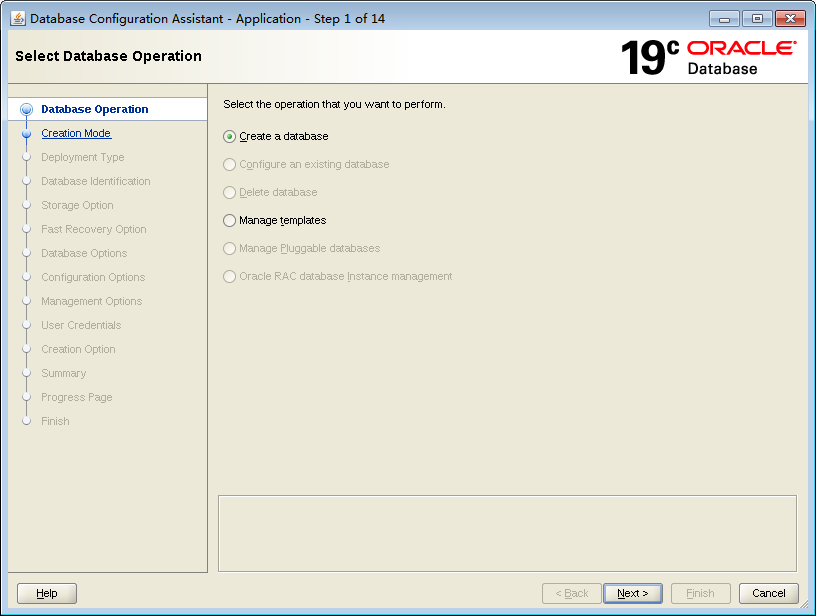

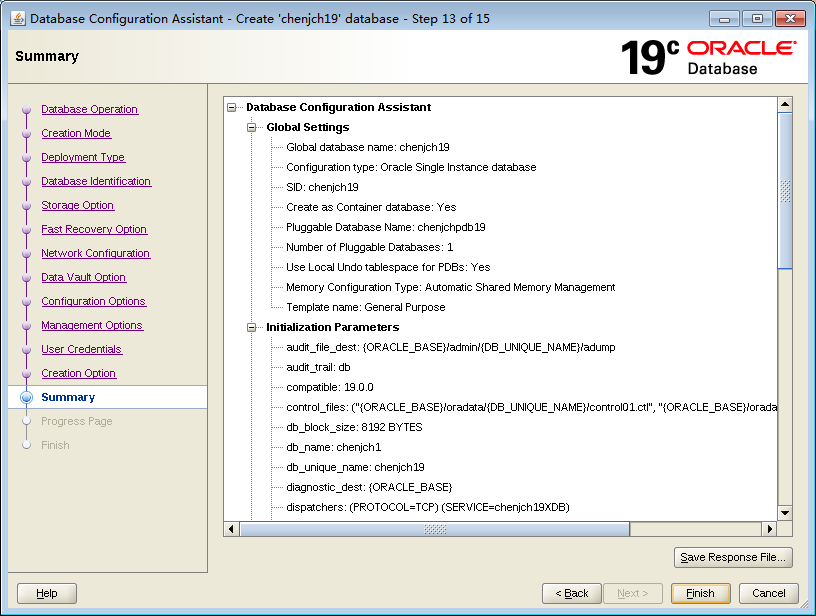

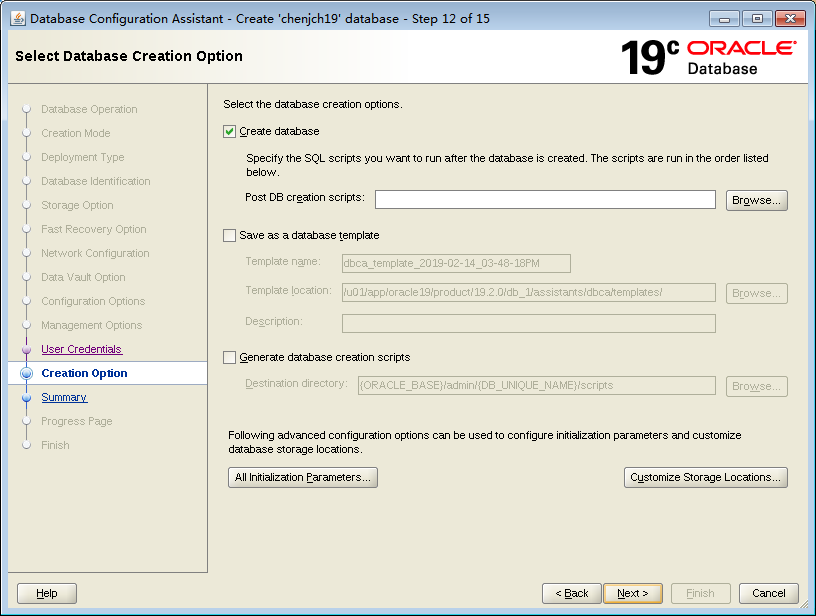

[oracle19@oracle-server001 db_1]$ dbca
静默部分
V981623-01 db 19.2.0.0.0.zip 安装包大概 2.82G，解压后有 6.5G，数据库软件安装完成后有 7G，创建完数据库后有 10G。
从 Oracle 18c 开始，在安装数据库软件时，需要把压缩文件解压到 $ORACLE_HOME 路径下，在此目录下运行 ./runInstaller

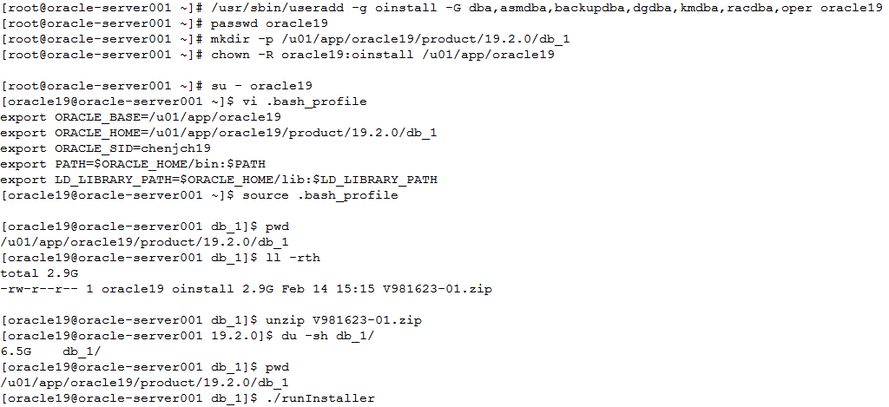

创建用户 oracle19：
/usr/sbin/useradd -g oinstall -G oper,dba,asmdba,backupdba,dgdba,kmdba,racdba oracle19
passwd oracle19
mkdir -p /u19/app/oracle/product/19.2.0/dbhome_1
mkdir -p /u19/app/oraInventory
chown -R oracle19:oinstall /u19/app
创建环境变量：
vi .bash_profile
umask 022
export ORACLE_SID=lhr19c
export ORACLE_BASE=/u19/app/oracle
export ORACLE_HOME=$ORACLE_BASE/product/19.2.0/dbhome_1
export LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib
export NLS_DATE_FORMAT=”YYYY-MM-DD HH24:MI:SS”
export TMP=/tmp
export TMPDIR=$TMP
export PATH=$ORACLE_HOME/bin:$ORACLE_HOME/OPatch:$PATH
export EDITOR=vi
export TNS_ADMIN=$ORACLE_HOME/network/admin
export ORACLE_PATH=.:$ORACLE_BASE/dba_scripts/sql:$ORACLE_HOME/rdbms/admin
export SQLPATH=$ORACLE_HOME/sqlplus/admin
#export NLS_LANG=”SIMPLIFIED CHINESE_CHINA.ZHS16GBK” –AL32UTF8 SELECT userenv(‘LANGUAGE’) db_NLS_LANG FROM DUAL;
export NLS_LANG=”AMERICAN_CHINA.ZHS16GBK”
alias sqlplus=’rlwrap sqlplus’
alias rman=’rlwrap rman’
alias asmcmd=’rlwrap asmcmd’
安装：
cd $ORACLE_HOME
unzip /V981623-01-db-19.2.0.0.0.zip
响应文件：$ORACLE_HOME/install/response/db_install.rsp
静默安装 19c：
— 静默安装 19c 数据库单机软件
/u19/app/oracle/product/19.2.0/dbhome_1/runInstaller -silent -force -noconfig -ignorePrereq \
oracle.install.responseFileVersion=/oracle/install/rspfmt_dbinstall_response_schema_v19.0.0 \
oracle.install.option=INSTALL_DB_SWONLY \
UNIX_GROUP_NAME=oinstall \
INVENTORY_LOCATION=/u19/app/oraInventory \
ORACLE_BASE=/u19/app/oracle \
ORACLE_HOME=/u19/app/oracle/product/19.2.0/dbhome_1 \
oracle.install.db.InstallEdition=EE \
oracle.install.db.OSDBA_GROUP=dba \
oracle.install.db.OSOPER_GROUP=oper \
oracle.install.db.OSBACKUPDBA_GROUP=backupdba \
oracle.install.db.OSDGDBA_GROUP=dgdba \
oracle.install.db.OSKMDBA_GROUP=kmdba \
oracle.install.db.OSRACDBA_GROUP=racdba \
oracle.install.db.rootconfig.executeRootScript=true \
oracle.install.db.rootconfig.configMethod=ROOT
静默方式创建 FS 存储方式的单实例（含一个 PDB）：
dbca -silent -createDatabase -templateName General_Purpose.dbc -responseFile NO_VALUE \
-gdbname lhr19c -sid lhr19c \
-createAsContainerDatabase TRUE \
-numberOfPDBs 1 \
-pdbName lhrpdb2 \
-pdbAdminPassword lhr \
-sysPassword lhr -systemPassword lhr \
-datafileDestination ‘/u01/app/oracle/oradata’ \
-recoveryAreaDestination ‘/u01/app/oracle/flash_recovery_area’ \
-redoLogFileSize 50 \
-storageType FS \
-characterset AL32UTF8 -nationalCharacterSet AL16UTF16 \
-sampleSchema true \
-totalMemory 2048 \
-databaseType OLTP \
-emConfiguration NONE
执行过程：
[oracle19@rac18c-n1 dbhome_1]$ /u01/u19/app/oracle/product/19.2.0/dbhome_1/runInstaller -silent -force -noconfig -ignorePrereq \
> oracle.install.responseFileVersion=/oracle/install/rspfmt_dbinstall_response_schema_v19.0.0 \
> oracle.install.option=INSTALL_DB_SWONLY \
> UNIX_GROUP_NAME=oinstall \
> INVENTORY_LOCATION=/u01/u19/app/oraInventory \
> ORACLE_BASE=/u01/u19/app/oracle \
> ORACLE_HOME=/u01/u19/app/oracle/product/19.2.0/dbhome_1 \
> oracle.install.db.InstallEdition=EE \
> oracle.install.db.OSDBA_GROUP=dba \
> oracle.install.db.OSOPER_GROUP=oper \
> oracle.install.db.OSBACKUPDBA_GROUP=backupdba \
> oracle.install.db.OSDGDBA_GROUP=dgdba \
> oracle.install.db.OSKMDBA_GROUP=kmdba \
> oracle.install.db.OSRACDBA_GROUP=racdba \
> oracle.install.db.rootconfig.executeRootScript=true \
> oracle.install.db.rootconfig.configMethod=ROOT
Launching Oracle Database Setup Wizard…
Enter password for ‘root’ user:
[WARNING] [INS-13014] Target environment does not meet some optional requirements.
CAUSE: Some of the optional prerequisites are not met. See logs for details. /u01/app/oraInventory/logs/InstallActions2019-03-06_01-06-54PM/installActions2019-03-06_01-06-54PM.log
ACTION: Identify the list of failed prerequisite checks from the log: /u01/app/oraInventory/logs/InstallActions2019-03-06_01-06-54PM/installActions2019-03-06_01-06-54PM.log. Then either from the log file or from installation manual find the appropriate configuration to meet the prerequisites and fix it manually.
The response file for this session can be found at:
/u01/u19/app/oracle/product/19.2.0/dbhome_1/install/response/db_2019-03-06_01-06-54PM.rsp
You can find the log of this install session at:
/u01/app/oraInventory/logs/InstallActions2019-03-06_01-06-54PM/installActions2019-03-06_01-06-54PM.log
Successfully Setup Software with warning(s).
[oracle19@rac18c-n1 dbhome_1]$ dbca -silent -createDatabase -templateName General_Purpose.dbc -responseFile NO_VALUE \
> -gdbname lhr19c -sid lhr19c \
> -createAsContainerDatabase TRUE \
> -numberOfPDBs 1 \
> -pdbName pdb2 \
> -pdbAdminPassword lhr \
> -sysPassword lhr -systemPassword lhr \
> -datafileDestination ‘/u01/app/oracle/oradata’ \
> -recoveryAreaDestination ‘/u01/app/oracle/flash_recovery_area’ \
> -redoLogFileSize 50 \
> -storageType FS \
> -characterset AL32UTF8 -nationalCharacterSet AL16UTF16 \
> -sampleSchema true \
> -totalMemory 2048 \
> -databaseType OLTP \
> -emConfiguration NONE
[WARNING] [DBT-06208] The ‘SYS’ password entered does not conform to the Oracle recommended standards.
CAUSE:
a. Oracle recommends that the password entered should be at least 8 characters in length, contain at least 1 uppercase character, 1 lower case character and 1 digit [0-9].
b.The password entered is a keyword that Oracle does not recommend to be used as password
ACTION: Specify a strong password. If required refer Oracle documentation for guidelines.
[WARNING] [DBT-06208] The ‘SYSTEM’ password entered does not conform to the Oracle recommended standards.
CAUSE:
a. Oracle recommends that the password entered should be at least 8 characters in length, contain at least 1 uppercase character, 1 lower case character and 1 digit [0-9].
b.The password entered is a keyword that Oracle does not recommend to be used as password
ACTION: Specify a strong password. If required refer Oracle documentation for guidelines.
[WARNING] [DBT-06208] The ‘PDBADMIN’ password entered does not conform to the Oracle recommended standards.
CAUSE:
a. Oracle recommends that the password entered should be at least 8 characters in length, contain at least 1 uppercase character, 1 lower case character and 1 digit [0-9].
b.The password entered is a keyword that Oracle does not recommend to be used as password
ACTION: Specify a strong password. If required refer Oracle documentation for guidelines.
Prepare for db operation
8% complete
Copying database files
31% complete
Creating and starting Oracle instance
32% complete
36% complete
40% complete
43% complete
46% complete
Completing Database Creation
51% complete
53% complete
54% complete
Creating Pluggable Databases
58% complete
77% complete
Executing Post Configuration Actions
100% complete
Database creation complete. For details check the logfiles at:
/u01/u19/app/oracle/cfgtoollogs/dbca/lhr19c.
Database Information:
Global Database Name:lhr19c
System Identifier(SID):lhr19c
Look at the log file “/u01/u19/app/oracle/cfgtoollogs/dbca/lhr19c/lhr19c1.log” for further details.
据说，19c 可以这样连接数据库：
[oracle19@rac18c-n1 bin]$ sqlplus system/lhr@192.168.20.10:1521,192.168.20.12:1521/lhr19c?connect_timeout=60
SQL*Plus: Release 19.0.0.0.0 – Production on Wed Mar 6 13:56:20 2019
Version 19.2.0.0.0
Copyright (c) 1982, 2018, Oracle. All rights reserved.
Last Successful login time: Wed Mar 06 2019 13:56:05 +08:00
Connected to:
Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 – Production
Version 19.2.0.0.0
SQL>
SQL>
SQL>
SQL>
SQL> col BANNER_FULL format a80
SQL> select BANNER_FULL,CON_ID from v$version;
BANNER_FULL CON_ID
——————————————————————————– ———-
Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 – Production 0
Version 19.2.0.0.0
——————————————————————————–
——————————————————————————–
1、测试可以在 CentOS 7.3 环境上安装，但是在 RHEL6.5 上不能安装
2、在安装过程中可以设置 root.sh 脚本自动执行
Oracle 19c（19.3）可以在 OTN 网站（https://www.oracle.com/technetwork/database/enterprise-edition/downloads/oracle19c-linux-5462157.html）下载了，也可以去 Oracle 的云下载地址（https://edelivery.oracle.com）进行下载。本文是基于 19.2 版本的。
