Oracle 11g OCM备考之创建EM与EM登陆异常的处理

175次阅读
没有评论

共计 9939 个字符,预计需要花费 25 分钟才能阅读完成。

在 Oracle 11g OCM 考试中,有 EM 监控的创建管理,有意思的是,在创建过程中没有报错提示,但是创建完成后,从 web 端登陆的时候一直提示无效的用户名和密码,仔细排查发现创建的时候需要解锁 sysman、DBSNMP  账号并修改密码,否则 EM 创建完成后无法正常登陆。

创建 EM 监控的过程:

[oracle@enmoedu1 ~]$ emca -config dbcontrol db

STARTED EMCA at May 22, 2019 5:39:31 PM

EM Configuration Assistant, Version 11.2.0.3.0 Production

Copyright (c) 2003, 2011, Oracle.  All rights reserved.

Enter the following information:

Database SID: PROD1

Listener port number: 1521

Listener ORACLE_HOME [/u01/app/oracle/product/11.2.0/dbhome_1]:

Password for SYS user:

Password for DBSNMP user:

Password for SYSMAN user:

Email address for notifications (optional):

Outgoing Mail (SMTP) server for notifications (optional):

—————————————————————–

You have specified the following settings

Database ORACLE_HOME ……………. /u01/app/oracle/product/11.2.0/dbhome_1

Local hostname ……………. enmoedu1.example.com

Listener ORACLE_HOME ……………. /u01/app/oracle/product/11.2.0/dbhome_1

Listener port number ……………. 1521

Database SID ……………. PROD1

Email address for notifications ……………

Outgoing Mail (SMTP) server for notifications ……………

—————————————————————–

———————————————————————-

WARNING : While repository is dropped the database will be put in quiesce mode.

———————————————————————-

Do you wish to continue? [yes(Y)/no(N)]: y

May 22, 2019 5:39:50 PM oracle.sysman.emcp.EMConfig perform

INFO: This operation is being logged at /u01/app/oracle/cfgtoollogs/emca/PROD1/emca_2019_05_22_17_39_31.log.

May 22, 2019 5:39:51 PM oracle.sysman.emcp.EMReposConfig invoke

INFO: Dropping the EM repository (this may take a while) …

May 22, 2019 5:42:46 PM oracle.sysman.emcp.EMReposConfig invoke

INFO: Repository successfully dropped

May 22, 2019 5:42:48 PM oracle.sysman.emcp.EMReposConfig createRepository

INFO: Creating the EM repository (this may take a while) …

May 22, 2019 5:52:01 PM oracle.sysman.emcp.EMReposConfig invoke

INFO: Repository successfully created

May 22, 2019 5:52:14 PM oracle.sysman.emcp.EMReposConfig uploadConfigDataToRepository

INFO: Uploading configuration data to EM repository (this may take a while) …

May 22, 2019 5:52:57 PM oracle.sysman.emcp.EMReposConfig invoke

INFO: Uploaded configuration data successfully

May 22, 2019 5:53:00 PM oracle.sysman.emcp.util.DBControlUtil secureDBConsole

INFO: Securing Database Control (this may take a while) …

May 22, 2019 5:53:07 PM oracle.sysman.emcp.util.DBControlUtil secureDBConsole

INFO: Database Control secured successfully.

May 22, 2019 5:53:07 PM oracle.sysman.emcp.util.DBControlUtil startOMS

INFO: Starting Database Control (this may take a while) …

May 22, 2019 5:53:41 PM oracle.sysman.emcp.EMDBPostConfig performConfiguration

INFO: Database Control started successfully

May 22, 2019 5:53:41 PM oracle.sysman.emcp.EMDBPostConfig performConfiguration

INFO: >>>>>>>>>>> The Database Control URL is https://enmoedu1.example.com:1158/em <<<<<<<<<<<

May 22, 2019 5:53:43 PM oracle.sysman.emcp.EMDBPostConfig invoke

WARNING:

************************  WARNING  ************************

Management Repository has been placed in secure mode wherein Enterprise Manager data will be encrypted.  The encryption key has been placed in the file: /u01/app/oracle/product/11.2.0/dbhome_1/enmoedu1.example.com_PROD1/sysman/config/emkey.ora. Ensure this file is backed up as the encrypted data will become unusable if this file is lost.

***********************************************************

Enterprise Manager configuration completed successfully

FINISHED EMCA at May 22, 2019 5:53:43 PM

[oracle@enmoedu1 ~]$

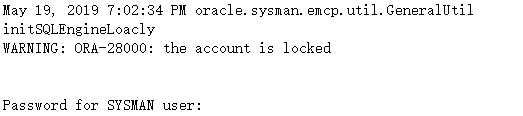

    如果没有解锁和修改 SYSMAN 的密码会有提示:

Oracle 11g OCM 备考之创建 EM 与 EM 登陆异常的处理

    如果忽略 sysman 的账号解锁和密码修改,EM 创建完成后将无法登陆,细心的网友会发现没有 sys 角色的选项:

Oracle 11g OCM 备考之创建 EM 与 EM 登陆异常的处理

    问题处理方法:

    根据 EM 创建完成的提示,EM 的配置文件

在:/u01/app/oracle/product/11.2.0/dbhome_1/enmoedu1.example.com_PROD1/sysman/config/

    首先,停止当前的 EM dbconsole,否则,修改无效;如果先修改 sysman 账户,再停 EM,sysman 会再次被锁:

[oracle@enmoedu1 config]$ sqlplus / as sysdba

SQL*Plus: Release 11.2.0.3.0 Production on Thu May 23 08:29:38 2019

Copyright (c) 1982, 2011, Oracle.  All rights reserved.

Connected to:

Oracle Database 11g Enterprise Edition Release 11.2.0.3.0 – Production

With the Partitioning, OLAP, Data Mining and Real Application Testing options

SQL> alter user sysman account unlock;

User altered.

SQL> quit

Disconnected from Oracle Database 11g Enterprise Edition Release 11.2.0.3.0 – Production

With the Partitioning, OLAP, Data Mining and Real Application Testing options



[oracle@enmoedu1 config]$ sqlplus sysman/oracle@PROD1

SQL*Plus: Release 11.2.0.3.0 Production on Thu May 23 08:34:59 2019

Copyright (c) 1982, 2011, Oracle.  All rights reserved.

Connected to:

Oracle Database 11g Enterprise Edition Release 11.2.0.3.0 – Production

With the Partitioning, OLAP, Data Mining and Real Application Testing options

SQL> quit

Disconnected from Oracle Database 11g Enterprise Edition Release 11.2.0.3.0 – Production

With the Partitioning, OLAP, Data Mining and Real Application Testing options

[oracle@enmoedu1 config]$

[oracle@enmoedu1 config]$ emctl stop dbconsole

Oracle Enterprise Manager 11g Database Control Release 11.2.0.3.0

Copyright (c) 1996, 2011 Oracle Corporation.  All rights reserved.

https://enmoedu1.example.com:1158/em/console/aboutApplication

Stopping Oracle Enterprise Manager 11g Database Control …

 …  Stopped.

[oracle@enmoedu1 config]$

[oracle@enmoedu1 config]$ sqlplus sysman/oracle@PROD1

SQL*Plus: Release 11.2.0.3.0 Production on Thu May 23 08:35:41 2019

Copyright (c) 1982, 2011, Oracle.  All rights reserved.

ERROR:

ORA-28000: the account is locked

Enter user-name:

ERROR:

ORA-01017: invalid username/password; logon denied

Enter user-name:

ERROR:

ORA-01017: invalid username/password; logon denied

SP2-0157: unable to CONNECT to ORACLE after 3 attempts, exiting SQL*Plus

[oracle@enmoedu1 config]$

现在应该清楚,sysman 账户被锁是因为 EM 启动和关闭,重试密码次数过多导致的。

    正确重置 EM 账号 SYSMAN 的密码步骤:

1、关闭 em dbconsole

[oracle@enmoedu1 config]$ emctl stop dbconsole

Oracle Enterprise Manager 11g Database Control Release 11.2.0.3.0

Copyright (c) 1996, 2011 Oracle Corporation.  All rights reserved.

https://enmoedu1.example.com:1158/em/console/aboutApplication

Stopping Oracle Enterprise Manager 11g Database Control …

 …  Stopped.

[oracle@enmoedu1 config]$

2、解锁 sysman 账号,修改 sysman 密码

[oracle@enmoedu1 config]$ sqlplus / as sysdba

SQL*Plus: Release 11.2.0.3.0 Production on Thu May 23 08:29:38 2019

Copyright (c) 1982, 2011, Oracle.  All rights reserved.

Connected to:

Oracle Database 11g Enterprise Edition Release 11.2.0.3.0 – Production

With the Partitioning, OLAP, Data Mining and Real Application Testing options



SQL> alter user sysman identified by oracle;

User altered.

SQL>

SQL> alter user sysman account unlock;

User altered.

SQL> quit

3、修改 EM 配置文件中 SYSMAN 账号的密码信息:

[oracle@enmoedu1 config]$ pwd

/u01/app/oracle/product/11.2.0/dbhome_1/enmoedu1.example.com_PROD1/sysman/config

[oracle@enmoedu1 config]$ ll

total 124

-rw-r—– 1 oracle oinstall 11348 May 22 17:53 b64InternetCertificate.txt

-rw-r—– 1 oracle oinstall  1456 May 22 17:53 b64LocalCertificate.txt

-rw-r—– 1 oracle oinstall   233 May 22 17:53 classpath.lst

-rw-r—– 1 oracle oinstall  2041 May 22 17:53 emagentlogging.properties

-rw-r—– 1 oracle oinstall 28782 May 22 17:53 emd.properties

-rw-r–r– 1 oracle oinstall 28764 May 22 17:53 emd.properties.tzbak

-rw-r—– 1 oracle oinstall   166 May 22 17:53 emkey.ora

-rw-r—– 1 oracle oinstall  5103 May 22 17:53 emomsintg.xml

-rw-r—– 1 oracle oinstall  1410 May 22 17:53 emomslogging.properties

-rw-r–r– 1 oracle oinstall  1802 May 23 08:36 emoms.properties

drwxr—– 2 oracle oinstall  4096 May 22 17:53 monwallet

-rw-r—– 1 oracle oinstall  4986 May 22 17:53 OUIinventories.add

drwxr—– 2 oracle oinstall  4096 May 22 17:53 server

[oracle@enmoedu1 config]$ cat emoms.properties

#Thu May 23 08:36:05 CST 2019

oracle.sysman.emSDK.svlt.ConsoleServerName=enmoedu1.example.com\:1158_Management_Service

oracle.sysman.eml.mntr.emdRepPwd=oracle

emdrep.ping.pingCommand=/bin/ping -c 3 -w 30 <hostname>

em_oob_shutdown=false

LargeRepository=false

oracle.sysman.eml.mntr.emdRepPort=1521

oracle.sysman.eml.mntr.emdRepDBName=PROD1

EMD_URL=https\://enmoedu1.example.com\:3938/emd/main

em_email_address=%EM_EMAIL_ADDRESS%

oracle.sysman.eml.mntr.emdRepPwdSeed=7699394498072357303

oracle.sysman.emSDK.svlt.ConsoleMode=standalone

em_oob_crash=false

em.oms.dumpModules=omsThread,repos

oracle.sysman.emRep.dbConn.statementCacheSize=50

oracle.sysman.db.isqlplusUrl=http\://enmoedu1.example.com\:/isqlplus/dynamic

em_oob_startup=false

oracle.sysman.emSDK.svlt.ConsoleServerPort=1158

oracle.sysman.eml.mntr.emdRepRAC=FALSE

em_from_email_address=%EM_FROM_EMAIL_ADDRESS%

oracle.sysman.eml.mntr.emdRepPwdEncrypted=FALSE

oracle.sysman.db.isqlplusWebDBAUrl=http\://enmoedu1.example.com\:/isqlplus/dba/dynamic

oracle.sysman.emSDK.svlt.ConsoleServerHost=enmoedu1.example.com

oracle.sysman.eml.mntr.emdRepDBID=2082231315

oracle.sysman.emSDK.svlt.ConsoleServerHTTPSPort=1158

em_email_gateway=%EM_EMAIL_GATEWAY%

oracle.sysman.eml.mntr.emdRepServer=enmoedu1.example.com

oracle.sysman.eml.mntr.emdRepSID=PROD1

oracle.sysman.eml.mntr.emdRepConnectDescriptor=(DESCRIPTION\=(ADDRESS_LIST\=(ADDRESS\=(PROTOCOL\=TCP)(HOST\=enmoedu1.example.com)(PORT\=1521)))(CONNECT_DATA\=(SERVICE_NAME\=PROD1)))

oracle.sysman.emSDK.sec.ReuseLogonPassword=true

em.security.xsrf_check_enabled=false

oracle.sysman.emkeyfile=/u01/app/oracle/product/11.2.0/dbhome_1/enmoedu1.example.com_PROD1/sysman/config/emkey.ora

em.ip.ui.enable=true

oracle.sysman.eml.mntr.emdRepUser=SYSMAN

oracle.sysman.emSDK.svlt.PublicServletEnabled=true

[oracle@enmoedu1 config]$

4、重新启动 EM dbconsole [oracle@enmoedu1 config]$ emctl start dbconsole

Oracle Enterprise Manager 11g Database Control Release 11.2.0.3.0

Copyright (c) 1996, 2011 Oracle Corporation.  All rights reserved.

https://enmoedu1.example.com:1158/em/console/aboutApplication

Starting Oracle Enterprise Manager 11g Database Control …. started.

——————————————————————

Logs are generated in directory /u01/app/oracle/product/11.2.0/dbhome_1/enmoedu1.example.com_PROD1/sysman/log

[oracle@enmoedu1 config]$

5、测试 sysman 是否被锁 [oracle@enmoedu1 config]$ sqlplus sysman/oracle@PROD1

SQL*Plus: Release 11.2.0.3.0 Production on Thu May 23 08:35:28 2019

Copyright (c) 1982, 2011, Oracle.  All rights reserved.

Connected to:

Oracle Database 11g Enterprise Edition Release 11.2.0.3.0 – Production

With the Partitioning, OLAP, Data Mining and Real Application Testing options

SQL> quit

Disconnected from Oracle Database 11g Enterprise Edition Release 11.2.0.3.0 – Production

With the Partitioning, OLAP, Data Mining and Real Application Testing options

[oracle@enmoedu1 config]$

6、EM 登陆测试,细心的网友会发现有 sys 角色的登陆可选项了

Oracle 11g OCM 备考之创建 EM 与 EM 登陆异常的处理

Oracle 11g OCM 备考之创建 EM 与 EM 登陆异常的处理

EM 登陆成功!

更多 Oracle 相关信息见 Oracle 专题页面 https://www.linuxidc.com/topicnews.aspx?tid=12
