SpringMVC异常处理

共计 11776 个字符，预计需要花费 30 分钟才能阅读完成。

1、springMVC 异常处理概述

1.1、springMVC 中的异常

在程序开发中，不管是那层的业务，都会不可避免的出现异常处理。如果每层单独处理异常，那么系统的代码的耦合度就会提高。而且工作量也会加大，不好处理。

而 springMVC 将所有类型的异常从各层解耦出来，进行异常的统一处理和维护。

springMVC 异常处理有三种：

简单异常处理器 SimpleMappingExceptionResolver。

异常处理接口 HandlerExceptionResolver 自定义自己的异常处理器。

@ExceptionHandler 注解实现异常处理。

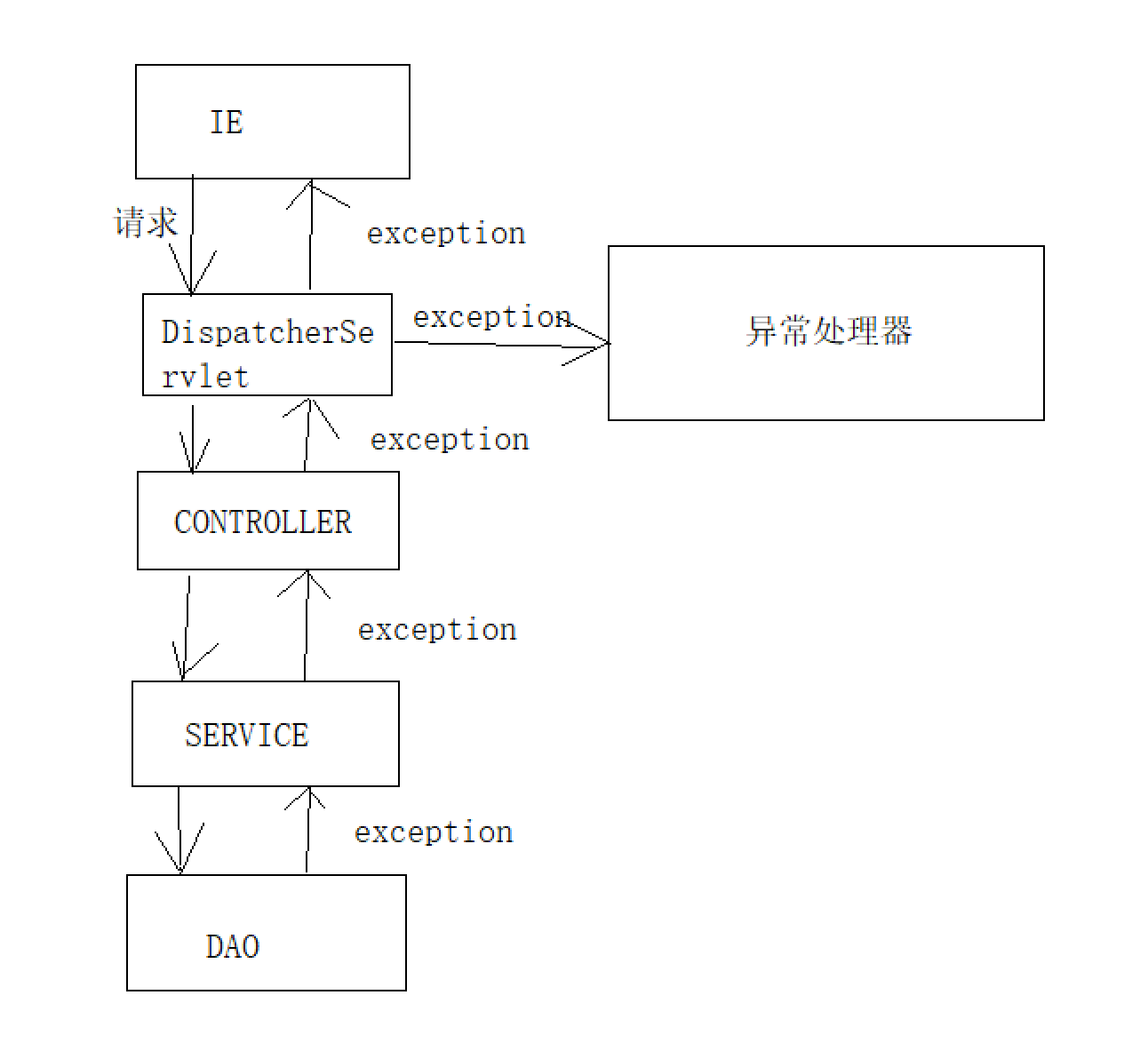

1.2、异常处理结构图

1.3、异常处理前的准备

1.3.1、需求

完成 springMVC 异常处理，创建三层架构（dao\service\view）

1.3.2、创建新项目

创建一个 maven 项目 smvc005

1.3.3、导入 jar 包

pom.xml

 <properties>
    <spring.version>5.2.2.RELEASE</spring.version>
  </properties>
  <dependencies>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-web</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-webmvc</artifactId>
      <version>${spring.version}</version>
    </dependency>
  </dependencies>

1.3.4、配置 web.xml

web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app
        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
        xmlns="http://xmlns.jcp.org/xml/ns/javaee"
        xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee
        http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
        id="WebApp_ID" version="3.1">
  <display-name>Archetype Created Web Application</display-name>
  <!-- 配置 SpringMVC 核心, 前置控制器 DispatcherServlet -->
  <servlet>
    <servlet-name>SpringMVCDispathcherServlet</servlet-name>
    <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
    <!-- 配置初始化参数，用来读取 springmvc.xml 文件 -->
    <init-param>
      <param-name>contextConfigLocation</param-name>
      <param-value>/WEB-INF/springmvc.xml</param-value>
    </init-param>
    <!-- 配置 servlet 的对象的创建时间点：应用加载时创建。取值只能是非 0 正整数，表示启动顺序 -->
    <load-on-startup>1</load-on-startup>
  </servlet>
  <!-- 前置控制器，映射所有地址 -->
  <servlet-mapping>
    <servlet-name>SpringMVCDispathcherServlet</servlet-name>
    <url-pattern>/</url-pattern>
  </servlet-mapping>
</web-app>

1.3.5、配置 springmvc.xml

springmvc.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
       http://www.springframework.org/schema/context/spring-context.xsd">
    <!-- 配置扫描器，扫描注解 -->
    <context:component-scan base-package="com.tyschool.smvc004"></context:component-scan>
    <!-- 配置视图解析器，配置前缀和后缀 -->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/pages/"></property>
        <property name="suffix" value=".jsp"></property>
    </bean>
</beans>

1.3.6、启动服务

http://localhost:8080/smvc004/index.jsp

2、配置各层异常

2.1、自定义异常类

DemoException.java

public class DemoException extends Exception {public DemoException(){}
    public DemoException(String message){super(message);
    }
}

2.2、dao 层

ExceptionDao.java

package com.tyschool.smvc004.dao;

import com.tyschool.smvc004.utils.DemoException;
import org.springframework.stereotype.Repository;

import java.sql.SQLException;

@Repository("exceptionDao")
public class ExceptionDao {public void dbDao() throws Exception{throw new SQLException("数据库异常 -dao");
    }
    public void myDao() throws Exception{throw new DemoException("自定义异常 -dao");
    }
    public void noDao() throws Exception{throw new SQLException("未知异常 -dao");
    }
}

2.3、service 层

IExceptionService.java

public interface IExceptionService {public void myService()throws Exception;
    public void dbService()throws Exception;
    public void noService()throws Exception;
    public void myDao()throws Exception;
    public void dbDao()throws Exception;
    public void noDao()throws Exception;
}

ExceptionServiceImpl.java

import com.tyschool.smvc004.dao.ExceptionDao;
import com.tyschool.smvc004.service.IExceptionService;
import com.tyschool.smvc004.utils.DemoException;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import java.sql.SQLException;

@Service("exceptionServiceImpl")
public class ExceptionServiceImpl implements IExceptionService {@Autowired
    private ExceptionDao exceptionDao;

    @Override
    public void myService() throws Exception {throw new DemoException("自定义异常 -Service");
    }

    @Override
    public void dbService() throws Exception {throw new SQLException("数据库异常 -Service");
    }

    @Override
    public void noService() throws Exception {throw new SQLException("未知异常 -Service");
    }

    @Override
    public void myDao() throws Exception {exceptionDao.myDao();
    }

    @Override
    public void dbDao() throws Exception {exceptionDao.dbDao();
    }

    @Override
    public void noDao() throws Exception {exceptionDao.noDao();
    }
}

2.4、控制器 controller

ExceptionController.java

import com.tyschool.smvc004.service.IExceptionService;
import com.tyschool.smvc004.utils.DemoException;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import java.sql.SQLException;

@Controller("exceptionController")
public class ExceptionController {@Autowired
    @Qualifier("exceptionServiceImpl")
    private IExceptionService exceptionService;

    @RequestMapping("/db")
    public void db() throws Exception{throw new SQLException("数据库异常 -Controller");
    }
    @RequestMapping("/my")
    public void my() throws Exception{throw new DemoException("自定义异常 -Controller");
    }
    @RequestMapping("/no")
    public void no() throws Exception{throw new SQLException("未知异常 -Controller");
    }

    @RequestMapping("/dbS")
    public void dbService() throws Exception{exceptionService.dbService();
    }
    @RequestMapping("/myS")
    public void myService() throws Exception{exceptionService.myService();
    }
    @RequestMapping("/noS")
    public void noServcie() throws Exception{exceptionService.noService();
    }

    @RequestMapping("/dbD")
    public void dbDao() throws Exception{exceptionService.dbDao();
    }
    @RequestMapping("/myD")
    public void myDao() throws Exception{exceptionService.myDao();
    }
    @RequestMapping("/noD")
    public void noDao() throws Exception{exceptionService.noDao();
    }
}

3、创建 view 层

3.1、首页

index.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
         pageEncoding="UTF-8"%>
<!DOCTYPE html>
<html>
<head>
    <meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
    <title>Insert title here</title>
</head>
<body>
<h3><a href="${pageContext.request.contextPath}/dbD"> 处理 dao 中数据库异常 </a></h3>
<h3><a href="${pageContext.request.contextPath}/myD"> 处理 dao 中自定义异常 </a></h3>
<h3><a href="${pageContext.request.contextPath}/noD"> 处理 dao 未知异常 </a></h3>
<hr>
<h3><a href="${pageContext.request.contextPath}/dbS"> 处理 service 中数据库异常 </a></h3>
<h3><a href="${pageContext.request.contextPath}/myS"> 处理 service 中自定义异常 </a></h3>
<h3><a href="${pageContext.request.contextPath}/noS"> 处理 service 未知异常 </a></h3>
<hr>
<h3><a href="${pageContext.request.contextPath}/db"> 处理 controller 中数据库异常 </a></h3>
<h3><a href="${pageContext.request.contextPath}/my"> 处理 controller 中自定义异常 </a></h3>
<h3><a href="${pageContext.request.contextPath}/no"> 处理 controller 未知异常 </a></h3>
<hr>
<!-- 在 web.xml 中配置404 -->
<h3>
<a href="${pageContext.request.contextPath}/404">404 错误 </a>
</h3>
</body>
</html>

3.2、404

404.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
         pageEncoding="UTF-8"%>
<!DOCTYPE html>
<html>
<head>
    <meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
    <title>404</title>
</head>
<body>
没能找到资源！</body>
</html>

3.3、error

/pages/error.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
         pageEncoding="UTF-8" isErrorPage="true"%>
<!DOCTYPE html>
<html>
<head>
    <meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
    <title>error</title>
</head>
<body>
<H1> 未知错误：</H1><%=exception %>
<H2> 错误内容：</H2>
<%
    exception.printStackTrace(response.getWriter());
%>
</body>
</html>

3.4、my-error

/pages/my-error.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
         pageEncoding="UTF-8" isErrorPage="true"%>
<!DOCTYPE html>
<html>
<head>
    <meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
    <title>my-error</title>
</head>
<body>
<H1> 自定义异常错误：</H1><%=exception %>
<H2> 错误内容：</H2>
<%
    exception.printStackTrace(response.getWriter());
%>
</body>
</html>

3.5、sql-error

/pages/sql-error.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
         pageEncoding="UTF-8" isErrorPage="true"%>
<!DOCTYPE html>
<html>
<head>
    <meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
    <title>sql-error</title>
</head>
<body>
<H1> 数据库异常错误：</H1><%=exception %>
<H2> 错误内容：</H2>
<%
    exception.printStackTrace(response.getWriter());
%>
</body>
</html>

3.6、测试

http://localhost:8080/smvc004/index.jsp

4、SimpleMappingExceptionResolver

org.springframework.web.servlet.handler.SimpleMappingExceptionResolver

springmvc.xml

<bean class="org.springframework.web.servlet.handler.SimpleMappingExceptionResolver">
        <!-- 定义默认的异常处理页面，当该异常类型注册时使用 -->
        <property name="defaultErrorView" value="error"></property>
        <!-- 定义异常处理页面用来获取异常信息的变量名，默认名为 exception -->
        <property name="exceptionAttribute" value="exception"></property>
        <!-- 定义需要特殊处理的异常，用类名或完全路径名作为 key，异常页名作为值 -->
        <property name="exceptionMappings">
            <props>
                <prop key="com.tyschool.smvc004.utils.DemoException">my-error</prop>
                <prop key="java.sql.SQLException">sql-error</prop>
                <!-- 在这里还可以继续扩展对不同异常类型的处理 -->
            </props>
        </property>
    </bean>

404 配置

<error-page>
    <error-code>404</error-code>
    <location>/404.jsp</location>
</error-page>

5、HandlerExceptionResolver

org.springframework.web.servlet.HandlerExceptionResolver

5.1、加入 jar 包

<dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>javax.servlet-api</artifactId>
      <version>4.0.1</version>
      <scope>provided</scope>
</dependency>

5.2、MyExceptionHandler

MyExceptionHandler.java

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.sql.SQLException;
import java.util.HashMap;
import java.util.Map;

public class MyExceptionHandler implements HandlerExceptionResolver {@Override
    public ModelAndView resolveException(HttpServletRequest httpServletRequest, HttpServletResponse httpServletResponse, Object o, Exception e) {Map<String,Object> model=new HashMap<String,Object>();
        model.put("exception",e);
        if(e instanceof DemoException){return new ModelAndView("my-error",model);
        }else if(e instanceof SQLException){return new ModelAndView("sql-error",model);
        }else{return new ModelAndView("error",model);
        }
    }
}

5.3、配置 bean

Springmvc.xml

 <bean class="com.tyschool.smvc004.utils.MyExceptionHandler"></bean>

5.4、测试

http://localhost:8080/smvc004/index.jsp

6、@ExceptionHandler

6.1、创建异常处理类

BaseController.java

import com.tyschool.smvc004.utils.DemoException;
import org.springframework.web.bind.annotation.ExceptionHandler;
import javax.servlet.http.HttpServletRequest;
import java.sql.SQLException;

public class BaseController {/** 基于 @ExceptionHandler 异常处理 */
    @ExceptionHandler
    public String exception(HttpServletRequest request, Exception ex) {request.setAttribute("exception", ex);
        // 根据不同错误转向不同页面，即异常与 view 的对应关系
        if (ex instanceof SQLException) {return "sql-error";
        } else if (ex instanceof DemoException) {return "my-error";
        } else {return "error";
        }
    }
}

6.2、创建新控制器

TestExceptionController.java

import com.tyschool.smvc004.service.IExceptionService;
import com.tyschool.smvc004.utils.DemoException;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;

import java.sql.SQLException;
@Controller("testExceptionController")
public class TestExceptionController extends BaseController {@Autowired
    @Qualifier("exceptionServiceImpl")
    private IExceptionService exceptionService;

    @RequestMapping("/db")
    public void db() throws Exception{throw new SQLException("数据库异常 -Controller");
    }
    @RequestMapping("/my")
    public void my() throws Exception{throw new DemoException("自定义异常 -Controller");
    }
    @RequestMapping("/no")
    public void no() throws Exception{throw new SQLException("未知异常 -Controller");
    }

    @RequestMapping("/dbS")
    public void dbService() throws Exception{exceptionService.dbService();
    }
    @RequestMapping("/myS")
    public void myService() throws Exception{exceptionService.myService();
    }
    @RequestMapping("/noS")
    public void noServcie() throws Exception{exceptionService.noService();
    }

    @RequestMapping("/dbD")
    public void dbDao() throws Exception{exceptionService.dbDao();
    }
    @RequestMapping("/myD")
    public void myDao() throws Exception{exceptionService.myDao();
    }
    @RequestMapping("/noD")
    public void noDao() throws Exception{exceptionService.noDao();
    }
}

6.3、测试

http://localhost:8080/smvc004/index.jsp
