导读	有几个云上的小伙伴想测测 VPC 网络性能，于是写了一些 dpdk 代码在阿里云上做了一个实验，也适用于其它云.

安装相关的库

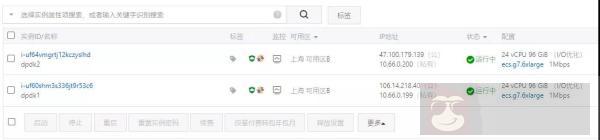

云网络性能测试流程

使用 root 登录, 更新一下源

# 备份原有的配置文件
 mkdir /etc/yum.repos.d/bak
 mv /etc/yum.repos.d/*.repo /etc/yum.repos.d/bak/
#使用阿里云的源覆盖
wget -O /etc/yum.repos.d/CentOS-Base.repo http://mirrors.aliyun.com/repo/Centos-8.repo
yum install -y https://mirrors.aliyun.com/epel/epel-release-latest-8.noarch.rpm
sed -i 's|^#baseurl=https://download.fedoraproject.org/pub|baseurl=https://mirrors.aliyun.com|' /etc/yum.repos.d/epel*
sed -i 's|^metalink|#metalink|' /etc/yum.repos.d/epel*
sudo dnf config-manager --set-enabled PowerTools

yum makecache
yum update

yum groupinstall "Development tools"
yum install gcc-gfortran kernel-modules-extra tcl tk tcsh terminator tmux kernel-rpm-macros elfutils-libelf-devel libnl3-devel meson createrepo numactl-devel
pip3 install pyelftools

启用 iommu

sudo vi /etc/default/grub

// 在 GRUB_CMDLINE_LINUX 行添加 "intel_iommu=on iommu=pt"
// 保存退出

然后更新 grub 并重启系统

sudo grub2-mkconfig -o /boot/grub2/grub.cfg
sudo grub2-mkconfig -o /boot/efi/EFI/centos/grub.cfg
sudo reboot

安装 DPDK

CentOS 上需要添加 /usr/local 路径, 主要是 LD_LIBRARY_PATH PATH 和 PKG_CONFIG_PATH 以及 sudo 的 path

sudo vi /etc/ld.so.conf.d/dpdk.conf

>> 添加如下 path
/usr/local/lib64
>> 退出

sudo ldconfig

vim ~/.bashrc
>> 添加如下 path

export PATH=/usr/local/bin:$PATH
export PKG_CONFIG_PATH=/usr/local/lib64/pkgconfig:${PKG_CONFIG_PATH}


保存后 source
source ~/.bashrc
sudo vim  /etc/sudoers

>> 将 secure_path 添加 /usr/local/bin
Defaults    secure_path = /sbin:/bin:/usr/sbin:/usr/bin:/usr/local/bin

然后解压 dpdk，并编译安装

wget http://fast.dpdk.org/rel/dpdk-21.05.tar.xz
tar xf dpdk-21.05.tar.xz

cd dpdk-21.05
meson build -D examples=all

cd build
ninja
sudo ninja install
sudo ldconfig

设置 Hugepage 和 bind 接口

dpdk-hugepages.py --setup 4G
 modprobe vfio-pci
 dpdk-devbind.py -s

Network devices using kernel driver
===================================
0000:00:05.0 'Virtio network device 1000' if=eth0 drv=virtio-pci unused=vfio-pci *Active*
0000:00:06.0 'Virtio network device 1000' if=eth1 drv=virtio-pci unused=vfio-pci *Active*

注意虚拟机环境需要 noniommu_mode

ifconfig eth1 down
echo 1 > /sys/module/vfio/parameters/enable_unsafe_noiommu_mode
dpdk-devbind.py -b vfio-pci 0000:00:06.0

验证

dpdk-devbind.py -s

Network devices using DPDK-compatible driver
============================================
0000:00:06.0 'Virtio network device 1000' drv=vfio-pci unused=

Network devices using kernel driver
===================================
0000:00:05.0 'Virtio network device 1000' if=eth0 drv=virtio-pci unused=vfio-pci *Active*

检查接口支持情况

下载代码

cd ~
wget https://github.com/zartbot/learn_dpdk/archive/refs/heads/main.zip
unzip main.zip
 cd learn_dpdk-main/

编译

cd 01_port_init/devinfo/
make clean;make

检查接口支持情况

./build/devinfo

EAL: Detected 24 lcore(s)
EAL: Detected 1 NUMA nodes
EAL: Detected shared linkage of DPDK
EAL: Multi-process socket /var/run/dpdk/rte/mp_socket
EAL: Selected IOVA mode 'PA'
EAL: No available 1048576 kB hugepages reported
EAL: VFIO support initialized
EAL:   Invalid NUMA socket, default to 0
EAL: Probe PCI driver: net_virtio (1af4:1000) device: 0000:00:05.0 (socket 0)
eth_virtio_pci_init(): Failed to init PCI device

EAL: Requested device 0000:00:05.0 cannot be used
EAL:   Invalid NUMA socket, default to 0
EAL: Probe PCI driver: net_virtio (1af4:1000) device: 0000:00:06.0 (socket 0)
EAL: Using IOMMU type 8 (No-IOMMU)
TELEMETRY: No legacy callbacks, legacy socket not created



*****************************************
number of available port: 1
=========================================
port: 0         Driver:net_virtio
Link down
MAC address: 00:16:3E:25:3F:0A
PCIe:0000:00:06.0
Max RX Queue:   12      Desc:   65535
Max TX Queue:   12      Desc:   65535
Offload Capability:
  DEV_RX_OFFLOAD_VLAN_STRIP
  DEV_RX_OFFLOAD_UDP_CKSUM
  DEV_RX_OFFLOAD_TCP_CKSUM
  DEV_RX_OFFLOAD_TCP_LRO
  DEV_RX_OFFLOAD_JUMBO_FRAME
-----------------------------------------
  DEV_TX_OFFLOAD_VLAN_INSERT
  DEV_TX_OFFLOAD_UDP_CKSUM
  DEV_TX_OFFLOAD_TCP_CKSUM
  DEV_TX_OFFLOAD_TCP_TSO
  DEV_TX_OFFLOAD_MULTI_SEGS
=========================================

测速

cd ~/learn_dpdk-main/02_send_recv/traffic_gen/

修改 send_pkt.c 的源目的地址，注意目的 MAC 在阿里云上要为 eeff.ffff.ffff

//init mac
struct rte_ether_addr s_addr = {{0x00, 0x16, 0x3e, 0x25, 0x0b, 0xe3}};
struct rte_ether_addr d_addr = {{0xee, 0xff, 0xff, 0xff, 0xff, 0xff}};

//init IP header
rte_be32_t s_ip_addr = string_to_ip("10.66.1.220");
rte_be32_t d_ip_addr = string_to_ip("10.66.1.219");

由于接口支持有限，修改 common.h

#define NUM_RX_QUEUE 1
#define NUM_TX_QUEUE 1

static const struct rte_eth_conf port_conf_default = {
    .rxmode = {
        .max_rx_pkt_len = RTE_ETHER_MAX_LEN,
    .mq_mode = ETH_MQ_RX_NONE,
    },
    .txmode = {.mq_mode = ETH_MQ_TX_NONE,}
};

修改 portinit.c 关闭 RX-CHECKSUM OFFLOAD, 注释掉下面这段：

if (dev_info.rx_offload_capa & DEV_RX_OFFLOAD_CHECKSUM)
 {printf("port[%u] support RX cheksum offload.\n", port);
     port_conf.rxmode.offloads |= DEV_RX_OFFLOAD_CHECKSUM;
 }

最后测速大概 3.3Mpps 左右，接近官方售卖时的 4Mpps

[root@iZuf64vmgrtj12kczyslhdZ traffic_gen]# ./build/run
EAL: Detected 24 lcore(s)
EAL: Detected 1 NUMA nodes
EAL: Detected shared linkage of DPDK
EAL: Multi-process socket /var/run/dpdk/rte/mp_socket
EAL: Selected IOVA mode 'PA'
EAL: No available 1048576 kB hugepages reported
EAL: VFIO support initialized
EAL:   Invalid NUMA socket, default to 0
EAL: Probe PCI driver: net_virtio (1af4:1000) device: 0000:00:05.0 (socket 0)
eth_virtio_pci_init(): Failed to init PCI device

EAL: Requested device 0000:00:05.0 cannot be used
EAL:   Invalid NUMA socket, default to 0
EAL: Probe PCI driver: net_virtio (1af4:1000) device: 0000:00:06.0 (socket 0)
EAL: Using IOMMU type 8 (No-IOMMU)
TELEMETRY: No legacy callbacks, legacy socket not created


initializing port 0...
port[0] support TX UDP checksum offload.
port[0] support TX TCP checksum offload.
Port[0] MAC: 00:16:3e:25:0b:e3
Core 1 doing RX dequeue.
Core 2 doing packet enqueue.

RX-Queue[0] PPS: 3280464
RX-Queue[0] PPS: 3277792
RX-Queue[0] PPS: 3303116
RX-Queue[0] PPS: 3307443
RX-Queue[0] PPS: 3296451
RX-Queue[0] PPS: 3294396
RX-Queue[0] PPS: 3297737
RX-Queue[0] PPS: 3290069
RX-Queue[0] PPS: 3279720
RX-Queue[0] PPS: 3285987
RX-Queue[0] PPS: 3279424

然后把 common.h 中收发都改为 4 个线程

#define NUM_RX_QUEUE 1
#define NUM_TX_QUEUE 1

测试结果和官方售卖的 4Mpps 一致了。

RX-Queue[0] PPS: 578918
RX-Queue[1] PPS: 866823
RX-Queue[2] PPS: 2288950
RX-Queue[3] PPS: 865335

CPU Info

[root@iZuf64vmgrtj12kczyslhdZ traffic_gen]# cat /proc/cpuinfo | grep Xeon
model name      : Intel(R) Xeon(R) Platinum 8369B CPU @ 2.70GHz
model name      : Intel(R) Xeon(R) Platinum 8369B CPU @ 2.70GHz
model name      : Intel(R) Xeon(R) Platinum 8369B CPU @ 2.70GHz
model name      : Intel(R) Xeon(R) Platinum 8369B CPU @ 2.70GHz
model name      : Intel(R) Xeon(R) Platinum 8369B CPU @ 2.70GHz
model name      : Intel(R) Xeon(R) Platinum 8369B CPU @ 2.70GHz
model name      : Intel(R) Xeon(R) Platinum 8369B CPU @ 2.70GHz
model name      : Intel(R) Xeon(R) Platinum 8369B CPU @ 2.70GHz
model name      : Intel(R) Xeon(R) Platinum 8369B CPU @ 2.70GHz
model name      : Intel(R) Xeon(R) Platinum 8369B CPU @ 2.70GHz
model name      : Intel(R) Xeon(R) Platinum 8369B CPU @ 2.70GHz
model name      : Intel(R) Xeon(R) Platinum 8369B CPU @ 2.70GHz
model name      : Intel(R) Xeon(R) Platinum 8369B CPU @ 2.70GHz
model name      : Intel(R) Xeon(R) Platinum 8369B CPU @ 2.70GHz
model name      : Intel(R) Xeon(R) Platinum 8369B CPU @ 2.70GHz
model name      : Intel(R) Xeon(R) Platinum 8369B CPU @ 2.70GHz
model name      : Intel(R) Xeon(R) Platinum 8369B CPU @ 2.70GHz
model name      : Intel(R) Xeon(R) Platinum 8369B CPU @ 2.70GHz
model name      : Intel(R) Xeon(R) Platinum 8369B CPU @ 2.70GHz
model name      : Intel(R) Xeon(R) Platinum 8369B CPU @ 2.70GHz
model name      : Intel(R) Xeon(R) Platinum 8369B CPU @ 2.70GHz
model name      : Intel(R) Xeon(R) Platinum 8369B CPU @ 2.70GHz
model name      : Intel(R) Xeon(R) Platinum 8369B CPU @ 2.70GHz
model name      : Intel(R) Xeon(R) Platinum 8369B CPU @ 2.70GHz
