Dig命令模仿迭代

83次阅读
没有评论

共计 10199 个字符,预计需要花费 26 分钟才能阅读完成。

导读 顶级域名服务器告诉我们,fasionchan.com 这个域应该去找 f1g1ns1.dnspod.net. 或 f1g1ns2.dnspod.net. 来解析。这二者就是 fasionchan.com 的 权威域名服务器。

DNS 服务器的工作原理,它们可以分为很多个角色:

 根域名服务器
顶级域名服务器
权威域名服务器
递归解析器 (DNS 缓存服务器)

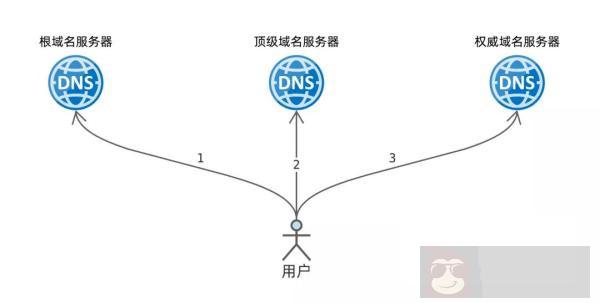

于此同时,我们还了解了域名迭代解析的过程。本节我们趁热打铁,安排一次实验——按步骤迭代解析域名 test.fasionchan.com,以此加深理解。

Dig 命令模仿迭代

迭代解析从 根域名服务器 开始,根服务器列表可以从 root-servers.org 上获取,也可以通过 dig 命令查询:

root@netbox [~]  ➜ dig . NS

; <<>> DiG 9.16.1-Ubuntu <<>> @10.2.66.66 . NS
; (1 server found)
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 42791
;; flags: qr rd ra; QUERY: 1, ANSWER: 13, AUTHORITY: 0, ADDITIONAL: 8

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 4000
;; QUESTION SECTION:
;.              IN  NS

;; ANSWER SECTION:
.           1700    IN  NS  k.root-servers.net.
.           1700    IN  NS  m.root-servers.net.
.           1700    IN  NS  l.root-servers.net.
.           1700    IN  NS  b.root-servers.net.
.           1700    IN  NS  g.root-servers.net.
.           1700    IN  NS  f.root-servers.net.
.           1700    IN  NS  d.root-servers.net.
.           1700    IN  NS  e.root-servers.net.
.           1700    IN  NS  i.root-servers.net.
.           1700    IN  NS  a.root-servers.net.
.           1700    IN  NS  h.root-servers.net.
.           1700    IN  NS  j.root-servers.net.
.           1700    IN  NS  c.root-servers.net.

;; ADDITIONAL SECTION:
k.root-servers.net. 3282    IN  A   193.0.14.129
g.root-servers.net. 2845    IN  A   192.112.36.4
d.root-servers.net. 118 IN  A   199.7.91.13
e.root-servers.net. 494 IN  A   192.203.230.10
a.root-servers.net. 1771    IN  A   198.41.0.4
j.root-servers.net. 3197    IN  A   192.58.128.30
c.root-servers.net. 1830    IN  A   192.33.4.12

;; Query time: 14 msec
;; SERVER: 10.2.66.66#53(10.2.66.66)
;; WHEN: Thu Apr 08 09:01:17 CST 2021
;; MSG SIZE  rcvd: 364

根域名服务器总共有 13 台,编号从 A 到 M。我们可以从中选择一台,比如 A,它的 IP 地址是 198.41.0.4。

接下来,我们执行 dig 命令,向根域名服务器 A 发起域名解析请求:

root@netbox [~]  ➜ dig @198.41.0.4 test.fasionchan.com

; <<>> DiG 9.16.1-Ubuntu <<>> @198.41.0.4 test.fasionchan.com
; (1 server found)
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 44843
;; flags: qr rd; QUERY: 1, ANSWER: 0, AUTHORITY: 13, ADDITIONAL: 27
;; WARNING: recursion requested but not available

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 1472
;; QUESTION SECTION:
;test.fasionchan.com.       IN  A

;; AUTHORITY SECTION:
com.            172800  IN  NS  a.gtld-servers.net.
com.            172800  IN  NS  b.gtld-servers.net.
com.            172800  IN  NS  c.gtld-servers.net.
com.            172800  IN  NS  d.gtld-servers.net.
com.            172800  IN  NS  e.gtld-servers.net.
com.            172800  IN  NS  f.gtld-servers.net.
com.            172800  IN  NS  g.gtld-servers.net.
com.            172800  IN  NS  h.gtld-servers.net.
com.            172800  IN  NS  i.gtld-servers.net.
com.            172800  IN  NS  j.gtld-servers.net.
com.            172800  IN  NS  k.gtld-servers.net.
com.            172800  IN  NS  l.gtld-servers.net.
com.            172800  IN  NS  m.gtld-servers.net.

;; ADDITIONAL SECTION:
a.gtld-servers.net. 172800  IN  A   192.5.6.30
b.gtld-servers.net. 172800  IN  A   192.33.14.30
c.gtld-servers.net. 172800  IN  A   192.26.92.30
d.gtld-servers.net. 172800  IN  A   192.31.80.30
e.gtld-servers.net. 172800  IN  A   192.12.94.30
f.gtld-servers.net. 172800  IN  A   192.35.51.30
g.gtld-servers.net. 172800  IN  A   192.42.93.30
h.gtld-servers.net. 172800  IN  A   192.54.112.30
i.gtld-servers.net. 172800  IN  A   192.43.172.30
j.gtld-servers.net. 172800  IN  A   192.48.79.30
k.gtld-servers.net. 172800  IN  A   192.52.178.30
l.gtld-servers.net. 172800  IN  A   192.41.162.30
m.gtld-servers.net. 172800  IN  A   192.55.83.30
a.gtld-servers.net. 172800  IN  AAAA    2001:503:a83e::2:30
b.gtld-servers.net. 172800  IN  AAAA    2001:503:231d::2:30
c.gtld-servers.net. 172800  IN  AAAA    2001:503:83eb::30
d.gtld-servers.net. 172800  IN  AAAA    2001:500:856e::30
e.gtld-servers.net. 172800  IN  AAAA    2001:502:1ca1::30
f.gtld-servers.net. 172800  IN  AAAA    2001:503:d414::30
g.gtld-servers.net. 172800  IN  AAAA    2001:503:eea3::30
h.gtld-servers.net. 172800  IN  AAAA    2001:502:8cc::30
i.gtld-servers.net. 172800  IN  AAAA    2001:503:39c1::30
j.gtld-servers.net. 172800  IN  AAAA    2001:502:7094::30
k.gtld-servers.net. 172800  IN  AAAA    2001:503:d2d::30
l.gtld-servers.net. 172800  IN  AAAA    2001:500:d937::30
m.gtld-servers.net. 172800  IN  AAAA    2001:501:b1f9::30

;; Query time: 169 msec
;; SERVER: 198.41.0.4#53(198.41.0.4)
;; WHEN: Fri Apr 09 08:38:10 CST 2021
;; MSG SIZE  rcvd: 843

其中,@ 指定目标 DNS 服务器的地址。

从 dig 命令的输出可以看到,根域名服务器告诉我们 .com 域名应该去找 a.gtld-servers.net. 等服务器。这些服务器都是 .com 的 顶级域名服务器,根域名服务器把它们的地址一并告诉我们了。

我们可以从这些顶级域名服务器中选择一台,比如 a.gtld-servers.net.,它的 IP 地址是 192.5.6.30。然后,再次指定 dig 命令,向它发起域名解析请求:

root@netbox [~]  ➜ dig @192.5.6.30 test.fasionchan.com

; <<>> DiG 9.16.1-Ubuntu <<>> @192.5.6.30 test.fasionchan.com
; (1 server found)
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 7836
;; flags: qr rd; QUERY: 1, ANSWER: 0, AUTHORITY: 2, ADDITIONAL: 1
;; WARNING: recursion requested but not available

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 4096
;; QUESTION SECTION:
;test.fasionchan.com.       IN  A

;; AUTHORITY SECTION:
fasionchan.com.     172800  IN  NS  f1g1ns1.dnspod.net.
fasionchan.com.     172800  IN  NS  f1g1ns2.dnspod.net.

;; Query time: 212 msec
;; SERVER: 192.5.6.30#53(192.5.6.30)
;; WHEN: Fri Apr 09 08:38:58 CST 2021
;; MSG SIZE  rcvd: 101

顶级域名服务器告诉我们,fasionchan.com 这个域应该去找 f1g1ns1.dnspod.net. 或 f1g1ns2.dnspod.net. 来解析。这二者就是 fasionchan.com 的 权威域名服务器。

但这次 .com 域名没有告诉我们 f1g1ns1.dnspod.net. 或 f1g1ns2.dnspod.net. 的 IP 地址。因此,我们必须先自己动手,将它们的域名解析成 IP 地址。

我们可以直接执行 dig 命令,一键完成解析:

root@netbox [~]  ➜ dig f1g1ns1.dnspod.net.

; <<>> DiG 9.16.1-Ubuntu <<>> f1g1ns1.dnspod.net.
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 6244
;; flags: qr rd ra; QUERY: 1, ANSWER: 5, AUTHORITY: 0, ADDITIONAL: 0

;; QUESTION SECTION:
;f1g1ns1.dnspod.net.        IN  A

;; ANSWER SECTION:
f1g1ns1.dnspod.net. 15  IN  A   58.247.212.36
f1g1ns1.dnspod.net. 15  IN  A   61.151.180.44
f1g1ns1.dnspod.net. 15  IN  A   129.211.176.187
f1g1ns1.dnspod.net. 15  IN  A   162.14.25.230
f1g1ns1.dnspod.net. 15  IN  A   183.192.164.118

;; Query time: 13 msec
;; SERVER: 192.168.65.1#53(192.168.65.1)
;; WHEN: Fri Apr 09 08:39:38 CST 2021
;; MSG SIZE  rcvd: 116

如果 dig 命令未指定 DNS 服务器,它默认会到本地的 递归解析器,也就是 DNS 缓存服务器 上去查询。DNS 缓存服务器会帮我们做迭代解析,再把结果告诉我们。

如果亲不厌其烦,可以自己进行迭代解析。具体步骤也是类似的,附在本文后半部分。

得到权威域名服务器的 IP 地址后,我们就可以向它发起解析请求:

root@netbox [~]  ➜ dig @58.247.212.36 test.fasionchan.com

; <<>> DiG 9.16.1-Ubuntu <<>> @58.247.212.36 test.fasionchan.com
; (1 server found)
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 42646
;; flags: qr aa rd; QUERY: 1, ANSWER: 1, AUTHORITY: 2, ADDITIONAL: 1
;; WARNING: recursion requested but not available

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 4096
;; QUESTION SECTION:
;test.fasionchan.com.       IN  A

;; ANSWER SECTION:
test.fasionchan.com.    600 IN  A   10.0.0.1

;; AUTHORITY SECTION:
fasionchan.com.     600 IN  NS  f1g1ns2.dnspod.net.
fasionchan.com.     600 IN  NS  f1g1ns1.dnspod.net.

;; Query time: 57 msec
;; SERVER: 58.247.212.36#53(58.247.212.36)
;; WHEN: Fri Apr 09 08:55:47 CST 2021
;; MSG SIZE  rcvd: 128

瞧,我们成功解析域名 test.fasionchan.com,得到它对应的 IP 地址 10.0.0.1 !

迭代解析 f1g1ns1.dnspod.net.
如果不想通过递归解析器,可以自行执行迭代解析,查询 f1g1ns1.dnspod.net. 的 IP 地址。

首先,向 根域名服务器 发起解析请求:

root@netbox [~]  ➜ dig @198.41.0.4 f1g1ns1.dnspod.net.

; <<>> DiG 9.16.1-Ubuntu <<>> @198.41.0.4 f1g1ns1.dnspod.net.
; (1 server found)
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 49636
;; flags: qr rd; QUERY: 1, ANSWER: 0, AUTHORITY: 13, ADDITIONAL: 27
;; WARNING: recursion requested but not available

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 1472
;; QUESTION SECTION:
;f1g1ns1.dnspod.net.        IN  A

;; AUTHORITY SECTION:
net.            172800  IN  NS  a.gtld-servers.net.
net.            172800  IN  NS  b.gtld-servers.net.
net.            172800  IN  NS  c.gtld-servers.net.
net.            172800  IN  NS  d.gtld-servers.net.
net.            172800  IN  NS  e.gtld-servers.net.
net.            172800  IN  NS  f.gtld-servers.net.
net.            172800  IN  NS  g.gtld-servers.net.
net.            172800  IN  NS  h.gtld-servers.net.
net.            172800  IN  NS  i.gtld-servers.net.
net.            172800  IN  NS  j.gtld-servers.net.
net.            172800  IN  NS  k.gtld-servers.net.
net.            172800  IN  NS  l.gtld-servers.net.
net.            172800  IN  NS  m.gtld-servers.net.

;; ADDITIONAL SECTION:
a.gtld-servers.net. 172800  IN  A   192.5.6.30
b.gtld-servers.net. 172800  IN  A   192.33.14.30
c.gtld-servers.net. 172800  IN  A   192.26.92.30
d.gtld-servers.net. 172800  IN  A   192.31.80.30
e.gtld-servers.net. 172800  IN  A   192.12.94.30
f.gtld-servers.net. 172800  IN  A   192.35.51.30
g.gtld-servers.net. 172800  IN  A   192.42.93.30
h.gtld-servers.net. 172800  IN  A   192.54.112.30
i.gtld-servers.net. 172800  IN  A   192.43.172.30
j.gtld-servers.net. 172800  IN  A   192.48.79.30
k.gtld-servers.net. 172800  IN  A   192.52.178.30
l.gtld-servers.net. 172800  IN  A   192.41.162.30
m.gtld-servers.net. 172800  IN  A   192.55.83.30
a.gtld-servers.net. 172800  IN  AAAA    2001:503:a83e::2:30
b.gtld-servers.net. 172800  IN  AAAA    2001:503:231d::2:30
c.gtld-servers.net. 172800  IN  AAAA    2001:503:83eb::30
d.gtld-servers.net. 172800  IN  AAAA    2001:500:856e::30
e.gtld-servers.net. 172800  IN  AAAA    2001:502:1ca1::30
f.gtld-servers.net. 172800  IN  AAAA    2001:503:d414::30
g.gtld-servers.net. 172800  IN  AAAA    2001:503:eea3::30
h.gtld-servers.net. 172800  IN  AAAA    2001:502:8cc::30
i.gtld-servers.net. 172800  IN  AAAA    2001:503:39c1::30
j.gtld-servers.net. 172800  IN  AAAA    2001:502:7094::30
k.gtld-servers.net. 172800  IN  AAAA    2001:503:d2d::30
l.gtld-servers.net. 172800  IN  AAAA    2001:500:d937::30
m.gtld-servers.net. 172800  IN  AAAA    2001:501:b1f9::30

;; Query time: 172 msec
;; SERVER: 198.41.0.4#53(198.41.0.4)
;; WHEN: Fri Apr 09 08:40:49 CST 2021
;; MSG SIZE  rcvd: 840

根域名服务器告诉我们,.net 应该去找 a.gtld-servers.net. 等服务器,服务器地址附在后面的附加节。

我们选择 a.gtld-servers.net. 这台 顶级域名服务器,它的地址是 192.5.6.30。然后向它发起解析请求:

root@netbox [~]  ➜ dig @192.5.6.30 f1g1ns1.dnspod.net.

; <<>> DiG 9.16.1-Ubuntu <<>> @192.5.6.30 f1g1ns1.dnspod.net.
; (1 server found)
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 53457
;; flags: qr rd; QUERY: 1, ANSWER: 0, AUTHORITY: 2, ADDITIONAL: 7
;; WARNING: recursion requested but not available

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 4096
;; QUESTION SECTION:
;f1g1ns1.dnspod.net.        IN  A

;; AUTHORITY SECTION:
dnspod.net.     172800  IN  NS  v6ns3.dnsv2.net.
dnspod.net.     172800  IN  NS  v6ns4.dnsv2.com.

;; ADDITIONAL SECTION:
v6ns3.dnsv2.net.    172800  IN  A   129.211.176.248
v6ns3.dnsv2.net.    172800  IN  A   162.14.24.245
v6ns3.dnsv2.net.    172800  IN  A   183.192.164.118
v6ns3.dnsv2.net.    172800  IN  A   223.166.151.17
v6ns3.dnsv2.net.    172800  IN  AAAA    2402:4e00:1430:1102:0:9136:2b2f:bf6b
v6ns3.dnsv2.net.    172800  IN  A   61.129.8.141

;; Query time: 213 msec
;; SERVER: 192.5.6.30#53(192.5.6.30)
;; WHEN: Fri Apr 09 08:41:27 CST 2021
;; MSG SIZE  rcvd: 210

顶级域名服务器告诉我们,dnspod.net. 这个域应该去找 v6ns3.dnsv2.net. 或者 v6ns4.dnsv2.com.。这两者就是所谓的 权威域名服务器。这次,顶级域名服务器已经在附加节中,附上了它们的 IP 地址。

我们从中挑选一个,比如 129.211.176.248,继续发起解析请求:

root@netbox [~]  ➜ dig @129.211.176.248 f1g1ns1.dnspod.net.

; <<>> DiG 9.16.1-Ubuntu <<>> @129.211.176.248 f1g1ns1.dnspod.net.
; (1 server found)
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 23542
;; flags: qr aa rd; QUERY: 1, ANSWER: 5, AUTHORITY: 2, ADDITIONAL: 1
;; WARNING: recursion requested but not available

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 4096
;; QUESTION SECTION:
;f1g1ns1.dnspod.net.        IN  A

;; ANSWER SECTION:
f1g1ns1.dnspod.net. 172800  IN  A   183.192.164.118
f1g1ns1.dnspod.net. 172800  IN  A   162.14.25.230
f1g1ns1.dnspod.net. 172800  IN  A   58.247.212.36
f1g1ns1.dnspod.net. 172800  IN  A   61.151.180.44
f1g1ns1.dnspod.net. 172800  IN  A   129.211.176.187

;; AUTHORITY SECTION:
dnspod.net.     86400   IN  NS  v6ns3.dnsv2.net.
dnspod.net.     86400   IN  NS  v6ns4.dnsv2.com.

;; Query time: 34 msec
;; SERVER: 129.211.176.248#53(129.211.176.248)
;; WHEN: Fri Apr 09 08:42:07 CST 2021
;; MSG SIZE  rcvd: 185

最终,我们成功解析到 f1g1ns1.dnspod.net. 对应的 IP 地址,总共有 5 个。

阿里云 2 核 2G 服务器 3M 带宽 61 元 1 年,有高配

腾讯云新客低至 82 元 / 年,老客户 99 元 / 年

代金券:在阿里云专用满减优惠券

正文完
星哥玩云-微信公众号
post-qrcode
 0
星锅
版权声明:本站原创文章,由 星锅 于2024-07-25发表,共计10199字。
转载说明:除特殊说明外本站文章皆由CC-4.0协议发布,转载请注明出处。
【腾讯云】推广者专属福利,新客户无门槛领取总价值高达2860元代金券,每种代金券限量500张,先到先得。
阿里云-最新活动爆款每日限量供应
评论(没有评论)
验证码
【腾讯云】云服务器、云数据库、COS、CDN、短信等云产品特惠热卖中
