使用Zabbix监控Nginx图文详解

共计 12099 个字符，预计需要花费 31 分钟才能阅读完成。

手把手教你使用 Zabbix 监控 Nginx。

环境介绍：

服务器系统版本：CentOS release 6.6 (Final)

内核版本：Linux hk_nginx2.6.32-504.3.3.el6.x86_64

ZabbixServer 版本：Zabbix server v2.2.2

ZabbixAgent 版本：Zabbix agent v2.2.2

Nginxweb 版本：nginx version: nginx/1.5.8

在 zabbix agentd 客户端上，查看 nginx 是否加载了 –with-http_stub_status_module。因为 zabbix 监控 nginx 是根据 nginx 的 Stub Status 模块，抓取 Status 模块所提供的数据。假如以前没开启，现在想启用 StubStatus 模块，在编译 nginx 的时候要加上参数 –with-http_stub_status_module，执行./configure && make 就可以了，不用 make install。不过，一般情况下都是安装了的。

1. 在 nginx 的配置文件中，添加 status 配置。

location/nginx-status {

  stub_status on;

  access_log  off;

  allow 127.0.0.1;

  allow 192.168.1.10;  #(zabbix 服务器的 IP 地址，一般是内网地址)

  deny all;

}

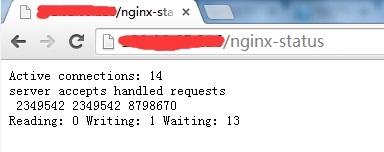

2. 访问设置好的 nginx-status 链接，如图所示：

3.nginx Status 详细说明：

Activeconnections: 对后端发起的活动连接数；

server accepts 2349542：nginx 总共处理了 2349542 个连接；

handled：成功创建了 64603417 次握手；

requests：总共处理了 8798670 请求。

Reading：nginx 读取客户端的 header 数；

Writing: nginx 返回给客户端的 header 数；

Waiting: nginx 请求处理完成，正在等待下一请求指令的连接。

4. 在 agentd 上编写监控 nginx 的脚本，并且设置属主和属组为 zabbix，赋予执行权限。

cd /usr/local/zabbix/scripts
cat nginx_status.sh
#!/bin/bash
# Script to fetch nginx statuses for tribily monitoring systems
# Author: krish@toonheart.com
# License: GPLv2
# Set Variables
BKUP_DATE=`/bin/date +%Y%m%d`
LOG="/data/log/zabbix/webstatus.log"
HOST=127.0.0.1
PORT="80"
# Functions to return nginx stats
function active {
/usr/bin/curl "http://$HOST:$PORT/nginx-status" 2>/dev/null| grep 'Active' | awk '{print $NF}'
}
function reading {
/usr/bin/curl "http://$HOST:$PORT/nginx-status" 2>/dev/null| grep 'Reading' | awk '{print $2}'
}
function writing {
/usr/bin/curl "http://$HOST:$PORT/nginx-status" 2>/dev/null| grep 'Writing' | awk '{print $4}'
}
function waiting {
/usr/bin/curl "http://$HOST:$PORT/nginx-status" 2>/dev/null| grep 'Waiting' | awk '{print $6}'
}
function accepts {
/usr/bin/curl "http://$HOST:$PORT/nginx-status" 2>/dev/null| awk NR==3 | awk '{print $1}'
}
function handled {
/usr/bin/curl "http://$HOST:$PORT/nginx-status" 2>/dev/null| awk NR==3 | awk '{print $2}'
}
function requests {
/usr/bin/curl "http://$HOST:$PORT/nginx-status" 2>/dev/null| awk NR==3 | awk '{print $3}'
}
# Run the requested function
$1
chmod o+x nginx_status.sh
chown zabbix.zabbix nginx_status.sh
ll
total 4
-rwxr-xr-x 1 zabbix zabbix 1273 May 13 17:42 nginx_status.sh

5. 修改 nginx 服务器上 zabbix 客户端的 zabbix_agentd.conf 配置文件，然后重启 zabbix agentd 客户端。

cd /usr/local/zabbix/etc
grep -v "^[#;]" zabbix_agentd.conf | grep -v "^$"
LogFile=/tmp/zabbix_agentd.log
Server=192.168.1.10        #zabbix server 端的 IP 地址
ServerActive=192.168.1.10  #zabbix server 端的 IP 地址
Hostname=192.168.1.5       #本地的 IP 地址
UnsafeUserParameters=1
## 下面的是新添加进去的
UserParameter=nginx.accepts,/usr/local/zabbix/scripts/nginx_status.sh accepts
UserParameter=nginx.handled,/usr/local/zabbix/scripts/nginx_status.sh handled
UserParameter=nginx.requests,/usr/local/zabbix/scripts/nginx_status.sh requests
UserParameter=nginx.connections.active,/usr/local/zabbix/scripts/nginx_status.sh active
UserParameter=nginx.connections.reading,/usr/local/zabbix/scripts/nginx_status.sh reading
UserParameter=nginx.connections.writing,/usr/local/zabbix/scripts/nginx_status.sh writing
UserParameter=nginx.connections.waiting,/usr/local/zabbix/scripts/nginx_status.sh waiting

6. 在 zabbix server 端进行 zabbix_get 测试, 取到数据了，说明没问题。

/usr/local/zabbix/bin/zabbix_get -s 192.168.1.5 -p 10050 -k "nginx.connections.active"
11
/usr/local/zabbix/bin/zabbix_get -s 192.168.1.5 -p 10050 -k "nginx.connections.waiting"
10
/usr/local/zabbix/bin/zabbix_get -s 192.168.1.5 -p 10050 -k "nginx.connections.writing"
1
/usr/local/zabbix/bin/zabbix_get -s 192.168.1.5 -p 10050 -k "nginx.accepts"
2350638
/usr/local/zabbix/bin/zabbix_get -s 192.168.1.5 -p 10050 -k "nginx.requests"
8801086

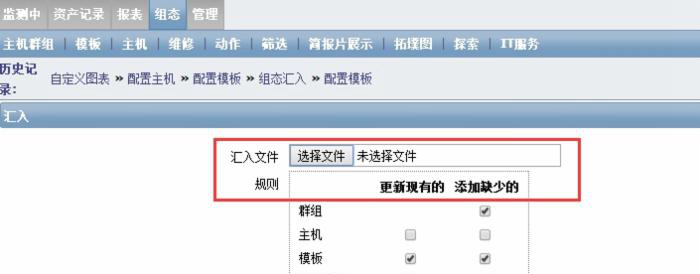

7. 在网上搜到一个 zabbix 中 nginx status 的模板, 把模板导入 zabbix 服务器。

- <zabbix_export version="1.0" date="14.03.11" time="08.48">
- <hosts>
- <host name="Nginx Status">
  <proxy_hostid>0</proxy_hostid>
  <useip>1</useip>
  <dns />
  <ip>127.0.0.1</ip>
  <port>10050</port>
  <status>3</status>
  <useipmi>0</useipmi>
  <ipmi_ip>127.0.0.1</ipmi_ip>
  <ipmi_port>623</ipmi_port>
  <ipmi_authtype>0</ipmi_authtype>
  <ipmi_privilege>2</ipmi_privilege>
  <ipmi_username />
  <ipmi_password />
- <groups>
  <group>Freetrade</group>
  </groups>
  <triggers />
- <items>
- <item type="7" key="nginx.accepts" value_type="3">
  <description>Nginx Accepts</description>
  <ipmi_sensor />
  <delay>30</delay>
  <history>365</history>
  <trends>365</trends>
  <status>0</status>
  <data_type>0</data_type>
  <units />
  <multiplier>0</multiplier>
  <delta>0</delta>
  <formula>0</formula>
  <lastlogsize>0</lastlogsize>
  <logtimefmt />
  <delay_flex />
  <authtype>0</authtype>
  <username />
  <password />
  <publickey />
  <privatekey />
  <params />
  <trapper_hosts>localhost</trapper_hosts>
  <snmp_community />
  <snmp_oid />
  <snmp_port>161</snmp_port>
  <snmpv3_securityname />
  <snmpv3_securitylevel>0</snmpv3_securitylevel>
  <snmpv3_authpassphrase />
  <snmpv3_privpassphrase />
- <applications>
  <application>Nginx</application>
  </applications>
  </item>
- <item type="7" key="nginx.connections.active" value_type="3">
  <description>Nginx Connections Active</description>
  <ipmi_sensor />
  <delay>30</delay>
  <history>365</history>
  <trends>365</trends>
  <status>0</status>
  <data_type>0</data_type>
  <units />
  <multiplier>0</multiplier>
  <delta>0</delta>
  <formula>0</formula>
  <lastlogsize>0</lastlogsize>
  <logtimefmt />
  <delay_flex />
  <authtype>0</authtype>
  <username />
  <password />
  <publickey />
  <privatekey />
  <params />
  <trapper_hosts>localhost</trapper_hosts>
  <snmp_community />
  <snmp_oid />
  <snmp_port>161</snmp_port>
  <snmpv3_securityname />
  <snmpv3_securitylevel>0</snmpv3_securitylevel>
  <snmpv3_authpassphrase />
  <snmpv3_privpassphrase />
- <applications>
  <application>Nginx</application>
  </applications>
  </item>
- <item type="7" key="nginx.connections.reading" value_type="3">
  <description>Nginx Connections Reading</description>
  <ipmi_sensor />
  <delay>30</delay>
  <history>365</history>
  <trends>365</trends>
  <status>0</status>
  <data_type>0</data_type>
  <units />
  <multiplier>0</multiplier>
  <delta>0</delta>
  <formula>0</formula>
  <lastlogsize>0</lastlogsize>
  <logtimefmt />
  <delay_flex />
  <authtype>0</authtype>
  <username />
  <password />
  <publickey />
  <privatekey />
  <params />
  <trapper_hosts>localhost</trapper_hosts>
  <snmp_community />
  <snmp_oid />
  <snmp_port>161</snmp_port>
  <snmpv3_securityname />
  <snmpv3_securitylevel>0</snmpv3_securitylevel>
  <snmpv3_authpassphrase />
  <snmpv3_privpassphrase />
- <applications>
  <application>Nginx</application>
  </applications>
  </item>
- <item type="7" key="nginx.connections.waiting" value_type="3">
  <description>Nginx Connections Waiting</description>
  <ipmi_sensor />
  <delay>30</delay>
  <history>365</history>
  <trends>365</trends>
  <status>0</status>
  <data_type>0</data_type>
  <units />
  <multiplier>0</multiplier>
  <delta>0</delta>
  <formula>0</formula>
  <lastlogsize>0</lastlogsize>
  <logtimefmt />
  <delay_flex />
  <authtype>0</authtype>
  <username />
  <password />
  <publickey />
  <privatekey />
  <params />
  <trapper_hosts>localhost</trapper_hosts>
  <snmp_community />
  <snmp_oid />
  <snmp_port>161</snmp_port>
  <snmpv3_securityname />
  <snmpv3_securitylevel>0</snmpv3_securitylevel>
  <snmpv3_authpassphrase />
  <snmpv3_privpassphrase />
- <applications>
  <application>Nginx</application>
  </applications>
  </item>
- <item type="7" key="nginx.connections.writing" value_type="3">
  <description>Nginx Connections Writing</description>
  <ipmi_sensor />
  <delay>30</delay>
  <history>365</history>
  <trends>365</trends>
  <status>0</status>
  <data_type>0</data_type>
  <units />
  <multiplier>0</multiplier>
  <delta>0</delta>
  <formula>0</formula>
  <lastlogsize>0</lastlogsize>
  <logtimefmt />
  <delay_flex />
  <authtype>0</authtype>
  <username />
  <password />
  <publickey />
  <privatekey />
  <params />
  <trapper_hosts>localhost</trapper_hosts>
  <snmp_community />
  <snmp_oid />
  <snmp_port>161</snmp_port>
  <snmpv3_securityname />
  <snmpv3_securitylevel>0</snmpv3_securitylevel>
  <snmpv3_authpassphrase />
  <snmpv3_privpassphrase />
- <applications>
  <application>Nginx</application>
  </applications>
  </item>
- <item type="7" key="nginx.handled" value_type="3">
  <description>Nginx Handled</description>
  <ipmi_sensor />
  <delay>30</delay>
  <history>365</history>
  <trends>365</trends>
  <status>0</status>
  <data_type>0</data_type>
  <units />
  <multiplier>0</multiplier>
  <delta>0</delta>
  <formula>0</formula>
  <lastlogsize>0</lastlogsize>
  <logtimefmt />
  <delay_flex />
  <authtype>0</authtype>
  <username />
  <password />
  <publickey />
  <privatekey />
  <params />
  <trapper_hosts>localhost</trapper_hosts>
  <snmp_community />
  <snmp_oid />
  <snmp_port>161</snmp_port>
  <snmpv3_securityname />
  <snmpv3_securitylevel>0</snmpv3_securitylevel>
  <snmpv3_authpassphrase />
  <snmpv3_privpassphrase />
- <applications>
  <application>Nginx</application>
  </applications>
  </item>
- <item type="7" key="nginx.requests" value_type="3">
  <description>Nginx Requests</description>
  <ipmi_sensor />
  <delay>30</delay>
  <history>365</history>
  <trends>365</trends>
  <status>0</status>
  <data_type>0</data_type>
  <units />
  <multiplier>0</multiplier>
  <delta>0</delta>
  <formula>0</formula>
  <lastlogsize>0</lastlogsize>
  <logtimefmt />
  <delay_flex />
  <authtype>0</authtype>
  <username />
  <password />
  <publickey />
  <privatekey />
  <params />
  <trapper_hosts>localhost</trapper_hosts>
  <snmp_community />
  <snmp_oid />
  <snmp_port>161</snmp_port>
  <snmpv3_securityname />
  <snmpv3_securitylevel>0</snmpv3_securitylevel>
  <snmpv3_authpassphrase />
  <snmpv3_privpassphrase />
- <applications>
  <application>Nginx</application>
  </applications>
  </item>
  </items>
  <templates />
- <graphs>
- <graph name="Nginx Socket Status" width="900" height="200">
  <ymin_type>0</ymin_type>
  <ymax_type>0</ymax_type>
  <ymin_item_key />
  <ymax_item_key />
  <show_work_period>1</show_work_period>
  <show_triggers>1</show_triggers>
  <graphtype>0</graphtype>
  <yaxismin>0.0000</yaxismin>
  <yaxismax>100.0000</yaxismax>
  <show_legend>0</show_legend>
  <show_3d>0</show_3d>
  <percent_left>0.0000</percent_left>
  <percent_right>0.0000</percent_right>
- <graph_elements>
- <graph_element item="Nginx Status:nginx.accepts">
  <drawtype>0</drawtype>
  <sortorder>0</sortorder>
  <color>00EE00</color>
  <yaxisside>0</yaxisside>
  <calc_fnc>2</calc_fnc>
  <type>0</type>
  <periods_cnt>5</periods_cnt>
  </graph_element>
- <graph_element item="Nginx Status:nginx.handled">
  <drawtype>0</drawtype>
  <sortorder>0</sortorder>
  <color>EE0000</color>
  <yaxisside>0</yaxisside>
  <calc_fnc>2</calc_fnc>
  <type>0</type>
  <periods_cnt>5</periods_cnt>
  </graph_element>
- <graph_element item="Nginx Status:nginx.requests">
  <drawtype>0</drawtype>
  <sortorder>1</sortorder>
  <color>EEEE00</color>
  <yaxisside>0</yaxisside>
  <calc_fnc>2</calc_fnc>
  <type>0</type>
  <periods_cnt>5</periods_cnt>
  </graph_element>
  </graph_elements>
  </graph>
- <graph name="Nginx Clients Status" width="900" height="200">
  <ymin_type>0</ymin_type>
  <ymax_type>0</ymax_type>
  <ymin_item_key />
  <ymax_item_key />
  <show_work_period>1</show_work_period>
  <show_triggers>1</show_triggers>
  <graphtype>0</graphtype>
  <yaxismin>0.0000</yaxismin>
  <yaxismax>100.0000</yaxismax>
  <show_legend>0</show_legend>
  <show_3d>0</show_3d>
  <percent_left>0.0000</percent_left>
  <percent_right>0.0000</percent_right>
- <graph_elements>
- <graph_element item="Nginx Status:nginx.connections.active">
  <drawtype>0</drawtype>
  <sortorder>0</sortorder>
  <color>0000EE</color>
  <yaxisside>0</yaxisside>
  <calc_fnc>2</calc_fnc>
  <type>0</type>
  <periods_cnt>5</periods_cnt>
  </graph_element>
- <graph_element item="Nginx Status:nginx.connections.writing">
  <drawtype>0</drawtype>
  <sortorder>1</sortorder>
  <color>EE0000</color>
  <yaxisside>0</yaxisside>
  <calc_fnc>2</calc_fnc>
  <type>0</type>
  <periods_cnt>5</periods_cnt>
  </graph_element>
- <graph_element item="Nginx Status:nginx.connections.waiting">
  <drawtype>0</drawtype>
  <sortorder>2</sortorder>
  <color>EEEE00</color>
  <yaxisside>0</yaxisside>
  <calc_fnc>2</calc_fnc>
  <type>0</type>
  <periods_cnt>5</periods_cnt>
  </graph_element>
- <graph_element item="Nginx Status:nginx.connections.reading">
  <drawtype>0</drawtype>
  <sortorder>3</sortorder>
  <color>00EE00</color>
  <yaxisside>0</yaxisside>
  <calc_fnc>2</calc_fnc>
  <type>0</type>
  <periods_cnt>5</periods_cnt>
  </graph_element>
  </graph_elements>
  </graph>
  </graphs>
  <macros />
  </host>
  </hosts>
  <dependencies />
  </zabbix_export>

8. 登陆到 zabbix 服务器首页，点击”组态”-“模板”。

点击”汇入”, 如图所示

点击“汇入文件“，然后把找到的 nginx_status.xml 文件，汇入模板。

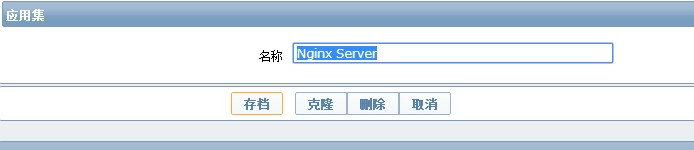

创建应用集 Nginx Server。

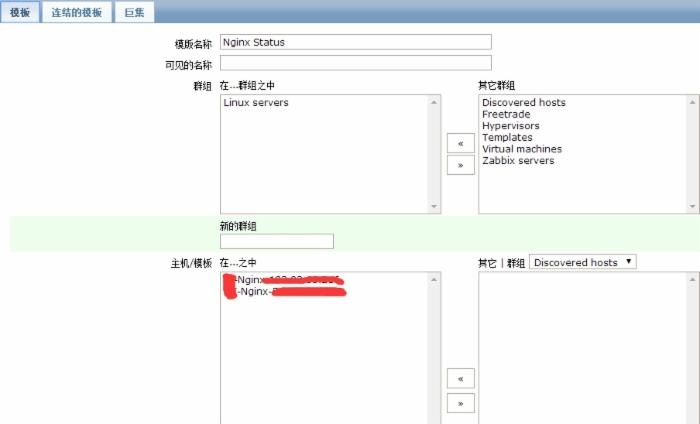

把 nginx 主机连接到模板上去。

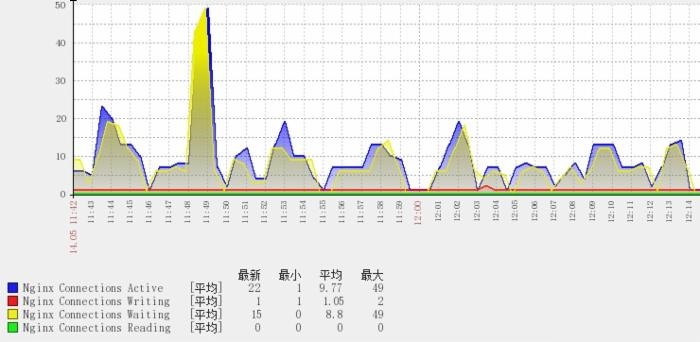

最后，看下是否可以检测到数据，是否可以顺利出图。

到此为止，实验结束。

一些 Zabbix 相关教程集合 ：

Ubuntu 14.04 下 Zabbix2.4.5 源码编译安装  http://www.linuxidc.com/Linux/2015-05/117657.htm

安装部署分布式监控系统 Zabbix 2.06 http://www.linuxidc.com/Linux/2013-07/86942.htm

《安装部署分布式监控系统 Zabbix 2.06》http://www.linuxidc.com/Linux/2013-07/86942.htm

CentOS 6.3 下 Zabbix 安装部署 http://www.linuxidc.com/Linux/2013-05/83786.htm

Zabbix 分布式监控系统实践 http://www.linuxidc.com/Linux/2013-06/85758.htm

CentOS 6.3 下 Zabbix 监控 apache server-status http://www.linuxidc.com/Linux/2013-05/84740.htm

CentOS 6.3 下 Zabbix 监控 MySQL 数据库参数 http://www.linuxidc.com/Linux/2013-05/84800.htm

64 位 CentOS 6.2 下安装 Zabbix 2.0.6   http://www.linuxidc.com/Linux/2014-11/109541.htm

ZABBIX 的详细介绍 ：请点这里
ZABBIX 的下载地址 ：请点这里

本文永久更新链接地址 ：http://www.linuxidc.com/Linux/2015-09/123039.htm
