HaProxy+Varnish+LAMP集群实现动静分离

265次阅读

共计 10826 个字符，预计需要花费 28 分钟才能阅读完成。

一、简介

Haproxy 一个高性能的负载均衡服务软件，它可基于四层和七层之间进行调度，而且对各个节点具有健康状态检测的功能，当后端服务器故障时，会自动标记为不可用状态，当服务器上线时还会自动将后端主机上线。比起 lvs 其配置简单，且引入了 frontend，backend，listen 等功能，frontend 可添加 acl 规则，可根据 HTTP 请求头做规则匹配，然后把请求定向到相关的 backend。

二、配置相关参数详解

haproxy 主要分为 global、defaults、front、backend、listen 几段，配置文件详细说明如下：
#———————————————————————
# Global settings #全局配置段
#———————————————————————
global #全局配置段
# to have these messages end up in /var/log/haproxy.log you will
# need to:
#
# 1) configure syslog to accept network log events. This is done
# by adding the ‘-r’ option to the SYSLOGD_OPTIONS in
# /etc/sysconfig/syslog
#
# 2) configure local2 events to go to the /var/log/haproxy.log
# file. A line like the following can be added to
# /etc/sysconfig/syslog
#
# local2.* /var/log/haproxy.log #如需保存日志文件需修改 /etc/rsyslog.cfg 添加此项至配置问文件中重启 rsyslog
#
log 127.0.0.1 local2 #日志将通过 rsyslog 进行记录
chroot /var/lib/haproxy #运行的安装路径
pidfile /var/run/haproxy.pid #运行时的 pid 进程文件
maxconn 4000 #最大连接数
user haproxy #运行以 haproxy 用户
group haproxy #运行以 haproxy 用户
daemon #以守护进程的方式运行 haproxy
# turn on stats unix socket
stats socket /var/lib/haproxy/stats
#———————————————————————
# common defaults that all the ‘listen’ and ‘backend’ sections will
# use if not designated in their block
#———————————————————————
defaults
mode http #工作模式
log global #记录日志级别为全局
option httplog #详细的 http 日志
option dontlognull
option http-server-close
option forwardfor except 127.0.0.0/8 #传递客服端 IP
option redispatch
retries 3 #失败后重试次数
timeout http-request 10s #http 请求超时时长
timeout queue 1m
timeout connect 10s
timeout client 1m
timeout server 1m
timeout http-keep-alive 10s
timeout check 10s #心跳信息检测超时时长
maxconn 3000
#———————————————————————
# main frontend which proxys to the backends
#———————————————————————
listen stats
mode http
bind *:1080
stats enable
stats hide-version
stats uri /admin
stats realm Haproxy\ Statistics
stats auth admin:admin
stats admin if TRUE
frontend main
bind *:80
#定义 acl 规则
acl url_static path_beg -i /static /images /javascript /stylesheets #请求报文中以此类开头的都定义为 uri_static
acl url_static path_end -i .jpg .gif .png .css .js .html .ico #不区分大小写一此类.* 结尾的都定义为 url_static
acl url_dynamic path_end -i .php .jsp .asp #不区分大小写以此类开头的定义为动态资源组
use_backend static if url_static #调用后端服务器并检测规则
use_backend bynamic if url_dynamic #调用后端服务器并检查规则
default_backend static #使用默认规则
#———————————————————————
# static backend for serving up images, stylesheets and such
#———————————————————————
backend static #后端调度
balance roundrobin #调度算法，除此外还有 static-rr,leaseconn,first,source,uri 等
server static 192.168.10.125:80 inter 1500 rise 2 fall 3 check
rspadd X-Via:static #启用响应报文首部标志，以便观察是静态服务器反馈的
#———————————————————————
# round robin balancing between the various backends
#———————————————————————
backend dynamic
balance source
server s2 172.16.10.12:80 check inter 1500 rise 2 fall 3
#check inter 1500 是检测心跳频率
#rise2 2 次正确认为服务器可用
#fall3 3 次失败认为服务器不可用
#———————————————————————
# round robin balancing listen option
#———————————————————————
listen statistics
mode http #http 7 层模式
bind *:9988 #监听地址
stats enable #启用状态监控
stats auth admin:admin #验证的用户与密码
stats uri /admin?stats #访问路径
stats hide-version #隐藏状态页面版本号
stats admin if TRUE #如果验证通过了就允许登录
stats refresh 3s #每 3 秒刷新一次
acl allow src 192.168.18.0/24 #允许的访问的 IP 地址
tcp-request content accept if allow #允许的地址段就允许访问
tcp-request content reject #拒绝非法连接

三、haproxy+varnish 实现动静分离小案例

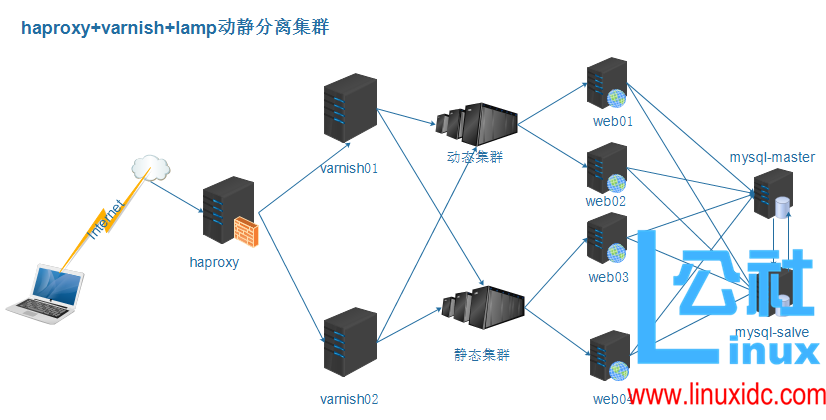

实验架构拓扑图：

HaProxy+Varnish+LAMP 集群实现动静分离

架构说明：用户请求到达前端，通过 haproxy 调度到 varnish 缓存服务器上，当缓存服务器上的资源命中且未过期时直接叫资源响应改用户，当未命中时通过在两台 varnish 服务器上设置匹配规则将其转发至后端响应的动态和静态服务器上，后端动态或静态服务器均使用 nfs 网络文件共享使用同一个资源目录，同时将使用同一台厚分离出来的 mysql 服务器作为存储数据使用，考虑单点故障的瓶颈，mysql 服务器将使用主从两台实现高可用主负责读写均可，但从服务器为只读，同理路由需要也可在前端 haproxy 代理提供冗余。

实验环境如下:

前端：HAProxy
1、调度服务器：Varnish1、Varnish2
2、调度算法一致性 URL 哈希：URL_Hash_Consistent
3、集群统计页：ipaddr/haproxy?admin
缓存服务器：Varnish
1、VarnishServer01
2、VarnishServer02
3、开启健康状态探测，提供高可用
4、负载均衡后端 Web 服务器组
5、动静分离后端服务器，并动静都提供负载均衡效果
后端服务器：
StaticServer01
StaticServer02
DynamicServer01
DynamicServer02
Mysql 服务器：
MysqlServer-master
MysqlServer-slave

haproxy 配置如下：

#———————————————————————
# Global settings
#———————————————————————
global
# to have these messages end up in /var/log/haproxy.log you will
# need to:
#
# 1) configure syslog to accept network log events. This is done
# by adding the ‘-r’ option to the SYSLOGD_OPTIONS in
# /etc/sysconfig/syslog
#
# 2) configure local2 events to go to the /var/log/haproxy.log
# file. A line like the following can be added to
# /etc/sysconfig/syslog
#
# local2.* /var/log/haproxy.log
#
log 127.0.0.1 local2
chroot /var/lib/haproxy
pidfile /var/run/haproxy.pid
maxconn 4000
user haproxy
group haproxy
daemon
# turn on stats unix socket
stats socket /var/lib/haproxy/stats
#———————————————————————
# common defaults that all the ‘listen’ and ‘backend’ sections will
# use if not designated in their block
#———————————————————————
defaults
mode http
log global
option httplog
option dontlognull
option http-server-close
option forwardfor except 127.0.0.0/8
option redispatch
retries 3
timeout http-request 10s
timeout queue 1m
timeout connect 10s
timeout client 1m
timeout server 1m
timeout http-keep-alive 10s
timeout check 10s
maxconn 3000
#———————————————————————
# main frontend which proxys to the backends
#———————————————————————
frontend web *:80
#acl url_static path_beg-i /static /images /javascript /sytlesheets
#acl url_static path_end -i .jpg .gif .png .css .js
#use_backend staticif url_static
use_backendvarnish_srv
#———————————————————————
# vanrnish server balance method
#———————————————————————
backend varnish_srv #定义 varnish 后端主机组
balance uri #一致性 hash
hash-type consistent #一致性 hash url
servervarnish1 10.1.10.6:9988 check #varnish 服务器 1，并添加健康状态检测
servervarnish2 10.1.10.7:9988 check #varnish 服务器 02，并添加健康状态检测
listen stats #定义状态监控管理页
bind:9002
stats uri /alren?admin #页面 URL
stats hide-version #影藏版文本信息
stats authadmin:alren #提供认证页面
stats admin if TRUE #认证通过则条状到相应页面

varnish 配置如下：
# This is an example VCL file for Varnish.
#
# It does not do anything by default, delegating control to the
# builtin VCL. The builtin VCL is called when there is no explicit
# return statement.
#
# See the VCL chapters in the Users Guide at https://www.varnish-cache.org/docs/
# and http://varnish-cache.org/trac/wiki/VCLExamples for more examples.
# Marker to tell the VCL compiler that this VCL has been adapted to the
# new 4.0 format.
vcl 4.0; #版本信息
import directors; #导入模块
acl purges {#定义修剪规则
“127.0.0.1”;
“10.1.10.0”;
}
backend web1 {
.host = “10.1.10.68:80”;
.port = “80”;
.url =”/heath.php”;
.timeout = 2s;
.interval = 1s;
.window = 6;
.threshold = 3;
.expected_response = 200;
.initial = 2;
}
backend web2 {
.host = “10.1.10.69:80”;
.port = “80”;
.url =”/heath.php”;
.timeout = 2s;
.interval = 1s;
.window = 6;
.threshold = 3;
.expected_response = 200;
.initial = 2;
}
backend app1 {
.host = “10.1.10.70:80”;
.port = “80”;
.url =”/heath.html”;
.timeout = 2s;
.interval = 1s;
.window = 6;
.threshold = 3;
.expected_response = 200;
.initial = 2;
}
backend app2 {
.host = “10.1.10.71:80”;
.port = “80”;
.url =”/heath.html”;
.timeout = 2s;
.interval = 1s;
.window = 6;
.threshold = 3;
.expected_response = 200;
.initial = 2;
}
sub vcl_init {
new webcluster = directors.round_robin();
webcluster.add_backend(web1);
webcluster.add_backend(web2);

new appcluster = directors.round_robin();
appcluster.add_backend(app1);
appcluster.add_backend(app2);
}
sub vcl_recv {
if (req.method == “PURGE”){
if(!client.ip ~ purges){
return(synth(408,”you don’t have permission purge ” + client.ip));
}
return (purge);
}
if (req.url ~ “(?i)\.(php|asp|aspx|jsp)($|\?)”) {
set req.backend_hint = appcluster.backend();
}
if (req.method != “GET” &&
req.method != “HEAD” &&
req.method != “PUT” &&
req.method != “POST” &&
req.method != “TRACE” &&
req.method != “OPTIONS” &&
req.method != “PATCH” &&
req.method != “DELETE”) {
return (pipe);
}
if (req.method != “GET” && req.method != “HEAD”) {
return (pass);
}
if (req.http.Authorization || req.http.Cookie) {
return (pass);
}
if (req.http.Accept-Encoding) {
if (req.url ~ “\.(bmp|png|gif|jpg|jpeg|ico|gz|tgz|bz2|tbz|zip|rar|mp3|mp4|ogg|swf|flv)$”) {
unset req.http.Accept-Encoding;
} elseif (req.http.Accept-Encoding ~ “gzip”) {
set req.http.Accept-Encoding = “gzip”;
} elseif (req.http.Accept-Encoding ~ “deflate”) {
set req.http.Accept-Encoding = “deflate”;
} else {
unset req.http.Accept-Encoding;
}
}
return (hash);
}
sub vcl_pipe {
return (pipe);
}
sub vcl_miss {
return(fetch);
}
sub vcl_hash {
hash_data(req.url);
if (req.http.host) {
hash_data(req.http.host);
} else {
hash_data(server.ip);
}
if (req.http.Accept-Encoding ~ “gzip”) {
hash_data (“gzip”);
} elseif (req.http.Accept-Encoding ~ “deflate”) {
hash_data (“deflate”);
}
}
sub vcl_backend_response {
if (beresp.http.cache-control !~ “s-maxage”) {
if (bereq.url ~ “(?i)\.(jpg|jpeg|png|gif|css|js|html|htm)$”) {
unset beresp.http.Set-Cookie;
set beresp.ttl = 3600s;
}
}
}
sub vcl_purge {
return(synth(200,”Purged”));
}
sub vcl_deliver {
if (obj.hits > 0) {
set resp.http.X-Cache = “HIT via ” + req.http.host;
set resp.http.X-Cache-Hits = obj.hits;
} else {
set resp.http.X-Cache = “MISS via ” + req.http.host;
}
}
