CentOS7下Jenkins 服务器的安装

199次阅读

没有评论

共计 5427 个字符，预计需要花费 14 分钟才能阅读完成。

安装环境：CentOS 7

安装方式 yum 安装

安装 jenkins 需要首先配置 jdk

配置 yum 源

wget -O /etc/yum.repos.d/jenkins.repo http://jenkins-ci.org/RedHat/jenkins.repo

导入公钥

rpm –import http://pkg.jenkins-ci.org/redhat/jenkins-ci.org.key

安装

yum install jenkins -y

查看安装后生成的文件

/usr/lib/jenkins/jenkins.war ## jenkins 安装目录，WAR 包会放在这里

/etc/sysconfig/jenkins ## 配置文件

## Path: Development/Jenkins
## Description: Jenkins Continuous Integration Server
## Type: string
## Default: “/var/lib/jenkins”
## ServiceRestart: jenkins
#
# Directory where Jenkins store its configuration and working
# files (checkouts, build reports, artifacts, …).
#
JENKINS_HOME=”/var/lib/jenkins” ###jenkins 安装目录，WAR 包会放在这里

## Type: string
## Default: “”
## ServiceRestart: jenkins
#
# Java executable to run Jenkins
# When left empty, we’ll try to find the suitable Java.
#
JENKINS_JAVA_CMD=””

## Type: string
## Default: “jenkins”
## ServiceRestart: jenkins
#
# Unix user account that runs the Jenkins daemon
# Be careful when you change this, as you need to update
# permissions of $JENKINS_HOME and /var/log/jenkins.
#
JENKINS_USER=”jenkins”

## Type: string
## Default: “false”
## ServiceRestart: jenkins
#
# Whether to skip potentially long-running chown at the
# $JENKINS_HOME location. Do not enable this, “true”, unless
# you know what you’re doing. See JENKINS-23273.
#
#JENKINS_INSTALL_SKIP_CHOWN=”false”

## Type: string
## Default: “-Djava.awt.headless=true”
## ServiceRestart: jenkins
#
# Options to pass to java when running Jenkins.
#
JENKINS_JAVA_OPTIONS=”-Djava.awt.headless=true”

## Type: integer(0:65535)
## Default: 8080
## ServiceRestart: jenkins
#
# Port Jenkins is listening on.
# Set to -1 to disable
#
JENKINS_PORT=”8080″

## Type: string
## Default: “”
## ServiceRestart: jenkins
#
# IP address Jenkins listens on for HTTP requests.
# Default is all interfaces (0.0.0.0).
#
JENKINS_LISTEN_ADDRESS=””

## Type: integer(0:65535)
## Default: “”
## ServiceRestart: jenkins
#
# HTTPS port Jenkins is listening on.
# Default is disabled.
#
JENKINS_HTTPS_PORT=””

## Type: string
## Default: “”
## ServiceRestart: jenkins
#
# Path to the keystore in JKS format (as created by the JDK ‘keytool’).
# Default is disabled.
#
JENKINS_HTTPS_KEYSTORE=””

## Type: string
## Default: “”
## ServiceRestart: jenkins
#
# Password to access the keystore defined in JENKINS_HTTPS_KEYSTORE.
# Default is disabled.
#
JENKINS_HTTPS_KEYSTORE_PASSWORD=””

## Type: string
## Default: “”
## ServiceRestart: jenkins
#
# IP address Jenkins listens on for HTTPS requests.
# Default is disabled.
#
JENKINS_HTTPS_LISTEN_ADDRESS=””

## Type: integer(1:9)
## Default: 5
## ServiceRestart: jenkins
#
# Debug level for logs — the higher the value, the more verbose.
# 5 is INFO.
#
JENKINS_DEBUG_LEVEL=”5″

## Type: yesno
## Default: no
## ServiceRestart: jenkins
#
# Whether to enable access logging or not.
#
JENKINS_ENABLE_ACCESS_LOG=”no”

## Type: integer
## Default: 100
## ServiceRestart: jenkins
#
# Maximum number of HTTP worker threads.
#
JENKINS_HANDLER_MAX=”100″

## Type: integer
## Default: 20
## ServiceRestart: jenkins
#
# Maximum number of idle HTTP worker threads.
#
JENKINS_HANDLER_IDLE=”20″

## Type: string
## Default: “”
## ServiceRestart: jenkins
#
# Pass arbitrary arguments to Jenkins.
# Full option list: java -jar jenkins.war –help
#
JENKINS_ARGS=””

/var/lib/jenkins/ ## 默认的 JENKINS_HOME

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18 -rw-r–r– 1 jenkins jenkins 1592 Feb 27 09:14 config.xml
-rw-r–r– 1 jenkins jenkins 159 Feb 27 09:14 hudson.model.UpdateCenter.xml
-rw-r–r– 1 jenkins jenkins 370 Feb 27 09:19 hudson.plugins.git.GitTool.xml
-rw——- 1 jenkins jenkins 1712 Feb 27 09:14 identity.key.enc
-rw-r–r– 1 jenkins jenkins 4 Feb 27 09:24 jenkins.install.InstallUtil.lastExecVersion
-rw-r–r– 1 jenkins jenkins 4 Feb 27 09:24 jenkins.install.UpgradeWizard.state
drwxr-xr-x 2 jenkins jenkins 4096 Feb 27 09:14 jobs
drwxr-xr-x 3 jenkins jenkins 4096 Feb 27 09:14 logs
-rw-r–r– 1 jenkins jenkins 907 Feb 27 09:14 nodeMonitors.xml
drwxr-xr-x 2 jenkins jenkins 4096 Feb 27 09:14 nodes
drwxr-xr-x 72 jenkins jenkins 12288 Feb 27 09:20 plugins
-rw-r–r– 1 jenkins jenkins 64 Feb 27 09:14 secret.key
-rw-r–r– 1 jenkins jenkins 0 Feb 27 09:14 secret.key.not-so-secret
drwx—— 4 jenkins jenkins 4096 Feb 27 09:24 secrets
drwxr-xr-x 2 jenkins jenkins 4096 Feb 27 09:19 updates
drwxr-xr-x 2 jenkins jenkins 4096 Feb 27 09:14 userContent
drwxr-xr-x 3 jenkins jenkins 4096 Feb 27 09:24 users
drwxr-xr-x 2 jenkins jenkins 4096 Feb 27 09:19 workflow-libs

/etc/rc.d/init.d/jenkins ## 启东脚本

/var/log/jenkins/jenkins.log：Jenkins ## 日志文件

启动 jenkins 服务

systemctl start jenkins

Job for jenkins.service failed because the control process exited with error code. See “systemctl status jenkins.service” and “journalctl -xe” for details.

启动失败查看报错信息

Starting LSB: Jenkins Continuous Integration Server…

Starting Jenkins bash: /usr/bin/java: No such file or directory

Feb 27 09:03:12 test-bcliunx-3 jenkins: [FAILED]

没有找到 java 命令

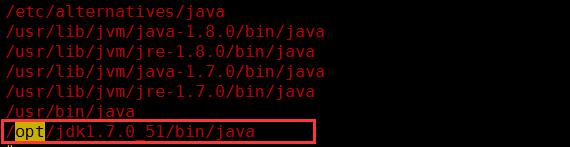

查看 java 命令

/opt/jdk1.7.0_51/bin/java

解决方法修改 jenkins 启动脚本

vim /etc/rc.d/init.d/jenkins

添加下面的文件

CentOS7 下 Jenkins 服务器的安装
