1. 安装
安装前先关闭 iptables 和 SELinux。
CentOS 输入以下命令:
yum install samba samba-client
Ubuntu 输入以下命令:
apt-get install samba | |
apt-get install samba-client |
2. 设置
创建一个文件夹:
mkdir /home/sambachmod 777 /home/samba
编辑 /etc/samba/smb.conf 文件:
# This is the main Samba configuration file. You should read the | |
# smb.conf(5) manual page in order to understand the options listed | |
# here. Samba has a huge number of configurable options (perhaps too | |
# many!) most of which are not shown in this example | |
# | |
# For a step to step guide on installing, configuring and using samba, | |
# read the Samba-HOWTO-Collection. This may be obtained from: | |
# http://www.samba.org/samba/docs/Samba-HOWTO-Collection.pdf | |
# | |
# Many working examples of smb.conf files can be found in the | |
# Samba-Guide which is generated daily and can be downloaded from: | |
# http://www.samba.org/samba/docs/Samba-Guide.pdf | |
# | |
# Any line which starts with a ; (semi-colon) or a # (hash) | |
# is a comment and is ignored. In this example we will use a # | |
# for commentry and a ; for parts of the config file that you | |
# may wish to enable | |
# | |
# NOTE: Whenever you modify this file you should run the command "testparm" | |
# to check that you have not made any basic syntactic errors. | |
# | |
#--------------- | |
# SELINUX NOTES: | |
# | |
# If you want to use the useradd/groupadd family of binaries please run: | |
# setsebool -P samba_domain_controller on | |
# | |
# If you want to share home directories via samba please run: | |
# setsebool -P samba_enable_home_dirs on | |
# | |
# If you create a new directory you want to share you should mark it as | |
# "samba_share_t" so that selinux will let you write into it. | |
# Make sure not to do that on system directories as they may already have | |
# been marked with othe SELinux labels. | |
# | |
# Use ls -ldZ /path to see which context a directory has | |
# | |
# Set labels only on directories you created! | |
# To set a label use the following: chcon -t samba_share_t /path | |
# | |
# If you need to share a system created directory you can use one of the | |
# following (read-only/read-write): | |
# setsebool -P samba_export_all_ro on | |
# or | |
# setsebool -P samba_export_all_rw on | |
# | |
# If you want to run scripts (preexec/root prexec/print command/...) please | |
# put them into the /var/lib/samba/scripts directory so that smbd will be | |
# allowed to run them. | |
# Make sure you COPY them and not MOVE them so that the right SELinux context | |
# is applied, to check all is ok use restorecon -R -v /var/lib/samba/scripts | |
# | |
#-------------- | |
# | |
#======================= Global Settings ===================================== | |
[global] | |
# ----------------------- Network Related Options ------------------------- | |
# | |
# workgroup = NT-Domain-Name or Workgroup-Name, eg: MIDEARTH | |
# | |
# server string is the equivalent of the NT Description field | |
# | |
# netbios name can be used to specify a server name not tied to the hostname | |
# | |
# Interfaces lets you configure Samba to use multiple interfaces | |
# If you have multiple network interfaces then you can list the ones | |
# you want to listen on (never omit localhost) | |
# | |
# Hosts Allow/Hosts Deny lets you restrict who can connect, and you can | |
# specifiy it as a per share option as well | |
# | |
workgroup = MYGROUP | |
server string = Samba Server Version %v | |
netbios name = HZHISERVER | |
map to guest = bad user | |
; interfaces = lo eth0 192.168.12.2/24 192.168.13.2/24 | |
; hosts allow = 127. 192.168.12. 192.168.13. 192.168.1 | |
# --------------------------- Logging Options ----------------------------- | |
# | |
# Log File let you specify where to put logs and how to split them up. | |
# | |
# Max Log Size let you specify the max size log files should reach | |
# logs split per machine | |
log file = /var/log/samba/log.%m | |
# max 50KB per log file, then rotate | |
max log size = 50 | |
# ----------------------- Standalone Server Options ------------------------ | |
# | |
# Scurity can be set to user, share(deprecated) or server(deprecated) | |
# | |
# Backend to store user information in. New installations should | |
# use either tdbsam or ldapsam. smbpasswd is available for backwards | |
# compatibility. tdbsam requires no further configuration. | |
security = user | |
passdb backend = tdbsam | |
# ----------------------- Domain Members Options ------------------------ | |
# | |
# Security must be set to domain or ads | |
# | |
# Use the realm option only with security = ads | |
# Specifies the Active Directory realm the host is part of | |
# | |
# Backend to store user information in. New installations should | |
# use either tdbsam or ldapsam. smbpasswd is available for backwards | |
# compatibility. tdbsam requires no further configuration. | |
# | |
# Use password server option only with security = server or if you can't | |
# use the DNS to locate Domain Controllers | |
# The argument list may include: | |
# password server = My_PDC_Name [My_BDC_Name] [My_Next_BDC_Name] | |
# or to auto-locate the domain controller/s | |
# password server = * | |
; security = domain | |
; passdb backend = tdbsam | |
; realm = MY_REALM | |
; password server = <NT-Server-Name> | |
# ----------------------- Domain Controller Options ------------------------ | |
# | |
# Security must be set to user for domain controllers | |
# | |
# Backend to store user information in. New installations should | |
# use either tdbsam or ldapsam. smbpasswd is available for backwards | |
# compatibility. tdbsam requires no further configuration. | |
# | |
# Domain Master specifies Samba to be the Domain Master Browser. This | |
# allows Samba to collate browse lists between subnets. Don't use this | |
# if you already have a Windows NT domain controller doing this job | |
# | |
# Domain Logons let Samba be a domain logon server for Windows workstations. | |
# | |
# Logon Scrpit let yuou specify a script to be run at login time on the client | |
# You need to provide it in a share called NETLOGON | |
# | |
# Logon Path let you specify where user profiles are stored (UNC path) | |
# | |
# Various scripts can be used on a domain controller or stand-alone | |
# machine to add or delete corresponding unix accounts | |
# | |
; security = user | |
; passdb backend = tdbsam | |
; domain master = yes | |
; domain logons = yes | |
# the login script name depends on the machine name | |
; logon script = %m.bat | |
# the login script name depends on the unix user used | |
; logon script = %u.bat | |
; logon path = \\%L\Profiles\%u | |
# disables profiles support by specifing an empty path | |
; logon path = | |
; add user script = /usr/sbin/useradd "%u" -n -g users | |
; add group script = /usr/sbin/groupadd "%g" | |
; add machine script = /usr/sbin/useradd -n -c "Workstation (%u)" -M -d /nohome -s /bin/false "%u" | |
; delete user script = /usr/sbin/userdel "%u" | |
; delete user from group script = /usr/sbin/userdel "%u" "%g" | |
; delete group script = /usr/sbin/groupdel "%g" | |
# ----------------------- Browser Control Options ---------------------------- | |
# | |
# set local master to no if you don't want Samba to become a master | |
# browser on your network. Otherwise the normal election rules apply | |
# | |
# OS Level determines the precedence of this server in master browser | |
# elections. The default value should be reasonable | |
# | |
# Preferred Master causes Samba to force a local browser election on startup | |
# and gives it a slightly higher chance of winning the election | |
; local master = no | |
; os level = 33 | |
; preferred master = yes | |
#----------------------------- Name Resolution ------------------------------- | |
# Windows Internet Name Serving Support Section: | |
# Note: Samba can be either a WINS Server, or a WINS Client, but NOT both | |
# | |
# - WINS Support: Tells the NMBD component of Samba to enable it's WINS Server | |
# | |
# - WINS Server: Tells the NMBD components of Samba to be a WINS Client | |
# | |
# - WINS Proxy: Tells Samba to answer name resolution queries on | |
# behalf of a non WINS capable client, for this to work there must be | |
# at least one WINS Server on the network. The default is NO. | |
# | |
# DNS Proxy - tells Samba whether or not to try to resolve NetBIOS names | |
# via DNS nslookups. | |
; wins support = yes | |
; wins server = w.x.y.z | |
; wins proxy = yes | |
; dns proxy = yes | |
# --------------------------- Printing Options ----------------------------- | |
# | |
# Load Printers let you load automatically the list of printers rather | |
# than setting them up individually | |
# | |
# Cups Options let you pass the cups libs custom options, setting it to raw | |
# for example will let you use drivers on your Windows clients | |
# | |
# Printcap Name let you specify an alternative printcap file | |
# | |
# You can choose a non default printing system using the Printing option | |
load printers = yes | |
cups options = raw | |
; printcap name = /etc/printcap | |
#obtain list of printers automatically on SystemV | |
; printcap name = lpstat | |
; printing = cups | |
# --------------------------- Filesystem Options --------------------------- | |
# | |
# The following options can be uncommented if the filesystem supports | |
# Extended Attributes and they are enabled (usually by the mount option | |
# user_xattr). Thess options will let the admin store the DOS attributes | |
# in an EA and make samba not mess with the permission bits. | |
# | |
# Note: these options can also be set just per share, setting them in global | |
# makes them the default for all shares | |
; map archive = no | |
; map hidden = no | |
; map read only = no | |
; map system = no | |
; store dos attributes = yes | |
#============================ Share Definitions ============================== | |
[homes] | |
comment = Home Directories | |
browseable = yes | |
writable = yes | |
; valid users = %S | |
; valid users = MYDOMAIN\%S | |
[printers] | |
comment = All Printers | |
path = /var/spool/samba | |
browseable = no | |
guest ok = no | |
writable = no | |
printable = yes | |
# Un-comment the following and create the netlogon directory for Domain Logons | |
; [netlogon] | |
; comment = Network Logon Service | |
; path = /var/lib/samba/netlogon | |
; guest ok = yes | |
; writable = no | |
; share modes = no | |
# Un-comment the following to provide a specific roving profile share | |
# the default is to use the user's home directory | |
; [Profiles] | |
; path = /var/lib/samba/profiles | |
; browseable = no | |
; guest ok = yes | |
# A publicly accessible directory, but read only, except for people in | |
# the "staff" group | |
[public] | |
comment = Public Stuff | |
path = /home/samba | |
public = yes | |
browseable = yes | |
writable = yes | |
printable = no | |
write list = +staff |
3. 运行
CentOS 下运行:
service smb start | |
service nmb start |
Ubuntu 下运行:
/etc/init.d/samba start
4. Windows7 访问 Samba
因为 Samba 使用 NTLM 认证,而 Windows7 使用的是 NTLMv2 认证,所以要先设置一下才能访问。

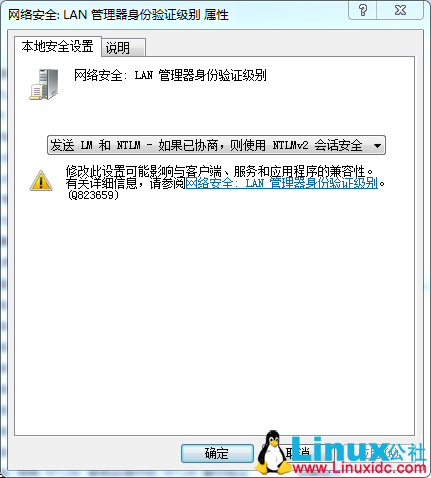

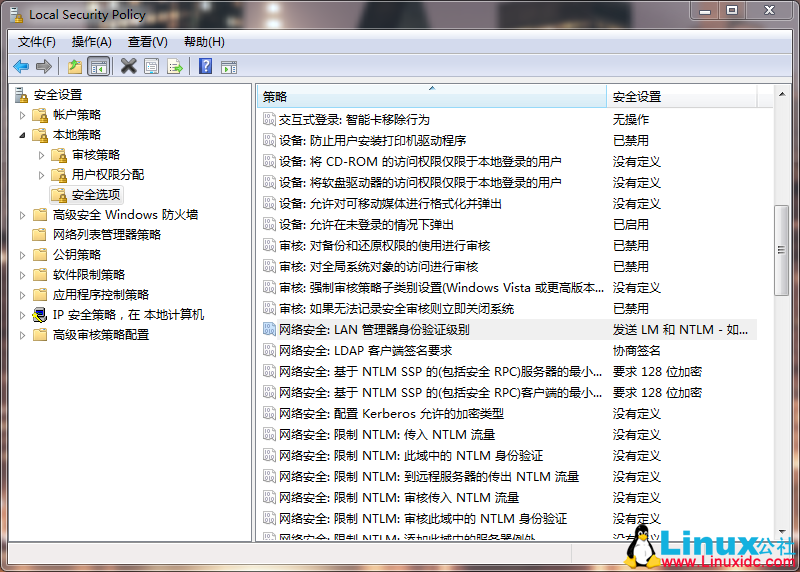

开始 -> 运行 ->secpol.msc,这时会出错,提示“试图引用不存在的令牌。”,到 C:\Windows\System32 下找到 secpol.msc,复制到桌面上再运行,选择本地策略 -> 安全选项 -> 网络安全:LAN 管理器身份验证级别,改成“发送 LM 和 NTLMv2 , 如果已协商,则使用 NTLMv2 会话安全”。

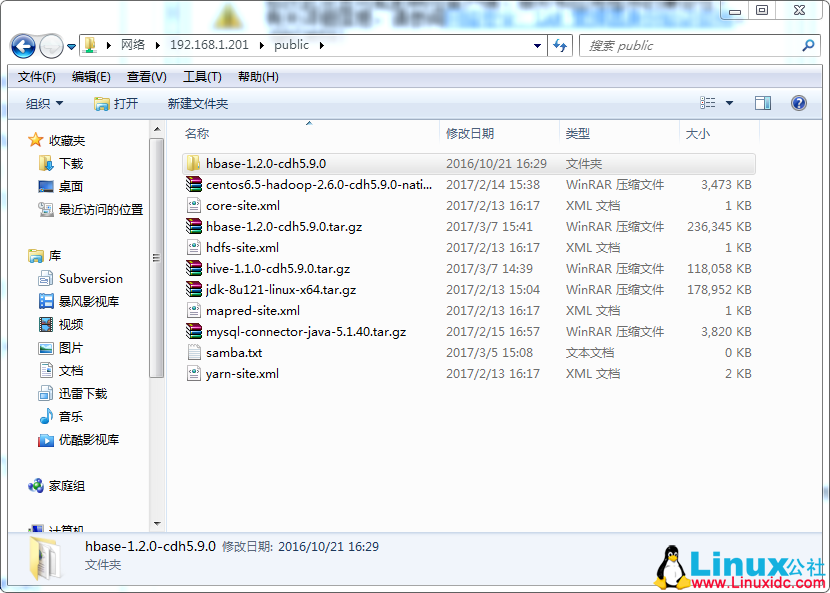

点击开始,在搜索对话框中输入“//Samba 服务器 IP”,就可以访问 Samba 服务器了,并且复制粘贴文件了,非常方便。
———————————— 分割线 ————————————
如何在 Ubuntu 14.04 中使用 Samba 共享文件 http://www.linuxidc.com/Linux/2014-07/104894.htm
VMWare 虚拟机 Ubuntu 双网卡 访问 samba 速度 翻倍 http://www.linuxidc.com/Linux/2013-06/85445.htm
Ubuntu 15.04 安装 Samba 服务 http://www.linuxidc.com/Linux/2016-03/129201.htm
samba 安装使用图解 http://www.linuxidc.com/Linux/2017-03/141254.htm
CentOS 7.2 安装配置 Samba 服务器 http://www.linuxidc.com/Linux/2017-03/141390.htm
CentOS 部署 Samba 企业文件共享服务 http://www.linuxidc.com/Linux/2016-06/132609.htm
怎样设置 Samba 文件服务器以使用 Windows 客户端 http://www.linuxidc.com/Linux/2014-08/105786.htm
CentOS 6.7 下 Samba 服务器的搭建与配置(share 共享模式)http://www.linuxidc.com/Linux/2016-12/138220.htm
Ubuntu 16.04 下 Samba 相关配置 http://www.linuxidc.com/Linux/2016-12/138498.htm
———————————— 分割线 ————————————
Samba 的详细介绍 :请点这里
Samba 的下载地址 :请点这里
本文永久更新链接地址 :http://www.linuxidc.com/Linux/2017-03/141523.htm
