Linux下Apache+Resin服务器的安装配置

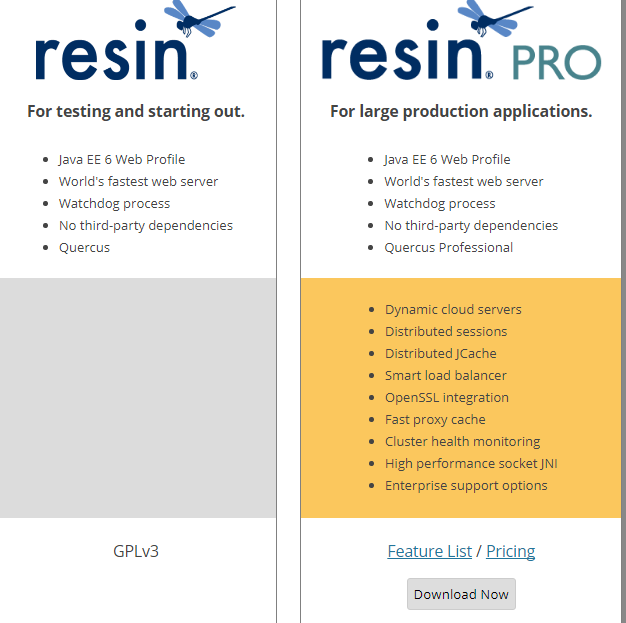

1.opensource 的 resin 是基于 GPL 开源的，如果需要将开发产品作为商业产品发布是需要收费的。2.pro 的是收费的，比 opensource 的部分多了性能优化和集群，技术支持等

两台服务器：httpd-server 192.168.0.11
resin-server 192.168.0.12

[root@resin-server ~]# rpm -ivh jdk-8u25-x64.rpm
Preparing...                ########################################### [100%]
   1:jdk1.8.0_131           ########################################### [100%]
Unpacking JAR files...
    tools.jar...
    plugin.jar...
    javaws.jar...
    deploy.jar...
    rt.jar...
    jsse.jar...
    charsets.jar...
    localedata.jar...
[root@resin-server ~]# cat /etc/profile.d/java.sh
export JAVA_HOME=/usr/java/latest
export CLASSPATH=$JAVA_HOME/lib/tools.jar
export PATH=$JAVA_HOME/bin:$PATH
[root@resin-server ~]# . /etc/profile.d/java.sh
[root@resin-server ~]# java -version
java version "1.8.0_131"
Java(TM) SE Runtime Environment (build 1.8.0_131-b11)
Java HotSpot(TM) 64-Bit Server VM (build 25.131-b11, mixed mode)

[root@resin-server ~]# wget http://www.caucho.com/download/resin-3.1.13.tar.gz #下载软件
[root@resin-server ~]# tar xf resin-3.1.13.tar.gz -C /usr/local/ #不和 httpd 生成模块，则无需编译
[root@resin-server local]# ln -sv resin-3.1.13 resin
"resin" -> "resin-3.1.13"
[root@resin-server local]# sed -n '88,100p' /usr/local/resin/conf/resin.conf #修改配置文件，删除默认配置文件 88-146 行，添加如下内容
     <!-- resin configure by 2017-12-21 -->
  <server id='panwenbin' address='192.168.0.11' port='8888' watchdog-port='8889'>
        <http address="*" port="8080" />
        <jvm-arg>-Xmx128m</jvm-arg>
        <jvm-arg>-Xms128m</jvm-arg>
        <jvm-arg>-Xdebug</jvm-arg>
        <jvm-arg>-Dcom.sun.management.jmxremote</jvm-arg>
        <memory-free-min>1M</memory-free-min>
        <thread-max>128</thread-max>
        <socket-timeout>60s</socket-timeout>
        <keepalive-max>128</keepalive-max>
        <keepalive-timeout>15s</keepalive-timeout>
 </server>

注：resin4.0 之后几点 JDK 参数移到 resin.xml 配置文件中，因为 4.0 之后 watchdog 会启动 resin 服务实例，并且使得配置更可维护
[root@resin-server ~]# httpd.sh -server panwenbin start  #启动服务器
Resin/3.1.13 started -server 'panwenbin' for watchdog at 127.0.0.1:8889
[root@resin-server ~]#  netstat -tnlp|egrep  "8888|8889|8080"  #查看端口是否启动
tcp        0      0 127.0.0.1:6012              0.0.0.0:*                   LISTEN      28889/sshd
tcp        0      0 :::8080                     :::*                        LISTEN      57101/java   #resin web server 端口
tcp        0      0 ::ffff:192.168.0.11:8888    :::*                        LISTEN      57101/java   #Apache 的请求转发端口
tcp        0      0 ::ffff:127.0.0.1:8889       :::*                        LISTEN      57074/java   #watchdog 端口
tcp        0      0 ::1:6012                    :::*                        LISTEN      28889/sshd

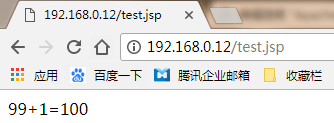

[root@resin-server ~]#  echo "99+1=<%=99+1%>" > /usr/local/resin/webapps/ROOT/test.jsp #添加测试页
[root@resin-server ~]# curl http://192.168.0.11:8080/test.jsp #显示 100 则服务正常
99+1=100

[root@resin-server ~]#  cp /usr/local/resin/contrib/init.resin.in  /etc/init.d/resin

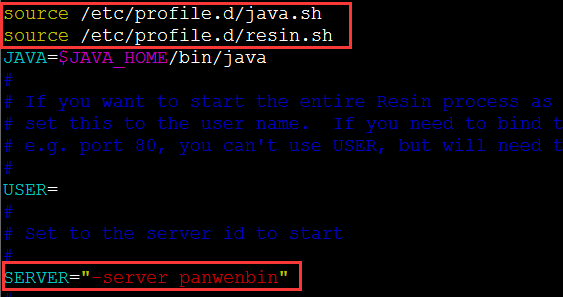

[root@resin-server ~]# vim /etc/init.d/resin

[root@resin-server ~]# chmod +x /etc/init.d/resin
[root@resin-server ~]# killall java
[root@resin-server ~]# /etc/init.d/resin start

[root@httpd-server ~]#yum install -y zlib libmxl libjpeg freetype libpng gd curl libiconv zlib-devel libxml2-devel libjpeg-devel freetype-devel ng-devel gd-devel curl-devel
[root@httpd-server~]#wget http://mirrors.hust.edu.cn/apache//httpd/httpd-2.2.34.tar.gz
[root@httpd-server ~]#tar xf httpd-2.2.34.tar.gz
[root@httpd-server ~]#cd httpd-2.2.34
[root@httpd-server httpd-2.2.34]#./configure --prefix=/usr/local/httpd --enable-deflate --enable-headers --enable-modules=so --enable-so --with-mpm=worker --enable-rewrite
[root@httpd-server httpd-2.2.34]#make &&make install

[root@httpd-server ~]# wget http://www.caucho.com/download/resin-3.1.13.tar.gz
[root@httpd-server ~]# tar xf resin-3.1.13.tar.gz
[root@httpd-server ~]# cd resin-3.1.13
[root@httpd-server resin-3.1.13]# ./configure --with-apxs=/usr/local/httpd/bin/apxs
[root@httpd-server resin-3.1.13]# cd modules/c/src/
[root@httpd-server src]# make&&make install
[root@httpd-serverr src]# ll /usr/local/httpd/modules/  #查看模块是否生成
总用量 180
-rw-r--r-- 1 root root   9291 1 月   2 20:00 httpd.exp
-rwxr-xr-x 1 root root 170915 1 月   2 20:16 mod_caucho.so
[root@httpd-server src]# tail /usr/local/httpd/conf/httpd.conf  #查看 httpd 配置文件是否生成 resin 配置命令
</IfModule>
#
# mod_caucho Resin Configuration
#

LoadModule caucho_module /usr/local/httpd/modules/mod_caucho.so

ResinConfigServer localhost 6800
CauchoConfigCacheDirectory /tmp
CauchoStatus yes

[root@httpd-server src]# tail /usr/local/httpd/conf/httpd.conf
#
# mod_caucho Resin Configuration
#

LoadModule caucho_module /usr/local/httpd/modules/mod_caucho.so

ResinConfigServer 192.168.0.11 8888
CauchoConfigCacheDirectory /tmp
CauchoStatus yes
SetHandler cacucho-request #加上 SetHandler caucho-request 是全部将请求转发到 resin，不加仅有 PHP jsp 类型转发
[root@httpd-server src]# /usr/local/httpd/bin/apachectl start #启动 httpd 服务
httpd: apr_sockaddr_info_get() failed for httpd-server #错误提示原因：这个问题是没有在 /etc/httpd/conf/httpd.conf 中设定 ServerName
httpd: Could not reliably determine the server's fully qualified domain name, using 127.0.0.1 for ServerName
[root@httpd-server src]# netstat -tnlp #检查端口是否启动
