Zabbix3.0.4利用iostat工具监控CentOS主机磁盘IO

215次阅读

没有评论

共计 30714 个字符，预计需要花费 77 分钟才能阅读完成。

该监控基于 iostat, 然后 iostat 命令用来监视系统输入 / 输出设备负载

1. 安装 IOSTAT 工具

# yum install sysstat -y

测试 iostat 查看所有硬盘 io

# iostat
Linux 2.6.32-431.11.25.el6.ucloud.x86_64 (test8_Hadoop_kaf) 07/27/2017 _x86_64_ (4 CPU)

avg-cpu: %user %nice %system %iowait %steal %idle
0.04 0.00 0.04 0.00 0.00 99.92

Device: tps Blk_read/s Blk_wrtn/s Blk_read Blk_wrtn
vda 0.10 0.23 0.92 447172 1765488
vdb 0.00 0.00 0.15 4298 277632

2. 部署脚本

# mkdir -p /usr/local/zabbix-agent/scripts/
# vim /usr/local/zabbix-agent/scripts/zabbix-iostat.sh

#!/bin/bash

ZBX_DEV=”$1″
ZBX_METRIC=”$2″
IOSTAT_LOG=/tmp/iostat.log

# Check iostat util
if ! which iostat 2>&1>/dev/null; then
>&2 echo “Can’t find ‘iostat’ binary in \$PATH”
>&2 echo “Make sure that you’ve installed ‘sysstat’ package”
exit 1
fi

# Check args
[[$# -lt 1]] && {echo “Give some more arguments, please :)”; exit 1; }

# Discovering devices and spits out JSON
if [“$ZBX_DEV” = ‘discovery’]; then
iostat -d | \
tail -n +4 |
awk ‘BEGIN {
ORS=””;
print “{\”data\”:[“}
/\d/ {printf “%s{\”%s\”:\”%s\”}”, separator, “{#DEVICENAME}”, $1, separator = “,”}
END {print “]}” }’
exit 0
fi

# Test iostat log
[[! -f “${IOSTAT_LOG}” ]] && echo “[m|ZBX_NOTSUPPORTED] [No such file ${IOSTAT_LOG}]” && exit 1

# Parse iostat file
function parse_iostat() {
grep ${ZBX_DEV} ${IOSTAT_LOG} | \
tr ‘,’ ‘.’ | \
awk -v field=”$1″ ‘
{sum+=$field; n++;}
END {if (n > 0) print sum/n;
else {print “[m|ZBX_NOTSUPPORTED] [Nodata.]” > “/dev/stderr”; exit 1};}’
}

# Exec parse funcion with number of column
case ${ZBX_METRIC} in
rrqm/s ) parse_iostat ‘2’;;
wrqm/s ) parse_iostat ‘3’;;
r/r ) parse_iostat ‘4’;;
w/r ) parse_iostat ‘5’;;
rkb/s ) parse_iostat ‘6’;;
wkb/s ) parse_iostat ‘7’;;
avgrq-sz ) parse_iostat ‘8’;;
avgqu-sz ) parse_iostat ‘9’;;
await ) parse_iostat ’10’;;
r_await ) parse_iostat ’11’;;
w_await ) parse_iostat ’12’;;
svctm ) parse_iostat ’13’;;
util ) parse_iostat ’14’;;
* ) echo “[m|ZBX_NOTSUPPORTED] [Unsupported item key.]” && exit 1;;
esac

添加脚本执行权限
# chmod +x /usr/local/zabbix-agent/scripts/zabbix-iostat.sh

# 设置参数

# echo ‘UserParameter=iostat[*],/usr/local/zabbix-agent/scripts/zabbix-iostat.sh “$1” “$2″‘ > /etc/zabbix/zabbix_agentd.d/iostat.conf

# 重启 zabbix_agentd

service zabbix-agent restart

# 测试自动发现

zabbix_agentd -t iostat[discovery]

3. 加入 crontab

# crontab -e

* * * * * (sleep 10 && iostat -dxk 1 20 > /tmp/iostat.tmp && mv /tmp/iostat.tmp /tmp/iostat.log)
* * * * * (sleep 40 && iostat -dxk 1 20 > /tmp/iostat.tmp && mv /tmp/iostat.tmp /tmp/iostat.log)

# 重启计划任务
/etc/init.d/crond restart
测试监控项

# zabbix_agentd -t iostat[vda,rkb/s]
iostat[vda,rkb/s] [t|0.007]

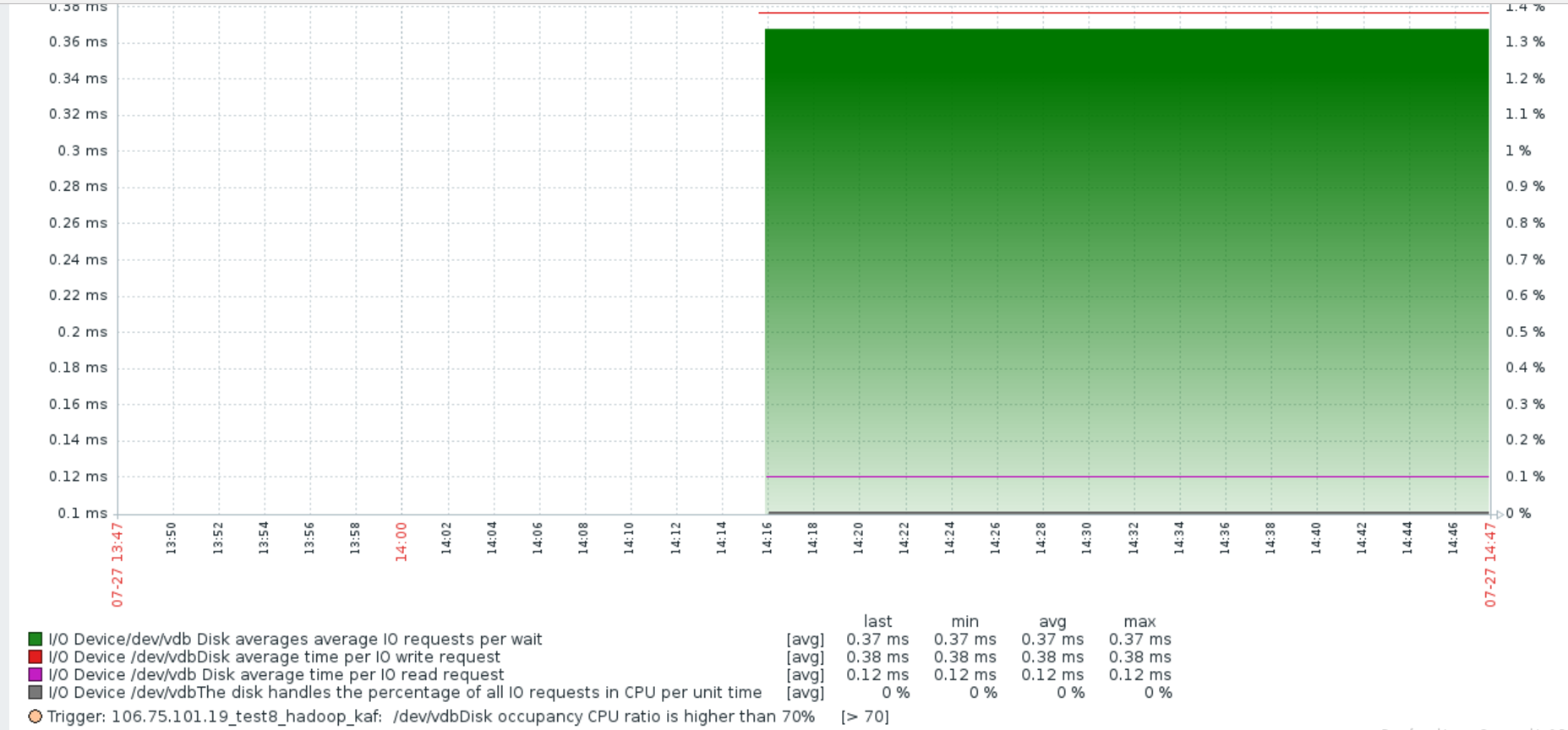

图像展示

Zabbix3.0.4 利用 iostat 工具监控 CentOS 主机磁盘 IO

模板：
Template_Linux_DISK_IO_Discovery_English.xml

<?xml version=”1.0″ encoding=”UTF-8″?>
<zabbix_export>
<version>3.0</version>
<date>2017-07-27T06:45:24Z</date>
<groups>
<group>
<name>Templates</name>
</group>
</groups>
<templates>
<template>
<template>Template_Linux_DISK_IO_Discovery_English</template>
<name>Template_Linux_DISK_IO_Discovery_English</name>
<description>Low-Level Discovery disk devices and I/O Performance monitoring</description>
<groups>
<group>
<name>Templates</name>
</group>
</groups>
<applications>
<application>
<name>DISK/IO</name>
</application>
</applications>
<items/>
<discovery_rules>
<discovery_rule>
<name>Disk devices discovery</name>
<type>0</type>
<snmp_community/>
<snmp_oid/>
<key>iostat[discovery]</key>
<delay>300</delay>
<status>0</status>
<allowed_hosts/>
<snmpv3_contextname/>
<snmpv3_securityname/>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authprotocol>0</snmpv3_authprotocol>
<snmpv3_authpassphrase/>
<snmpv3_privprotocol>0</snmpv3_privprotocol>
<snmpv3_privpassphrase/>
<delay_flex/>
<params/>
<ipmi_sensor/>
<authtype>0</authtype>
<username/>
<password/>
<publickey/>
<privatekey/>
<port/>
<filter>
<evaltype>0</evaltype>
<formula/>
<conditions>
<condition>
<macro>{#DEVICENAME}</macro>
<value>^(sd|hd|vd|xvd)[a-z]$</value>
<operator>8</operator>
<formulaid>A</formulaid>
</condition>
</conditions>
</filter>
<lifetime>30</lifetime>
<description>Disk devices discovery and IO Performance monitoring</description>
<item_prototypes>
<item_prototype>
<name>I/O Device /dev/$1 The average size (sector) of the disk each IO operation</name>
<type>0</type>
<snmp_community/>
<multiplier>0</multiplier>
<snmp_oid/>
<key>iostat[{#DEVICENAME},avgrq-sz]</key>
<delay>30</delay>
<history>7</history>
<trends>365</trends>
<status>0</status>
<value_type>0</value_type>
<allowed_hosts/>
<units>sectors</units>
<delta>0</delta>
<snmpv3_contextname/>
<snmpv3_securityname/>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authprotocol>0</snmpv3_authprotocol>
<snmpv3_authpassphrase/>
<snmpv3_privprotocol>0</snmpv3_privprotocol>
<snmpv3_privpassphrase/>
<formula>1</formula>
<delay_flex/>
<params/>
<ipmi_sensor/>
<data_type>0</data_type>
<authtype>0</authtype>
<username/>
<password/>
<publickey/>
<privatekey/>
<port/>
<description>The average size (in sectors) of the requests that were issued to the device.
向设备发出的请求的平均大小（扇区）。</description>
<inventory_link>0</inventory_link>
<applications>
<application>
<name>DISK/IO</name>
</application>
</applications>
<valuemap/>
<logtimefmt/>
<application_prototypes/>
</item_prototype>
<item_prototype>
<name>I/O Device/dev/$1 Disk averages average IO requests per wait</name>
<type>0</type>
<snmp_community/>
<multiplier>0</multiplier>
<snmp_oid/>
<key>iostat[{#DEVICENAME},await]</key>
<delay>30</delay>
<history>7</history>
<trends>365</trends>
<status>0</status>
<value_type>0</value_type>
<allowed_hosts/>
<units>ms</units>
<delta>0</delta>
<snmpv3_contextname/>
<snmpv3_securityname/>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authprotocol>0</snmpv3_authprotocol>
<snmpv3_authpassphrase/>
<snmpv3_privprotocol>0</snmpv3_privprotocol>
<snmpv3_privpassphrase/>
<formula>1</formula>
<delay_flex/>
<params/>
<ipmi_sensor/>
<data_type>0</data_type>
<authtype>0</authtype>
<username/>
<password/>
<publickey/>
<privatekey/>
<port/>
<description>await: 平均每次 IO 请求等待时间 (包括等待时间和处理时间，毫秒为单位)</description>
<inventory_link>0</inventory_link>
<applications>
<application>
<name>DISK/IO</name>
</application>
</applications>
<valuemap/>
<logtimefmt/>
<application_prototypes/>
</item_prototype>
<item_prototype>
<name>I/O Device /dev/$1 The number of sectors that the disk successfully reads per second</name>
<type>0</type>
<snmp_community/>
<multiplier>0</multiplier>
<snmp_oid/>
<key>iostat[{#DEVICENAME},r/r]</key>
<delay>30</delay>
<history>7</history>
<trends>365</trends>
<status>0</status>
<value_type>0</value_type>
<allowed_hosts/>
<units>Rps</units>
<delta>0</delta>
<snmpv3_contextname/>
<snmpv3_securityname/>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authprotocol>0</snmpv3_authprotocol>
<snmpv3_authpassphrase/>
<snmpv3_privprotocol>0</snmpv3_privprotocol>
<snmpv3_privpassphrase/>
<formula>1</formula>
<delay_flex/>
<params/>
<ipmi_sensor/>
<data_type>0</data_type>
<authtype>0</authtype>
<username/>
<password/>
<publickey/>
<privatekey/>
<port/>
<description>The number (after merges) of read requests completed per second for the device.</description>
<inventory_link>0</inventory_link>
<applications>
<application>
<name>DISK/IO</name>
</application>
</applications>
<valuemap/>
<logtimefmt/>
<application_prototypes/>
</item_prototype>
<item_prototype>
<name>I/O Device /dev/$1 The size of the data that the disk is read per second</name>
<type>0</type>
<snmp_community/>
<multiplier>1</multiplier>
<snmp_oid/>
<key>iostat[{#DEVICENAME},rkb/s]</key>
<delay>30</delay>
<history>7</history>
<trends>365</trends>
<status>0</status>
<value_type>0</value_type>
<allowed_hosts/>
<units>Bps</units>
<delta>0</delta>
<snmpv3_contextname/>
<snmpv3_securityname/>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authprotocol>0</snmpv3_authprotocol>
<snmpv3_authpassphrase/>
<snmpv3_privprotocol>0</snmpv3_privprotocol>
<snmpv3_privpassphrase/>
<formula>1024</formula>
<delay_flex/>
<params/>
<ipmi_sensor/>
<data_type>0</data_type>
<authtype>0</authtype>
<username/>
<password/>
<publickey/>
<privatekey/>
<port/>
<description>The number of bytes read from the device per second
每秒从设备读取的字节数 </description>
<inventory_link>0</inventory_link>
<applications>
<application>
<name>DISK/IO</name>
</application>
</applications>
<valuemap/>
<logtimefmt/>
<application_prototypes/>
</item_prototype>
<item_prototype>
<name>I/O Device /dev/$1 The number of read requests merged per second that were queued to the device</name>
<type>0</type>
<snmp_community/>
<multiplier>0</multiplier>
<snmp_oid/>
<key>iostat[{#DEVICENAME},rrqm/s]</key>
<delay>30</delay>
<history>7</history>
<trends>365</trends>
<status>0</status>
<value_type>0</value_type>
<allowed_hosts/>
<units>rrqm/s</units>
<delta>0</delta>
<snmpv3_contextname/>
<snmpv3_securityname/>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authprotocol>0</snmpv3_authprotocol>
<snmpv3_authpassphrase/>
<snmpv3_privprotocol>0</snmpv3_privprotocol>
<snmpv3_privpassphrase/>
<formula>1</formula>
<delay_flex/>
<params/>
<ipmi_sensor/>
<data_type>0</data_type>
<authtype>0</authtype>
<username/>
<password/>
<publickey/>
<privatekey/>
<port/>
<description>The number of read requests merged per second that were queued to the device
每秒排队到设备上的合并请求数 </description>
<inventory_link>0</inventory_link>
<applications>
<application>
<name>DISK/IO</name>
</application>
</applications>
<valuemap/>
<logtimefmt/>
<application_prototypes/>
</item_prototype>
<item_prototype>
<name>I/O Device /dev/$1 Disk average time per IO read request</name>
<type>0</type>
<snmp_community/>
<multiplier>0</multiplier>
<snmp_oid/>
<key>iostat[{#DEVICENAME},r_await]</key>
<delay>30</delay>
<history>7</history>
<trends>365</trends>
<status>0</status>
<value_type>0</value_type>
<allowed_hosts/>
<units>ms</units>
<delta>0</delta>
<snmpv3_contextname/>
<snmpv3_securityname/>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authprotocol>0</snmpv3_authprotocol>
<snmpv3_authpassphrase/>
<snmpv3_privprotocol>0</snmpv3_privprotocol>
<snmpv3_privpassphrase/>
<formula>1</formula>
<delay_flex/>
<params/>
<ipmi_sensor/>
<data_type>0</data_type>
<authtype>0</authtype>
<username/>
<password/>
<publickey/>
<privatekey/>
<port/>
<description>The average time (in milliseconds) for read requests issued to the device to be served. This includes the time spent by the requests in queue and the time spent servicing them.
向设备发出的读取请求的平均时间（毫秒）。这包括队列中请求的时间和为它们服务的时间。</description>
<inventory_link>0</inventory_link>
<applications>
<application>
<name>DISK/IO</name>
</application>
</applications>
<valuemap/>
<logtimefmt/>
<application_prototypes/>
</item_prototype>
<item_prototype>
<name>I/O Device /dev/$1The disk handles the percentage of all IO requests in CPU per unit time</name>
<type>0</type>
<snmp_community/>
<multiplier>0</multiplier>
<snmp_oid/>
<key>iostat[{#DEVICENAME},util]</key>
<delay>30</delay>
<history>7</history>
<trends>365</trends>
<status>0</status>
<value_type>0</value_type>
<allowed_hosts/>
<units>%</units>
<delta>0</delta>
<snmpv3_contextname/>
<snmpv3_securityname/>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authprotocol>0</snmpv3_authprotocol>
<snmpv3_authpassphrase/>
<snmpv3_privprotocol>0</snmpv3_privprotocol>
<snmpv3_privpassphrase/>
<formula>1</formula>
<delay_flex/>
<params/>
<ipmi_sensor/>
<data_type>0</data_type>
<authtype>0</authtype>
<username/>
<password/>
<publickey/>
<privatekey/>
<port/>
<description>Percentage of elapsed time during which I/O requests were issued to the device (bandwidth utilization for the device). Device saturation occurs when this value is close to 100% for devices serving requests serially. But for devices serving requests in parallel, such as RAID arrays and modern SSDs, this number does not reflect their performance limits.
对设备发出 I / O 请求的时间的百分比（设备带宽利用率）。设备饱和发生时，这个值是接近 100% 的设备服务请求连续。但在平行的服务请求的设备，如磁盘阵列和现代固态硬盘，这个数字并不反映其性能极限。</description>
<inventory_link>0</inventory_link>
<applications>
<application>
<name>DISK/IO</name>
</application>
</applications>
<valuemap/>
<logtimefmt/>
<application_prototypes/>
</item_prototype>
<item_prototype>
<name>I/O Device /dev/$1 The number of sectors per disk successfully written per second</name>
<type>0</type>
<snmp_community/>
<multiplier>0</multiplier>
<snmp_oid/>
<key>iostat[{#DEVICENAME},w/r]</key>
<delay>30</delay>
<history>7</history>
<trends>365</trends>
<status>0</status>
<value_type>0</value_type>
<allowed_hosts/>
<units>Rps</units>
<delta>0</delta>
<snmpv3_contextname/>
<snmpv3_securityname/>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authprotocol>0</snmpv3_authprotocol>
<snmpv3_authpassphrase/>
<snmpv3_privprotocol>0</snmpv3_privprotocol>
<snmpv3_privpassphrase/>
<formula>1</formula>
<delay_flex/>
<params/>
<ipmi_sensor/>
<data_type>0</data_type>
<authtype>0</authtype>
<username/>
<password/>
<publickey/>
<privatekey/>
<port/>
<description>The number (after merges) of write requests completed per second for the device
每秒为设备完成的写入请求的数目（合并后）</description>
<inventory_link>0</inventory_link>
<applications>
<application>
<name>DISK/IO</name>
</application>
</applications>
<valuemap/>
<logtimefmt/>
<application_prototypes/>
</item_prototype>
<item_prototype>
<name>I/O Device /dev/$1 The size of data written by disk per second</name>
<type>0</type>
<snmp_community/>
<multiplier>1</multiplier>
<snmp_oid/>
<key>iostat[{#DEVICENAME},wkb/s]</key>
<delay>30</delay>
<history>7</history>
<trends>365</trends>
<status>0</status>
<value_type>0</value_type>
<allowed_hosts/>
<units>Bps</units>
<delta>0</delta>
<snmpv3_contextname/>
<snmpv3_securityname/>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authprotocol>0</snmpv3_authprotocol>
<snmpv3_authpassphrase/>
<snmpv3_privprotocol>0</snmpv3_privprotocol>
<snmpv3_privpassphrase/>
<formula>1024</formula>
<delay_flex/>
<params/>
<ipmi_sensor/>
<data_type>0</data_type>
<authtype>0</authtype>
<username/>
<password/>
<publickey/>
<privatekey/>
<port/>
<description>The number of bytes written to the device per second.
每秒写入设备的字节数 </description>
<inventory_link>0</inventory_link>
<applications>
<application>
<name>DISK/IO</name>
</application>
</applications>
<valuemap/>
<logtimefmt/>
<application_prototypes/>
</item_prototype>
<item_prototype>
<name>I/O Device /dev/$1 The number of times a disk writes per second</name>
<type>0</type>
<snmp_community/>
<multiplier>0</multiplier>
<snmp_oid/>
<key>iostat[{#DEVICENAME},wrqm/s]</key>
<delay>30</delay>
<history>7</history>
<trends>365</trends>
<status>0</status>
<value_type>0</value_type>
<allowed_hosts/>
<units>wrqm/s</units>
<delta>0</delta>
<snmpv3_contextname/>
<snmpv3_securityname/>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authprotocol>0</snmpv3_authprotocol>
<snmpv3_authpassphrase/>
<snmpv3_privprotocol>0</snmpv3_privprotocol>
<snmpv3_privpassphrase/>
<formula>1</formula>
<delay_flex/>
<params/>
<ipmi_sensor/>
<data_type>0</data_type>
<authtype>0</authtype>
<username/>
<password/>
<publickey/>
<privatekey/>
<port/>
<description>The number of write requests merged per second that were queued to the device.
每秒排队到设备的写入请求数。</description>
<inventory_link>0</inventory_link>
<applications>
<application>
<name>DISK/IO</name>
</application>
</applications>
<valuemap/>
<logtimefmt/>
<application_prototypes/>
</item_prototype>
<item_prototype>
<name>I/O Device /dev/$1Disk average time per IO write request</name>
<type>0</type>
<snmp_community/>
<multiplier>0</multiplier>
<snmp_oid/>
<key>iostat[{#DEVICENAME},w_await]</key>
<delay>30</delay>
<history>7</history>
<trends>365</trends>
<status>0</status>
<value_type>0</value_type>
<allowed_hosts/>
<units>ms</units>
<delta>0</delta>
<snmpv3_contextname/>
<snmpv3_securityname/>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authprotocol>0</snmpv3_authprotocol>
<snmpv3_authpassphrase/>
<snmpv3_privprotocol>0</snmpv3_privprotocol>
<snmpv3_privpassphrase/>
<formula>1</formula>
<delay_flex/>
<params/>
<ipmi_sensor/>
<data_type>0</data_type>
<authtype>0</authtype>
<username/>
<password/>
<publickey/>
<privatekey/>
<port/>
<description>The average time (in milliseconds) for write requests issued to the device to be served. This includes the time spent by the requests in queue and the time spentservicing them.
向设备发出的写入请求的平均时间（以毫秒为单位）。这包括时间，在队列中的请求和时间 spentservicing 他们度过。</description>
<inventory_link>0</inventory_link>
<applications>
<application>
<name>DISK/IO</name>
</application>
</applications>
<valuemap/>
<logtimefmt/>
<application_prototypes/>
</item_prototype>
</item_prototypes>
<trigger_prototypes>
<trigger_prototype>
<expression>{Template_Linux_DISK _IO _Discovery_Chinese:iostat[{#DEVICENAME},util].last(#5)}>70</expression>
<name>{HOST.NAME}: /dev/{#DEVICENAME}Disk occupancy CPU ratio is higher than 70%</name>
<url/>
<status>0</status>
<priority>3</priority>
<description>{HOST.NAME}: High I/O Utilization on /dev/{#DEVICENAME}</description>
<type>0</type>
<dependencies/>
</trigger_prototype>
</trigger_prototypes>
<graph_prototypes>
<graph_prototype>
<name>Disk I/O /dev/{#DEVICENAME} Disk read / write data size</name>
<width>1800</width>
<height>400</height>
<yaxismin>0.0000</yaxismin>
<yaxismax>100.0000</yaxismax>
<show_work_period>1</show_work_period>
<show_triggers>1</show_triggers>
<type>0</type>
<show_legend>1</show_legend>
<show_3d>0</show_3d>
<percent_left>0.0000</percent_left>
<percent_right>0.0000</percent_right>
<ymin_type_1>0</ymin_type_1>
<ymax_type_1>0</ymax_type_1>
<ymin_item_1>0</ymin_item_1>
<ymax_item_1>0</ymax_item_1>
<graph_items>
<graph_item>
<sortorder>0</sortorder>
<drawtype>5</drawtype>
<color>3333FF</color>
<yaxisside>1</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<item>
<host>Template_Linux_DISK _IO _Discovery_Chinese</host>
<key>iostat[{#DEVICENAME},util]</key>
</item>
</graph_item>
<graph_item>
<sortorder>1</sortorder>
<drawtype>2</drawtype>
<color>003300</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<item>
<host>Template_Linux_DISK _IO _Discovery_Chinese</host>
<key>iostat[{#DEVICENAME},rkb/s]</key>
</item>
</graph_item>
<graph_item>
<sortorder>2</sortorder>
<drawtype>2</drawtype>
<color>880000</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<item>
<host>Template_Linux_DISK _IO _Discovery_Chinese</host>
<key>iostat[{#DEVICENAME},wkb/s]</key>
</item>
</graph_item>
</graph_items>
</graph_prototype>
<graph_prototype>
<name>Disk I/O /dev/{#DEVICENAME} IO request time status</name>
<width>1800</width>
<height>400</height>
<yaxismin>0.0000</yaxismin>
<yaxismax>100.0000</yaxismax>
<show_work_period>1</show_work_period>
<show_triggers>1</show_triggers>
<type>0</type>
<show_legend>1</show_legend>
<show_3d>0</show_3d>
<percent_left>0.0000</percent_left>
<percent_right>0.0000</percent_right>
<ymin_type_1>0</ymin_type_1>
<ymax_type_1>0</ymax_type_1>
<ymin_item_1>0</ymin_item_1>
<ymax_item_1>0</ymax_item_1>
<graph_items>
<graph_item>
<sortorder>0</sortorder>
<drawtype>5</drawtype>
<color>007700</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<item>
<host>Template_Linux_DISK _IO _Discovery_Chinese</host>
<key>iostat[{#DEVICENAME},await]</key>
</item>
</graph_item>
<graph_item>
<sortorder>1</sortorder>
<drawtype>0</drawtype>
<color>DD0000</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<item>
<host>Template_Linux_DISK _IO _Discovery_Chinese</host>
<key>iostat[{#DEVICENAME},w_await]</key>
</item>
</graph_item>
<graph_item>
<sortorder>2</sortorder>
<drawtype>0</drawtype>
<color>BB00BB</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<item>
<host>Template_Linux_DISK _IO _Discovery_Chinese</host>
<key>iostat[{#DEVICENAME},r_await]</key>
</item>
</graph_item>
<graph_item>
<sortorder>3</sortorder>
<drawtype>2</drawtype>
<color>666666</color>
<yaxisside>1</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<item>
<host>Template_Linux_DISK _IO _Discovery_Chinese</host>
<key>iostat[{#DEVICENAME},util]</key>
</item>
</graph_item>
</graph_items>
</graph_prototype>
<graph_prototype>
<name>Disk I/O /dev/{#DEVICENAME} The number of sectors in which the disk has been successfully read / written</name>
<width>1800</width>
<height>400</height>
<yaxismin>0.0000</yaxismin>
<yaxismax>100.0000</yaxismax>
<show_work_period>1</show_work_period>
<show_triggers>1</show_triggers>
<type>0</type>
<show_legend>1</show_legend>
<show_3d>0</show_3d>
<percent_left>0.0000</percent_left>
<percent_right>0.0000</percent_right>
<ymin_type_1>0</ymin_type_1>
<ymax_type_1>0</ymax_type_1>
<ymin_item_1>0</ymin_item_1>
<ymax_item_1>0</ymax_item_1>
<graph_items>
<graph_item>
<sortorder>0</sortorder>
<drawtype>5</drawtype>
<color>3333FF</color>
<yaxisside>1</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<item>
<host>Template_Linux_DISK _IO _Discovery_Chinese</host>
<key>iostat[{#DEVICENAME},util]</key>
</item>
</graph_item>
<graph_item>
<sortorder>1</sortorder>
<drawtype>2</drawtype>
<color>009900</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<item>
<host>Template_Linux_DISK _IO _Discovery_Chinese</host>
<key>iostat[{#DEVICENAME},r/r]</key>
</item>
</graph_item>
<graph_item>
<sortorder>2</sortorder>
<drawtype>2</drawtype>
<color>880000</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<item>
<host>Template_Linux_DISK _IO _Discovery_Chinese</host>
<key>iostat[{#DEVICENAME},w/r]</key>
</item>
</graph_item>
</graph_items>
</graph_prototype>
</graph_prototypes>
<host_prototypes/>
</discovery_rule>
</discovery_rules>
<macros/>
<templates/>
<screens/>
</template>
</templates>
</zabbix_export>
