FastDFS 是一个开源的轻量级分布式文件系统,由跟踪服务器(tracker server)、存储服务器(storage server)和客户端(client)三个部分组成,主要解决了海量数据存储问题,特别适合以中小文件(建议范围:4KB < file_size <500MB)为载体的在线服务。
(1)每次上传文件后都会返回一个地址,用户需要自己保存此地址。
(2)为了支持大容量,存储节点(服务器)采用了分卷(或分组)的组织方式。存储系统由一个或多个卷组成,卷与卷之间的文件是相互独立的,所有卷的文件容量累加就是整个存储系统中的文件容量。一个卷可以由一台或多台存储服务器组成,一个卷下的存储服务器中的文件都是相同的,卷中的多台存储服务器起到了冗余备份和负载均衡的作用。
配置环境:
CentOS 7.5 x 64

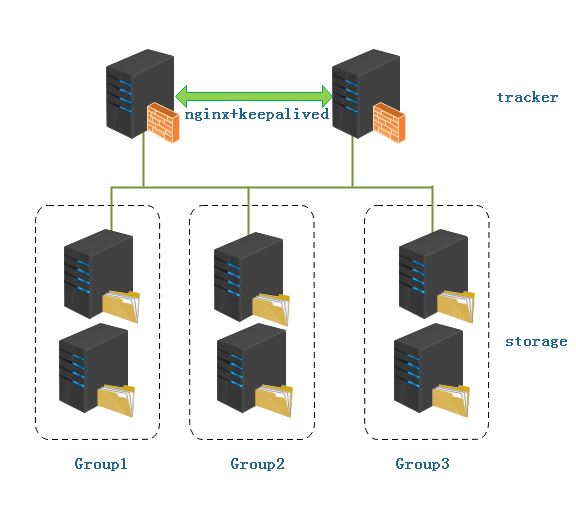

tracker server: 192.168.5.71(tracker 暂时一台,后续再添加一台做 nginx+keepalived 高可用)
storage server: 192.168.5.72 192.168.5.73(group1)
storage server: 192.168.5.74 192.168.5.75(group2)
#hosts 文件配置
cat >> /etc/hosts << EOF
192.168.5.71 storage71.blufly.com storage71
192.168.5.72 storage72.blufly.com storage72
192.168.5.73 storage73.blufly.com storage73
192.168.5.74 storage74.blufly.com storage74
192.168.5.75 storage75.blufly.com storage75
EOF
###———————- 安装配置 tracker server —————————###
yum -y install gcc-c++ libevent
# 先安装 libfastcommon
cd /opt
git clone https://github.com/happyfish100/libfastcommon.git
cd libfastcommon/
./make.sh
./make.sh install
# 安装 fastdfs:
cd /opt
git clone https://github.com/happyfish100/fastdfs.git
cd fastdfs
./make.sh
./make.sh install
# 配置文件解释:
tracker.conf // 负责均衡调度服务器配置文件
client.conf // 客户端上传配置文件
http.conf //http 服务器配置文件
storage.conf// 文件存储服务器配置文件
mime.types // 文件类型配置文件
# 修改 tracker server 的配置文件
cp /etc/fdfs/tracker.conf.sample /etc/fdfs/tracker.conf
vi /etc/fdfs/tracker.conf
bind_addr= 改为 bind_addr=192.168.25.204
base_path=/home/yuqing/fastdfs 改为 base_path=/data/fastdfs
http.server_port=8080 改为 http.server_port=80
# 启动 tracker server
mkdir -p /data/fastdfs
/etc/init.d/fdfs_trackerd start
[root@storage71 fastdfs]# netstat -tnlp|grep fdfs
tcp 0 0 192.168.5.71:22122 0.0.0.0:* LISTEN 11631/fdfs_trackerd
# 开机启动
/sbin/chkconfig --add fdfs_trackerd
/sbin/chkconfig --level 2345 fdfs_trackerd on
###————————— 安装配置 storage server ———————-###
yum -y install gcc-c++ libevent
# 先安装 libfastcommon
cd /opt
git clone https://github.com/happyfish100/libfastcommon.git
cd libfastcommon/
./make.sh
./make.sh install
# 安装 fastdfs:
cd /opt
git clone https://github.com/happyfish100/fastdfs.git
cd fastdfs
./make.sh
./make.sh install
# 配置 storage server
cp /etc/fdfs/storage.conf.sample /etc/fdfs/storage.conf
#修改 storage server 的配置文件:vm /etc/fdfs/storage.conf
bind_addr= 改为 bind_addr=192.168.5.72
#base_path 需要和 tracker 部分的 base_path 保持一致,如果有修改过 tracker 的
base_path=/home/yuqing/fastdfs 改为 base_path=/data/fastdfs
#修改 storage 的资源存放路径
store_path0=/home/yuqing/fastdfs 改为 store_path0=/data/fastdfs
#如果有多个挂载磁盘则定义多个 store_path,如下
#store_path1=......
#store_path2=......
修改 storage 的对应的 tracker_server 的 ip 地址和端口
tracker_server=192.168.209.121:22122 改为 tracker_server=192.168.5.71:22122
#如果有多个则配置多个 tracker_server
#tracker_server=......
#tracker_server=......
http.server_port=8888 改为 http.server_port=80
# 创建数据目录,并启动 storage server
mkdir -p /data/fastdfs
/etc/init.d/fdfs_storaged start
[root@storage72 fastdfs]# netstat -tnlp|grep fdfs
tcp 0 0 192.168.5.72:23000 0.0.0.0:* LISTEN 11624/fdfs_storaged
# 开机启动
/sbin/chkconfig --add fdfs_storaged
/sbin/chkconfig --level 2345 fdfs_storaged on
# 查看 tracker 和 storage 的链接情况
[root@storage71 ~]# netstat -tnlpa|grep 22122
tcp 0 0 192.168.5.71:22122 0.0.0.0:* LISTEN 11631/fdfs_trackerd
tcp 0 0 192.168.5.71:22122 192.168.5.72:63755 ESTABLISHED 11631/fdfs_trackerd
tcp 0 0 192.168.5.71:22122 192.168.5.73:47697 ESTABLISHED 11631/fdfs_trackerd
# 在 tracker server 上配置客户端上传文件
[root@storage71 fastdfs]# cp /etc/fdfs/client.conf.sample /etc/fdfs/client.conf
vim /etc/fdfs/client.conf
#base_path 需要和 tracker 部分的 base_path 保持一致
base_path=/home/yuqing/fastdfs
改为 base_path=/data/fastdfs
tracker_server=192.168.0.197:22122
改为
tracker_server=192.168.5.71:22122
# 上传个文件,如果上传成功,会返回一个 url,我们记住这个 url,后面安装了 nginx 就可以通 URL 来访问上传的这个文件
[root@storage71 fastdfs]# /usr/bin/fdfs_test /etc/fdfs/client.conf upload /root/test.jpg
group_name=group1, ip_addr=192.168.5.72, port=23000
storage_upload_by_filename
group_name=group1, remote_filename=M00/00/00/wKgFSFvAem6AfpJXAAA2FXv_nRs556.jpg
source ip address: 192.168.5.72
file timestamp=2018-10-12 18:41:50
file size=13845
file crc32=2080349467
example file url: http://192.168.5.72/group1/M00/00/00/wKgFSFvAem6AfpJXAAA2FXv_nRs556.jpg
storage_upload_slave_by_filename
group_name=group1, remote_filename=M00/00/00/wKgFSFvAem6AfpJXAAA2FXv_nRs556_big.jpg
source ip address: 192.168.5.72
file timestamp=2018-10-12 18:41:51
file size=13845
file crc32=2080349467
example file url: http://192.168.5.72/group1/M00/00/00/wKgFSFvAem6AfpJXAAA2FXv_nRs556_big.jpg
通过客户端连接并上传文件:
# 上传 "/etc/passwd" 文件到 fastdfs 服务器:
# fdfs_upload_file /etc/fdfs/client.conf /etc/passwd
下载刚才上传的文件:# fdfs_download_file /etc/fdfs/client.conf group1/M00/00/00/wKgFSFvBpdSAB33ZAAI8IU3BQ48068.jpg
查看文件属性:# fdfs_file_info /etc/fdfs/client.conf group1/M00/00/00/wKgFSFvBpdSAB33ZAAI8IU3BQ48068.jpg
删除上传的文件:# fdfs_delete_file /etc/fdfs/client.conf group1/M00/00/00/wKgFSFvBpdSAB33ZAAI8IU3BQ48068.jpg
# fdfs_delete_file /etc/fdfs/client.conf group1/M00/00/00/wKgFSFvBtTuAGz2VAAAJHTkxfCU312.txt
监控 fastdfs 的状态:
# fdfs_monitor /etc/fdfs/client.conf
###——————- 在 storage server 上安装 nginx ————————-###
# 安装 nginx 关于 fastdfs 集合的扩展模块,注意这个模块 nginx 默认的编译模块中没有,需手动下载安装
cd /opt
wget http://nginx.org/download/nginx-1.15.5.tar.gz
#jemalloc 优化 nginx,内存管理
wget https://github.com/jemalloc/jemalloc/releases/download/5.1.0/jemalloc-5.1.0.tar.bz2
wget https://ftp.pcre.org/pub/pcre/pcre-8.42.tar.gz
#nginx 缓存清理模块
wget http://labs.frickle.com/files/ngx_cache_purge-2.3.tar.gz
git clone https://github.com/happyfish100/fastdfs-nginx-module.git
yum -y install openssl openssl-devel zlib zlib-devel glibc glibc-devel glib2 glib2-devel bzip2 bzip2-devel ncurses ncurses-devel curl curl-devel
tar -jxvf jemalloc-5.1.0.tar.bz2
cd jemalloc-5.1.0
./configure --prefix=/usr/local/jemalloc --libdir=/usr/local/lib
make;make install
echo "/usr/local/lib" > /etc/ld.so.conf.d/local.conf
ldconfig
cd ../
/usr/sbin/groupadd www
/usr/sbin/useradd -g www www -s /sbin/nologin
tar -zxvf pcre-8.42.tar.gz
tar -zxvf ngx_cache_purge-2.3.tar.gz
tar -zxvf nginx-1.15.5.tar.gz
cd nginx-1.15.5
./configure --prefix=/usr/local/nginx \
--with-pcre=/opt/pcre-8.42 \
--user=www \
--group=www \
--with-http_stub_status_module \
--with-http_ssl_module \
--with-http_flv_module \
--with-http_gzip_static_module \
--with-ld-opt="-ljemalloc" \
--with-http_realip_module \
--add-module=/opt/fastdfs-nginx-module/src \
--add-module=/opt/ngx_cache_purge-2.3
make;make install
# 修改 mod_fastdfs 配置文件
cp /opt/fastdfs-nginx-module/src/mod_fastdfs.conf /etc/fdfs/
cd /opt/fastdfs/conf/ #进入 fastdfs 安装包文件夹
cp anti-steal.jpg http.conf mime.types /etc/fdfs/
vi /etc/fdfs/mod_fastdfs.conf
base_path=/tmp 改为 base_path=/data/fastdfs
tracker_server=tracker:22122 改为 tracker_server=192.168.5.71:22122
store_path0=/home/yuqing/fastdfs 改为 store_path0=/data/fastdfs
url_have_group_name = false 改为 true
# 配置 nginx
server {
listen 80;
server_name 192.168.5.72;
location /group1/M00 {ngx_fastdfs_module;}
}
# 添加 nginx 启动脚本
cat >> /etc/init.d/nginx <<EOF
#! /bin/sh
ulimit -n 65535
# Description: Startup script for nginx
# chkconfig: 2345 55 25
PATH=/usr/local/sbin:/usr/local/bin:/sbin:/bin:/usr/sbin:/usr/bin
DESC="nginx daemon"
NAME=nginx
DAEMON=/usr/local/nginx/sbin/$NAME
CONFIGFILE=/usr/local/nginx/conf/$NAME.conf
PIDFILE=/usr/local/nginx/logs/$NAME.pid
SCRIPTNAME=/etc/init.d/$NAME
set -e
[-x "$DAEMON"] || exit 0
do_start() {$DAEMON -c $CONFIGFILE || echo -n "nginx already running"}
do_stop() {kill -INT `cat $PIDFILE` || echo -n "nginx not running"}
do_reload() {kill -HUP `cat $PIDFILE` || echo -n "nginx can't reload"}
case "$1" in
start)
echo -n "Starting $DESC: $NAME"
do_start
echo "."
;;
stop)
echo -n "Stopping $DESC: $NAME"
do_stop
echo "."
;;
reload|graceful)
echo -n "Reloading $DESC configuration..."
do_reload
echo "."
;;
restart)
echo -n "Restarting $DESC: $NAME"
do_stop
do_start
echo "."
;;
*)
echo "Usage: $SCRIPTNAME {start|stop|reload|restart}" >&2
exit 3
;;
esac
exit 0
EOF
# 将 nginx 添加到启动服务中
chmod 700 /etc/init.d/nginx
/sbin/chkconfig --add nginx
/sbin/chkconfig --level 2345 nginx on
# 启动 nginx
[root@storage72 opt]# /etc/init.d/nginx start
Starting nginx daemon: nginxngx_http_fastdfs_set pid=21702
# 查看 jemalloc 内存管理
lsof -n | grep jemalloc
###—————— tracker server 端做 nginx 反向代理 ———————-###
#nginx.conf 配置
upstream fdfs_group1 {
server 192.168.5.72 weight=1 max_fails=2 fail_timeout=30s;
server 192.168.5.73 weight=1 max_fails=2 fail_timeout=30s;
}
server {
listen 80;
server_name 192.168.5.71;
location /group1/M00 {proxy_pass http://fdfs_group1;}
}
###—————————- PHP 客户端配置 ——————————###
# 首先客户端要安装 LNMP 环境或者 LANMP 环境
# 因为 php 的客户端安装也会依赖 fastdfs 本身的一些库文件,所以要安装 fastdfs
cd /opt/fastdfs/php_client
/usr/local/php/bin/phpize
./configure --with-php-config=/usr/local/php/bin/php-config
make;make install
cat fastdfs_client.ini >> /usr/local/php/etc/php.ini
# 配置 fastDFS 的 client.conf
mkdir -p /data/fastdfs
cp /etc/fdfs/client.conf.sample /etc/fdfs/client.conf
vi /etc/fdfs/client.conf
base_path=/data/fastfds
tracker_server=192.168.5.71:22122
http.tracker_server_port=80
# 重新加载 php
service php-fpm reload
# 验证模块是否被正常加载
/usr/local/php/bin/php -m | grep fastdfs_client

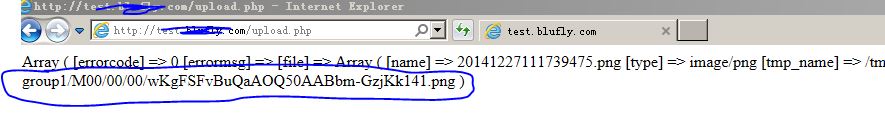

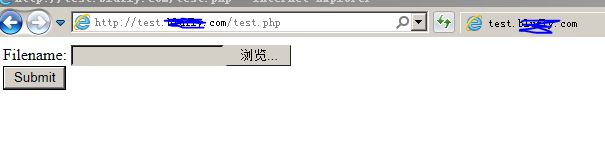

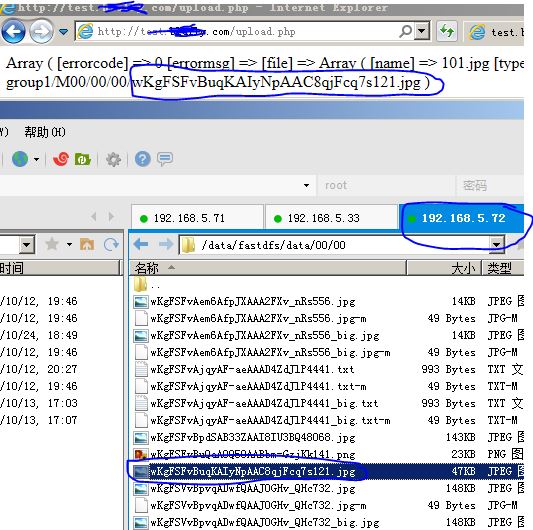

# 通过 http 上传测试
cat test.php
<html>
<body>
<form action="upload.php" method="post" enctype="multipart/form-data">
<label for="file">Filename:</label>
<input type="file" name="upFile" id="upFile" />
<br />
<input type="submit" name="submit" value="Submit" />
</form>
</body>
</html>
cat upload.php
<?php
header('Content-type:text/html;charset=utf-8');
// 上传附件
function uploadAttach()
{/*{{{*/
$ret = array();
$ret['errorcode'] = 0;
$ret['errormsg'] = '';
if(!$_FILES || false == isset($_FILES["upFile"]))
{$ret['errorcode'] = 1;
$ret['errormsg'] = "ERROR:upFile is not set";
return $ret;
}
$file = $_FILES["upFile"];
if (false == isset($file['tmp_name']) || false == is_file($file['tmp_name']))
{$ret['errorcode'] = 2;
$ret['errormsg'] = "tmp_name is not file";
return $ret;
}
if (0 == filesize($file['tmp_name']))
{$ret['errorcode'] = 3;
$ret['errormsg'] = "tmp_name filesize is 0";
return $ret;
}
$curlFile = new CurlFile($file['tmp_name'], $file['type'], $file['name']);
$fileSuffix = getSuffix($curlFile->getPostFilename());
$ret['file'] = $file;
$ret['fileId'] = uploadToFastdfs($curlFile, $fileSuffix);
return $ret;
}/*}}}*/
// 获取后缀
function getSuffix($fileName)
{/*{{{*/
preg_match('/\.(\w+)?$/', $fileName, $matchs);
return isset($matchs[1])?$matchs[1]:'';
}/*}}}*/
// 上传文件到 fastdfs
function uploadToFastdfs(CurlFile $file, $fileSuffix)
{/*{{{*/
$fdfs = new FastDFS();
$tracker = $fdfs->tracker_get_connection();
$fileId = $fdfs->storage_upload_by_filebuff1(file_get_contents($file->getFilename()), $fileSuffix);
$fdfs->tracker_close_all_connections();
return $fileId;
}/*}}}*/
function start()
{$ret = uploadAttach();
print_r($ret);
}
start();
?>
# 通过 php 脚本上传测试
echo "php client is here." > /opt/upload.txt
cat test.php
<?php
var_dump(function_exists('fastdfs_storage_upload_by_filename'));
$ret = fastdfs_storage_upload_by_filename('/opt/upload.txt');
var_dump($ret);
?>
# 执行 php 脚本
/usr/local/php/bin/php test.php
###————————- storage server 宕机测试 ————————###

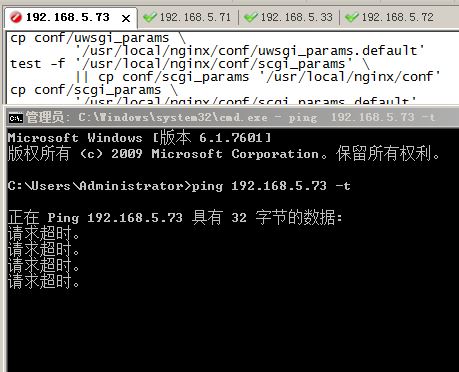

# 先关闭 storage73
# 通过 tracker 可以看到 storage73 已经不在线了

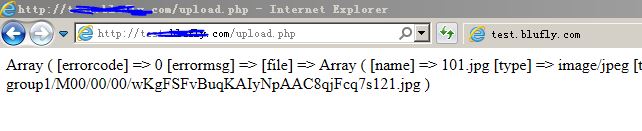

# 然后通过客户端上传一张图片

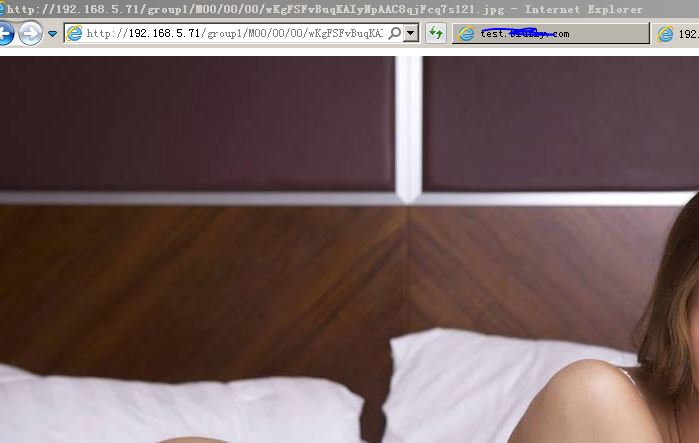

# 上传的图片可以正常访问

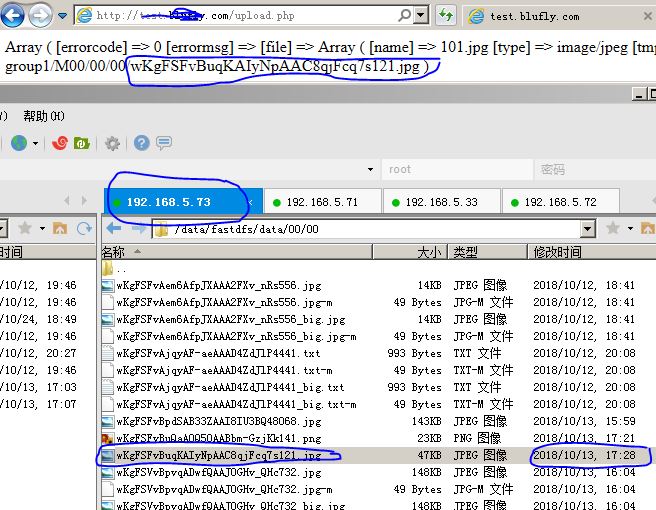

# 重启 storage73 看上传的图片有没有同步过来

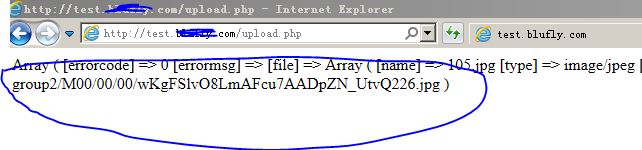

###————————— 横向扩容,增加 group2 ————————###
# 添加一组 storage server: 192.168.5.74 192.168.5.75(group2)
# 分别安装 fastdfs、nginx、fastdfs-nginx-module
# 修改 group2 成员的 storage.conf(192.168.5.74 192.168.5.75)
cp /etc/fdfs/storage.conf.sample /etc/fdfs/storage.conf
# 修改 storage server 的配置文件:
vi /etc/fdfs/storage.conf
group_name=group2
bind_addr=192.168.5.74
base_path=/data/fastdfs
store_path0=/data/fastdfs
tracker_server=192.168.5.71:22122
http.server_port=80
# 创建数据目录,并启动 storage server
mkdir -p /data/fastdfs
/etc/init.d/fdfs_storaged start
# 开机启动
/sbin/chkconfig --add fdfs_storaged
/sbin/chkconfig --level 2345 fdfs_storaged on
# 修改所有 storage server 的 mod_fastdfs.conf 配置文件
vi /etc/fdfs/mod_fastdfs.conf
base_path=/data/fastdfs
tracker_server=192.168.5.71:22122
store_path0=/data/fastdfs
url_have_group_name = true
group_name=group1/group2 # 所有组名
group_count = 2 # 组的总数
# 把所有组和目录都添加上
[group1]
group_name=group1
storage_server_port=23000
store_path_count=1
store_path0=/data/fastdfs
[group2]
group_name=group2
storage_server_port=23000
store_path_count=1
store_path0=/data/fastdfs
# 在所有 storage 机器上,创建所有组的 store_path 目录
mkdir -p /data/fastdfs
# 修改所有 storage server 的 nginx 配置文件
server {
listen 80;
server_name localhost;
location ~/group([0-9])/M00/{ngx_fastdfs_module;}
}
# 重启 storage server 的 nginx
/etc/init.d/nginx restart
# 修改 tracker server 的反向代理
user www www;
worker_processes 8;
error_log /usr/local/nginx/logs/nginx_error.log crit;
pid /usr/local/nginx/logs/nginx.pid;
worker_rlimit_nofile 65535;
#工作模式及连接数上限
events {worker_connections 65535;}
http {
include mime.types;
default_type application/octet-stream;
#log_format main '$remote_addr - $remote_user [$time_local]"$request" '
# '$status $body_bytes_sent"$http_referer" '
# '"$http_user_agent" "$http_x_forwarded_for"';
#access_log logs/access.log main;
sendfile off;
tcp_nopush on;
keepalive_timeout 300;
#nginx 跟后端服务器连接超时时间 (代理连接超时)
proxy_connect_timeout 300s;
#连接成功后,后端服务器响应时间 (代理接收超时)
proxy_read_timeout 300s;
proxy_send_timeout 300s;
#设置代理服务器(nginx)保存用户头信息的缓冲区大小
proxy_buffer_size 64k;
#proxy_buffers 缓冲区,网页平均在 32k 以下的话,这样设置
proxy_buffers 4 32k;
#高负荷下缓冲大小(proxy_buffers*2)proxy_busy_buffers_size 64k;
#设定缓存文件夹大小,大于这个值,将从 upstream 服务器传递请求,而不缓冲到磁盘
proxy_temp_file_write_size 64k;
#不允许代理端主动关闭连接
proxy_ignore_client_abort on;
proxy_cache_path /data/cache1 levels=1:2 keys_zone=fastdfs_cache:200m inactive=1d max_size=20g;
fastcgi_connect_timeout 300;
fastcgi_send_timeout 300;
fastcgi_read_timeout 300;
fastcgi_buffer_size 128k;
fastcgi_buffers 4 128k;
fastcgi_busy_buffers_size 128k;
fastcgi_temp_file_write_size 128k;
gzip on;
gzip_min_length 1k;
gzip_buffers 4 16k;
gzip_http_version 1.0;
gzip_comp_level 2;
gzip_types text/plain application/x-Javascript text/css application/xml;
gzip_vary on;
#nginx cache 命中率统计日志
log_format cachelog '$remote_addr - $remote_user [$time_local]"$request"''$status "$http_referer" ''"$http_user_agent""$http_x_forwarded_for" ''"$upstream_cache_status"$body_bytes_sent';
#设置 group1 的服务器
upstream fdfs_group1 {
server 192.168.5.72 weight=1 max_fails=2 fail_timeout=30s;
server 192.168.5.73 weight=1 max_fails=2 fail_timeout=30s;
}
#设置 group2 的服务器
upstream fdfs_group2 {
server 192.168.5.74 weight=1 max_fails=2 fail_timeout=30s;
server 192.168.5.75 weight=1 max_fails=2 fail_timeout=30s;
}
server {
listen 80;
server_name localhost;
#charset koi8-r;
#access_log logs/host.access.log main;
#设置 group 的负载均衡参数
location /group1/M00 {
proxy_next_upstream http_502 http_504 error timeout invalid_header;
proxy_cache fastdfs_cache;
proxy_cache_valid 200 304 12h;
proxy_cache_key $uri$is_args$args;
proxy_pass http://fdfs_group1;
expires 30d;
}
location /group2/M00 {
proxy_next_upstream http_502 http_504 error timeout invalid_header;
proxy_cache fastdfs_cache;
proxy_cache_valid 200 304 12h;
proxy_cache_key $uri$is_args$args;
proxy_pass http://fdfs_group2;
expires 30d;
}
#设置清除缓存的访问权限
location ~/purge(/.*) {
allow 127.0.0.1;
allow 192.168.5.0/24;
deny all;
proxy_cache_purge http-cache $1$is_args$args;
}
#error_page 404 /404.html;
# redirect server error pages to the static page /50x.html
#
error_page 500 502 503 504 /50x.html;
location = /50x.html {root html;}
}
}
#fastdfs 状态监控
[root@storage71 /]# fdfs_monitor /etc/fdfs/client.conf
server_count=1, server_index=0
tracker server is 192.168.5.71:22122
group count: 2
Group 1:
group name = group1
Storage 1:
id = 192.168.5.72
ip_addr = 192.168.5.72 (storage72.blufly.com) ACTIV
Storage 2:
id = 192.168.5.73
ip_addr = 192.168.5.73 (storage73.blufly.com) WAIT_SYNC
Group 2:
group name = group2
Storage 1:
id = 192.168.5.74
ip_addr = 192.168.5.74 (storage74.blufly.com) ACTIVE
Storage 2:
id = 192.168.5.75
ip_addr = 192.168.5.75 (storage75.blufly.com) WAIT_SYNC
# 上传图片测试
#fastdfs 的 storage server 的状态查询
#FDFS_STORAGE_STATUS:INIT: 初始化,尚未得到同步已有数据的源服务器
#FDFS_STORAGE_STATUS:WAIT_SYNC: 等待同步,已得到同步已有数据的源服务器
#FDFS_STORAGE_STATUS:SYNCING: 同步中
#FDFS_STORAGE_STATUS:DELETED: 已删除,该服务器从本组中摘除
#FDFS_STORAGE_STATUS:OFFLINE: 离线
#FDFS_STORAGE_STATUS:ONLINE: 在线,尚不能提供服务
#FDFS_STORAGE_STATUS:ACTIVE: 在线,可以提供服务
:
