一、环境准备
这里采用阿里云 ECS 主机(2 核 4G，生产环境按实际环境提升配置)
必须指定 hostsname
fabric 官网 github https://github.com/hyperledger/fabric
CentOS7 x64

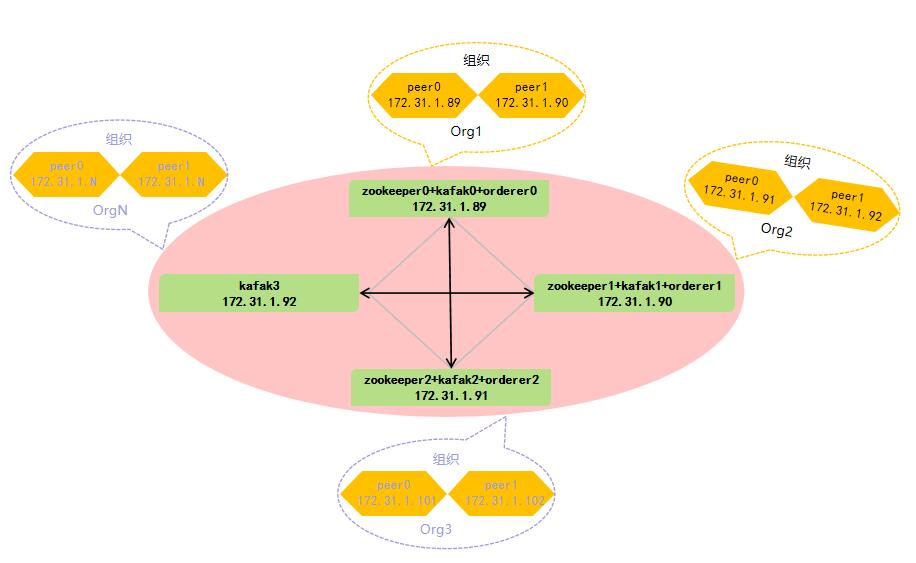

1. 所有节点服务器指定如下 hosts(含后续新增组织，也必须同步所有 hosts)
172.31.1.89 zookeeper0
172.31.1.90 zookeeper1
172.31.1.91 zookeeper2
172.31.1.89 kafka0
172.31.1.90 kafka1
172.31.1.91 kafka2
172.31.1.92 kafka3
172.31.1.89 orderer0.example.com
172.31.1.90 orderer1.example.com
172.31.1.91 orderer2.example.com
172.31.1.89 peer0.org1.example.com
172.31.1.90 peer1.org1.example.com
172.31.1.91 peer0.org2.example.com
172.31.1.92 peer1.org2.example.com
;;;## 后续模拟新增 org3 组织 - 备用
172.31.1.101 peer0.org2.example.com
172.31.1.102 peer1.org2.example.com
2. 环境初始(所有节点服务均部署)
##### 注意！注意！注意！说三遍 ########
阿里云 ECS 注释(options timeout:2 attempts:3 rotate single-request-reopen)，不然会报错
# vim /etc/resolv.conf
;options timeout:2 attempts:3 rotate single-request-reopen
nameserver 100.100.2.136
nameserver 100.100.2.138
####### 注意！注意！注意！说三遍 ##########
1)关闭防火墙（或开放端口）、selinux
systemctl disable firewalld.service
systemctl stop firewalld.service2)安装配置 docker(17.06.2-ce or later)
# step 1: 安装必要的一些系统工具
yum install -y yum-utils device-mapper-persistent-data lvm2
# Step 2: 添加软件源信息
yum-config-manager --add-repo http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
# Step 3: 更新并安装 Docker-CE
yum makecache fast
yum list docker-ce --showduplicates | sort -r
#安装指定 docker 版本
yum install docker-ce-17.12.0.ce-1.el7.centos
# Step 4: 开启 Docker 服务
service docker start
systemctl enable docker.service3)docker-compose(1.14.0 or later)
#下载 docker-compose
# curl -L "https://github.com/docker/compose/releases/download/1.24.1/docker-compose-$(uname -s)-$(uname -m)" -o /usr/local/bin/docker-compose
#为 docker-compose 配置执行权限
#chmod +x /usr/local/bin/docker-compose
#检查是否安装成功
#docker-compose -v4)git、go(version 1.10.x)
#下载安装 git
#yum install git -y
#go 安装下载，预先创建 /opt/soft/(后续存配置文件)、/opt/gopath(存放 fabric 源代码)
#mkdir -p /opt/gopath
#mkdir /opt/soft/
# 国外地址
#wget https://storage.googleapis.com/golang/go1.10.linux-amd64.tar.gz
# 国内地址
#wget https://studygolang.com/dl/golang/go1.10.linux-amd64.tar.gz
# 解压
#tar -C /usr/local/ -xzvf go1.10.linux-amd64.tar.gz
# 配置环境变量
#vi /etc/profile
添加如下
# go env
export PATH=$PATH:/usr/local/go/bin
export GOPATH=/opt/gopath
# 生效配置
source /etc/profile
# 查看配置
go version5)域名 ip 映射(/etc/hosts), 如开篇设置
二、生成配置信息
#### 以下操作均在第一节点服务器 172.31.1.89
1. 下载 Hyperledger Fabric 源码
# 下载 Fabric 源码, 源码中 import 的路径为 github.com/hyperledger/fabric , 所以我们要按照这个路径
#mkdir -p /opt/gopath/src/github.com/hyperledger
#cd /opt/gopath/src/github.com/hyperledger
#git clone https://github.com/hyperledger/fabric
[root@xxxx fabric]# pwd
/opt/gopath/src/github.com/hyperledger/fabric
[root@xxxxx fabric]# ll
total 1412
................. 省略部分
drwxr-xr-x 6 root root 4096 Aug 25 02:06 msp
drwxr-xr-x 6 root root 4096 Aug 25 02:06 orderer
drwxr-xr-x 13 root root 4096 Aug 29 12:48 peer
drwxr-xr-x 14 root root 4096 Aug 25 02:06 protos
-rw-r--r-- 1 root root 7303 Aug 25 02:06 README.md
drwxr-xr-x 3 root root 4096 Aug 25 02:06 release
drwxr-xr-x 2 root root 4096 Aug 25 02:06 release_notes
drwxr-xr-x 3 root root 4096 Aug 25 02:06 sampleconfig
drwxr-xr-x 2 root root 4096 Aug 25 02:06 scripts
-rw-r--r-- 1 root root 316 Aug 25 02:06 settings.gradle
-rw-r--r-- 1 root root 3816 Aug 25 02:06 testingInfo.rst
-rw-r--r-- 1 root root 438053 Aug 25 02:06 test-pyramid.png
drwxr-xr-x 8 root root 4096 Aug 25 02:06 token
-rw-r--r-- 1 root root 495 Aug 25 02:06 tox.ini
drwxr-xr-x 2 root root 4096 Aug 25 02:06 unit-test
drwxr-xr-x 9 root root 4096 Aug 25 02:06 vendor
2. 生成 Hyperledger Fabric 证书，证书生成只需要生成一次
# 下载官方证书生成软件工具(均为二进制文件)
#进入目录
#cd /opt/soft
#工具为 1.4 版本：wget https://nexus.hyperledger.org/content/repositories/releases/org/hyperledger/fabric/hyperledger-fabric/linux-amd64-1.4.0/hyperledger-fabric-linux-amd64-1.4.0.tar.gz
#解压
tar zxvf hyperledger-fabric-linux-amd64-1.4.0.tar.gz
# 解压后是 一个 bin 与 一个 config 目录
[root@xxxx bin]# tree
├── configtxgen
├── configtxlator
├── cryptogen
├── get-docker-images.sh
├── orderer
└── peer
# 设置环境变量
vi /etc/profile
# fabric env
export PATH=$PATH:/opt/soft/bin
# 使文件生效
source /etc/profile
# 从 git(release-1.3 版本)下载，或者从其他途径下载默认 configtx.yaml、crypto-config.yaml，并上传至 /opt/soft 目录，待修改
配置文件在目录下 https://github.com/hyperledger/fabric/tree/release-1.3/examples/e2e_cli
### 编辑修改 crypto-config.yaml 如下(主要修改组织区域与增加 orderer)：
# Copyright IBM Corp. All Rights Reserved.
#
# SPDX-License-Identifier: Apache-2.0
#
# ---------------------------------------------------------------------------
# "OrdererOrgs" - Definition of organizations managing orderer nodes
# ---------------------------------------------------------------------------
OrdererOrgs:
# ---------------------------------------------------------------------------
# Orderer
# ---------------------------------------------------------------------------
- Name: Orderer
Domain: example.com
CA:
Country: CN
Province: GuangDong
Locality: ShenZhen
# ---------------------------------------------------------------------------
# "Specs" - See PeerOrgs below for complete description
# ---------------------------------------------------------------------------
Specs:
- Hostname: orderer0
- Hostname: orderer1
- Hostname: orderer2
# ---------------------------------------------------------------------------
# "PeerOrgs" - Definition of organizations managing peer nodes
# ---------------------------------------------------------------------------
PeerOrgs:
# ---------------------------------------------------------------------------
# Org1
# ---------------------------------------------------------------------------
- Name: Org1
Domain: org1.example.com
EnableNodeOUs: true
CA:
Country: CN
Province: GuangDong
Locality: ShenZhen
# ---------------------------------------------------------------------------
# "Specs"
# ---------------------------------------------------------------------------
# Uncomment this section to enable the explicit definition of hosts in your
# configuration. Most users will want to use Template, below
#
# Specs is an array of Spec entries. Each Spec entry consists of two fields:
# - Hostname: (Required) The desired hostname, sans the domain.
# - CommonName: (Optional) Specifies the template or explicit override for
# the CN. By default, this is the template:
#
# "{{.Hostname}}.{{.Domain}}"
#
# which obtains its values from the Spec.Hostname and
# Org.Domain, respectively.
# ---------------------------------------------------------------------------
# Specs:
# - Hostname: foo # implicitly "foo.org1.example.com"
# CommonName: foo27.org5.example.com # overrides Hostname-based FQDN set above
# - Hostname: bar
# - Hostname: baz
# ---------------------------------------------------------------------------
# "Template"
# ---------------------------------------------------------------------------
# Allows for the definition of 1 or more hosts that are created sequentially
# from a template. By default, this looks like "peer%d" from 0 to Count-1.
# You may override the number of nodes (Count), the starting index (Start)
# or the template used to construct the name (Hostname).
#
# Note: Template and Specs are not mutually exclusive. You may define both
# sections and the aggregate nodes will be created for you. Take care with
# name collisions
# ---------------------------------------------------------------------------
Template:
Count: 2
# Start: 5
# Hostname: {{.Prefix}}{{.Index}} # default
# ---------------------------------------------------------------------------
# "Users"
# ---------------------------------------------------------------------------
# Count: The number of user accounts _in addition_ to Admin
# ---------------------------------------------------------------------------
Users:
Count: 1
# ---------------------------------------------------------------------------
# Org2: See "Org1" for full specification
# ---------------------------------------------------------------------------
- Name: Org2
Domain: org2.example.com
EnableNodeOUs: true
CA:
Country: CN
Province: GuangDong
Locality: ShenZhen
Template:
Count: 2
Users:
Count: 1
#用 cryptogen 工具执行生成相应的证书
[root@xxxx soft]# cryptogen generate --config=./crypto-config.yaml
org1.example.com
org2.example.com
# 生成一�� crypto-config 证书目录
# 可用 tree crypto-config 查看
#生成 Hyperledger Fabric 创世区块
#/opt/soft 目录下创建 channel-artifacts，存放生成块信息
[root@xxxx soft]# mkdir -p /opt/soft/channel-artifacts
# 编辑修改 configtx.yaml(orderer 多节点 peer 多节点), 如下：
# Copyright IBM Corp. All Rights Reserved.
#
# SPDX-License-Identifier: Apache-2.0
#
---
################################################################################
#
# Section: Organizations
#
# - This section defines the different organizational identities which will
# be referenced later in the configuration.
#
################################################################################
Organizations:
# SampleOrg defines an MSP using the sampleconfig. It should never be used
# in production but may be used as a template for other definitions
- &OrdererOrg
# DefaultOrg defines the organization which is used in the sampleconfig
# of the fabric.git development environment
Name: OrdererOrg
# ID to load the MSP definition as
ID: OrdererMSP
# MSPDir is the filesystem path which contains the MSP configuration
MSPDir: crypto-config/ordererOrganizations/example.com/msp
# Policies defines the set of policies at this level of the config tree
# For organization policies, their canonical path is usually
# /Channel/<Application|Orderer>/<OrgName>/<PolicyName>
Policies:
Readers:
Type: Signature
Rule: "OR('OrdererMSP.member')"
Writers:
Type: Signature
Rule: "OR('OrdererMSP.member')"
Admins:
Type: Signature
Rule: "OR('OrdererMSP.admin')"
- &Org1
# DefaultOrg defines the organization which is used in the sampleconfig
# of the fabric.git development environment
Name: Org1MSP
# ID to load the MSP definition as
ID: Org1MSP
MSPDir: crypto-config/peerOrganizations/org1.example.com/msp
# Policies defines the set of policies at this level of the config tree
# For organization policies, their canonical path is usually
# /Channel/<Application|Orderer>/<OrgName>/<PolicyName>
Policies:
Readers:
Type: Signature
Rule: "OR('Org1MSP.admin','Org1MSP.peer','Org1MSP.client')"
Writers:
Type: Signature
Rule: "OR('Org1MSP.admin','Org1MSP.client')"
Admins:
Type: Signature
Rule: "OR('Org1MSP.admin')"
AnchorPeers:
# AnchorPeers defines the location of peers which can be used
# for cross org gossip communication. Note, this value is only
# encoded in the genesis block in the Application section context
- Host: peer0.org1.example.com
Port: 7051
- &Org2
# DefaultOrg defines the organization which is used in the sampleconfig
# of the fabric.git development environment
Name: Org2MSP
# ID to load the MSP definition as
ID: Org2MSP
MSPDir: crypto-config/peerOrganizations/org2.example.com/msp
# Policies defines the set of policies at this level of the config tree
# For organization policies, their canonical path is usually
# /Channel/<Application|Orderer>/<OrgName>/<PolicyName>
Policies:
Readers:
Type: Signature
Rule: "OR('Org2MSP.admin','Org2MSP.peer','Org2MSP.client')"
Writers:
Type: Signature
Rule: "OR('Org2MSP.admin','Org2MSP.client')"
Admins:
Type: Signature
Rule: "OR('Org2MSP.admin')"
AnchorPeers:
# AnchorPeers defines the location of peers which can be used
# for cross org gossip communication. Note, this value is only
# encoded in the genesis block in the Application section context
- Host: peer0.org2.example.com
Port: 7051
################################################################################
#
# SECTION: Capabilities
#
# - This section defines the capabilities of fabric network. This is a new
# concept as of v1.1.0 and should not be utilized in mixed networks with
# v1.0.x peers and orderers. Capabilities define features which must be
# present in a fabric binary for that binary to safely participate in the
# fabric network. For instance, if a new MSP type is added, newer binaries
# might recognize and validate the signatures from this type, while older
# binaries without this support would be unable to validate those
# transactions. This could lead to different versions of the fabric binaries
# having different world states. Instead, defining a capability for a channel
# informs those binaries without this capability that they must cease
# processing transactions until they have been upgraded. For v1.0.x if any
# capabilities are defined (including a map with all capabilities turned off)
# then the v1.0.x peer will deliberately crash.
#
################################################################################
Capabilities:
# Channel capabilities apply to both the orderers and the peers and must be
# supported by both.
# Set the value of the capability to true to require it.
Channel: &ChannelCapabilities
# V1.3 for Channel is a catchall flag for behavior which has been
# determined to be desired for all orderers and peers running at the v1.3.x
# level, but which would be incompatible with orderers and peers from
# prior releases.
# Prior to enabling V1.3 channel capabilities, ensure that all
# orderers and peers on a channel are at v1.3.0 or later.
V1_3: true
# Orderer capabilities apply only to the orderers, and may be safely
# used with prior release peers.
# Set the value of the capability to true to require it.
Orderer: &OrdererCapabilities
# V1.1 for Orderer is a catchall flag for behavior which has been
# determined to be desired for all orderers running at the v1.1.x
# level, but which would be incompatible with orderers from prior releases.
# Prior to enabling V1.1 orderer capabilities, ensure that all
# orderers on a channel are at v1.1.0 or later.
V1_1: true
# Application capabilities apply only to the peer network, and may be safely
# used with prior release orderers.
# Set the value of the capability to true to require it.
Application: &ApplicationCapabilities
# V1.3 for Application enables the new non-backwards compatible
# features and fixes of fabric v1.3.
V1_3: true
# V1.2 for Application enables the new non-backwards compatible
# features and fixes of fabric v1.2 (note, this need not be set if
# later version capabilities are set)
V1_2: false
# V1.1 for Application enables the new non-backwards compatible
# features and fixes of fabric v1.1 (note, this need not be set if
# later version capabilities are set).
V1_1: false
################################################################################
#
# SECTION: Application
#
# - This section defines the values to encode into a config transaction or
# genesis block for application related parameters
#
################################################################################
Application: &ApplicationDefaults
# Organizations is the list of orgs which are defined as participants on
# the application side of the network
Organizations:
# Policies defines the set of policies at this level of the config tree
# For Application policies, their canonical path is
# /Channel/Application/<PolicyName>
Policies:
Readers:
Type: ImplicitMeta
Rule: "ANY Readers"
Writers:
Type: ImplicitMeta
Rule: "ANY Writers"
Admins:
Type: ImplicitMeta
Rule: "MAJORITY Admins"
# Capabilities describes the application level capabilities, see the
# dedicated Capabilities section elsewhere in this file for a full
# description
Capabilities:
<<: *ApplicationCapabilities
################################################################################
#
# SECTION: Orderer
#
# - This section defines the values to encode into a config transaction or
# genesis block for orderer related parameters
#
################################################################################
Orderer: &OrdererDefaults
# Orderer Type: The orderer implementation to start
# Available types are "solo" and "kafka"
OrdererType: kafka
Addresses:
- orderer0.example.com:7050
- orderer1.example.com:7050
- orderer2.example.com:7050
# Batch Timeout: The amount of time to wait before creating a batch
BatchTimeout: 2s
# Batch Size: Controls the number of messages batched into a block
BatchSize:
# Max Message Count: The maximum number of messages to permit in a batch
MaxMessageCount: 10
# Absolute Max Bytes: The absolute maximum number of bytes allowed for
# the serialized messages in a batch.
AbsoluteMaxBytes: 98 MB
# Preferred Max Bytes: The preferred maximum number of bytes allowed for
# the serialized messages in a batch. A message larger than the preferred
# max bytes will result in a batch larger than preferred max bytes.
PreferredMaxBytes: 512 KB
Kafka:
# Brokers: A list of Kafka brokers to which the orderer connects. Edit
# this list to identify the brokers of the ordering service.
# NOTE: Use IP:port notation.
Brokers:
- kafka0:9092
- kafka1:9092
- kafka2:9092
- kafka3:9092
# Organizations is the list of orgs which are defined as participants on
# the orderer side of the network
Organizations:
# Policies defines the set of policies at this level of the config tree
# For Orderer policies, their canonical path is
# /Channel/Orderer/<PolicyName>
Policies:
Readers:
Type: ImplicitMeta
Rule: "ANY Readers"
Writers:
Type: ImplicitMeta
Rule: "ANY Writers"
Admins:
Type: ImplicitMeta
Rule: "MAJORITY Admins"
# BlockValidation specifies what signatures must be included in the block
# from the orderer for the peer to validate it.
BlockValidation:
Type: ImplicitMeta
Rule: "ANY Writers"
# Capabilities describes the orderer level capabilities, see the
# dedicated Capabilities section elsewhere in this file for a full
# description
Capabilities:
<<: *OrdererCapabilities
################################################################################
#
# CHANNEL
#
# This section defines the values to encode into a config transaction or
# genesis block for channel related parameters.
#
################################################################################
Channel: &ChannelDefaults
# Policies defines the set of policies at this level of the config tree
# For Channel policies, their canonical path is
# /Channel/<PolicyName>
Policies:
# Who may invoke the 'Deliver' API
Readers:
Type: ImplicitMeta
Rule: "ANY Readers"
# Who may invoke the 'Broadcast' API
Writers:
Type: ImplicitMeta
Rule: "ANY Writers"
# By default, who may modify elements at this config level
Admins:
Type: ImplicitMeta
Rule: "MAJORITY Admins"
# Capabilities describes the channel level capabilities, see the
# dedicated Capabilities section elsewhere in this file for a full
# description
Capabilities:
<<: *ChannelCapabilities
################################################################################
#
# Profile
#
# - Different configuration profiles may be encoded here to be specified
# as parameters to the configtxgen tool
#
################################################################################
Profiles:
TwoOrgsOrdererGenesis:
<<: *ChannelDefaults
Orderer:
<<: *OrdererDefaults
Organizations:
- *OrdererOrg
Consortiums:
SampleConsortium:
Organizations:
- *Org1
- *Org2
TwoOrgsChannel:
Consortium: SampleConsortium
Application:
<<: *ApplicationDefaults
Organizations:
- *Org1
- *Org2#使用 configtxgen 工具，创建 创世区块 TwoOrgsOrdererGenesis 名称为 configtx.yaml 中 Profiles 字段下定义的
#[root@xxxx soft]#configtxgen -profile TwoOrgsOrdererGenesis -outputBlock ./channel-artifacts/genesis.block
2019-08-25 02:25:31.256 CST [common.tools.configtxgen] main -> WARN 001 Omitting the channel ID for configtxgen for output operations is deprecated. Explicitly passing the channel ID will be required in the future, defaulting to 'testchainid'.
2019-08-25 02:25:31.256 CST [common.tools.configtxgen] main -> INFO 002 Loading configuration
2019-08-25 02:25:31.268 CST [common.tools.configtxgen.localconfig] completeInitialization -> INFO 003 orderer type: kafka
2019-08-25 02:25:31.268 CST [common.tools.configtxgen.localconfig] Load -> INFO 004 Loaded configuration: /opt/soft/configtx.yaml
2019-08-25 02:25:31.279 CST [common.tools.configtxgen.localconfig] completeInitialization -> INFO 005 orderer type: kafka
2019-08-25 02:25:31.279 CST [common.tools.configtxgen.localconfig] LoadTopLevel -> INFO 006 Loaded configuration: /opt/soft/configtx.yaml
2019-08-25 02:25:31.280 CST [common.tools.configtxgen] doOutputBlock -> INFO 007 Generating genesis block
2019-08-25 02:25:31.281 CST [common.tools.configtxgen] doOutputBlock -> INFO 008 Writing genesis block# 下面来生成一个 peer 服务 中使用的 tx 文件 TwoOrgsChannel 名称为 configtx.yaml 中 Profiles 字段下定义的，这里必须指定上面的 channelID
# [root@xxxx soft]# configtxgen -profile TwoOrgsChannel -outputCreateChannelTx ./channel-artifacts/channel.tx -channelID mychannel
2019-08-25 02:26:53.395 CST [common.tools.configtxgen] main -> INFO 001 Loading configuration
2019-08-25 02:26:53.406 CST [common.tools.configtxgen.localconfig] Load -> INFO 002 Loaded configuration: /opt/soft/configtx.yaml
2019-08-25 02:26:53.417 CST [common.tools.configtxgen.localconfig] completeInitialization -> INFO 003 orderer type: kafka
2019-08-25 02:26:53.417 CST [common.tools.configtxgen.localconfig] LoadTopLevel -> INFO 004 Loaded configuration: /opt/soft/configtx.yaml
2019-08-25 02:26:53.417 CST [common.tools.configtxgen] doOutputChannelCreateTx -> INFO 005 Generating new channel configtx
2019-08-25 02:26:53.418 CST [common.tools.configtxgen] doOutputChannelCreateTx -> INFO 006 Writing new channel tx#查看生成文件，是否正确
[root@xxx soft]# ls -lt channel-artifacts/
-rw-r--r-- 1 root root 346 8 月 25 03:18 channel.tx
-rw-r--r-- 1 root root 12484 8 月 25 03:17 genesis.block# 定义组织，生成锚节点更新文件
# Org1MSP
[root@xxxx soft]# configtxgen -profile TwoOrgsChannel -outputAnchorPeersUpdate ./channel-artifacts/Org1MSPanchors.tx -channelID mychannel -asOrg Org1MSP
2019-08-25 02:28:04.205 CST [common.tools.configtxgen] main -> INFO 001 Loading configuration
2019-08-25 02:28:04.216 CST [common.tools.configtxgen.localconfig] Load -> INFO 002 Loaded configuration: /opt/soft/configtx.yaml
2019-08-25 02:28:04.227 CST [common.tools.configtxgen.localconfig] completeInitialization -> INFO 003 orderer type: kafka
2019-08-25 02:28:04.227 CST [common.tools.configtxgen.localconfig] LoadTopLevel -> INFO 004 Loaded configuration: /opt/soft/configtx.yaml
2019-08-25 02:28:04.227 CST [common.tools.configtxgen] doOutputAnchorPeersUpdate -> INFO 005 Generating anchor peer update
2019-08-25 02:28:04.227 CST [common.tools.configtxgen] doOutputAnchorPeersUpdate -> INFO 006 Writing anchor peer update# Org2MSP
[root@xxxx soft]# configtxgen -profile TwoOrgsChannel -outputAnchorPeersUpdate ./channel-artifacts/Org2MSPanchors.tx -channelID mychannel -asOrg Org2MSP
2019-08-25 02:28:37.381 CST [common.tools.configtxgen] main -> INFO 001 Loading configuration
2019-08-25 02:28:37.392 CST [common.tools.configtxgen.localconfig] Load -> INFO 002 Loaded configuration: /opt/soft/configtx.yaml
2019-08-25 02:28:37.403 CST [common.tools.configtxgen.localconfig] completeInitialization -> INFO 003 orderer type: kafka
2019-08-25 02:28:37.403 CST [common.tools.configtxgen.localconfig] LoadTopLevel -> INFO 004 Loaded configuration: /opt/soft/configtx.yaml
2019-08-25 02:28:37.403 CST [common.tools.configtxgen] doOutputAnchorPeersUpdate -> INFO 005 Generating anchor peer update
2019-08-25 02:28:37.403 CST [common.tools.configtxgen] doOutputAnchorPeersUpdate -> INFO 006 Writing anchor peer update# 拷贝 crypto-config、channel-artifacts 目录到其他节点服务器
#scp -r crypto-config channel-artifacts root@172.31.1.90:/opt/soft
#scp -r crypto-config channel-artifacts root@172.31.1.91:/opt/soft
#scp -r crypto-config channel-artifacts root@172.31.1.92:/opt/soft三、部署 Zookeeper(3 个节点) Kafka(4 个节点) 集群
注：zk 集群，容器中需要相互指定 extra_hosts，并且注意 zookeeper 定义的 ID 不要重复，不然无法启动！！！！
1. 第一节点 (172.31.1.89)，在 /opt/soft 目录下，编写 docker-compose-zookeeper.yaml，如下：
version: '2'
services:
zookeeper0:
container_name: zookeeper0
hostname: zookeeper0
image: hyperledger/fabric-zookeeper
restart: always
environment:
- ZOO_MY_ID=1
- ZOO_SERVERS=server.1=zookeeper0:2888:3888 server.2=zookeeper1:2888:3888 server.3=zookeeper2:2888:3888
volumes:
- /etc/localtime:/etc/localtime:ro
- /etc/timezone:/etc/timezone:ro
ports:
- 2181:2181
- 2888:2888
- 3888:3888
extra_hosts:
- "zookeeper0:172.31.1.89"
- "zookeeper1:172.31.1.90"
- "zookeeper2:172.31.1.91"
- "kafka0:172.31.1.89"
- "kafka1:172.31.1.90"
- "kafka2:172.31.1.91"
- "kafka3:172.31.1.92"2. 第一节点 (172.31.1.89)，在 /opt/soft 目录下，编写 docker-compose-kafka.yaml，如下
version: '2'
services:
kafka0:
container_name: kafka0
hostname: kafka0
image: hyperledger/fabric-kafka
restart: always
environment:
- KAFKA_MESSAGE_MAX_BYTES=103809024
- KAFKA_REPLICA_FETCH_MAX_BYTES=103809024
- KAFKA_UNCLEAN_LEADER_ELECTION_ENABLE=false
environment:
- KAFKA_BROKER_ID=1
- KAFKA_MIN_INSYNC_REPLICAS=2
- KAFKA_DEFAULT_REPLICATION_FACTOR=3
- KAFKA_ZOOKEEPER_CONNECT=zookeeper0:2181,zookeeper1:2181,zookeeper2:2181
- KAFKA_LOG_RETENTION_MS=-1
volumes:
- /etc/localtime:/etc/localtime:ro
- /etc/timezone:/etc/timezone:ro
- /var/hyperledger/kafka/kafka-logs:/tmp/kafka-logs
ports:
- 9092:9092
extra_hosts:
- "zookeeper0:172.31.1.89"
- "zookeeper1:172.31.1.90"
- "zookeeper2:172.31.1.91"
- "kafka0:172.31.1.89"
- "kafka1:172.31.1.90"
- "kafka2:172.31.1.91"
- "kafka3:172.31.1.92"3. 第二节点 (172.31.1.90)，在 /opt/soft 目录下，编写 docker-compose-zookeeper.yaml，如下
version: '2'
services:
zookeeper1:
container_name: zookeeper1
hostname: zookeeper1
image: hyperledger/fabric-zookeeper
restart: always
environment:
- ZOO_MY_ID=2
- ZOO_SERVERS=server.1=zookeeper0:2888:3888 server.2=zookeeper1:2888:3888 server.3=zookeeper2:2888:3888
volumes:
- /etc/localtime:/etc/localtime:ro
- /etc/timezone:/etc/timezone:ro
ports:
- 2181:2181
- 2888:2888
- 3888:3888
extra_hosts:
- "zookeeper0:172.31.1.89"
- "zookeeper1:172.31.1.90"
- "zookeeper2:172.31.1.91"
- "kafka0:172.31.1.89"
- "kafka1:172.31.1.90"
- "kafka2:172.31.1.91"
- "kafka3:172.31.1.92"4. 第二节点 (172.31.1.90)，在 /opt/soft 目录下，编写 docker-compose-kafka.yaml，如下
version: '2'
services:
kafka1:
container_name: kafka1
hostname: kafka1
image: hyperledger/fabric-kafka
restart: always
environment:
- KAFKA_MESSAGE_MAX_BYTES=103809024
- KAFKA_REPLICA_FETCH_MAX_BYTES=103809024
- KAFKA_UNCLEAN_LEADER_ELECTION_ENABLE=false
environment:
- KAFKA_BROKER_ID=2
- KAFKA_MIN_INSYNC_REPLICAS=2
- KAFKA_DEFAULT_REPLICATION_FACTOR=3
- KAFKA_ZOOKEEPER_CONNECT=zookeeper0:2181,zookeeper1:2181,zookeeper2:2181
- KAFKA_LOG_RETENTION_MS=-1
volumes:
- /etc/localtime:/etc/localtime:ro
- /etc/timezone:/etc/timezone:ro
- /var/hyperledger/kafka/kafka-logs:/tmp/kafka-logs
ports:
- 9092:9092
extra_hosts:
- "zookeeper0:172.31.1.89"
- "zookeeper1:172.31.1.90"
- "zookeeper2:172.31.1.91"
- "kafka0:172.31.1.89"
- "kafka1:172.31.1.90"
- "kafka2:172.31.1.91"
- "kafka3:172.31.1.92"5. 第三节点 (172.31.1.91)，在 /opt/soft 目录下，编写 docker-compose-zookeeper.yaml，如下
version: '2'
services:
zookeeper2:
container_name: zookeeper2
hostname: zookeeper2
image: hyperledger/fabric-zookeeper
restart: always
environment:
- ZOO_MY_ID=3
- ZOO_SERVERS=server.1=zookeeper0:2888:3888 server.2=zookeeper1:2888:3888 server.3=zookeeper2:2888:3888
volumes:
- /etc/localtime:/etc/localtime:ro
- /etc/timezone:/etc/timezone:ro
ports:
- 2181:2181
- 2888:2888
- 3888:3888
extra_hosts:
- "zookeeper0:172.31.1.89"
- "zookeeper1:172.31.1.90"
- "zookeeper2:172.31.1.91"
- "kafka0:172.31.1.89"
- "kafka1:172.31.1.90"
- "kafka2:172.31.1.91"
- "kafka3:172.31.1.92"6. 第三节点 (172.31.1.91)，在 /opt/soft 目录下，编写 docker-compose-kafka.yaml，如下
version: '2'
services:
kafka2:
container_name: kafka2
hostname: kafka2
image: hyperledger/fabric-kafka
restart: always
environment:
- KAFKA_MESSAGE_MAX_BYTES=103809024
- KAFKA_REPLICA_FETCH_MAX_BYTES=103809024
- KAFKA_UNCLEAN_LEADER_ELECTION_ENABLE=false
environment:
- KAFKA_BROKER_ID=3
- KAFKA_MIN_INSYNC_REPLICAS=2
- KAFKA_DEFAULT_REPLICATION_FACTOR=3
- KAFKA_ZOOKEEPER_CONNECT=zookeeper0:2181,zookeeper1:2181,zookeeper2:2181
- KAFKA_LOG_RETENTION_MS=-1
volumes:
- /etc/localtime:/etc/localtime:ro
- /etc/timezone:/etc/timezone:ro
- /var/hyperledger/kafka/kafka-logs:/tmp/kafka-logs
ports:
- 9092:9092
extra_hosts:
- "zookeeper0:172.31.1.89"
- "zookeeper1:172.31.1.90"
- "zookeeper2:172.31.1.91"
- "kafka0:172.31.1.89"
- "kafka1:172.31.1.90"
- "kafka2:172.31.1.91"
- "kafka3:172.31.1.92"7. 第四节点 (172.31.1.92)，在 /opt/soft 目录下，编写 docker-compose-kafka.yaml，如下
version: '2'
services:
kafka3:
container_name: kafka3
hostname: kafka3
image: hyperledger/fabric-kafka
restart: always
environment:
- KAFKA_MESSAGE_MAX_BYTES=103809024
- KAFKA_REPLICA_FETCH_MAX_BYTES=103809024
- KAFKA_UNCLEAN_LEADER_ELECTION_ENABLE=false
environment:
- KAFKA_BROKER_ID=4
- KAFKA_MIN_INSYNC_REPLICAS=2
- KAFKA_DEFAULT_REPLICATION_FACTOR=3
- KAFKA_ZOOKEEPER_CONNECT=zookeeper0:2181,zookeeper1:2181,zookeeper2:2181
- KAFKA_LOG_RETENTION_MS=-1
volumes:
- /etc/localtime:/etc/localtime:ro
- /etc/timezone:/etc/timezone:ro
- /var/hyperledger/kafka/kafka-logs:/tmp/kafka-logs
ports:
- 9092:9092
extra_hosts:
- "zookeeper0:172.31.1.89"
- "zookeeper1:172.31.1.90"
- "zookeeper2:172.31.1.91"
- "kafka0:172.31.1.89"
- "kafka1:172.31.1.90"
- "kafka2:172.31.1.91"
- "kafka3:172.31.1.92"# 启动服务
启动服务顺序先启动 zookeeper 集群, 再启动 kafka 集群
docker-compose -f docker-compose-zookeeper.yaml up -d
docker-compose -f docker-compose-kafka.yaml up -d四、部署 Hyperledger Fabric Orderer 排序服务集群，3 个节点
1. 第一个节点 (172.31.1.89)，在 /opt/soft 目录下，编写 docker-compose-orderer.yaml，如下：
version: '2'
services:
orderer0.example.com:
container_name: orderer0.example.com
image: hyperledger/fabric-orderer
environment:
- CORE_VM_DOCKER_HOSTCONFIG_NETWORKMODE=soft_default
- ORDERER_GENERAL_LOGLEVEL=debug
- ORDERER_GENERAL_LISTENADDRESS=0.0.0.0
- ORDERER_GENERAL_GENESISMETHOD=file
- ORDERER_GENERAL_GENESISFILE=/var/hyperledger/orderer/orderer.genesis.block
- ORDERER_GENERAL_LOCALMSPID=OrdererMSP
- ORDERER_GENERAL_LOCALMSPDIR=/var/hyperledger/orderer/msp
- ORDERER_GENERAL_TLS_ENABLED=false
- ORDERER_GENERAL_TLS_PRIVATEKEY=/var/hyperledger/orderer/tls/server.key
- ORDERER_GENERAL_TLS_CERTIFICATE=/var/hyperledger/orderer/tls/server.crt
- ORDERER_GENERAL_TLS_ROOTCAS=[/var/hyperledger/orderer/tls/ca.crt]
- ORDERER_KAFKA_RETRY_LONGINTERVAL=10s
- ORDERER_KAFKA_RETRY_LONGTOTAL=100s
- ORDERER_KAFKA_RETRY_SHORTINTERVAL=1s
- ORDERER_KAFKA_RETRY_SHORTTOTAL=30s
- ORDERER_KAFKA_VERBOSE=true
- ORDERER_KAFKA_BROKERS=[kafka0:9092,kafka1:9092,kafka2:9092,kafka3:9092]
working_dir: /opt/gopath/src/github.com/hyperledger/fabric
command: orderer
volumes:
- /etc/localtime:/etc/localtime:ro
- /etc/timezone:/etc/timezone:ro
- /var/hyperledger/order_data/:/var/hyperledger/production/
- ./channel-artifacts/genesis.block:/var/hyperledger/orderer/orderer.genesis.block
- ./crypto-config/ordererOrganizations/example.com/orderers/orderer0.example.com/msp:/var/hyperledger/orderer/msp
- ./crypto-config/ordererOrganizations/example.com/orderers/orderer0.example.com/tls/:/var/hyperledger/orderer/tls
ports:
- 7050:7050
extra_hosts:
- "zookeeper0:172.31.1.89"
- "zookeeper1:172.31.1.90"
- "zookeeper2:172.31.1.91"
- "kafka0:172.31.1.89"
- "kafka1:172.31.1.90"
- "kafka2:172.31.1.91"
- "kafka3:172.31.1.92"2. 第二个节点 (172.31.1.90)，在 /opt/soft 目录下，编写 docker-compose-orderer.yaml，如下：
version: '2'
services:
orderer1.example.com:
container_name: orderer1.example.com
image: hyperledger/fabric-orderer
environment:
- CORE_VM_DOCKER_HOSTCONFIG_NETWORKMODE=soft_default
- ORDERER_GENERAL_LOGLEVEL=debug
- ORDERER_GENERAL_LISTENADDRESS=0.0.0.0
- ORDERER_GENERAL_GENESISMETHOD=file
- ORDERER_GENERAL_GENESISFILE=/var/hyperledger/orderer/orderer.genesis.block
- ORDERER_GENERAL_LOCALMSPID=OrdererMSP
- ORDERER_GENERAL_LOCALMSPDIR=/var/hyperledger/orderer/msp
- ORDERER_GENERAL_TLS_ENABLED=false
- ORDERER_GENERAL_TLS_PRIVATEKEY=/var/hyperledger/orderer/tls/server.key
- ORDERER_GENERAL_TLS_CERTIFICATE=/var/hyperledger/orderer/tls/server.crt
- ORDERER_GENERAL_TLS_ROOTCAS=[/var/hyperledger/orderer/tls/ca.crt]
- ORDERER_KAFKA_RETRY_LONGINTERVAL=10s
- ORDERER_KAFKA_RETRY_LONGTOTAL=100s
- ORDERER_KAFKA_RETRY_SHORTINTERVAL=1s
- ORDERER_KAFKA_RETRY_SHORTTOTAL=30s
- ORDERER_KAFKA_VERBOSE=true
- ORDERER_KAFKA_BROKERS=[kafka0:9092,kafka1:9092,kafka2:9092,kafka3:9092]
working_dir: /opt/gopath/src/github.com/hyperledger/fabric
command: orderer
volumes:
- /etc/localtime:/etc/localtime:ro
- /etc/timezone:/etc/timezone:ro
- /var/hyperledger/order_data/:/var/hyperledger/production/
- ./channel-artifacts/genesis.block:/var/hyperledger/orderer/orderer.genesis.block
- ./crypto-config/ordererOrganizations/example.com/orderers/orderer1.example.com/msp:/var/hyperledger/orderer/msp
- ./crypto-config/ordererOrganizations/example.com/orderers/orderer1.example.com/tls/:/var/hyperledger/orderer/tls
ports:
- 7050:7050
extra_hosts:
- "zookeeper0:172.31.1.89"
- "zookeeper1:172.31.1.90"
- "zookeeper2:172.31.1.91"
- "kafka0:172.31.1.89"
- "kafka1:172.31.1.90"
- "kafka2:172.31.1.91"
- "kafka3:172.31.1.92"3. 第三个节点 (172.31.1.91)，在 /opt/soft 目录下，编写 docker-compose-orderer.yaml，如下：
version: '2'
services:
orderer2.example.com:
container_name: orderer2.example.com
image: hyperledger/fabric-orderer
environment:
- CORE_VM_DOCKER_HOSTCONFIG_NETWORKMODE=soft_default
- ORDERER_GENERAL_LOGLEVEL=debug
- ORDERER_GENERAL_LISTENADDRESS=0.0.0.0
- ORDERER_GENERAL_GENESISMETHOD=file
- ORDERER_GENERAL_GENESISFILE=/var/hyperledger/orderer/orderer.genesis.block
- ORDERER_GENERAL_LOCALMSPID=OrdererMSP
- ORDERER_GENERAL_LOCALMSPDIR=/var/hyperledger/orderer/msp
- ORDERER_GENERAL_TLS_ENABLED=false
- ORDERER_GENERAL_TLS_PRIVATEKEY=/var/hyperledger/orderer/tls/server.key
- ORDERER_GENERAL_TLS_CERTIFICATE=/var/hyperledger/orderer/tls/server.crt
- ORDERER_GENERAL_TLS_ROOTCAS=[/var/hyperledger/orderer/tls/ca.crt]
- ORDERER_KAFKA_RETRY_LONGINTERVAL=10s
- ORDERER_KAFKA_RETRY_LONGTOTAL=100s
- ORDERER_KAFKA_RETRY_SHORTINTERVAL=1s
- ORDERER_KAFKA_RETRY_SHORTTOTAL=30s
- ORDERER_KAFKA_VERBOSE=true
- ORDERER_KAFKA_BROKERS=[kafka0:9092,kafka1:9092,kafka2:9092,kafka3:9092]
working_dir: /opt/gopath/src/github.com/hyperledger/fabric
command: orderer
volumes:
- /etc/localtime:/etc/localtime:ro
- /etc/timezone:/etc/timezone:ro
- /var/hyperledger/order_data/:/var/hyperledger/production/
- ./channel-artifacts/genesis.block:/var/hyperledger/orderer/orderer.genesis.block
- ./crypto-config/ordererOrganizations/example.com/orderers/orderer2.example.com/msp:/var/hyperledger/orderer/msp
- ./crypto-config/ordererOrganizations/example.com/orderers/orderer2.example.com/tls/:/var/hyperledger/orderer/tls
ports:
- 7050:7050
extra_hosts:
- "zookeeper0:172.31.1.89"
- "zookeeper1:172.31.1.90"
- "zookeeper2:172.31.1.91"
- "kafka0:172.31.1.89"
- "kafka1:172.31.1.90"
- "kafka2:172.31.1.91"
- "kafka3:172.31.1.92"# 启动服务，按照节点顺序启动
docker-compose -f docker-compose-orderer.yaml up -d
# docker logs xxx
2019-08-25 15:35:35.436 CST [orderer.common.server] Start -> INFO 008 Beginning to serve requests
2019-08-25 15:35:35.436 CST [orderer.consensus.kafka] setupTopicForChannel -> INFO 009 [channel: testchainid] Setting up the topic for this channel...
2019-08-25 15:35:35.475 CST [orderer.consensus.kafka] setupProducerForChannel -> INFO 00a [channel: testchainid] Setting up the producer for this channel...
2019-08-25 15:35:35.487 CST [orderer.consensus.kafka] startThread -> INFO 00b [channel: testchainid] Producer set up successfully
2019-08-25 15:35:35.487 CST [orderer.consensus.kafka] sendConnectMessage -> INFO 00c [channel: testchainid] About to post the CONNECT message...
2019-08-25 15:35:35.842 CST [orderer.consensus.kafka] startThread -> INFO 00d [channel: testchainid] CONNECT message posted successfully
2019-08-25 15:35:35.842 CST [orderer.consensus.kafka] setupParentConsumerForChannel -> INFO 00e [channel: testchainid] Setting up the parent consumer for this channel...
2019-08-25 15:35:35.849 CST [orderer.consensus.kafka] startThread -> INFO 00f [channel: testchainid] Parent consumer set up successfully
2019-08-25 15:35:35.849 CST [orderer.consensus.kafka] setupChannelConsumerForChannel -> INFO 010 [channel: testchainid] Setting up the channel consumer for this channel (start offset: -2)...五、部署 Hyperledger Fabric Peer 排序服务集群，4 个节点
注意：Peer 节点下都必须启动一个数据存储，如 file 或者 couchdb 等，示例采用 couchdb，并且强烈建议另外挂载可扩容的存储设备(阿里云云盘，NAS,OSS)！！！
如示例中，挂载阿里云云盘至节点主机 /mnt/data/couchdb0/data(宿主挂载路径)
下列容器 couchdb0 配置项中，增加如下
volumes:
# 数据持久化，用于存储链码值
– /mnt/data/couchdb0/data:/opt/couchdb/data
1. 第一个节点 (172.31.1.89)，在 /opt/soft 目录下，编写 docker-compose-peer.yaml，如下：
注：配置参数 CORE_PEER_TLS_ENABLED=false, 如果启用 tls 认证，必须改为 true
version: '2'
services:
couchdb0:
container_name: couchdb0
image: hyperledger/fabric-couchdb
environment:
- COUCHDB_USER=
- COUCHDB_PASSWORD=
ports:
- "5984:5984"
volumes:
# 数据持久化，用于存储链码值
- /mnt/data/couchdb0/data:/opt/couchdb/data
peer0.org1.example.com:
container_name: peer0.org1.example.com
hostname: peer0.org1.example.com
image: hyperledger/fabric-peer
environment:
- CORE_LEDGER_STATE_STATEDATABASE=CouchDB
- CORE_LEDGER_STATE_COUCHDBCONFIG_COUCHDBADDRESS=couchdb0:5984
- CORE_PEER_ID=peer0.org1.example.com
- CORE_PEER_NETWORKID=soft
- CORE_PEER_ADDRESS=peer0.org1.example.com:7051
- CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer0.org1.example.com:7051
- CORE_PEER_LOCALMSPID=Org1MSP
- CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
- CORE_VM_DOCKER_HOSTCONFIG_NETWORKMODE=soft
- CORE_LOGGING_LEVEL=DEBUG
- CORE_VM_DOCKER_HOSTCONFIG_NETWORKMODE=soft_default
- CORE_PEER_GOSSIP_SKIPHANDSHAKE=true
- CORE_PEER_GOSSIP_USELEADERELECTION=true
- CORE_PEER_GOSSIP_ORGLEADER=false
- CORE_PEER_PROFILE_ENABLED=false
- CORE_CHAINCODE_EXECUTETIMEOUT=1000s
- CORE_CHAINCODE_DEPLOYTIMEOUT=1000s
- CORE_PEER_TLS_ENABLED=false
- CORE_PEER_TLS_CERT_FILE=/etc/hyperledger/fabric/tls/server.crt
- CORE_PEER_TLS_KEY_FILE=/etc/hyperledger/fabric/tls/server.key
- CORE_PEER_TLS_ROOTCERT_FILE=/etc/hyperledger/fabric/tls/ca.crt
working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
command: peer node start
volumes:
- /etc/localtime:/etc/localtime:ro
- /etc/timezone:/etc/timezone:ro
- /var/run/:/host/var/run/
- /var/hyperledger/peer_data/:/var/hyperledger/production/
- ./crypto-config/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/msp:/etc/hyperledger/fabric/msp
- ./crypto-config/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls:/etc/hyperledger/fabric/tls
ports:
- 7051:7051
- 7052:7052
- 7053:7053
depends_on:
- couchdb0
extra_hosts:
- "couchdb0:172.31.1.89"
- "orderer0.example.com:172.31.1.89"
- "orderer1.example.com:172.31.1.90"
- "orderer2.example.com:172.31.1.91"
2. 第二个节点 (172.31.1.90)，在 /opt/soft 目录下，编写 docker-compose-peer.yaml，如下：
注：配置参数 CORE_PEER_TLS_ENABLED=false, 如果启用 tls 认证，必须改为 true
version: '2'
services:
couchdb1:
container_name: couchdb1
image: hyperledger/fabric-couchdb
environment:
- COUCHDB_USER=
- COUCHDB_PASSWORD=
ports:
- "5984:5984"
volumes:
# 数据持久化，用于存储链码值
- /mnt/data/couchdb1/data:/opt/couchdb/data
peer1.org1.example.com:
container_name: peer1.org1.example.com
hostname: peer1.org1.example.com
image: hyperledger/fabric-peer
environment:
- CORE_LEDGER_STATE_STATEDATABASE=CouchDB
- CORE_LEDGER_STATE_COUCHDBCONFIG_COUCHDBADDRESS=couchdb1:5984
- CORE_PEER_ID=peer1.org1.example.com
- CORE_PEER_NETWORKID=soft
- CORE_PEER_ADDRESS=peer1.org1.example.com:7051
- CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer1.org1.example.com:7051
- CORE_PEER_LOCALMSPID=Org1MSP
- CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
- CORE_VM_DOCKER_HOSTCONFIG_NETWORKMODE=soft
- CORE_LOGGING_LEVEL=DEBUG
- CORE_VM_DOCKER_HOSTCONFIG_NETWORKMODE=soft_default
- CORE_PEER_GOSSIP_SKIPHANDSHAKE=true
- CORE_PEER_GOSSIP_USELEADERELECTION=true
- CORE_PEER_GOSSIP_ORGLEADER=false
- CORE_PEER_PROFILE_ENABLED=false
- CORE_CHAINCODE_EXECUTETIMEOUT=1000s
- CORE_CHAINCODE_DEPLOYTIMEOUT=1000s
- CORE_PEER_TLS_ENABLED=false
- CORE_PEER_TLS_CERT_FILE=/etc/hyperledger/fabric/tls/server.crt
- CORE_PEER_TLS_KEY_FILE=/etc/hyperledger/fabric/tls/server.key
- CORE_PEER_TLS_ROOTCERT_FILE=/etc/hyperledger/fabric/tls/ca.crt
working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
command: peer node start
volumes:
- /etc/localtime:/etc/localtime:ro
- /etc/timezone:/etc/timezone:ro
- /var/run/:/host/var/run/
- /var/hyperledger/peer_data/:/var/hyperledger/production/
- ./crypto-config/peerOrganizations/org1.example.com/peers/peer1.org1.example.com/msp:/etc/hyperledger/fabric/msp
- ./crypto-config/peerOrganizations/org1.example.com/peers/peer1.org1.example.com/tls:/etc/hyperledger/fabric/tls
ports:
- 7051:7051
- 7052:7052
- 7053:7053
depends_on:
- couchdb1
extra_hosts:
- "couchdb1:172.31.1.90"
- "orderer0.example.com:172.31.1.89"
- "orderer1.example.com:172.31.1.90"
- "orderer2.example.com:172.31.1.91"3. 第三个节点 (172.31.1.91)，在 /opt/soft 目录下，编写 docker-compose-peer.yaml，如下：
version: '2'
services:
couchdb2:
container_name: couchdb2
image: hyperledger/fabric-couchdb
environment:
- COUCHDB_USER=
- COUCHDB_PASSWORD=
ports:
- "5984:5984"
volumes:
# 数据持久化，用于存储链码值
- /mnt/data/couchdb2/data:/opt/couchdb/data
peer0.org2.example.com:
container_name: peer0.org2.example.com
hostname: peer0.org2.example.com
image: hyperledger/fabric-peer
environment:
- CORE_LEDGER_STATE_STATEDATABASE=CouchDB
- CORE_LEDGER_STATE_COUCHDBCONFIG_COUCHDBADDRESS=couchdb2:5984
- CORE_PEER_ID=peer0.org2.example.com
- CORE_PEER_NETWORKID=soft
- CORE_PEER_ADDRESS=peer0.org2.example.com:7051
- CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer0.org2.example.com:7051
- CORE_PEER_LOCALMSPID=Org2MSP
- CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
- CORE_VM_DOCKER_HOSTCONFIG_NETWORKMODE=soft
- CORE_LOGGING_LEVEL=DEBUG
- CORE_VM_DOCKER_HOSTCONFIG_NETWORKMODE=soft_default
- CORE_PEER_GOSSIP_SKIPHANDSHAKE=true
- CORE_PEER_GOSSIP_USELEADERELECTION=true
- CORE_PEER_GOSSIP_ORGLEADER=false
- CORE_PEER_PROFILE_ENABLED=false
- CORE_CHAINCODE_EXECUTETIMEOUT=1000s
- CORE_CHAINCODE_DEPLOYTIMEOUT=1000s
- CORE_PEER_TLS_ENABLED=false
- CORE_PEER_TLS_CERT_FILE=/etc/hyperledger/fabric/tls/server.crt
- CORE_PEER_TLS_KEY_FILE=/etc/hyperledger/fabric/tls/server.key
- CORE_PEER_TLS_ROOTCERT_FILE=/etc/hyperledger/fabric/tls/ca.crt
working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
command: peer node start
volumes:
- /etc/localtime:/etc/localtime:ro
- /etc/timezone:/etc/timezone:ro
- /var/run/:/host/var/run/
- /var/hyperledger/peer_data/:/var/hyperledger/production/
- ./crypto-config/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/msp:/etc/hyperledger/fabric/msp
- ./crypto-config/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls:/etc/hyperledger/fabric/tls
ports:
- 7051:7051
- 7052:7052
- 7053:7053
depends_on:
- couchdb2
extra_hosts:
- "couchdb2:172.31.1.91"
- "orderer0.example.com:172.31.1.89"
- "orderer1.example.com:172.31.1.90"
- "orderer2.example.com:172.31.1.91"
4. 第四个节点 (172.31.1.92)，在 /opt/soft 目录下，编写 docker-compose-peer.yaml，如下：
version: '2'
services:
couchdb3:
container_name: couchdb3
image: hyperledger/fabric-couchdb
environment:
- COUCHDB_USER=
- COUCHDB_PASSWORD=
ports:
- "5984:5984"
volumes:
# 数据持久化，用于存储链码值
- /mnt/data/couchdb3/data:/opt/couchdb/data
peer1.org2.example.com:
container_name: peer1.org2.example.com
hostname: peer1.org2.example.com
image: hyperledger/fabric-peer
environment:
- CORE_LEDGER_STATE_STATEDATABASE=CouchDB
- CORE_LEDGER_STATE_COUCHDBCONFIG_COUCHDBADDRESS=couchdb3:5984
- CORE_PEER_ID=peer1.org2.example.com
- CORE_PEER_NETWORKID=soft
- CORE_PEER_ADDRESS=peer1.org2.example.com:7051
- CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer1.org2.example.com:7051
- CORE_PEER_LOCALMSPID=Org2MSP
- CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
- CORE_VM_DOCKER_HOSTCONFIG_NETWORKMODE=soft
- CORE_LOGGING_LEVEL=DEBUG
- CORE_VM_DOCKER_HOSTCONFIG_NETWORKMODE=soft_default
- CORE_PEER_GOSSIP_SKIPHANDSHAKE=true
- CORE_PEER_GOSSIP_USELEADERELECTION=true
- CORE_PEER_GOSSIP_ORGLEADER=false
- CORE_PEER_PROFILE_ENABLED=false
- CORE_CHAINCODE_EXECUTETIMEOUT=1000s
- CORE_CHAINCODE_DEPLOYTIMEOUT=1000s
- CORE_PEER_TLS_ENABLED=false
- CORE_PEER_TLS_CERT_FILE=/etc/hyperledger/fabric/tls/server.crt
- CORE_PEER_TLS_KEY_FILE=/etc/hyperledger/fabric/tls/server.key
- CORE_PEER_TLS_ROOTCERT_FILE=/etc/hyperledger/fabric/tls/ca.crt
working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
command: peer node start
volumes:
- /etc/localtime:/etc/localtime:ro
- /etc/timezone:/etc/timezone:ro
- /var/run/:/host/var/run/
- /var/hyperledger/peer_data/:/var/hyperledger/production/
- ./crypto-config/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/msp:/etc/hyperledger/fabric/msp
- ./crypto-config/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/tls:/etc/hyperledger/fabric/tls
ports:
- 7051:7051
- 7052:7052
- 7053:7053
depends_on:
- couchdb3
extra_hosts:
- "couchdb3:172.31.1.92"
- "orderer0.example.com:172.31.1.89"
- "orderer1.example.com:172.31.1.90"
- "orderer2.example.com:172.31.1.91"
#启动 peer 节点服务
#docker-compose -f docker-compose-peer.yaml up -d
#docker logs xxx
2019-08-25 02:05:20.638 UTC [nodeCmd] serve -> INFO 124 Starting peer with ID=[name:"peer0.org1.example.com"], network ID=[soft], address=[peer0.org1.example.com:7051]
2019-08-25 02:05:20.638 UTC [nodeCmd] serve -> INFO 125 Started peer with ID=[name:"peer0.org1.example.com"], network ID=[soft], address=[peer0.org1.example.com:7051]六、部署 Hyperledger Fabric cli 客户端服务
1. 在第一节点 (172.31.1.89) 只需要配置一个既可, 其他节点可不用部署, 用于调用创建 channel 与 智能合约
#在 /opt/soft 目录下，编写 docker-compose-peer.yaml，如下：
version: '2'
services:
cli:
container_name: cli
image: hyperledger/fabric-tools
tty: true
environment:
- GOPATH=/opt/gopath
- CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
- CORE_LOGGING_LEVEL=DEBUG
- CORE_PEER_ID=cli
- CORE_PEER_ADDRESS=peer0.org1.example.com:7051
- CORE_PEER_LOCALMSPID=Org1MSP
- CORE_PEER_TLS_ENABLED=false
- CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt
- CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key
- CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt
- CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp
working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
volumes:
- /etc/localtime:/etc/localtime:ro
- /etc/timezone:/etc/timezone:ro
- /var/run/:/host/var/run/
- /usr/local/go:/opt/go
- /opt/gopath:/opt/gopath
- ./chaincode/go/:/opt/gopath/src/github.com/hyperledger/fabric/examples/chaincode/go
- ./crypto-config:/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/
- ./channel-artifacts:/opt/gopath/src/github.com/hyperledger/fabric/peer/channel-artifacts
extra_hosts:
- "orderer0.example.com:172.31.1.89"
- "orderer1.example.com:172.31.1.90"
- "orderer2.example.com:172.31.1.91"
- "peer0.org1.example.com:172.31.1.89"
- "peer1.org1.example.com:172.31.1.90"
- "peer0.org2.example.com:172.31.1.91"
- "peer1.org2.example.com:172.31.1.92"
## 启动服务
#docker-compose -f docker-compose-cli.yaml up -d七、Hyperledger Fabric 创建 Channel
1. 在第一节点(172.31.1.89), 进入 cli 容器，我们可以直接进入 容器里操作
[root@xxxxx soft]# docker exec -it cli bash
root@77962643125a:/opt/gopath/src/github.com/hyperledger/fabric/peer# # 执行 创建命令 (未开启认证)
#peer channel create -c mychannel -f ./channel-artifacts/channel.tx --orderer orderer0.example.com:7050# 创建以后生成文件 mychannel.block
2. 继续在第一节点(172.31.1.89),cli 容器中，执行把现有所有节点服务 peer 节点加入到 Channel 中，示例现有 4 个 peer
# peer0.org1.example.com 加入 此 channel 中，首先需要查看如下 环境变量
echo $CORE_PEER_LOCALMSPID
echo $CORE_PEER_ADDRESS
echo $CORE_PEER_TLS_ROOTCERT_FILE
echo $CORE_PEER_MSPCONFIGPATH
# echo $CORE_PEER_LOCALMSPID
Org1MSP
# echo $CORE_PEER_ADDRESS
peer0.org1.example.com:7051
# echo $CORE_PEER_MSPCONFIGPATH
/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp
# echo $CORE_PEER_TLS_ROOTCERT_FILE
/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt# 加入 channel
#peer channel join -b mychannel.block
输出：2019-08-25 16:40:10.255 CST [main] InitCmd -> WARN 001 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-25 16:40:10.259 CST [main] SetOrdererEnv -> WARN 002 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-25 16:40:10.260 CST [channelCmd] InitCmdFactory -> INFO 003 Endorser and orderer connections initialized
2019-08-25 16:40:10.371 CST [channelCmd] executeJoin -> INFO 004 Successfully submitted proposal to join channel# peer1.org1.example.com 加入 此 channel 中，这里配置一下环境变量
export CORE_PEER_LOCALMSPID="Org1MSP"
export CORE_PEER_ADDRESS=peer1.org1.example.com:7051
export CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer1.org1.example.com/tls/ca.crt
export CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp
#peer channel join -b mychannel.block
输出：2019-08-25 16:43:09.353 CST [main] InitCmd -> WARN 001 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-25 16:43:09.357 CST [main] SetOrdererEnv -> WARN 002 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-25 16:43:09.358 CST [channelCmd] InitCmdFactory -> INFO 003 Endorser and orderer connections initialized
2019-08-25 16:43:09.473 CST [channelCmd] executeJoin -> INFO 004 Successfully submitted proposal to join channe# peer0.Org2.example.com 加入 此 channel 中，这里配置一下环境变量
export CORE_PEER_LOCALMSPID="Org2MSP"
export CORE_PEER_ADDRESS=peer0.org2.example.com:7051
export CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt
export CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp
#peer channel join -b mychannel.block
输出：2019-08-25 16:45:17.626 CST [main] InitCmd -> WARN 001 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-25 16:45:17.630 CST [main] SetOrdererEnv -> WARN 002 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-25 16:45:17.632 CST [channelCmd] InitCmdFactory -> INFO 003 Endorser and orderer connections initialized
2019-08-25 16:45:17.757 CST [channelCmd] executeJoin -> INFO 004 Successfully submitted proposal to join channel# peer1.org2.example.com 加入 此 channel 中，这里配置一下环境变量
export CORE_PEER_LOCALMSPID="Org2MSP"
export CORE_PEER_ADDRESS=peer1.org2.example.com:7051
export CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/tls/ca.crt
export CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp
#peer channel join -b mychannel.block
输出：2019-08-25 16:46:58.401 CST [main] InitCmd -> WARN 001 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-25 16:46:58.405 CST [main] SetOrdererEnv -> WARN 002 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-25 16:46:58.407 CST [channelCmd] InitCmdFactory -> INFO 003 Endorser and orderer connections initialized
2019-08-25 16:46:58.523 CST [channelCmd] executeJoin -> INFO 004 Successfully submitted proposal to join channel八、Hyperledger Fabric 锚节点
1. 锚节点通过广播的方式通知有新节点加入
# 使用 Org1 的管理员身份更新锚节点配置
# 同样需要先配置变量
export CORE_PEER_LOCALMSPID="Org1MSP"
export CORE_PEER_ADDRESS=peer0.org1.example.com:7051
export CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt
export CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp # 未开启认证的方式
#peer channel update -o orderer0.example.com:7050 -c mychannel -f ./channel-artifacts/Org1MSPanchors.tx
输出：2019-08-25 16:49:42.877 CST [main] InitCmd -> WARN 001 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-25 16:49:42.881 CST [main] SetOrdererEnv -> WARN 002 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-25 16:49:42.882 CST [channelCmd] InitCmdFactory -> INFO 003 Endorser and orderer connections initialized
2019-08-25 16:49:43.018 CST [channelCmd] update -> INFO 004 Successfully submitted channel update# 使用 Org2 的管理员身份更新锚节点配置
# 同样需要先配置变量
export CORE_PEER_LOCALMSPID="Org2MSP"
export CORE_PEER_ADDRESS=peer0.org2.example.com:7051
export CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt
export CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp
#peer channel update -o orderer0.example.com:7050 -c mychannel -f ./channel-artifacts/Org2MSPanchors.tx
输出：2019-08-25 16:52:44.317 CST [main] InitCmd -> WARN 001 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-25 16:52:44.321 CST [main] SetOrdererEnv -> WARN 002 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-25 16:52:44.322 CST [channelCmd] InitCmdFactory -> INFO 003 Endorser and orderer connections initialized
2019-08-25 16:52:44.362 CST [channelCmd] update -> INFO 004 Successfully submitted channel update## 把当前 cli 环境变量恢复为最初配置
export CORE_PEER_LOCALMSPID="Org1MSP"
export CORE_PEER_ADDRESS=peer0.org1.example.com:7051
export CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt
export CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp九、Hyperledger Fabric 实例化测试
1. 安装智能合约
## cli 容器部分预先挂载了目录：./chaincode/go/:/opt/gopath/src/github.com/hyperledger/fabric/examples/chaincode/go
#第一节点 (172.31.1.89) 拷贝了官方的例子，在 chaincode 下, 下面我们来测试一下
#cd /opt/soft/
#[root@xxxx soft]# cp -r /opt/gopath/src/github.com/hyperledger/fabric/examples/chaincode/go/example0* ./chaincode/go/
[root@xxxx soft]# cd chaincode/go/
[root@xxx go]# ll
total 20
drwxr-xr-x 3 root root 4096 Aug 25 16:57 example01
drwxr-xr-x 3 root root 4096 Aug 25 16:57 example02
drwxr-xr-x 3 root root 4096 Aug 25 16:57 example03
drwxr-xr-x 3 root root 4096 Aug 25 16:57 example04
drwxr-xr-x 3 root root 4096 Aug 25 16:57 example05
#这里示例测试引用 example02，需要对 example02 进行下面修改
# 注: 这里面的 example02 的 package 为 example02 会报错
Error: could not assemble transaction, err Proposal response was not successful, error code 500, msg failed to execute transaction 819b581ce88604e9b6651764324876f2ca7a47d7aeb7ee307f273af867a4a134: error starting container: error starting container: API error (404): oci runtime error: container_linux.go:247: starting container process caused “exec: \”chaincode\”: executable file not found in $PATH”
# 将 chaincode.go chaincode_test.go 中 package 修改成 main 然后在最下面增加 main()函数
func main() {err := shim.Start(new(SimpleChaincode))
if err != nil {fmt.Printf("Error starting Simple chaincode: %s", err)
}
}# 安装指定合约到 所有的 peer 节点中，每个节点都必须安装一次
# 同样需要先配置变量
##peer0.org1.example.com
export CORE_PEER_LOCALMSPID="Org1MSP"
export CORE_PEER_ADDRESS=peer0.org1.example.com:7051
export CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt
export CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp# 安装 合约
#peer chaincode install -n example2 -p github.com/hyperledger/fabric/examples/chaincode/go/example02 -v 1.0
输出：2019-08-25 17:09:28.929 CST [main] InitCmd -> WARN 001 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-25 17:09:28.933 CST [main] SetOrdererEnv -> WARN 002 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-25 17:09:28.936 CST [chaincodeCmd] checkChaincodeCmdParams -> INFO 003 Using default escc
2019-08-25 17:09:28.937 CST [chaincodeCmd] checkChaincodeCmdParams -> INFO 004 Using default vscc
2019-08-25 17:09:30.612 CST [chaincodeCmd] install -> INFO 005 Installed remotely response:<status:200 payload:"OK" >##peer1.org1.example.com
export CORE_PEER_LOCALMSPID="Org1MSP"
export CORE_PEER_ADDRESS=peer1.org1.example.com:7051
export CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer1.org1.example.com/tls/ca.crt
export CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp
#peer chaincode install -n example2 -p github.com/hyperledger/fabric/examples/chaincode/go/example02 -v 1.0
输出：2019-08-25 17:13:15.194 CST [main] InitCmd -> WARN 001 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-25 17:13:15.197 CST [main] SetOrdererEnv -> WARN 002 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-25 17:13:15.201 CST [chaincodeCmd] checkChaincodeCmdParams -> INFO 003 Using default escc
2019-08-25 17:13:15.201 CST [chaincodeCmd] checkChaincodeCmdParams -> INFO 004 Using default vscc
2019-08-25 17:13:15.544 CST [chaincodeCmd] install -> INFO 005 Installed remotely response:<status:200 payload:"OK" >##peer0.org2.example.com
export CORE_PEER_LOCALMSPID="Org2MSP"
export CORE_PEER_ADDRESS=peer0.org2.example.com:7051
export CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt
export CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp
#peer chaincode install -n example2 -p github.com/hyperledger/fabric/examples/chaincode/go/example02 -v 1.0
输出：2019-08-25 17:15:16.573 CST [main] InitCmd -> WARN 001 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-25 17:15:16.577 CST [main] SetOrdererEnv -> WARN 002 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-25 17:15:16.581 CST [chaincodeCmd] checkChaincodeCmdParams -> INFO 003 Using default escc
2019-08-25 17:15:16.581 CST [chaincodeCmd] checkChaincodeCmdParams -> INFO 004 Using default vscc
2019-08-25 17:15:16.860 CST [chaincodeCmd] install -> INFO 005 Installed remotely response:<status:200 payload:"OK" >##peer1.org2.example.com
export CORE_PEER_LOCALMSPID="Org2MSP"
export CORE_PEER_ADDRESS=peer1.org2.example.com:7051
export CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/tls/ca.crt
export CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp
#peer chaincode install -n example2 -p github.com/hyperledger/fabric/examples/chaincode/go/example02 -v 1.0
输出：2019-08-25 17:16:43.117 CST [main] InitCmd -> WARN 001 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-25 17:16:43.121 CST [main] SetOrdererEnv -> WARN 002 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-25 17:16:43.124 CST [chaincodeCmd] checkChaincodeCmdParams -> INFO 003 Using default escc
2019-08-25 17:16:43.124 CST [chaincodeCmd] checkChaincodeCmdParams -> INFO 004 Using default vscc
2019-08-25 17:16:43.396 CST [chaincodeCmd] install -> INFO 005 Installed remotely response:<status:200 payload:"OK" >#恢复当前 cli 环境变量
export CORE_PEER_LOCALMSPID="Org1MSP"
export CORE_PEER_ADDRESS=peer0.org1.example.com:7051
export CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt
export CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp十、实例化 Chaincode
1. 第一节点(172.31.1.89)，进入 cli 容器, 无论多少个 peer 节点, 实例化只需要实例化一次即可。
# 实例化合约 (未认证)
#peer chaincode instantiate -o orderer0.example.com:7050 -C mychannel -n example2 -c '{"Args":["init","A","200","B","500"]}' -P "OR ('Org1MSP.member','Org2MSP.member')" -v 1.0
输出：2019-08-25 17:19:32.439 CST [main] InitCmd -> WARN 001 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-25 17:19:32.443 CST [main] SetOrdererEnv -> WARN 002 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-25 17:19:32.447 CST [chaincodeCmd] checkChaincodeCmdParams -> INFO 003 Using default escc
2019-08-25 17:19:32.447 CST [chaincodeCmd] checkChaincodeCmdParams -> INFO 004 Using default vscc2. 操作智能合约
# query 查询方法
# 查询 A 账户里的余额
#peer chaincode query -C mychannel -n example2 -c '{"Args":["query","A"]}'
输出：2019-08-25 17:25:55.246 CST [main] InitCmd -> WARN 001 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-25 17:25:55.250 CST [main] SetOrdererEnv -> WARN 002 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
200# 查询 B 账户里的余额
#peer chaincode query -C mychannel -n example2 -c '{"Args":["query","B"]}'
输出：2019-08-25 17:31:17.138 CST [main] InitCmd -> WARN 001 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-25 17:31:17.143 CST [main] SetOrdererEnv -> WARN 002 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
500# invoke 转账方法
# 从 A 账户 转账 100 个币 到 B 账户
#peer chaincode invoke -C mychannel -n example2 -c '{"Args":["invoke","A","B","100"]}'
输出：2019-08-25 17:34:39.040 CST [main] InitCmd -> WARN 001 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-25 17:34:39.045 CST [main] SetOrdererEnv -> WARN 002 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-25 17:34:39.054 CST [chaincodeCmd] InitCmdFactory -> INFO 003 Retrieved channel (mychannel) orderer endpoint: orderer0.example.com:7050
2019-08-25 17:34:39.177 CST [chaincodeCmd] chaincodeInvokeOrQuery -> INFO 004 Chaincode invoke successful. result: status:200# B 账户余额
#peer chaincode query -C mychannel -n example2 -c '{"Args":["query","B"]}'
输出：2019-08-25 17:35:40.335 CST [main] InitCmd -> WARN 001 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-25 17:35:40.339 CST [main] SetOrdererEnv -> WARN 002 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
600# 查看 peer0.org1.example.com 节点里 生成的容器
# docker ps -a
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
a32b63ecbc06 soft-peer0.org1.example.com-example2-1.0-d0878f91cfdef1f96b45622ea9fb58a5c15c5df7fa1c97e1f40fac8ce325793d "chaincode -peer.add…" 16 minutes ago Up 15 minutes soft-peer0.org1.example.com-example2-1.0十一、其他 Hyperledger Fabric 常用操作命令，或者 –help 参数参考
peer 命令
peer chaincode # 对链进行操作
peer channel # channel 相关操作
peer logging # 设置日志级别
peer node # 启动、管理节点
peer version # 查看版本信息
# 查看 已经创建的 通道 (channel)
peer channel list
# 查看通道(channel) 的状态 -c(小写) 加 通道名称
peer channel getinfo -c mychannel
# 查看已经 安装的 智能合约(chincode)
peer chaincode list –installed
# 查看已经 实例化的 智能合约(chincode) 需要使用 -C(大写) 加通道名称
peer chaincode -C mychannel list –instantiated
十二、###########以下为测试验证动态添加组织(未开启 tls 认证)#############
场景：在已有上面 2 个组织，4 个节点正在运行区块链集群网络下，需要动态新增组织、节点
总结归纳大致流程：
–> 为新 org 生成证书
–> 为新 org 生成配置文件
–> 生成和提交新 org 的配置
–> peer channel fetch config 获取当前通道信息，生成增量包
–> peer channel signconfigtx 为配置交易签名
–> peer channel update 提交签名后的配置交易至 orderer
–> 将新 org 添加入 channel 通道
–> 启动新 org 集群
–>peer channel join 将新 org 下的 peer 加入 channel
–> 升级 chaincode 和背书策略
–>peer chaincode install 为新 org 的 peer 安装 chaincode
–>peer chaincode install 为原有 org 的 peer 升级 chaincode
–>peer chaincode upgrade 升级背书策略
–> 交易查询测试
1. 初始化新增两个节点服务器环境 (与上面节点服务器环境一致，如采用阿里云 ECS 可克隆其他服务器配置好的镜像作为自定义镜像)，模拟新增 org3 组织，新增两个节点 hosts 映射如下：
172.31.1.101 peer0.org3.example.com
172.31.1.102 peer1.org3.example.com
2. 在第一节点 (172.31.1.89) 服务器上，重新生成证书文件,
#进入 /opt/soft 目录，存在 crypto-config.yaml、configtx.yaml 原先配置文件
#cd /opt/soft
# 拷贝 crypto-config.yaml 新建一个证书配置文件，命名为 crypto-config-org3.yaml，并修改为如下：# Copyright IBM Corp. All Rights Reserved.
#
# SPDX-License-Identifier: Apache-2.0
#
PeerOrgs:
# ---------------------------------------------------------------------------
# Org3
# ---------------------------------------------------------------------------
- Name: Org3
Domain: org3.example.com
EnableNodeOUs: true
CA:
Country: CN
Province: GuangDong
Locality: ShenZhen
# ---------------------------------------------------------------------------
# "Specs"
# ---------------------------------------------------------------------------
# Uncomment this section to enable the explicit definition of hosts in your
# configuration. Most users will want to use Template, below
#
# Specs is an array of Spec entries. Each Spec entry consists of two fields:
# - Hostname: (Required) The desired hostname, sans the domain.
# - CommonName: (Optional) Specifies the template or explicit override for
# the CN. By default, this is the template:
#
# "{{.Hostname}}.{{.Domain}}"
#
# which obtains its values from the Spec.Hostname and
# Org.Domain, respectively.
# ---------------------------------------------------------------------------
# Specs:
# - Hostname: foo # implicitly "foo.org1.example.com"
# CommonName: foo27.org5.example.com # overrides Hostname-based FQDN set above
# - Hostname: bar
# - Hostname: baz
# ---------------------------------------------------------------------------
# "Template"
# ---------------------------------------------------------------------------
# Allows for the definition of 1 or more hosts that are created sequentially
# from a template. By default, this looks like "peer%d" from 0 to Count-1.
# You may override the number of nodes (Count), the starting index (Start)
# or the template used to construct the name (Hostname).
#
# Note: Template and Specs are not mutually exclusive. You may define both
# sections and the aggregate nodes will be created for you. Take care with
# name collisions
# ---------------------------------------------------------------------------
Template:
Count: 2
# Start: 5
# Hostname: {{.Prefix}}{{.Index}} # default
# ---------------------------------------------------------------------------
# "Users"
# ---------------------------------------------------------------------------
# Count: The number of user accounts _in addition_ to Admin
# ---------------------------------------------------------------------------
Users:
Count: 1 ## 获取新增组织证书
[root@xxxx soft]#cryptogen generate --config=./crypto-config-org3.yaml
org3.example.com## 在 configtx.yaml 配置文件中新增创建通道的一些组织信息，新增组织在 Organizations 段中写明，最后只增加了一个 Org3
- &Org3
# DefaultOrg defines the organization which is used in the sampleconfig
# of the fabric.git development environment
Name: Org3MSP
# ID to load the MSP definition as
ID: Org3MSP
MSPDir: crypto-config/peerOrganizations/org3.example.com/msp
AnchorPeers:
# AnchorPeers defines the location of peers which can be used
# for cross org gossip communication. Note, this value is only
# encoded in the genesis block in the Application section context
- Host: peer0.org3.example.com
Port: 7051####### 以下是创建新通道部分, 本示例不示范 ################
对于新增通道，通道文件创建依赖于 profiles，根据自己需要添加不同组织
Profiles:
TwoOrgsOrdererGenesis:
Capabilities:
<<: *ChannelCapabilities
Orderer:
<<: *OrdererDefaults
Organizations:
- *OrdererOrg
Capabilities:
<<: *OrdererCapabilities
Consortiums:
SampleConsortium:
Organizations:
- *Org1
- *Org2
TwoOrgsChannel:
Consortium: SampleConsortium
Application:
<<: *ApplicationDefaults
Organizations:
- *Org1
- *Org2
Capabilities:
<<: *ApplicationCapabilities
NewOrgsChannel:
Consortium: SampleConsortium
Application:
<<: *ApplicationDefaults
Organizations:
- *Org1
- *Org2
- *Org3
Capabilities:
<<: *ApplicationCapabilities
OneOrgsChannel:
Consortium: SampleConsortium
Application:
<<: *ApplicationDefaults
Organizations:
- *Org3
Capabilities:
<<: *ApplicationCapabilities
## 获取通道更新增量包
## 根据新增组织获取组织信息，注意 Org3Msp 必须与你在 configtx.yaml 中新增组织名称一致
#configtxgen -printOrg Org3MSP -profile ./configtx.yaml > channel-artifacts/org3.json
输出：2019-08-28 17:47:50.947 CST [common.tools.configtxgen] main -> INFO 001 Loading configuration
2019-08-28 17:47:50.958 CST [common.tools.configtxgen.localconfig] completeInitialization -> INFO 002 orderer type: kafka
2019-08-28 17:47:50.958 CST [common.tools.configtxgen.localconfig] LoadTopLevel -> INFO 003 Loaded configuration: /opt/soft/configtx.yaml
[root@xxx channel-artifacts]# ll
-rw-r--r-- 1 root root 346 Aug 25 02:26 channel.tx
-rw-r--r-- 1 root root 12906 Aug 25 02:25 genesis.block
-rw-r--r-- 1 root root 284 Aug 25 02:28 Org1MSPanchors.tx
-rw-r--r-- 1 root root 284 Aug 25 02:28 Org2MSPanchors.tx
-rw-r--r-- 1 root root 8484 Aug 28 17:47 org3.json3. 进入 cli 容器，拉取通道二进制文件并且转换为 json 格式
#docker exec -it cli bash
#认证未开启
如 tls 是关闭的，执行
#peer channel fetch config mychannel.pb -o orderer0.example.com:7050 -c mychannel
#configtxlator proto_decode --input mychannel.pb --type common.Block | jq .data.data[0].payload.data.config > mychannel.json#将之前获取的新增组织信息加入到通道信息 json 文件
#jq -s '.[0] * {"channel_group":{"groups":{"Application":{"groups": {"Org3MSP":.[1]}}}}}' mychannel.json ./channel-artifacts/org3.json > mychannel_config.json
输出：root@ae3f95d0f32d:/opt/gopath/src/github.com/hyperledger/fabric/peer# ll
.............
drwxr-xr-x 2 root root 4096 Aug 25 02:06 mocks/
-rw-r--r-- 1 root root 15874 Aug 25 16:28 mychannel.block
-rw-r--r-- 1 root root 35653 Aug 28 18:09 mychannel.json
-rw-r--r-- 1 root root 16869 Aug 28 18:07 mychannel.pb
-rw-r--r-- 1 root root 46704 Aug 28 18:24 mychannel_config.json#把更新前后的文件打包成二进制文件
#configtxlator proto_encode --input mychannel.json --type common.Config > original_mychannel.pb
#configtxlator proto_encode --input mychannel_config.json --type common.Config > modified_mychannel.pb
输出：root@ae3f95d0f32d:/opt/gopath/src/github.com/hyperledger/fabric/peer# ll
..............
drwxr-xr-x 2 root root 4096 Aug 25 02:06 mocks/
-rw-r--r-- 1 root root 17369 Aug 28 18:26 modified_mychannel.pb
-rw-r--r-- 1 root root 15874 Aug 25 16:28 mychannel.block
-rw-r--r-- 1 root root 35653 Aug 28 18:09 mychannel.json
-rw-r--r-- 1 root root 16869 Aug 28 18:07 mychannel.pb
-rw-r--r-- 1 root root 46704 Aug 28 18:24 mychannel_config.json
drwxr-xr-x 3 root root 4096 Aug 25 02:06 node/
-rw-r--r-- 1 root root 12853 Aug 28 18:26 original_mychannel.pb#获取增量包并且补全，转换成二进制文件
#configtxlator compute_update --channel_id mychannel --original original_mychannel.pb --updated modified_mychannel.pb > mychannel_update.pb
#configtxlator proto_decode --input mychannel_update.pb --type common.ConfigUpdate > mychannel_update.json
#echo '{"payload":{"header":{"channel_header":{"channel_id":"mychannel","type":2}},"data":{"config_update":'$(cat mychannel_update.json)'}}}' | jq . > mychannel_update_envelope.json
#configtxlator proto_encode --input mychannel_update_envelope.json --type common.Envelope > mychannel_update_Org_envelope.pb
输出：root@ae3f95d0f32d:/opt/gopath/src/github.com/hyperledger/fabric/peer# ll
..............
-rw-r--r-- 1 root root 1561 Aug 25 02:06 main_test.go
drwxr-xr-x 2 root root 4096 Aug 25 02:06 mocks/
-rw-r--r-- 1 root root 17369 Aug 28 18:26 modified_mychannel.pb
-rw-r--r-- 1 root root 15874 Aug 25 16:28 mychannel.block
-rw-r--r-- 1 root root 35653 Aug 28 18:09 mychannel.json
-rw-r--r-- 1 root root 16869 Aug 28 18:07 mychannel.pb
-rw-r--r-- 1 root root 46704 Aug 28 18:24 mychannel_config.json
-rw-r--r-- 1 root root 11149 Aug 28 18:28 mychannel_update.json
-rw-r--r-- 1 root root 4751 Aug 28 18:28 mychannel_update.pb
-rw-r--r-- 1 root root 4777 Aug 28 18:29 mychannel_update_Org_envelope.pb
-rw-r--r-- 1 root root 15177 Aug 28 18:28 mychannel_update_envelope.json
drwxr-xr-x 3 root root 4096 Aug 25 02:06 node/
-rw-r--r-- 1 root root 12853 Aug 28 18:26 original_mychannel.pb4. 原有组织对新加组织进行签名已获取认可，必须使用 Org1MSP、Org2MSP admin 用户
export CORE_PEER_LOCALMSPID="Org1MSP"
export CORE_PEER_ADDRESS=peer0.org1.example.com:7051
export CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt
export CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp
#peer channel signconfigtx -f mychannel_update_Org_envelope.pb
输出：2019-08-28 18:52:07.273 CST [main] InitCmd -> WARN 001 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-28 18:52:07.277 CST [main] SetOrdererEnv -> WARN 002 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-28 18:52:07.277 CST [channelCmd] InitCmdFactory -> INFO 003 Endorser and orderer connections initialized
export CORE_PEER_LOCALMSPID="Org2MSP"
export CORE_PEER_ADDRESS=peer0.org2.example.com:7051
export CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt
export CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp
#peer channel signconfigtx -f mychannel_update_Org_envelope.pb
输出：2019-08-28 18:53:15.765 CST [main] InitCmd -> WARN 001 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-28 18:53:15.770 CST [main] SetOrdererEnv -> WARN 002 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-28 18:53:15.770 CST [channelCmd] InitCmdFactory -> INFO 003 Endorser and orderer connections initialized5. 获取签名之后通知 orderer 更新通道信息
#未开启认证
#peer channel update -f mychannel_update_Org_envelope.pb -c mychannel -o orderer0.example.com:7050
报错：2019-08-28 18:59:52.082 CST [main] InitCmd -> WARN 001 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-28 18:59:52.086 CST [main] SetOrdererEnv -> WARN 002 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
Error: failed to create deliver client: orderer client failed to connect to orderer0.exeample.com:7050: failed to create new connection: context deadline exceeded
解决方案：发现写错了 orderer0.exeample.com:7050，其实是 orderer0.example.com:7050
修正后输出：2019-08-28 19:17:33.604 CST [main] InitCmd -> WARN 001 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-28 19:17:33.608 CST [main] SetOrdererEnv -> WARN 002 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-28 19:17:33.609 CST [channelCmd] InitCmdFactory -> INFO 003 Endorser and orderer connections initialized
2019-08-28 19:17:33.747 CST [channelCmd] update -> INFO 004 Successfully submitted channel update6. 配置 org3 的 yaml 文件，并上传 172.31.1.101、172.31.1.102 服务器，启动服务。
#172.31.1.101 —>peer0.org3.example.com—–>docker-compose-peer.yaml
#新增 172.31.1.101 节点，docker-compose-peer.yaml 文件配置如下：
version: '2'
services:
couchdb4:
container_name: couchdb4
image: hyperledger/fabric-couchdb
environment:
- COUCHDB_USER=
- COUCHDB_PASSWORD=
ports:
- "5984:5984"
volumes:
# 数据持久化，用于存储链码值
- /mnt/data/couchdb4/data:/opt/couchdb/data
peer0.org3.example.com:
container_name: peer0.org3.example.com
hostname: peer0.org3.example.com
image: hyperledger/fabric-peer
environment:
- CORE_LEDGER_STATE_STATEDATABASE=CouchDB
- CORE_LEDGER_STATE_COUCHDBCONFIG_COUCHDBADDRESS=couchdb4:5984
- CORE_PEER_ID=peer0.org3.example.com
- CORE_PEER_NETWORKID=soft
- CORE_PEER_ADDRESS=peer0.org3.example.com:7051
- CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer0.org3.example.com:7051
- CORE_PEER_LOCALMSPID=Org3MSP
- CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
- CORE_VM_DOCKER_HOSTCONFIG_NETWORKMODE=soft
- CORE_LOGGING_LEVEL=DEBUG
- CORE_VM_DOCKER_HOSTCONFIG_NETWORKMODE=soft_default
- CORE_PEER_GOSSIP_SKIPHANDSHAKE=true
- CORE_PEER_GOSSIP_USELEADERELECTION=true
- CORE_PEER_GOSSIP_ORGLEADER=false
- CORE_PEER_PROFILE_ENABLED=false
- CORE_CHAINCODE_EXECUTETIMEOUT=1000s
- CORE_CHAINCODE_DEPLOYTIMEOUT=1000s
- CORE_PEER_TLS_ENABLED=false
- CORE_PEER_TLS_CERT_FILE=/etc/hyperledger/fabric/tls/server.crt
- CORE_PEER_TLS_KEY_FILE=/etc/hyperledger/fabric/tls/server.key
- CORE_PEER_TLS_ROOTCERT_FILE=/etc/hyperledger/fabric/tls/ca.crt
working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
command: peer node start
volumes:
- /etc/localtime:/etc/localtime:ro
- /etc/timezone:/etc/timezone:ro
- /var/run/:/host/var/run/
- /var/hyperledger/peer_data/:/var/hyperledger/production/
- ./crypto-config/peerOrganizations/org3.example.com/peers/peer0.org3.example.com/msp:/etc/hyperledger/fabric/msp
- ./crypto-config/peerOrganizations/org3.example.com/peers/peer0.org3.example.com/tls:/etc/hyperledger/fabric/tls
ports:
- 7051:7051
- 7052:7052
- 7053:7053
depends_on:
- couchdb4
extra_hosts:
- "couchdb4:172.31.1.101"
- "orderer0.example.com:172.31.1.89"
- "orderer1.example.com:172.31.1.90"
- "orderer2.example.com:172.31.1.91"#172.31.1.102 —>peer1.org3.example.com—–>docker-compose-peer.yaml
#新增 172.31.1.102 节点，docker-compose-peer.yaml 文件配置如下：
version: '2'
services:
couchdb5:
container_name: couchdb5
image: hyperledger/fabric-couchdb
environment:
- COUCHDB_USER=
- COUCHDB_PASSWORD=
ports:
- "5984:5984"
volumes:
# 数据持久化，用于存储链码值
- /mnt/data/couchdb5/data:/opt/couchdb/data
peer1.org3.example.com:
container_name: peer1.org3.example.com
hostname: peer1.org3.example.com
image: hyperledger/fabric-peer
environment:
- CORE_LEDGER_STATE_STATEDATABASE=CouchDB
- CORE_LEDGER_STATE_COUCHDBCONFIG_COUCHDBADDRESS=couchdb5:5984
- CORE_PEER_ID=peer1.org3.example.com
- CORE_PEER_NETWORKID=soft
- CORE_PEER_ADDRESS=peer1.org3.example.com:7051
- CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer1.org3.example.com:7051
- CORE_PEER_LOCALMSPID=Org3MSP
- CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
- CORE_VM_DOCKER_HOSTCONFIG_NETWORKMODE=soft
- CORE_LOGGING_LEVEL=DEBUG
- CORE_VM_DOCKER_HOSTCONFIG_NETWORKMODE=soft_default
- CORE_PEER_GOSSIP_SKIPHANDSHAKE=true
- CORE_PEER_GOSSIP_USELEADERELECTION=true
- CORE_PEER_GOSSIP_ORGLEADER=false
- CORE_PEER_PROFILE_ENABLED=false
- CORE_CHAINCODE_EXECUTETIMEOUT=1000s
- CORE_CHAINCODE_DEPLOYTIMEOUT=1000s
- CORE_PEER_TLS_ENABLED=false
- CORE_PEER_TLS_CERT_FILE=/etc/hyperledger/fabric/tls/server.crt
- CORE_PEER_TLS_KEY_FILE=/etc/hyperledger/fabric/tls/server.key
- CORE_PEER_TLS_ROOTCERT_FILE=/etc/hyperledger/fabric/tls/ca.crt
working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
command: peer node start
volumes:
- /etc/localtime:/etc/localtime:ro
- /etc/timezone:/etc/timezone:ro
- /var/run/:/host/var/run/
- /var/hyperledger/peer_data/:/var/hyperledger/production/
- ./crypto-config/peerOrganizations/org3.example.com/peers/peer1.org3.example.com/msp:/etc/hyperledger/fabric/msp
- ./crypto-config/peerOrganizations/org3.example.com/peers/peer1.org3.example.com/tls:/etc/hyperledger/fabric/tls
ports:
- 7051:7051
- 7052:7052
- 7053:7053
depends_on:
- couchdb5
extra_hosts:
- "couchdb5:172.31.1.102"
- "orderer0.example.com:172.31.1.89"
- "orderer1.example.com:172.31.1.90"
- "orderer2.example.com:172.31.1.91"#从 172.31.1.89 节点 /opt/soft，拷贝 channel-artifacts，crypto-config 目录文件 至 172.31.1.101、172.31.1.102 服务器，/opt/soft 目录下
scp -r crypto-config channel-artifacts root@172.31.1.101:/opt/soft
scp -r crypto-config channel-artifacts root@172.31.1.102:/opt/soft#更新其他所有节点服务器的 channel-artifacts，crypto-config，防止 peer 或 orderer 发生重启时加载不到最新文件
scp -r crypto-config channel-artifacts root@172.31.1.90:/opt/soft
scp -r crypto-config channel-artifacts root@172.31.1.91:/opt/soft
scp -r crypto-config channel-artifacts root@172.31.1.92:/opt/soft #启动
#docker-compose -f docker-compose-peer.yaml up -d7. 修改第一节点(172.31.1.89),/opt/soft 目录下对 docker-compose-cli.yaml 文件增加配置修改，并重启 cli 服务
#修改增加 peer0.org3.example.com:172.31.1.101、peer1.org3.example.com:172.31.1.102 extra_hosts
extra_hosts:
- "orderer0.example.com:172.31.1.89"
- "orderer1.example.com:172.31.1.90"
- "orderer2.example.com:172.31.1.91"
- "peer0.org1.example.com:172.31.1.89"
- "peer1.org1.example.com:172.31.1.90"
- "peer0.org2.example.com:172.31.1.91"
- "peer1.org2.example.com:172.31.1.92"
- "peer0.org3.example.com:172.31.1.101"
- "peer1.org3.example.com:172.31.1.102" #重启构建
#docker-compose -f docker-compose-cli.yaml up -d8.Org3MSP 加入通道，进入 172.31.1.89 cli 容器
#切换到 org3 的节点上环境变量然后执行 peer channel join 加入通道
export CORE_PEER_LOCALMSPID="Org3MSP"
export CORE_PEER_ADDRESS=peer0.org3.example.com:7051
export CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org3.example.com/peers/peer0.org3.example.com/tls/ca.crt
export CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org3.example.com/users/Admin@org3.example.com/msp
#peer channel join -b mychannel.block
输出：2019-08-28 20:24:13.880 CST [main] InitCmd -> WARN 001 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-28 20:24:13.884 CST [main] SetOrdererEnv -> WARN 002 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-28 20:24:13.885 CST [channelCmd] InitCmdFactory -> INFO 003 Endorser and orderer connections initialized
2019-08-28 20:24:14.104 CST [channelCmd] executeJoin -> INFO 004 Successfully submitted proposal to join channel9. 更新链码 (所有 peer 节点 (现有 6 个节点) 上的链码都必须重新安装！！！！！)
#在新增 org3 的所有节点上安装链码，版本号为 2.0(注意是所有节点都要)
#peer0.org3.example.com
export CORE_PEER_LOCALMSPID="Org3MSP"
export CORE_PEER_ADDRESS=peer0.org3.example.com:7051
export CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org3.example.com/peers/peer0.org3.example.com/tls/ca.crt
export CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org3.example.com/users/Admin@org3.example.com/msp
peer chaincode install -n example2 -p github.com/hyperledger/fabric/examples/chaincode/go/example02 -v 2.0
输出：2019-08-28 20:28:33.592 CST [main] InitCmd -> WARN 001 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-28 20:28:33.596 CST [main] SetOrdererEnv -> WARN 002 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-28 20:28:33.600 CST [chaincodeCmd] checkChaincodeCmdParams -> INFO 003 Using default escc
2019-08-28 20:28:33.600 CST [chaincodeCmd] checkChaincodeCmdParams -> INFO 004 Using default vscc
2019-08-28 20:28:33.903 CST [chaincodeCmd] install -> INFO 005 Installed remotely response:<status:200 payload:"OK" >
#peer1.org3.example.com
export CORE_PEER_LOCALMSPID="Org3MSP"
export CORE_PEER_ADDRESS=peer1.org3.example.com:7051
export CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org3.example.com/peers/peer1.org3.example.com/tls/ca.crt
export CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org3.example.com/users/Admin@org3.example.com/msp
#peer chaincode install -n example2 -p github.com/hyperledger/fabric/examples/chaincode/go/example02 -v 2.0
输出：2019-08-28 20:33:16.276 CST [main] InitCmd -> WARN 001 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-28 20:33:16.280 CST [main] SetOrdererEnv -> WARN 002 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-28 20:33:16.284 CST [chaincodeCmd] checkChaincodeCmdParams -> INFO 003 Using default escc
2019-08-28 20:33:16.284 CST [chaincodeCmd] checkChaincodeCmdParams -> INFO 004 Using default vscc
2019-08-28 20:33:16.565 CST [chaincodeCmd] install -> INFO 005 Installed remotely response:<status:200 payload:"OK" >
#切换环境变量到原有的 org1 和 org2 上分别所有节点更新链码，版本号必须对应(注意是所有节点都要更新)
#切换到 org1 环境变量
peer0.org1.example.com
export CORE_PEER_LOCALMSPID="Org1MSP"
export CORE_PEER_ADDRESS=peer0.org1.example.com:7051
export CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt
export CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp
#peer chaincode install -n example2 -p github.com/hyperledger/fabric/examples/chaincode/go/example02 -v 2.0
输出：2019-08-28 20:36:58.948 CST [main] InitCmd -> WARN 001 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-28 20:36:58.952 CST [main] SetOrdererEnv -> WARN 002 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-28 20:36:58.955 CST [chaincodeCmd] checkChaincodeCmdParams -> INFO 003 Using default escc
2019-08-28 20:36:58.955 CST [chaincodeCmd] checkChaincodeCmdParams -> INFO 004 Using default vscc
2019-08-28 20:36:59.228 CST [chaincodeCmd] install -> INFO 005 Installed remotely response:<status:200 payload:"OK" >
peer1.org1.example.com
export CORE_PEER_LOCALMSPID="Org1MSP"
export CORE_PEER_ADDRESS=peer1.org1.example.com:7051
export CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer1.org1.example.com/tls/ca.crt
export CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp
#peer chaincode install -n example2 -p github.com/hyperledger/fabric/examples/chaincode/go/example02 -v 2.0
输出：2019-08-28 20:38:04.091 CST [main] InitCmd -> WARN 001 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-28 20:38:04.095 CST [main] SetOrdererEnv -> WARN 002 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-28 20:38:04.098 CST [chaincodeCmd] checkChaincodeCmdParams -> INFO 003 Using default escc
2019-08-28 20:38:04.098 CST [chaincodeCmd] checkChaincodeCmdParams -> INFO 004 Using default vscc
2019-08-28 20:38:04.372 CST [chaincodeCmd] install -> INFO 005 Installed remotely response:<status:200 payload:"OK"
peer0.org2.example.com
export CORE_PEER_LOCALMSPID="Org2MSP"
export CORE_PEER_ADDRESS=peer0.org2.example.com:7051
export CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt
export CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp
#peer chaincode install -n example2 -p github.com/hyperledger/fabric/examples/chaincode/go/example02 -v 2.0
输出：2019-08-28 20:39:35.826 CST [main] InitCmd -> WARN 001 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-28 20:39:35.830 CST [main] SetOrdererEnv -> WARN 002 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-28 20:39:35.834 CST [chaincodeCmd] checkChaincodeCmdParams -> INFO 003 Using default escc
2019-08-28 20:39:35.834 CST [chaincodeCmd] checkChaincodeCmdParams -> INFO 004 Using default vscc
2019-08-28 20:39:36.110 CST [chaincodeCmd] install -> INFO 005 Installed remotely response:<status:200 payload:"OK" >
peer1.org2.example.com
export CORE_PEER_LOCALMSPID="Org2MSP"
export CORE_PEER_ADDRESS=peer1.org2.example.com:7051
export CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/tls/ca.crt
export CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp
#peer chaincode install -n example2 -p github.com/hyperledger/fabric/examples/chaincode/go/example02 -v 2.0
输出：2019-08-28 20:40:35.467 CST [main] InitCmd -> WARN 001 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-28 20:40:35.471 CST [main] SetOrdererEnv -> WARN 002 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-28 20:40:35.475 CST [chaincodeCmd] checkChaincodeCmdParams -> INFO 003 Using default escc
2019-08-28 20:40:35.475 CST [chaincodeCmd] checkChaincodeCmdParams -> INFO 004 Using default vscc
2019-08-28 20:40:35.747 CST [chaincodeCmd] install -> INFO 005 Installed remotely response:<status:200 payload:"OK" >10. 更新背书策略，在原有的两个组织策略上增加新增组织
#第一节点(172.31.1.89), 进入 cli 容器，切换到 org1 环境变量
peer0.org1.example.com
export CORE_PEER_LOCALMSPID="Org1MSP"
export CORE_PEER_ADDRESS=peer0.org1.example.com:7051
export CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt
export CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp# 认证未开启
#peer chaincode upgrade -o orderer0.example.com:7050 -C mychannel -n example2 -v 2.0 -c '{"Args":["init","A","100","B","50"]}' -P "OR ('Org1MSP.peer','Org2MSP.peer','Org3MSP.peer')"
# 旧版本的合约, 目前，fabric 不支持合约的启动与暂停。要暂停或删除合约，只能到 peer 上手动删除容器。2019-08-28 20:47:05.750 CST [main] InitCmd -> WARN 001 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-28 20:47:05.754 CST [main] SetOrdererEnv -> WARN 002 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-28 20:47:05.758 CST [chaincodeCmd] checkChaincodeCmdParams -> INFO 003 Using default escc
2019-08-28 20:47:05.758 CST [chaincodeCmd] checkChaincodeCmdParams -> INFO 004 Using default vscc11. 测试查询
# 这里再查询 A 与 B 的账户
# A 账户余额
#peer chaincode query -C mychannel -n example2 -c '{"Args":["query","A"]}'
输出：2019-08-28 20:49:13.846 CST [main] InitCmd -> WARN 001 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-28 20:49:13.850 CST [main] SetOrdererEnv -> WARN 002 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
100
# peer chaincode query -C mychannel -n example2 -c '{"Args":["query","B"]}'
输出：2019-08-28 20:49:31.416 CST [main] InitCmd -> WARN 001 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
2019-08-28 20:49:31.420 CST [main] SetOrdererEnv -> WARN 002 CORE_LOGGING_LEVEL is no longer supported, please use the FABRIC_LOGGING_SPEC environment variable
5012.(非必要)暴露相应排序 orderer/peer 对外地址，可供外部 SDK 访问上链
orderer0.example.com 7050 112.xxx.xxx.xxx:13150
orderer1.example.com 7050 112.xxx.xxx.xxx:13151
orderer2.example.com 7050 112.xxx.xxx.xxx:13152
peer0.org1.example.com 7051 112.xxx.xxx.xxx:13250
peer1.org1.example.com 7051 112.xxx.xxx.xxx:13251
peer0.org2.example.com 7051 112.xxx.xxx.xxx:13252
peer1.org2.example.com 7051 112.xxx.xxx.xxx:13253
正文完
星哥玩云-微信公众号
