1. 监控 MySQL 主从同步原理:
执行一个命令
mysql -u zabbix -pzabbix -e ‘show slave status\G’
我们在输出的信息中选择
Slave_IO_Running: Yes
Slave_SQL_Running: Yes
这两项来监控
当操作的数据出现异常的时候,Slave_SQL_Running 就会变成 No
当执行 slave stop 的时候,两个都会变成 No
2. 添加一个具有权限的用户 zabbix,只需要赋予 replication_client 服务器权限即可
3. 编辑 zabbix-agent 配置文件
vim /etc/zabbix/zabbix_agentd.conf
UserParameter=db_status,mysql -uzabbix -pzabbixpass -e “show slave status\G” 2>/dev/null|egrep ‘Slave_IO_Running|Slave_SQL_Running’|grep -v ‘Slave_SQL_Running_State’|awk ‘{print $NF}’|grep -c Yes
重启使之生效
先用 zabbix 这个用户来获取 slave 的所有状态,然后 grep 出这两个状态,然后再输出第二列,最后查看有几个 Yes 状态的
服务端测试:
zabbix_get -s x.x.x.x -p 10050 -k “db_status”
zabbix 服务端 web 配置

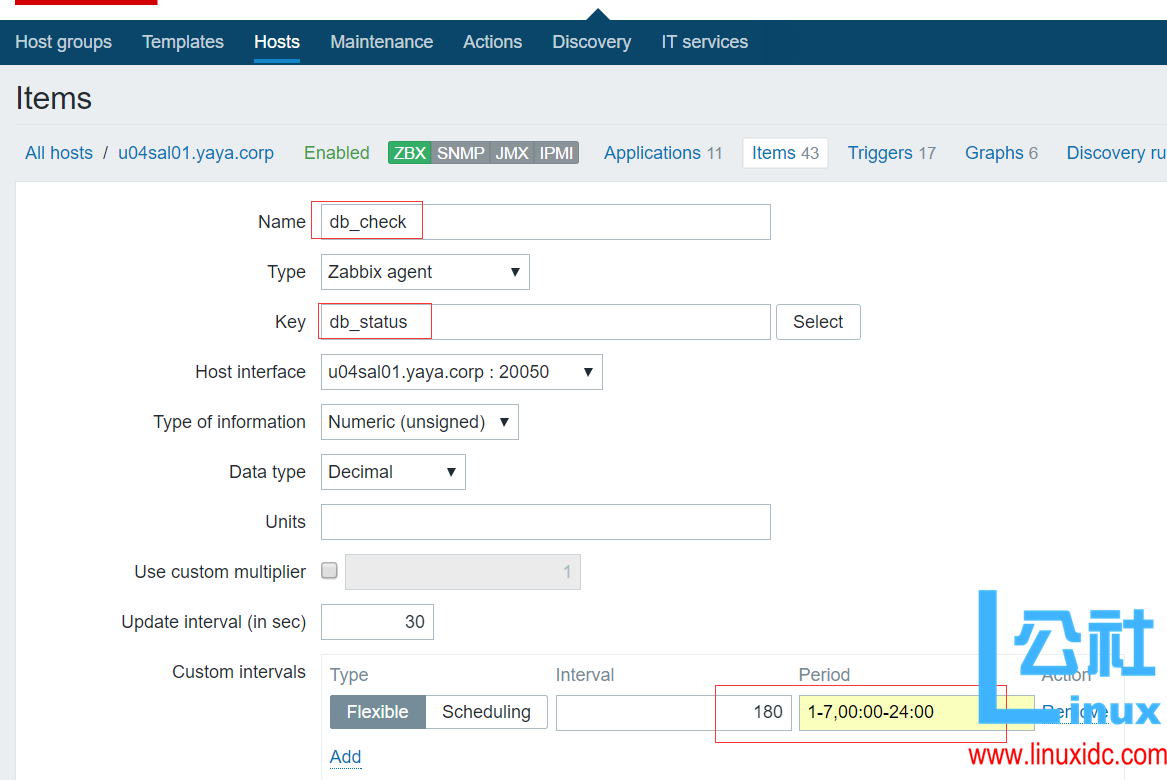

添加监控项 item
Confuguration –> Hosts –> 找到对应的主机,点开 Items –> Create item

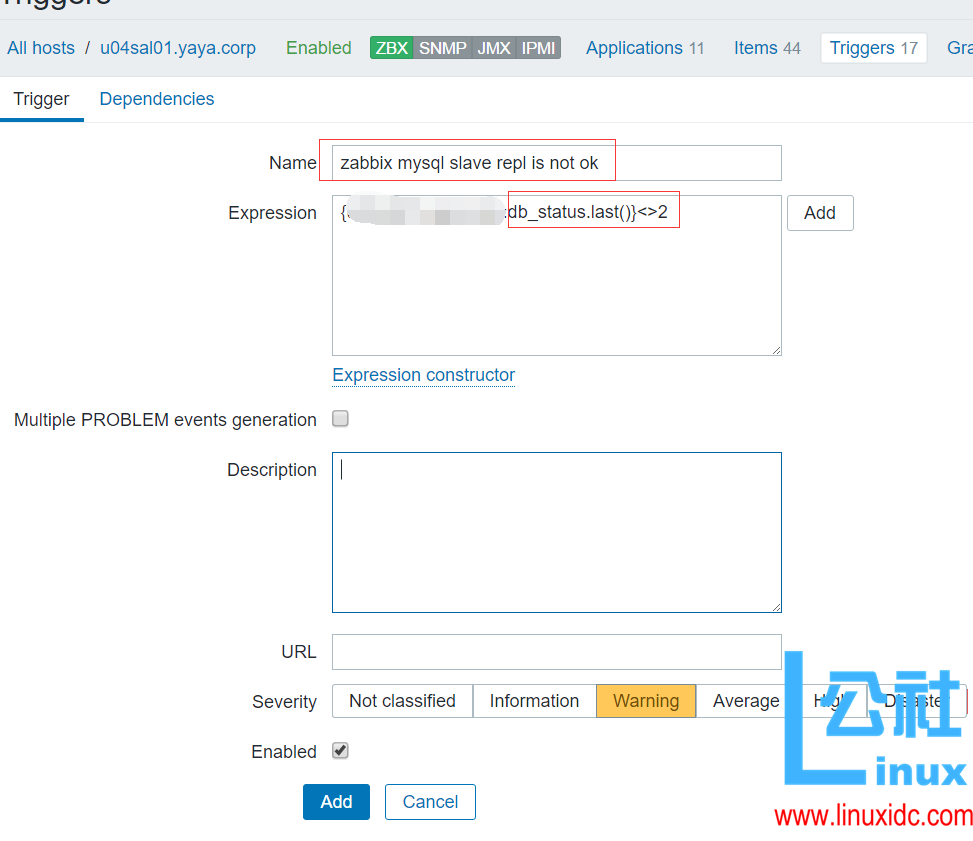

创建对该监控项的触发器
Confuguration –> Hosts –> 找到对应的主机,点开 Triggers –> Create trigger
运行一段时间后报错: | |
MariaDB [zabbix]> show slave status \G | |
*************************** 1. row *************************** | |
Slave_IO_State: Waiting for master to send event | |
Master_Host: 10.19.50.236 | |
Master_User: repluser | |
Master_Port: 3306 | |
Connect_Retry: 60 | |
Master_Log_File: mysql-bin.000004 | |
Read_Master_Log_Pos: 52002057 | |
Relay_Log_File: relay-bin.000008 | |
Relay_Log_Pos: 46774145 | |
Relay_Master_Log_File: mysql-bin.000004 | |
Slave_IO_Running: Yes | |
Slave_SQL_Running: No | |
Replicate_Do_DB: | |
Replicate_Ignore_DB: | |
Replicate_Do_Table: | |
Replicate_Ignore_Table: | |
Replicate_Wild_Do_Table: zabbix.% | |
Replicate_Wild_Ignore_Table: mysql.% | |
Last_Errno: 1062 | |
Last_Error: Error 'Duplicate entry'149'for key'PRIMARY''on query. Default database:'zabbix'. Query:'insert into escalations (escalationid,actionid,status,triggerid,itemid,eventid,r_eventid) values (149,7,0,16272,null,3334811,null)' | |
Skip_Counter: 0 | |
Exec_Master_Log_Pos: 46773861 | |
Relay_Log_Space: 52003816 | |
Until_Condition: None | |
Until_Log_File: | |
Until_Log_Pos: 0 | |
Master_SSL_Allowed: No | |
Master_SSL_CA_File: | |
Master_SSL_CA_Path: | |
Master_SSL_Cert: | |
Master_SSL_Cipher: | |
Master_SSL_Key: | |
Seconds_Behind_Master: NULL | |
Master_SSL_Verify_Server_Cert: No | |
Last_IO_Errno: 0 | |
Last_IO_Error: | |
Last_SQL_Errno: 1062 | |
Last_SQL_Error: Error 'Duplicate entry'149'for key'PRIMARY''on query. Default database:'zabbix'. Query:'insert into escalations (escalationid,actionid,status,triggerid,itemid,eventid,r_eventid) values (149,7,0,16272,null,3334811,null)' | |
Replicate_Ignore_Server_Ids: | |
Master_Server_Id: 1 | |
1 row in set (0.00 sec) | |
解决的办法是在从库上执行: | |
mysql> slave stop; | |
mysql> set GLOBAL SQL_SLAVE_SKIP_COUNTER=1; | |
mysql> slave start; | |
上面的方法可以解决问题,还有一种解决问题的办法是通过修改 mysql 的配置文件,让从库的同步线程忽略这个错误,方法:修改 mysql 配置文件 /etc/my.cnf 在 [mysqld]下加一行 slave_skip_errors = 1062 , 保存重启 mysql | |
mysql slave 可以正常同步了. |
