Oracle 11.2.0.4打PSU补丁到 11.2.0.4.161018

217次阅读

共计 14171 个字符，预计需要花费 36 分钟才能阅读完成。

最近生产上要给 Oracle 数据库打 11g 最新的补丁，这里先做一个测试记录一下。

Oracle 数据库所有补丁的 MOS 文档 ID 1922396.1 下载地址：https://support.oracle.com/epmos/faces/DocContentDisplay?_afrLoop=242245405602967&id=1577380.1&_afrWindowMode=0&_adf.ctrl-state=zv36z4hoo_53 这个下载需要有 MOS 账号

Oracle 数据库的补丁有几种：PSU、SPU、CPU 等，这次打的 PSU24006111 (11.2.0.4.161018)

平台：OS Linux6.7 x86-64+Oracle 11.2.0.4.0 单实例

升级方法已经在补丁包里的 README.html 文档里写的很清楚了，这里只是做个演示。

1、下载最新的的 PSU 包和最新的 OPatch 包，上传到服务器上

p24006111_112040_Linux-x86-64.zip

p6880880_112000_Linux-x86-64.zip

2、解压压缩包，并把 OPatch 替换原 ORACLE_HOME 里的 OPatch 目录

[oracle@rhel6 psu]$ unzip p24006111_112040_Linux-x86-64.zip
[oracle@rhel6 psu]$ unzip p6880880_112000_Linux-x86-64.zip
[oracle@rhel6 psu]$ ls -l |grep ^d
drwxrwxr-x 14 oracle oinstall 4096 Aug 26 21:56 24006111
drwxr-x— 10 oracle oinstall 4096 Aug 18 2015 OPatch
[oracle@rhel6 psu]$ mv $ORACLE_HOME/OPatch $ORACLE_HOME/OPatch_bak
[oracle@rhel6 psu]$ mv OPatch/ $ORACLE_HOME

3、配置 OPatch 的环境变量

[oracle@rhel6 psu]$ vi ~/.bash_profile
# 添加
export PATH=$PATH:$ORACLE_HOME/OPatch
[oracle@rhel6 psu]$ source ~/.bash_profile
[oracle@rhel6 psu]$ which opatch
/u02/app/oracle/product/11.2.4/db1/OPatch/opatch

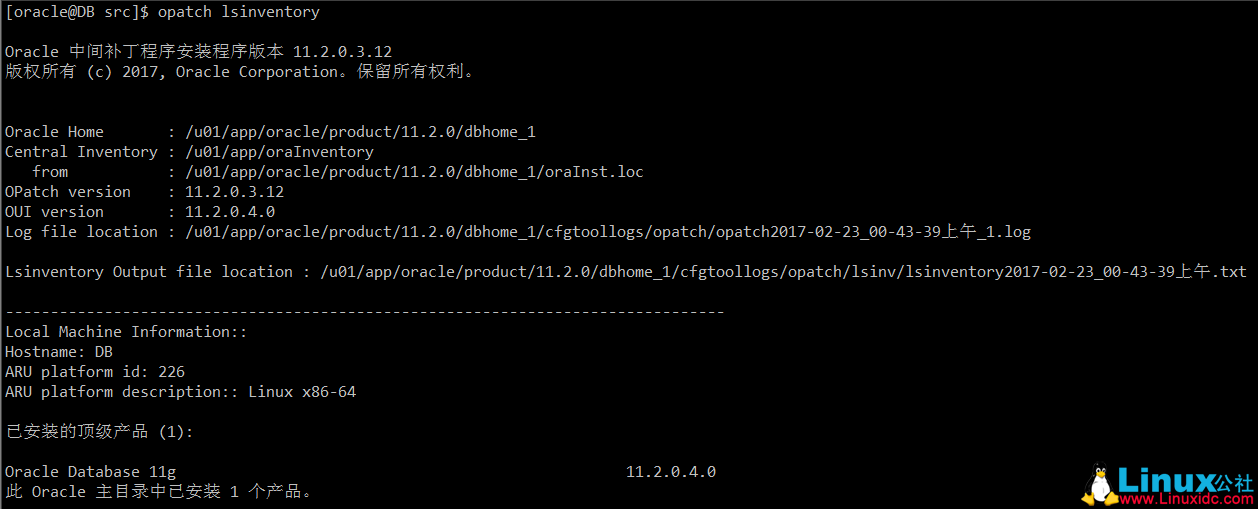

# 查看当前数据库的补丁情况

Oracle 11.2.0.4 打 PSU 补丁到 11.2.0.4.161018

[oracle@rhel6 psu]$ opatch lsinventory
Oracle Interim Patch Installer version 11.2.0.3.12
Copyright (c) 2016, Oracle Corporation. All rights reserved.

Oracle Home : /u02/app/oracle/product/11.2.4/db1
Central Inventory : /u01/app/oraInventory
from : /u02/app/oracle/product/11.2.4/db1/oraInst.loc
OPatch version : 11.2.0.3.12
OUI version : 11.2.0.4.0
Log file location : /u02/app/oracle/product/11.2.4/db1/cfgtoollogs/opatch/opatch2016-12-20_10-45-47AM_1.log

Lsinventory Output file location : /u02/app/oracle/product/11.2.4/db1/cfgtoollogs/opatch/lsinv/lsinventory2016-12-20_10-45-47AM.txt

——————————————————————————–
Local Machine Information::
Hostname: rhel6
ARU platform id: 226
ARU platform description:: Linux x86-64

Installed Top-level Products (1):

Oracle Database 11g 11.2.0.4.0
There are 1 products installed in this Oracle Home.

There are no Interim patches installed in this Oracle Home.

——————————————————————————–

OPatch succeeded.

4、升级前检查是否有冲突

[oracle@rhel6 psu]$ cd 24006111/
[oracle@rhel6 24006111]$ opatch prereq CheckConflictAgainstOHWithDetail -ph ./
Oracle Interim Patch Installer version 11.2.0.3.12
Copyright (c) 2016, Oracle Corporation. All rights reserved.

PREREQ session

Oracle Home : /u02/app/oracle/product/11.2.4/db1
Central Inventory : /u01/app/oraInventory
from : /u02/app/oracle/product/11.2.4/db1/oraInst.loc
OPatch version : 11.2.0.3.12
OUI version : 11.2.0.4.0
Log file location : /u02/app/oracle/product/11.2.4/db1/cfgtoollogs/opatch/opatch2016-12-20_10-49-53AM_1.log

Invoking prereq “checkconflictagainstohwithdetail”

Prereq “checkConflictAgainstOHWithDetail” passed.

OPatch succeeded.

5、安装 Patch 包，单实例的数据库按如下方法打 patch 就可以了，如果是 RAC 则需要详细查看 README.html

[oracle@rhel6 psu]$ cd 24006111/
[oracle@rhel6 24006111]$ opatch apply
Oracle Interim Patch Installer version 11.2.0.3.12
Copyright (c) 2016, Oracle Corporation. All rights reserved.

Oracle Home : /u02/app/oracle/product/11.2.4/db1
Central Inventory : /u01/app/oraInventory
from : /u02/app/oracle/product/11.2.4/db1/oraInst.loc
OPatch version : 11.2.0.3.12
OUI version : 11.2.0.4.0
Log file location : /u02/app/oracle/product/11.2.4/db1/cfgtoollogs/opatch/opatch2016-12-20_10-53-13AM_1.log

Verifying environment and performing prerequisite checks…
Prerequisite check “CheckActiveFilesAndExecutables” failed.
The details are:

Following executables are active :
/u02/app/oracle/product/11.2.4/db1/bin/oracle
/u02/app/oracle/product/11.2.4/db1/lib/libclntsh.so.11.1
UtilSession failed: Prerequisite check “CheckActiveFilesAndExecutables” failed.
Log file location: /u02/app/oracle/product/11.2.4/db1/cfgtoollogs/opatch/opatch2016-12-20_10-53-13AM_1.log

OPatch failed with error code 73
# 打补丁报错，查看日志
[oracle@rhel6 24006111]$ more /u02/app/oracle/product/11.2.4/db1/cfgtoollogs/opatch/opatch2016-12-20_10-53-13AM_1.log
……
[Dec 20, 2016 10:53:21 AM] Following executables are active :
/u02/app/oracle/product/11.2.4/db1/bin/oracle
/u02/app/oracle/product/11.2.4/db1/lib/libclntsh.so.11.1
[Dec 20, 2016 10:53:21 AM] Prerequisite check “CheckActiveFilesAndExecutables” failed.
The details are:

Following executables are active :
/u02/app/oracle/product/11.2.4/db1/bin/oracle
/u02/app/oracle/product/11.2.4/db1/lib/libclntsh.so.11.1
……
# 这个错误的意思是检测到有命令正在运行，不能进行升级，停止数据库和监听
[oracle@rhel6 24006111]$ sqlplus / as sysdba

SQL*Plus: Release 11.2.0.4.0 Production on Tue Dec 20 10:57:16 2016

Copyright (c) 1982, 2013, Oracle. All rights reserved.

Connected to:
Oracle Database 11g Enterprise Edition Release 11.2.0.4.0 – 64bit Production
With the Partitioning, OLAP, Data Mining and Real Application Testing options

sys@ORCL>shutdown immediate;
Database closed.
Database dismounted.
ORACLE instance shut down.
sys@ORCL>exit
Disconnected from Oracle Database 11g Enterprise Edition Release 11.2.0.4.0 – 64bit Production
With the Partitioning, OLAP, Data Mining and Real Application Testing options
[oracle@rhel6 24006111]$ lsnrctl stop

LSNRCTL for Linux: Version 11.2.0.4.0 – Production on 20-DEC-2016 10:58:32

Copyright (c) 1991, 2013, Oracle. All rights reserved.

Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=0.0.0.0)(PORT=1521)))
The command completed successfully
[oracle@rhel6 24006111]$ ps -ef |grep ora
root 2361 2342 0 10:11 pts/0 00:00:00 su – oracle
oracle 2362 2361 0 10:11 pts/0 00:00:01 -bash
oracle 3409 2362 0 10:59 pts/0 00:00:00 ps -ef
oracle 3410 2362 0 10:59 pts/0 00:00:00 grep ora
# 重新打补丁
[oracle@rhel6 24006111]$ opatch apply
Oracle Interim Patch Installer version 11.2.0.3.12
Copyright (c) 2016, Oracle Corporation. All rights reserved.

Oracle Home : /u02/app/oracle/product/11.2.4/db1
Central Inventory : /u01/app/oraInventory
from : /u02/app/oracle/product/11.2.4/db1/oraInst.loc
OPatch version : 11.2.0.3.12
OUI version : 11.2.0.4.0
Log file location : /u02/app/oracle/product/11.2.4/db1/cfgtoollogs/opatch/opatch2016-12-20_11-18-32AM_1.log

Verifying environment and performing prerequisite checks…
OPatch continues with these patches: 17478514 18031668 18522509 19121551 19769489 20299013 20760982 21352635 21948347 22502456 23054359 24006111

Do you want to proceed? [y|n]
y
User Responded with: Y

All checks passed.
Provide your email address to be informed of security issues, install and
initiate Oracle Configuration Manager. Easier for you if you use your My
Oracle Support Email address/User Name.
Visit http://www.oracle.com/support/policies.html for details.
Email address/User Name:
You have not provided an email address for notification of security issues.
Do you wish to remain uninformed of security issues ([Y]es, [N]o) [N]: y

Please shutdown Oracle instances running out of this ORACLE_HOME on the local system.
(Oracle Home = ‘/u02/app/oracle/product/11.2.4/db1’)

Is the local system ready for patching? [y|n]
y
User Responded with: Y
Backing up files…
Applying sub-patch ‘17478514’ to OH ‘/u02/app/oracle/product/11.2.4/db1’
……
Composite patch 24006111 successfully applied.
Log file location: /u02/app/oracle/product/11.2.4/db1/cfgtoollogs/opatch/opatch2016-12-20_11-18-32AM_1.log

OPatch succeeded.

6、升级数据字典并重新编译无效对象

[oracle@rhel6 24006111]$ sqlplus / as sysdba
idle>startup
……
idle>@?/rdbms/admin/catbundle.sql psu apply
…….
idle>SPOOL off
idle>SET echo off
Check the following log file for errors:
/u02/app/oracle/cfgtoollogs/catbundle/catbundle_PSU_ORCL_APPLY_2016Dec20_11_30_47.log
# 检查日志没有报错
# 编译失效对象
sys@ORCL>@?/rdbms/admin/utlrp.sql
# 检查升级情况
sys@ORCL>col action_time for a30
sys@ORCL>col action for a10
sys@ORCL>col namespace for a20
sys@ORCL>col version for a20
sys@ORCL>col bundle_series for a30
sys@ORCL>col comments for a30
sys@ORCL>select * from dba_registry_history;

ACTION_TIME ACTION NAMESPACE VERSION ID BUNDLE_SERIES COMMENTS
—————————— ———- ——————– ——————– ———- —————————— ——————————
24-AUG-13 12.03.45.119862 PM APPLY SERVER 11.2.0.4 0 PSU Patchset 11.2.0.2.0
07-JUL-16 11.03.29.165250 AM APPLY SERVER 11.2.0.4 0 PSU Patchset 11.2.0.2.0
20-DEC-16 11.32.28.671654 AM APPLY SERVER 11.2.0.4 161018 PSU PSU 11.2.0.4.161018
# 使用 opatch 命令查看补丁情况
[oracle@rhel6 24006111]$ opatch lsinventory
Oracle Interim Patch Installer version 11.2.0.3.12
Copyright (c) 2016, Oracle Corporation. All rights reserved.

Oracle Home : /u02/app/oracle/product/11.2.4/db1
Central Inventory : /u01/app/oraInventory
from : /u02/app/oracle/product/11.2.4/db1/oraInst.loc
OPatch version : 11.2.0.3.12
OUI version : 11.2.0.4.0
Log file location : /u02/app/oracle/product/11.2.4/db1/cfgtoollogs/opatch/opatch2016-12-20_11-52-01AM_1.log

Lsinventory Output file location : /u02/app/oracle/product/11.2.4/db1/cfgtoollogs/opatch/lsinv/lsinventory2016-12-20_11-52-01AM.txt

——————————————————————————–
Local Machine Information::
Hostname: rhel6
ARU platform id: 226
ARU platform description:: Linux x86-64

Installed Top-level Products (1):

Oracle Database 11g 11.2.0.4.0
There are 1 products installed in this Oracle Home.

Interim patches (1) :

Patch 24006111 : applied on Tue Dec 20 11:24:30 CST 2016
Unique Patch ID: 20508568
Patch description: “Database Patch Set Update : 11.2.0.4.161018 (24006111)”
Created on 26 Aug 2016, 05:54:48 hrs PST8PDT
Sub-patch 23054359; “Database Patch Set Update : 11.2.0.4.160719 (23054359)”
Sub-patch 22502456; “Database Patch Set Update : 11.2.0.4.160419 (22502456)”
Sub-patch 21948347; “Database Patch Set Update : 11.2.0.4.160119 (21948347)”
Sub-patch 21352635; “Database Patch Set Update : 11.2.0.4.8 (21352635)”
Sub-patch 20760982; “Database Patch Set Update : 11.2.0.4.7 (20760982)”
Sub-patch 20299013; “Database Patch Set Update : 11.2.0.4.6 (20299013)”
Sub-patch 19769489; “Database Patch Set Update : 11.2.0.4.5 (19769489)”
Sub-patch 19121551; “Database Patch Set Update : 11.2.0.4.4 (19121551)”
Sub-patch 18522509; “Database Patch Set Update : 11.2.0.4.3 (18522509)”
Sub-patch 18031668; “Database Patch Set Update : 11.2.0.4.2 (18031668)”
Sub-patch 17478514; “Database Patch Set Update : 11.2.0.4.1 (17478514)”
Bugs fixed:
17288409, 21051852, 24316947, 17811429, 18607546, 17205719, 20506699
17816865, 17922254, 23330119, 17754782, 16934803, 13364795, 17311728
17441661, 17284817, 16992075, 17446237, 14015842, 19972569, 21756677
17375354, 20925795, 21538558, 17449815, 19463897, 13866822, 17235750
17982555, 17478514, 18317531, 14338435, 18235390, 20803583, 13944971
20142975, 17811789, 16929165, 18704244, 20506706, 17546973, 20334344
14054676, 17088068, 17346091, 18264060, 17343514, 21538567, 19680952
18471685, 19211724, 13951456, 21847223, 16315398, 18744139, 16850630
23177648, 19049453, 18673304, 17883081, 19915271, 18641419, 18262334
17006183, 16065166, 18277454, 16833527, 10136473, 18051556, 17865671
17852463, 18554871, 17853498, 18334586, 17551709, 17588480, 19827973
17344412, 17842825, 18828868, 17025461, 11883252, 13609098, 17239687
17602269, 19197175, 22195457, 18316692, 17313525, 12611721, 19544839
18964939, 17600719, 18191164, 19393542, 17571306, 20777150, 18482502
19466309, 22243719, 17040527, 17165204, 18098207, 16785708, 17465741
17174582, 16180763, 16777840, 12982566, 19463893, 22195465, 22148226
16875449, 12816846, 17237521, 6599380, 19358317, 17811438, 17811447
17945983, 21983325, 18762750, 16912439, 17184721, 18061914, 17282229
18331850, 18202441, 17082359, 18723434, 21972320, 19554106, 14034426
18339044, 19458377, 17752995, 20448824, 17891943, 17258090, 17767676
16668584, 18384391, 17040764, 17381384, 15913355, 18356166, 14084247
20596234, 20506715, 21756661, 13853126, 18203837, 14245531, 16043574
21756699, 22195441, 17848897, 17877323, 21453153, 17468141, 20861693
17786518, 17912217, 17037130, 16956380, 18155762, 17478145, 17394950
18641461, 18189036, 18619917, 17027426, 21352646, 16268425, 24476274
22195492, 19584068, 18436307, 22507210, 17265217, 17634921, 13498382
21526048, 19258504, 20004087, 17443671, 22195485, 18000422, 22321756
20004021, 17571039, 21067387, 16344544, 18009564, 14354737, 21286665
18135678, 18614015, 20441797, 18362222, 17835048, 16472716, 17936109
17050888, 17325413, 14010183, 18747196, 17761775, 16721594, 17082983
20067212, 21179898, 17302277, 18084625, 15990359, 18203835, 17297939
17811456, 22380919, 16731148, 21168487, 14133975, 13829543, 17215560
17694209, 17385178, 18091059, 8322815, 17586955, 17201159, 17655634
18331812, 19730508, 18868646, 17648596, 16220077, 16069901, 17348614
17393915, 17274537, 17957017, 18096714, 17308789, 18436647, 14285317
19289642, 14764829, 18328509, 17622427, 16943711, 22195477, 14368995
22502493, 17346671, 18996843, 17783588, 21343838, 16618694, 17672719
18856999, 18783224, 17851160, 17546761, 17798953, 18273830, 22092979
16596890, 19972566, 16384983, 17726838, 22296366, 17360606, 22321741
13645875, 18199537, 16542886, 21787056, 17889549, 14565184, 17071721
17610798, 20299015, 21343897, 22893153, 20657441, 17397545, 18230522
16360112, 19769489, 12905058, 18641451, 12747740, 18430495, 17016369
17042658, 14602788, 17551063, 19972568, 21517440, 18508861, 19788842
14657740, 17332800, 13837378, 19972564, 17186905, 18315328, 19699191
17437634, 22353199, 18093615, 19006849, 19013183, 17296856, 18674024
17232014, 16855292, 17762296, 14692762, 21051840, 17705023, 22507234
19121551, 21330264, 19854503, 21868720, 19309466, 18681862, 20558005
18554763, 17390160, 18456514, 16306373, 13955826, 18139690, 17501491
17752121, 21668627, 17299889, 17889583, 18673325, 19721304, 18293054
17242746, 17951233, 18094246, 17649265, 19615136, 17011832, 16870214
17477958, 18522509, 20631274, 16091637, 17323222, 16595641, 16524926
18228645, 18282562, 17596908, 18031668, 17156148, 16494615, 22683225
17545847, 17655240, 24528741, 17614134, 13558557, 17341326, 17891946
17716305, 22657942, 16392068, 19271443, 21351877, 18092127, 17614227
18440047, 16903536, 14106803, 18973907, 18673342, 19032867, 17389192
17612828, 16194160, 17006570, 17721717, 17390431, 17570240, 16863422
18325460, 19727057, 16422541, 19972570, 17267114, 18244962, 21538485
18765602, 18203838, 16198143, 17246576, 14829250, 17835627, 18247991
14458214, 21051862, 16692232, 17786278, 17227277, 24476265, 16042673
16314254, 16228604, 16837842, 17393683, 23536835, 17787259, 20331945
20074391, 15861775, 16399083, 18018515, 22683212, 18260550, 21051858
17080436, 16613964, 17036973, 16579084, 24433711, 18384537, 18280813
20296213, 16901385, 15979965, 23330124, 18441944, 16450169, 9756271
17892268, 11733603, 16285691, 17587063, 21343775, 18180390, 16538760
18193833, 21387964, 21051833, 17238511, 17824637, 16571443, 18306996
14852021, 17853456, 18674047, 12364061, 22195448

——————————————————————————–

OPatch succeeded.
