Oracle 12C 首次安装,期待已久的 Oracle 12C 终于发布了,我迫不及待的下载了介质,红帽企业 Linux5 下 Oracle 12C 安装了一睹风采。
下载地址:http://www.oracle.com/technetwork/database/enterprise-edition/downloads/index.html
或者直接到 edelivery 下载:https://edelivery.oracle.com
V38500-01_1of2.zip
V38500-01_2of2.zip
官方安装文档地址:http://docs.oracle.com/cd/E16655_01/install.121/e17718/toc.htm
1、安装依赖包 对于 linux5,官方给出的如下:
binutils-2.17.50.0.6
compat-libstdc++-33-3.2.3
compat-libstdc++-33-3.2.3 (32 bit)
gcc-4.1.2
gcc-c++-4.1.2
glibc-2.5-58
glibc-2.5-58 (32 bit)
glibc-devel-2.5-58
glibc-devel-2.5-58 (32 bit)
ksh
libaio-0.3.106
libaio-0.3.106 (32 bit)
libaio-devel-0.3.106
libaio-devel-0.3.106 (32 bit)
libgcc-4.1.2
libgcc-4.1.2 (32 bit)
libstdc++-4.1.2
libstdc++-4.1.2 (32 bit)
libstdc++-devel 4.1.2
libXext-1.0.1
libXext-1.0.1 (32 bit)
libXtst-1.0.1
libXtst-1.0.1 (32 bit)
libX11-1.0.3
libX11-1.0.3 (32 bit)
libXau-1.0.1
libXau-1.0.1 (32 bit)
libXi-1.0.1
libXi-1.0.1 (32 bit)
make-3.81
sysstat-7.0.2
额外增加 x86_64
1. compat-libcap1-1.10-1 (x86_64)
2. compat-libstdc++-33-3.2.3-69.el6 (x86_64)
3. gcc-4.4.4-13.el6 (x86_64)
4. gcc-c++-4.4.4-13.el6 (x86_64)
5. glibc-devel-2.12-1.7.el6 (x86_64)
6. ksh <== any version of ksh is acceptable
7. libstdc++-devel-4.4.4-13.el6 (x86_64)
8. libaio-devel-0.3.107-10.el6 (x86_64)
将安装光盘挂载到虚拟机,进入 Server 目录。使用 rpm -qa 查询包是否安装,使用 rpm -ivh 安装未安装的包
[root@ora12c Server]# pwd
/media/OL5.7 x86_64 dvd 20110728/Server
[root@ora12c Server]# rpm -qa compat-libstdc
[root@ora12c Server]# rpm -ivh compat-libstdc++-33-3.2.3-61.
compat-libstdc++-33-3.2.3-61.i386.rpm
compat-libstdc++-33-3.2.3-61.x86_64.rpm
[root@ora12c Server]# rpm -ivh compat-libstdc++-33-3.2.3-61.i386.rpm
warning: compat-libstdc++-33-3.2.3-61.i386.rpm: Header V3 DSA signature: NOKEY, key ID 1e5e0159
Preparing... ########################################### [100%]
package compat-libstdc++-33-3.2.3-61.i386 is already installed
[root@ora12c Server]# rpm -ivh compat-libstdc++-33-3.2.3-61.x86_64.rpm
warning: compat-libstdc++-33-3.2.3-61.x86_64.rpm: Header V3 DSA signature: NOKEY, key ID 1e5e0159
Preparing... ########################################### [100%]
package compat-libstdc++-33-3.2.3-61.x86_64 is already installed
按照此方法将所有包安装
2、创建 oracle 用户和组
[root@ora12c Server]# groupadd oinstall
[root@ora12c Server]# groupadd dba
[root@ora12c Server]# useradd -g oinstall -G dba oracle
[root@ora12c Server]# passwd oracle
Changing password for user oracle.
New UNIX password:
BAD PASSWORD: it is based on a dictionary word
Retype new UNIX password:
passwd: all authentication tokens updated successfully.
3、创建目录
[root@ora12c Server]# mkdir -p /oracle/
[root@ora12c Server]# chown -R oracle:oinstall /oracle/
[root@ora12c Server]# chmod -R 775 /oracle/
4、修改内核参数
在 /etc/sysctl.conf 文件下加入如下参数
[root@ora12c Server]# vim /etc/sysctl.conf
fs.aio-max-nr = 1048576
fs.file-max = 6815744
kernel.shmall = 2097152
kernel.shmmax = 536870912
kernel.shmmni = 4096
kernel.sem = 250 32000 100 128
net.ipv4.ip_local_port_range = 9000 65500
net.core.rmem_default = 262144
net.core.rmem_max = 4194304
net.core.wmem_default = 262144
net.core.wmem_max = 1048586
/sbin/sysctl -p 使参数生效
[root@ora12c Server]# /sbin/sysctl -p
fs.aio-max-nr = 1048576
fs.file-max = 6815744
kernel.shmall = 2097152
kernel.shmmax = 536870912
kernel.shmmni = 4096
kernel.sem = 250 32000 100 128
net.ipv4.ip_local_port_range = 9000 65500
net.core.rmem_default = 262144
net.core.rmem_max = 4194304
net.core.wmem_default = 262144
net.core.wmem_max = 1048586
net.ipv4.ip_forward = 0
net.ipv4.conf.default.rp_filter = 2
net.ipv4.conf.default.accept_source_route = 0
kernel.sysrq = 0
kernel.core_uses_pid = 1
net.ipv4.tcp_syncookies = 1
kernel.msgmnb = 65536
kernel.msgmax = 65536
kernel.shmmax = 68719476736
kernel.shmall = 4294967296
5、修改用户限制
在 /etc/security/limits.conf 加入相关配置
[root@ora12c Server]# vim /etc/security/limits.conf
oracle soft nproc 2047
oracle hard nproc 16384
oracle soft nofile 1024
oracle hard nofile 65536
oracle soft stack 10240
oracle hard stack 10240
6、配置环境变量
在 .bash_profile 配置如下变量
oracle@ora12c ~]$ vim .bash_profile
export ORACLE_BASE=/oracle/12c
export ORACLE_HOME=$ORACLE_BASE/db1
export ORACLE_SID=orcl12c
export PATH=$ORACLE_HOME/bin:$PATH:$HOME/bin
export EDITOR=/bin/vi
使配置文件生效
[oracle@ora12c ~]$ source .bash_profile
7、ftp 上传数据库安装文件(或者使用共享文件夹 – 虚拟机)
8、解压文件
#unzip V38500-01_1of2.zip
#unzip V38500-01_2of2.zip

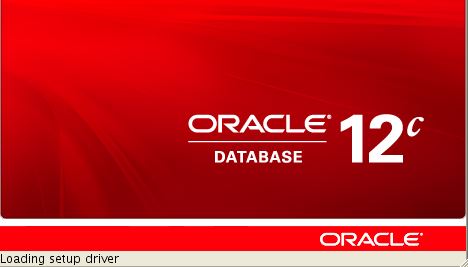

9、运行 OUI 安装
#xhost +
#su – oracle
cd database
./runInstaller

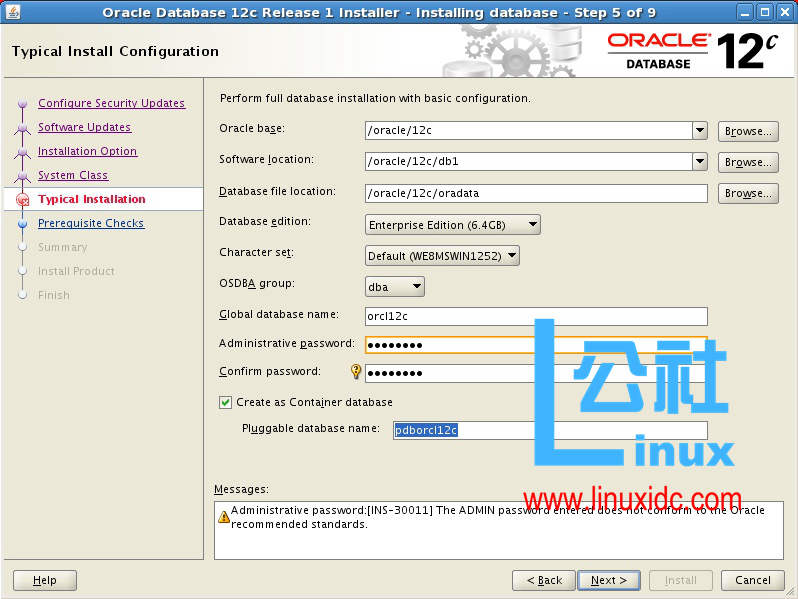

下一步下一步
Oracle linux 上安装 oracle 12c 文档
配置

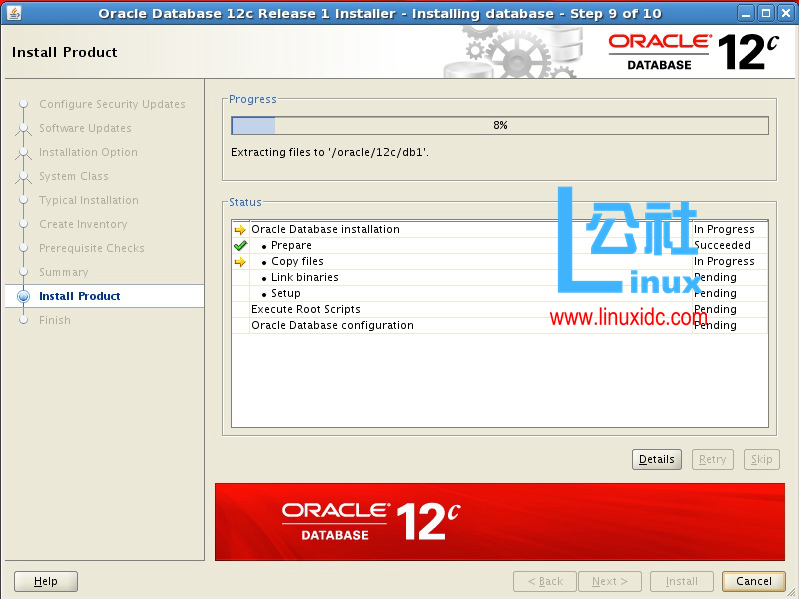

正在安装
root 运行 2 个脚本
[root@ora12c Server]# cd /oracle/oraInventory/
[root@ora12c oraInventory]# ./orainstRoot.sh
Changing permissions of /oracle/oraInventory.
Adding read,write permissions for group.
Removing read,write,execute permissions for world.
Changing groupname of /oracle/oraInventory to oinstall.
The execution of the script is complete.
[root@ora12c oraInventory]# cd /oracle/12c/db1/
[root@ora12c db1]# ./root.sh
Performing root user operation for Oracle 12c
The following environment variables are set as:
ORACLE_OWNER= oracle
ORACLE_HOME= /oracle/12c/db1
Enter the full pathname of the local bin directory: [/usr/local/bin]:
Copying dbhome to /usr/local/bin ...
Copying oraenv to /usr/local/bin ...
Copying coraenv to /usr/local/bin ...
Creating /etc/oratab file...
Entries will be added to the /etc/oratab file as needed by
Database Configuration Assistant when a database is created
Finished running generic part of root script.
Now product-specific root actions will be performed.

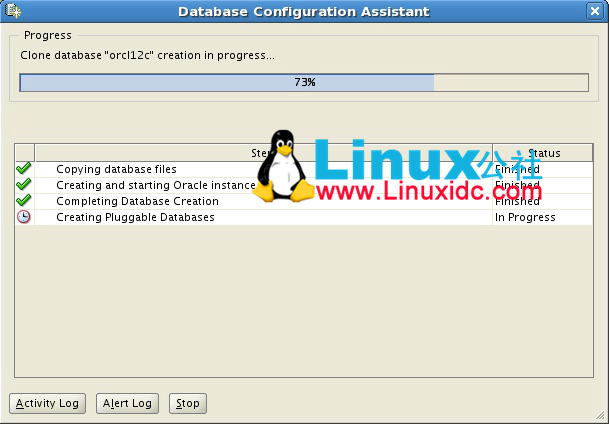

初始化数据库
在创建数据库时,12c 会自动创建监听
[oracle@ora12c ~]$ lsnrctl status
LSNRCTL for Linux: Version 12.1.0.1.0 - Production on 27-JUN-2013 12:41:16
Copyright (c) 1991, 2013, Oracle. All rights reserved.
Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=IPC)(KEY=EXTPROC1521)))
STATUS of the LISTENER
------------------------
Alias LISTENER
Version TNSLSNR for Linux: Version 12.1.0.1.0 - Production
Start Date 27-JUN-2013 12:01:32
Uptime 0 days 0 hr. 39 min. 45 sec
Trace Level off
Security ON: Local OS Authentication
SNMP OFF
Listener Parameter File /oracle/12c/db1/network/admin/listener.ora
Listener Log File /oracle/12c/diag/tnslsnr/ora12c/listener/alert/log.xml
Listening Endpoints Summary...
(DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=EXTPROC1521)))
(DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=ora12c)(PORT=1521)))
(DESCRIPTION=(ADDRESS=(PROTOCOL=tcps)(HOST=ora12c)(PORT=5500))(Security=(my_wallet_directory=/oracle/12c/admin/orcl12c/xdb_wallet))(Presentation=HTTP)(Session=RAW))
Services Summary...
Service "orcl12c" has 1 instance(s).
Instance "orcl12c", status READY, has 1 handler(s) for this service...
Service "orcl12cXDB" has 1 instance(s).
Instance "orcl12c", status READY, has 1 handler(s) for this service...
Service "pdborcl12c" has 1 instance(s).
Instance "orcl12c", status READY, has 1 handler(s) for this service...
The command completed successfully
使用 sqlplus 连接数据库
[oracle@ora12c ~]$ sqlplus / as sysdba
SQL*Plus: Release 12.1.0.1.0 Production on Thu Jun 27 12:41:41 2013
Copyright (c) 1982, 2013, Oracle. All rights reserved.
Connected to:
Oracle Database 12c Enterprise Edition Release 12.1.0.1.0 - 64bit Production
With the Partitioning, OLAP, Advanced Analytics and Real Application Testing options
SQL> set linesize 150
SQL> select * from v$version;
BANNER CON_ID
-------------------------------------------------------------------------------- ----------
Oracle Database 12c Enterprise Edition Release 12.1.0.1.0 - 64bit Production 0
PL/SQL Release 12.1.0.1.0 - Production 0
CORE 12.1.0.1.0 Production 0
TNS for Linux: Version 12.1.0.1.0 - Production 0
NLSRTL Version 12.1.0.1.0 - Production 0
显示数据库版本。
