因为工作环境中有 Redis,所以对 Redis 进行了学习,当然首先就是从搭建环境开始,下面是我对于搭建 Redis 环境的记录。
系统是 SUSE 11 sp2,
软件环境如下所示:
linux-svnfile:/home/apps/redis # ls
redis-3.0.0.gem ruby-1.9.2-p290.tar.gz zlib-1.2.7.tar.gz
redis-3.0.0.tar.gz rubygems-2.4.6.tgz
redis.conf zlib-1.2.6.tar.gz
安装基础环境:
linux-svnfile:/home/apps/redis # tar -zxf zlib-1.2.6.tar.gz -C /usr/local/src
linux-svnfile:/usr/local/src/zlib-1.2.6 # ./configure –prefix=/usr/local/zlib
linux-svnfile:/usr/local/src/zlib-1.2.6 # make && make install
linux-svnfile:/home/apps/redis # tar -zxf ruby-1.9.2-p290.tar.gz -C /usr/local/src
linux-svnfile:/usr/local/src/ruby-1.9.2-p290 # ./configure –prefix=/usr/local/ruby
linux-svnfile:/usr/local/src/ruby-1.9.2-p290 # make && make install
linux-svnfile:/usr/local/ruby # ln -s /usr/local/ruby/bin/ruby /usr/local/bin
linux-svnfile:/home/apps/redis # tar xf rubygems-2.4.6.tgz -C /usr/local/src
linux-svnfile:/usr/local/src # mv rubygems-2.4.6 ../gem
linux-svnfile:/usr/local/gem # ruby setup.rb
linux-svnfile:/usr/local/gem # cp bin/gem /usr/local/bin/
linux-svnfile:/home/apps/redis # gem install -l redis-3.0.0.gem
Successfully installed redis-3.0.0
Installing ri documentation for redis-3.0.0
Done installing documentation for redis after 0 seconds
1 gem installed
linux-svnfile:/home/apps/redis # tar -zxf redis-3.0.0.tar.gz -C /usr/local/src
linux-svnfile:/usr/local/src # mv redis-3.0.0 ../redis
linux-svnfile:/usr/local/redis # make
至此基础环境搭建完成
下面进行集群的搭建
linux-svnfile:/usr/local/redis # cp src/redis-server /usr/local/bin/
linux-svnfile:/usr/local/redis # cp src/redis-cli /usr/local/bin/
linux-svnfile:/usr/local/redis # cp src/redis-trib.rb /usr/local/bin
linux-svnfile:/usr/local/redis # mkdir -p /usr/local/cluster/{7000..7005}
linux-svnfile:/usr/local/redis # vi redis.conf
daemonize yes
port 7000
cluster-enabled yes
cluster-config-file nodes.conf
cluster-node-timeout 5000
appendonly yes
linux-svnfile:/usr/local/redis # cp redis.conf ../cluster/7000
linux-svnfile:/usr/local/redis # cp redis.conf ../cluster/7001
linux-svnfile:/usr/local/redis # cp redis.conf ../cluster/7002
linux-svnfile:/usr/local/redis # cp redis.conf ../cluster/7003
linux-svnfile:/usr/local/redis # cp redis.conf ../cluster/7004
linux-svnfile:/usr/local/redis # cp redis.conf ../cluster/7005
这里需要注意的是文件名对应文件里端口的配置,例如 7001 文件下的 port 参数需要改为 7001,其他一样做修改。
linux-svnfile:/usr/local/redis # redis-server ../cluster/7000/redis.conf
linux-svnfile:/usr/local/redis # redis-server ../cluster/7001/redis.conf
linux-svnfile:/usr/local/redis # redis-server ../cluster/7002/redis.conf
linux-svnfile:/usr/local/redis # redis-server ../cluster/7003/redis.conf
linux-svnfile:/usr/local/redis # redis-server ../cluster/7004/redis.conf
linux-svnfile:/usr/local/redis # redis-server ../cluster/7005/redis.conf
linux-svnfile:/usr/local/redis # ps -ef | grep redis
root 15590 1 0 18:52 ? 00:00:00 redis-server *:7000 [cluster]

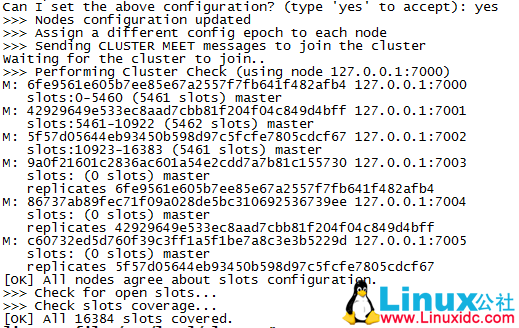

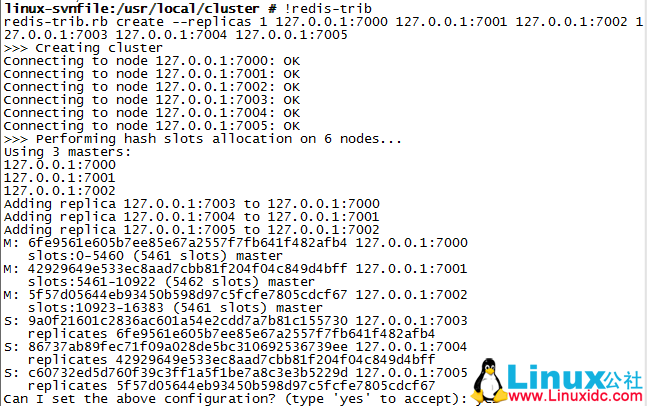

linux-svnfile:/usr/local/redis # redis-trib.rb create –replicas 1 127.0.0.1:7000 127.0.0.1:7001 127.0.0.1:7002 127.0.0.1:7003 127.0.0.1:7004 127.0.0.1:7005
>>> Creating cluster
Connecting to node 127.0.0.1:7000: OK
Connecting to node 127.0.0.1:7001: [ERR] Sorry, can’t connect to node 127.0.0.1:7001
You have new mail in /var/mail/root
linux-svnfile:/usr/local/cluster/7000 # redis-server redis.conf
linux-svnfile:/usr/local/cluster/7000 # cd ../7001
linux-svnfile:/usr/local/cluster/7001 # redis-server redis.conf
linux-svnfile:/usr/local/cluster/7001 # cd ../7002
linux-svnfile:/usr/local/cluster/7002 # redis-server redis.conf
linux-svnfile:/usr/local/cluster/7002 # cd ../7003
linux-svnfile:/usr/local/cluster/7003 # redis-server redis.conf
linux-svnfile:/usr/local/cluster/7003 # cd ../7004
linux-svnfile:/usr/local/cluster/7004 # redis-server redis.conf
linux-svnfile:/usr/local/cluster/7004 # cd ../7005
linux-svnfile:/usr/local/cluster/7005 # redis-server redis.conf
linux-svnfile:/usr/local/cluster/7005 # ps -ef | grep redis
root 17575 1 0 20:05 ? 00:00:00 redis-server *:7000 [cluster]
root 17590 1 0 20:06 ? 00:00:00 redis-server *:7001 [cluster]
root 17604 1 0 20:06 ? 00:00:00 redis-server *:7002 [cluster]
root 17612 1 0 20:06 ? 00:00:00 redis-server *:7003 [cluster]
root 17616 1 0 20:06 ? 00:00:00 redis-server *:7004 [cluster]
root 17624 1 0 20:06 ? 00:00:00 redis-server *:7005 [cluster]
像是上面在启动服务时需要注意切换到相应的配置文件的目录下,不然相应端口的服务无法启动,例如我之前在 /usr/local/redis 目录下启动后只有 7000 对应的服务启动了。
linux-svnfile:/usr/local/redis # redis-server ../cluster/7000/redis.conf
linux-svnfile:/usr/local/redis # redis-server ../cluster/7001/redis.conf
linux-svnfile:/usr/local/redis # redis-server ../cluster/7002/redis.conf
linux-svnfile:/usr/local/redis # redis-server ../cluster/7003/redis.conf
linux-svnfile:/usr/local/redis # redis-server ../cluster/7004/redis.conf
linux-svnfile:/usr/local/redis # redis-server ../cluster/7005/redis.conf
linux-svnfile:/usr/local/redis # ps -ef | grep redis
root 15144 19064 0 18:37 pts/0 00:00:00 vi redis.conf
root 15590 1 0 18:52 ? 00:00:00 redis-server *:7000 [cluster]
root 15616 19443 0 18:52 pts/1 00:00:00 grep redis
linux-svnfile:/usr/local/cluster #redis-cli -p 7000
127.0.0.1:7000>

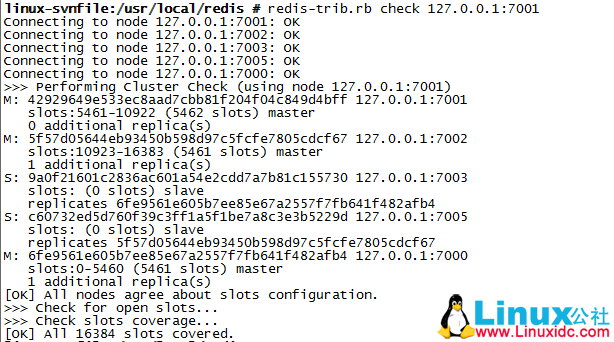

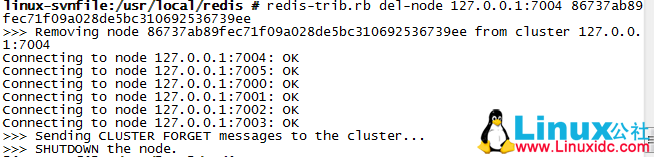

删除 slave 节点
删除 master 节点
linux-svnfile:/usr/local/redis # redis-trib.rb reshard 127.0.0.1:7001
How many slots do you want to move (from 1 to 16384)? 5461
What is the receiving node ID? 42929649e533ec8aad7cbb81f204f04c849d4bff
Please enter all the source node IDs.
Type ‘all’ to use all the nodes as source nodes for the hash slots.
Type ‘done’ once you entered all the source nodes IDs.
Source node #1: 6fe9561e605b7ee85e67a2557f7fb641f482afb4
Source node #2:done
#Do you want to proceed with the proposed reshard plan (yes/no)? yes
说明:
5461 表示要删除 master 所有的 slot 数量
What is the receiving node ID 是指将 7000 的 slot 迁移的节点 7001 的 node-id
Source node #1 是指要删除的 master 的 node-id

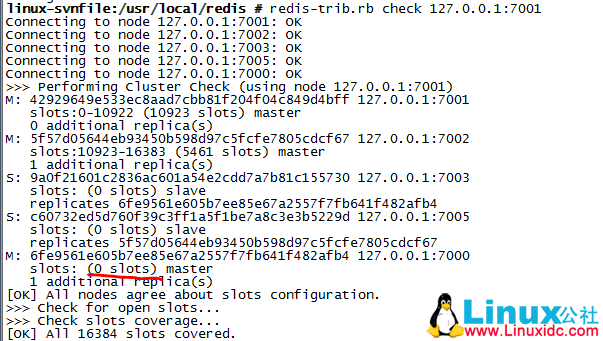

下面可以看到 7000 的 slot 为 0,而 7001 多了 4561

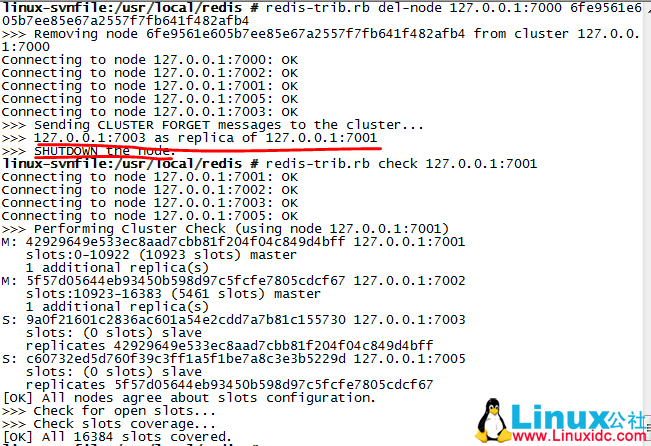

在删除 master 节点出现如下面所示的错误,是因为删除 master 节点之前没有删除 master 节点的 slave 节点。

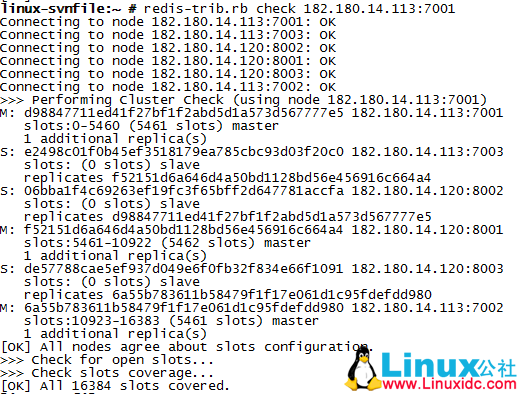

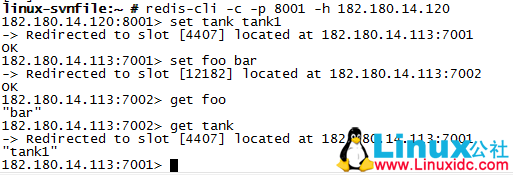

上面是在单台机器上做的集群,下面展示两台机器上做集群,其实也很简单。
参考之前的环境编译源码到另一台机器
在两台机器上编辑配置文件
/usr/local/redis # vi redis.conf
daemonize yes
port 7000
cluster-enabled yes
cluster-config-file nodes.conf
cluster-node-timeout 5000
appendonly yes
cluster-config-file nodes-7001.conf
分别创建目录和文件
linux-svnfile:/usr/local/redis # mkdir -p/usr/local/cluster/{7001..7003}
localhost:/usr/local/redis # mkdir -p/usr/local/cluster/{8001..8003}
linux-svnfile:/usr/local/redis # cpredis.conf ../cluster/7001
linux-svnfile:/usr/local/redis # cpredis.conf ../cluster/7002
linux-svnfile:/usr/local/redis # cpredis.conf ../cluster/7003
localhost:/usr/local/redis # cp redis.conf../cluster/8001
localhost:/usr/local/redis # cp redis.conf../cluster/8002
localhost:/usr/local/redis # cp redis.conf../cluster/8003
修改对应目录的配置文件其中 port 和 cluster-config-file 分别对应各自的目录名,可使用 sed 命令做修改
sed -i “s/7001/7002/g”

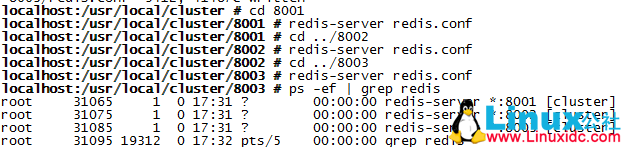

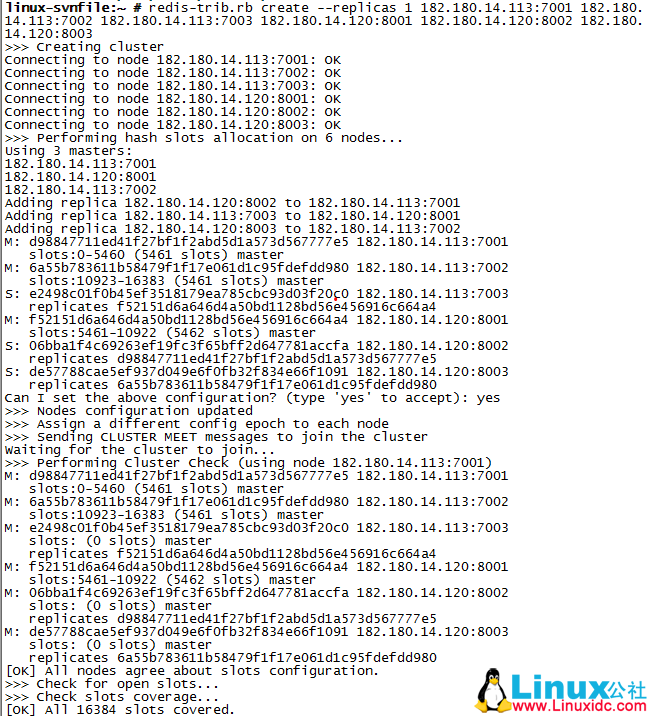

启动服务
