最近在学 Oracle 体系结构等理论知识,在这里总结 RHEL6.5 下安装 Oracle 11g + udev + ASM 安装部署流程。
实验环境
RedHat Enterprise Linux 6.5 x86_64 IP 地址:192.168.60.100
Oracle 11g release 11.2.0.4
系统安装在此略过,IP 地址已经更改完成,首先通过 ssh 协议登陆到 RHEL 系统,配置 YUM 本地源环境,安装 Oracle 所必须的软件依赖包;
[c:\~]$
ssh
root@192.168.60.100
[root@rhel6 ~]
# vi /etc/yum.conf
[
local
]
//
修改本地 YUM 源环境;
name=
local
baseurl=
file
:
///mnt
gpgcheck=0
enabled=1
[root@rhel6 ~]
# mount /dev/sr0 /mnt/ // 挂载本地光盘作为 YUM 源;
mount
: block device
/dev/sr0
is write-protected, mounting
read
-only
[root@rhel6 ~]
# yum repolist // 检测本地 YUM 源配置是否正确;
Loaded plugins: product-
id
, refresh-packagekit, security,
: subscription-manager
This system is not registered to Red Hat Subscription Management. You can use subscription-manager to register.
local
| 3.9 kB 00:00 ...
local
/primary_db
| 3.1 MB 00:00 ...
repo
id
repo name status
local
local
3,690
repolist: 3,690
[root@rhel6 ~]
#yum install binutils -y // 通过 YUM 安装 Oracle 所必须的软件包;
[root@rhel6 ~]
#yum install compat-libcap1 -y
[root@rhel6 ~]
#yum install compat-libstdc++-33 -y
[root@rhel6 ~]
#yum install gcc -y
[root@rhel6 ~]
#yum install gcc-c++ -y
[root@rhel6 ~]
#yum install glibc -y
[root@rhel6 ~]
#yum install glibc-devel -y
[root@rhel6 ~]
#yum install ksh -y
[root@rhel6 ~]
#yum install libgcc -y
[root@rhel6 ~]
#yum install libstdc++ -y
[root@rhel6 ~]
#yum install libstdc++-devel -y
[root@rhel6 ~]
#yum install libaio -y
[root@rhel6 ~]
#yum install libaio-devel -y
[root@rhel6 ~]
#yum install libXext -y
[root@rhel6 ~]
#yum install libXtst -y
[root@rhel6 ~]
#yum install libX11 -y
[root@rhel6 ~]
#yum install libXau -y
[root@rhel6 ~]
#yum install libxcb -y
[root@rhel6 ~]
#yum install libXi -y
[root@rhel6 ~]
#yum install make -y
[root@rhel6 ~]
#yum install sysstat -y
[root@rhel6 ~]
#yum install unixODBC -y
[root@rhel6 ~]
#yum install unixODBC-devel -y
修改相应的系统主机名以及 IP 地址
[root@rhel6 ~]
# vi /etc/hosts
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
192.168.60.100 rhel6
添加相应的 grid 用户及用户组
[root@rhel6 ~]
# groupadd -g 501 oinstall
[root@rhel6 ~]
# groupadd -g 502 dba
[root@rhel6 ~]
# groupadd -g 503 oper
[root@rhel6 ~]
# groupadd -g 504 asmadmin
[root@rhel6 ~]
# groupadd -g 505 asmoper
[root@rhel6 ~]
# groupadd -g 506 asmdba
[root@rhel6 ~]
# useradd -g oinstall -G dba,asmdba,oper oracle
[root@rhel6 ~]
# useradd -g oinstall -G asmadmin,asmdba,asmoper,oper,dba grid
[root@rhel6 ~]
# passwd oracle
[root@rhel6 ~]
# passwd grid
创建 Grid Infrastructure 组件安装目录
[root@rhel6 ~]
# mkdir -p /u01/app/grid
[root@rhel6 ~]
# mkdir -p /u01/app/11.2.0/grid
[root@rhel6 ~]
# chown -R grid:oinstall /u01
[root@rhel6 ~]
# mkdir -p /u01/app/oraInventory
[root@rhel6 ~]
# chown -R grid:oinstall /u01/app/oraInventory
[root@rhel6 ~]
# mkdir -p /u01/app/oracle
[root@rhel6 ~]
# chown -R oracle:oinstall /u01/app/oracle
[root@rhel6 ~]
# chmod -R 775 /u01
修改操作系统参数
[root@rhel6 ~]
# vi /etc/security/limits.conf
grid soft nproc 2047
grid hard nproc 16384
grid soft nofile 1024
grid hard nofile 65536
grid soft stack 10240
grid hard stack 32768
oracle soft nproc 2047
oracle hard nproc 16384
oracle soft nofile 1024
oracle hard nofile 65536
oracle soft stack 10240
oracle hard stack 32768
修改 Linux 服务器 ulmits 限制
[root@rhel6 ~]
# vi /etc/security/limits.d/90-nproc.conf
#* soft nproc 1024
* - nproc 16384
禁用 SELINUX 安全限制
[root@rhel6 ~]
# vi /etc/selinux/config
SELINUX=disabled
//
修改配置文件永久关闭 selinux;
[root@rhel6 ~]
# setenforce 0
关闭 IPTABLES 防火墙
[root@rhel6 ~]
# service iptables stop
iptables: Setting chains to policy ACCEPT: filter [OK]
iptables: Flushing firewall rules: [OK]
iptables: Unloading modules: [OK]
[root@rhel6 ~]
# chkconfig --level 35 iptables off //3、5 级别永久关闭 iptables;
修改 Linux 操作系统的登陆配置文件
[root@rhel6 ~]
# vi /etc/pam.d/login
session required pam_limits.so
修改 Linux 系统内核 Kernel 配置
[root@rhel6 ~]
# vi /etc/sysctl.conf
#kernel.shmmax = 68719476736 // 注释掉原先的系统的配置;
#kernel.shmall = 4294967296
fs.aio-max-nr = 1048576
fs.
file
-max = 6815744
kernel.shmmax = 858993459
//
大于 SGA, 小于物理内存;
kernel.shmall = 1048576
//
物理内存 %4K;
kernel.shmmni = 4096
kernel.sem = 250 32000 100 128
net.ipv4.ip_local_port_range = 9000 65500
net.core.rmem_default = 262144
net.core.rmem_max = 4194304
net.core.wmem_default = 262144
net.core.wmem_max = 1048586
[root@rhel6 ~]
# sysctl -p
配置 grid 和 oracle 用户的环境变量
[root@rhel6 ~]
# su - grid //grid 用户环境变量配置;
[grid@rhel6 ~]$
vi
.bash_profile
PS1=
"[`whoami`@`hostname`:"
'$PWD]$'
export
PS1
umask
022
export
TMP=
/tmp
export
LANG=en_US
export
TMPDIR=$TMP
export
ORACLE_HOSTNAME=rhel6
ORACLE_SID=+ASM;
export
ORACLE_SID
ORACLE_TERM=xterm;
export
ORACLE_TERM
ORACLE_BASE=
/u01/app/grid
;
export
ORACLE_BASE
ORACLE_HOME=
/u01/app/11
.2.0
/grid
;
export
ORACLE_HOME
NLS_DATE_FORMAT=
"yyyy-mm-dd HH24:MI:SS"
;
export
NLS_DATE_FORMAT
PATH=.:$PATH:$HOME
/bin
:$ORACLE_HOME
/bin
;
export
PATH
THREADS_FLAG=native;
export
THREADS_FLAG
if
[$USER =
"oracle"
] || [$USER =
"grid"
];
then
if
[$SHELL =
"/bin/ksh"
];
then
ulimit
-p 16384
ulimit
-n 65536
else
ulimit
-u 16384 -n 65536
fi
umask
022
fi
----------------------------------------------------------------------------
[root@rhel6 ~]
# su - oracle
[oracle@rhel6 ~]$
vi
.bash_profile
TMP=
/tmp
;
export
TMP
TMPDIR=$TMP;
export
TMPDIR
export
LANG=en_US
ORACLE_BASE=
/u01/app/oracle
;
export
ORACLE_BASE
ORACLE_HOME=$ORACLE_BASE
/product/11
.2.0;
export
ORACLE_HOME
ORACLE_SID=itpuxdb;
export
ORACLE_SID
export
ORACLE_UNQNAME=orcl
ORACLE_TERM=xterm;
export
ORACLE_TERM
PATH=
/usr/sbin
:$PATH;
export
PATH
PATH=$ORACLE_HOME
/bin
:$PATH;
export
PATH
LD_LIBRARY_PATH=$ORACLE_HOME
/lib
:
/lib
:
/usr/lib
;
export
LD_LIBRARY_PATH
CLASSPATH=$ORACLE_HOME
/JRE
:$ORACLE_HOME
/jlib
:$ORACLE_HOME
/rdbms/jlib
;
export
CLASSPATH
NLS_DATE_FORMAT=
"yyyy-mm-dd HH24:MI:SS"
;
export
NLS_DATE_FORMAT
NLS_LANG=AMERICAN_AMERICA.ZHS16GBK;
export
NLS_LANG
if
[$USER =
"oracle"
] || [$USER =
"grid"
];
then
if
[$SHELL =
"/bin/ksh"
];
then
ulimit
-p 16384
ulimit
-n 65536
else
ulimit
-u 16384 -n 65536
fi
umask
022
fi
配置 udev 配置 ASM(在此系统所用磁盘为 /dev/sda),
[root@rhel6 ~]# fdisk /dev/(sdb\sdc\sdd\sde\sdf)
// 对磁盘进行分区;
[root@rhel6 ~]# vi /etc/udev/rules.d/
99
-oracle-asmdevices.rules
KERNEL==
"sdb1"
, NAME=
"asm_grid1"
, OWNER=
"grid"
, GROUP=
"asmadmin"
, MODE=
"0660"
KERNEL==
"sdc1"
, NAME=
"asm_system"
, OWNER=
"grid"
, GROUP=
"asmadmin"
, MODE=
"0660"
KERNEL==
"sdd1"
, NAME=
"asm_recovery"
, OWNER=
"grid"
, GROUP=
"asmadmin"
, MODE=
"0660"
KERNEL==
"sde1"
, NAME=
"asm_data01"
, OWNER=
"grid"
, GROUP=
"asmadmin"
, MODE=
"0660"
KERNEL==
"sdf1"
, NAME=
"asm_data02"
, OWNER=
"grid"
, GROUP=
"asmadmin"
, MODE=
"0660"
[root@rhel6 ~]# partprobe /dev/sdb1
[root@rhel6 ~]# partprobe /dev/sdc1
[root@rhel6 ~]# partprobe /dev/sdd1
[root@rhel6 ~]# partprobe /dev/sde1
[root@rhel6 ~]# partprobe /dev/sdf1
[root@rhel6 ~]# udevadm control --reload-rules
[root@rhel6 ~]# start_udev
Starting udev: [OK]
[root@rhel6 ~]# ls -lsa /dev/asm*
0
brw-rw----.
1
grid asmadmin
8
,
65
May
24
05
:
48
/dev/asm_data01
0
brw-rw----.
1
grid asmadmin
8
,
81
May
24
05
:
48
/dev/asm_data02
0
brw-rw----.
1
grid asmadmin
8
,
17
May
24
05
:
48
/dev/asm_grid1
0
brw-rw----.
1
grid asmadmin
8
,
49
May
24
05
:
48
/dev/asm_recovery
0
brw-rw----.
1
grid asmadmin
8
,
33
May
24
05
:
48
/dev/asm_system
上传 Oracle 安装包到服务器
[root@rhel6 ~]
#yum -y install lrzsz // 安装 xshell 所用的 FTP 软件;
[root@rhel6 ~]
#unzip p13390677_112040_Linux-x86-64_3of7.zip
[root@rhel6 ~]
# chown -R grid:oinstall /opt/grid/
配置 VNC 远程桌面
[root@rhel6 ~]
# yum -y install vnc-server
[root@rhel6 opt]
# su - grid
[grid@rhel6:
/home/grid
]$vncserver
You will require a password to access your desktops.
Password:
Verify:
xauth: creating new authority
file
/home/grid/
.Xauthority
New
'rhel6:1 (grid)'
desktop is rhel6:1
Creating default startup script
/home/grid/
.vnc
/xstartup
Starting applications specified
in
/home/grid/
.vnc
/xstartup
Log
file
is
/home/grid/
.vnc
/rhel6
:1.log
VNC 远程桌面连接配置安装 Grid Infrastructure 组件
[grid@rhel6 ~]$
cd
/opt/grid/
[grid@rhel6 grid]$ .
/runInstaller
选择单节点安装配置 Grid Infrastructure
选择语言环境

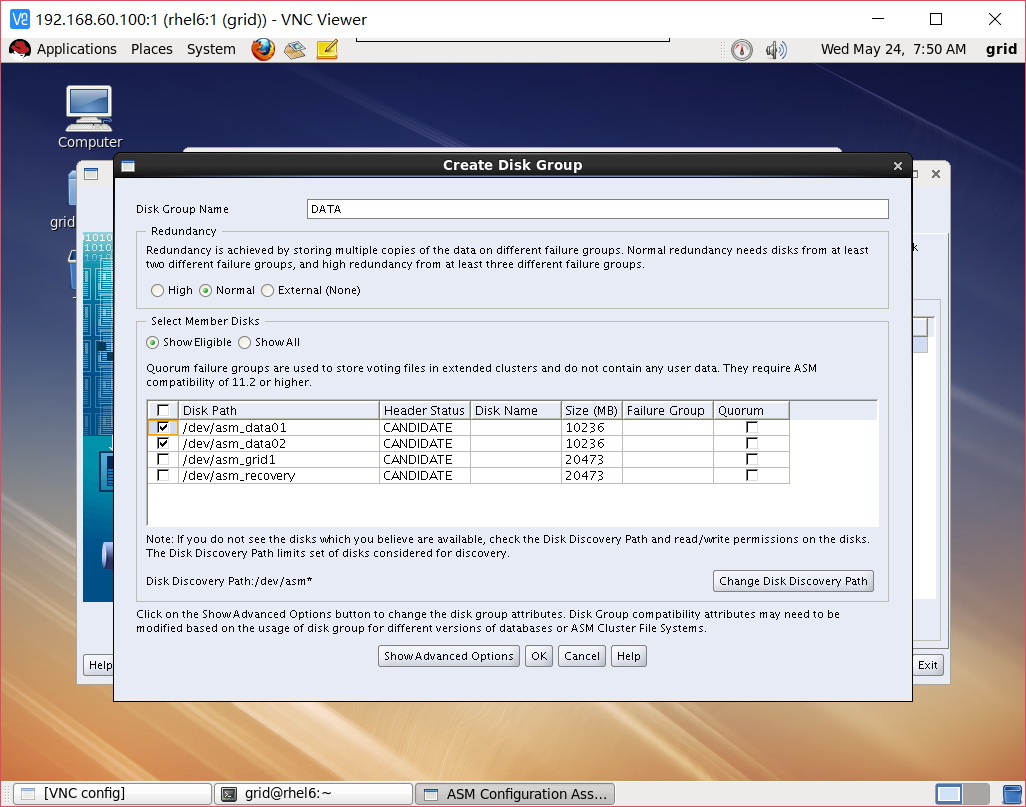

扫描 ASM 磁盘
更多详情见请继续阅读下一页的精彩内容 :http://www.linuxidc.com/Linux/2017-05/144271p2.htm

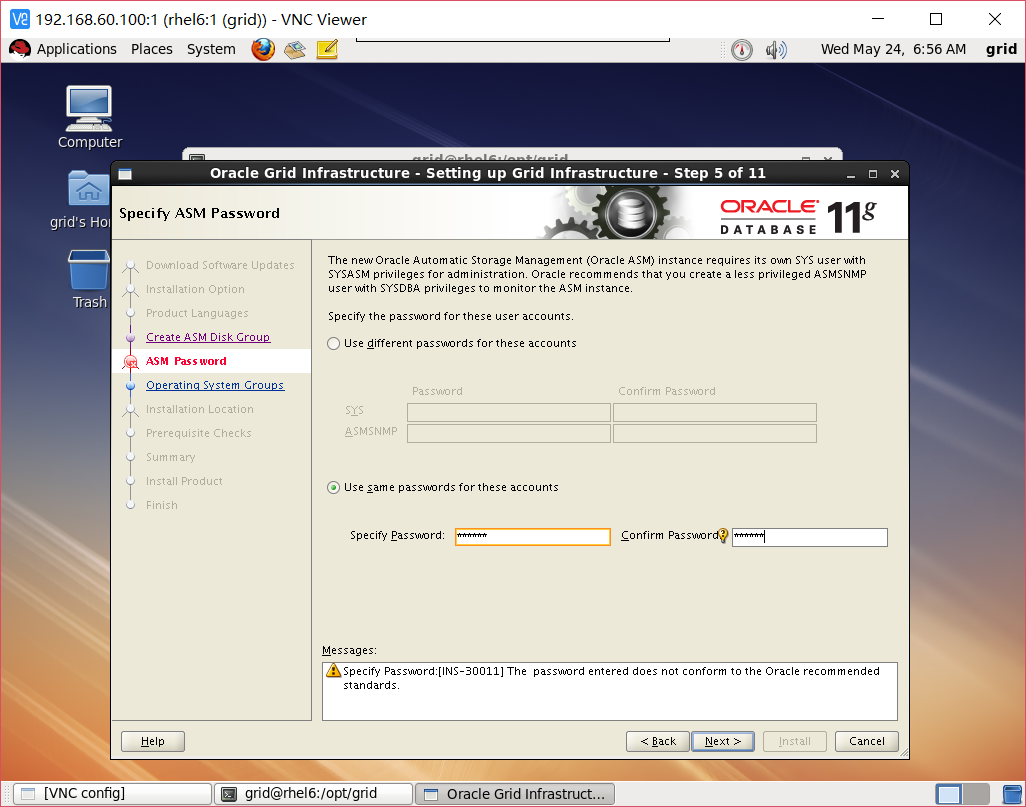

配置统一的账户密码

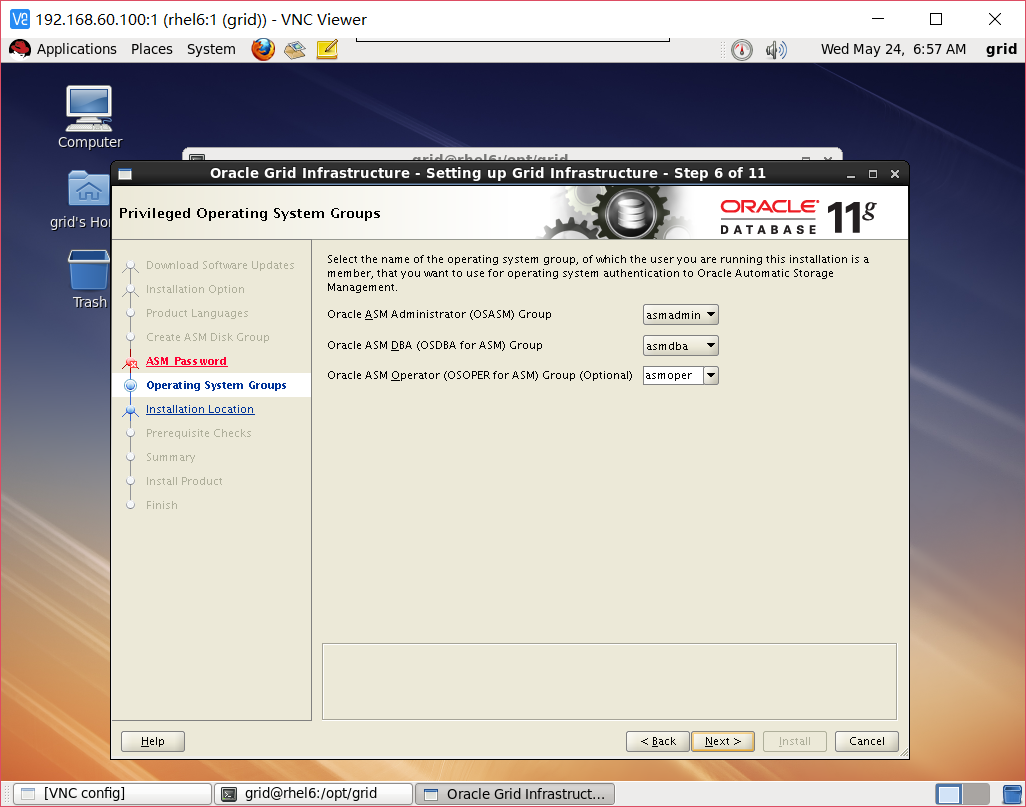

环境变量配置正确的情况下会自动识别用户组

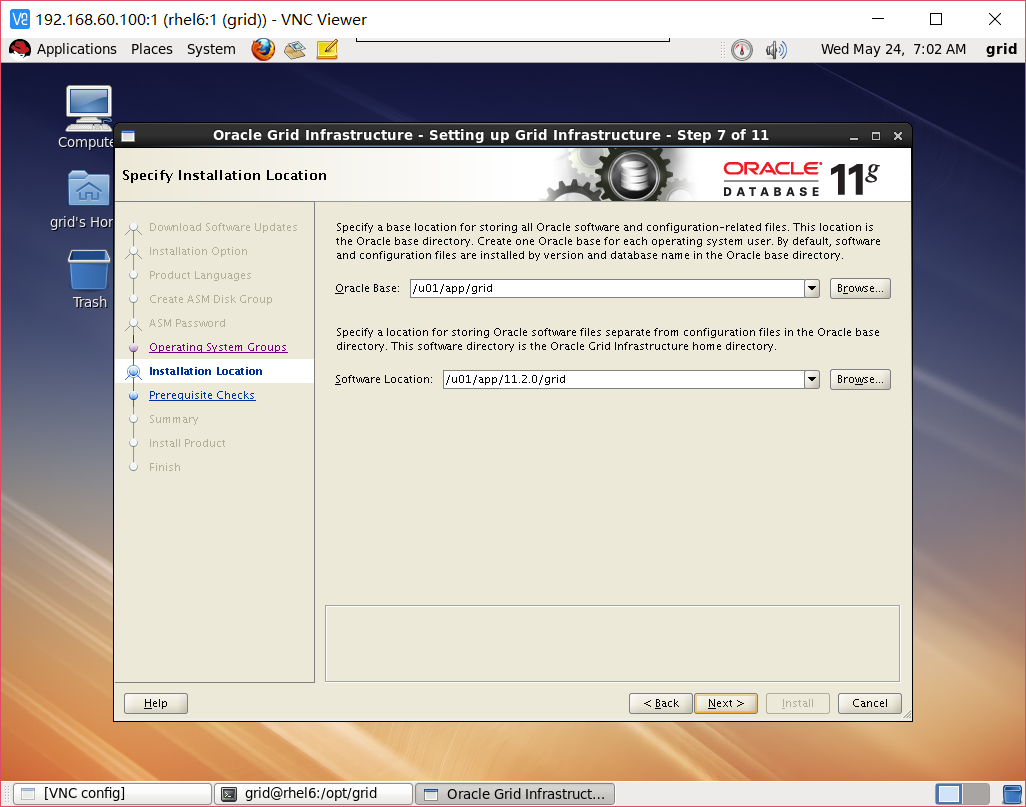

配置安装目录(可手动调整)

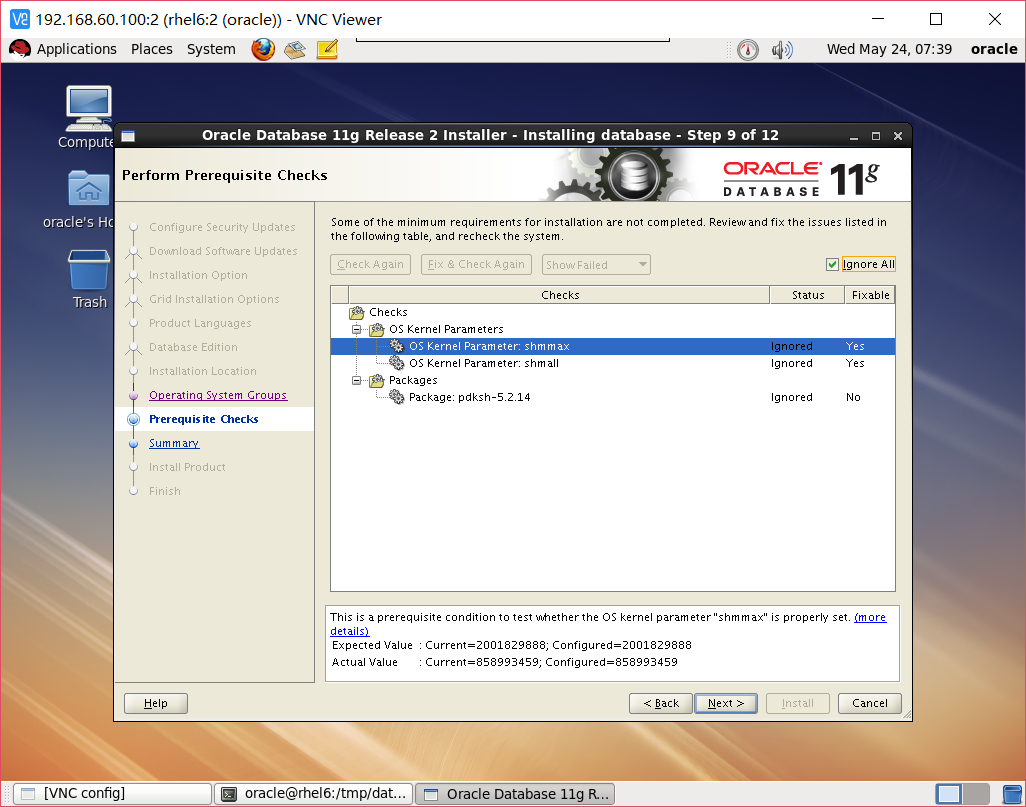

检测依赖包等信息后,出现警告(因测试虚拟机内存较少,未能达到 Oracle 推荐值这里可以忽略)

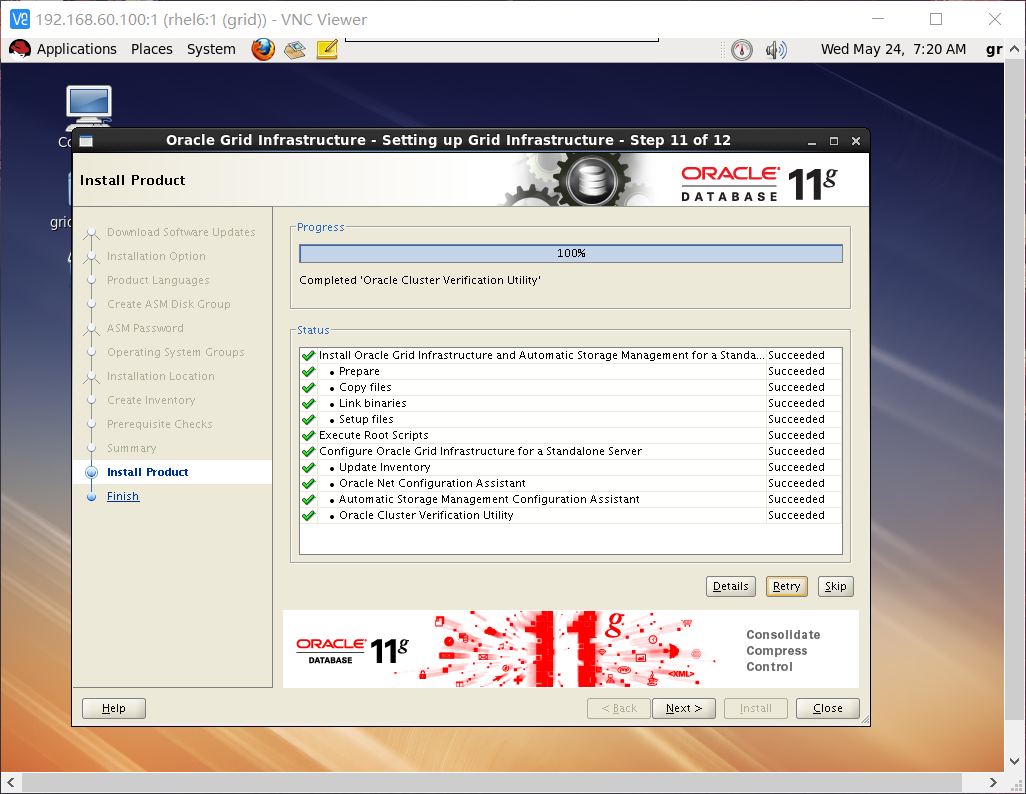

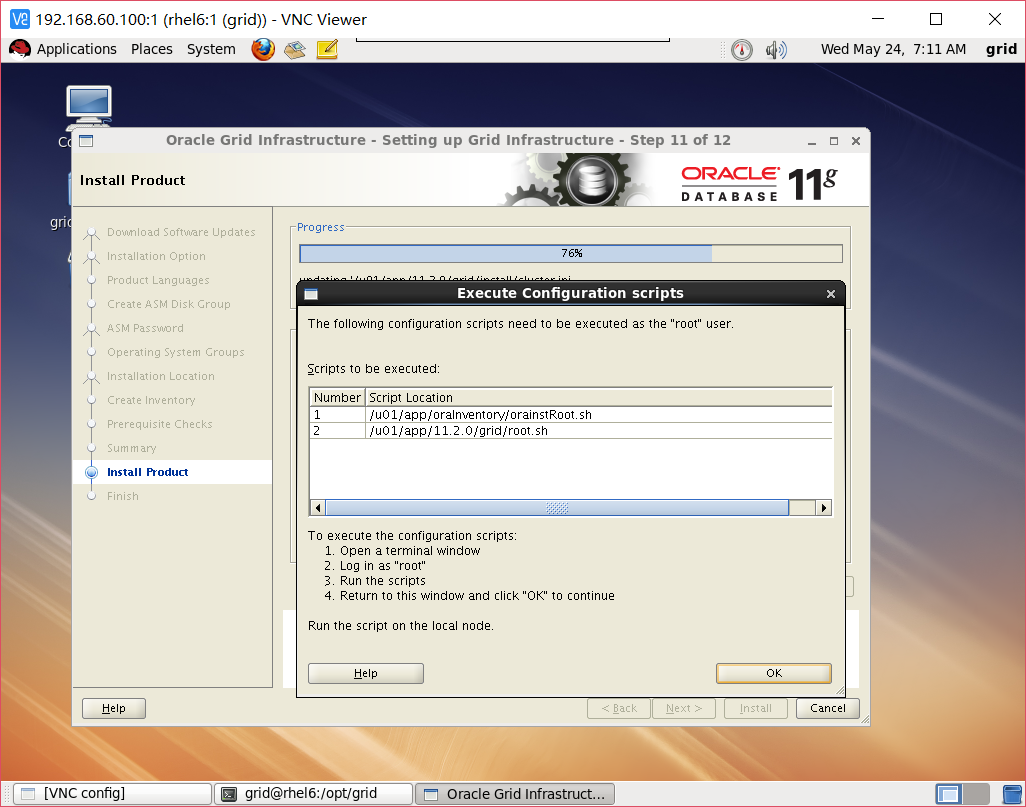

执行所要求的脚本
[root@rhel6 ~]
# /u01/app/oraInventory/orainstRoot.sh
Changing permissions of
/u01/app/oraInventory
.
Adding
read
,write permissions
for
group.
Removing
read
,write,execute permissions
for
world.
Changing groupname of
/u01/app/oraInventory
to oinstall.
The execution of the script is complete.
[root@rhel6 ~]
# /u01/app/11.2.0/grid/root.sh
Performing root user operation
for
Oracle 11g
The following environment variables are
set
as:
ORACLE_OWNER= grid
ORACLE_HOME=
/u01/app/11
.2.0
/grid
Enter the full pathname of the
local
bin directory: [
/usr/local/bin
]:
Copying dbhome to
/usr/local/bin
...
Copying oraenv to
/usr/local/bin
...
Copying coraenv to
/usr/local/bin
...
Creating
/etc/oratab
file
...
Entries will be added to the
/etc/oratab
file
as needed by
Database Configuration Assistant when a database is created
Finished running generic part of root script.
Now product-specific root actions will be performed.
Using configuration parameter
file
:
/u01/app/11
.2.0
/grid/crs/install/crsconfig_params
Creating trace directory
LOCAL ADD MODE
Creating OCR keys
for
user
'grid'
, privgrp
'oinstall'
..
Operation successful.
LOCAL ONLY MODE
Successfully accumulated necessary OCR keys.
Creating OCR keys
for
user
'root'
, privgrp
'root'
..
Operation successful.
CRS-4664: Node rhel6 successfully pinned.
Adding Clusterware entries to upstart
rhel6 2017
/05/24
07:14:47
/u01/app/11
.2.0
/grid/cdata/rhel6/backup_20170524_071447
.olr

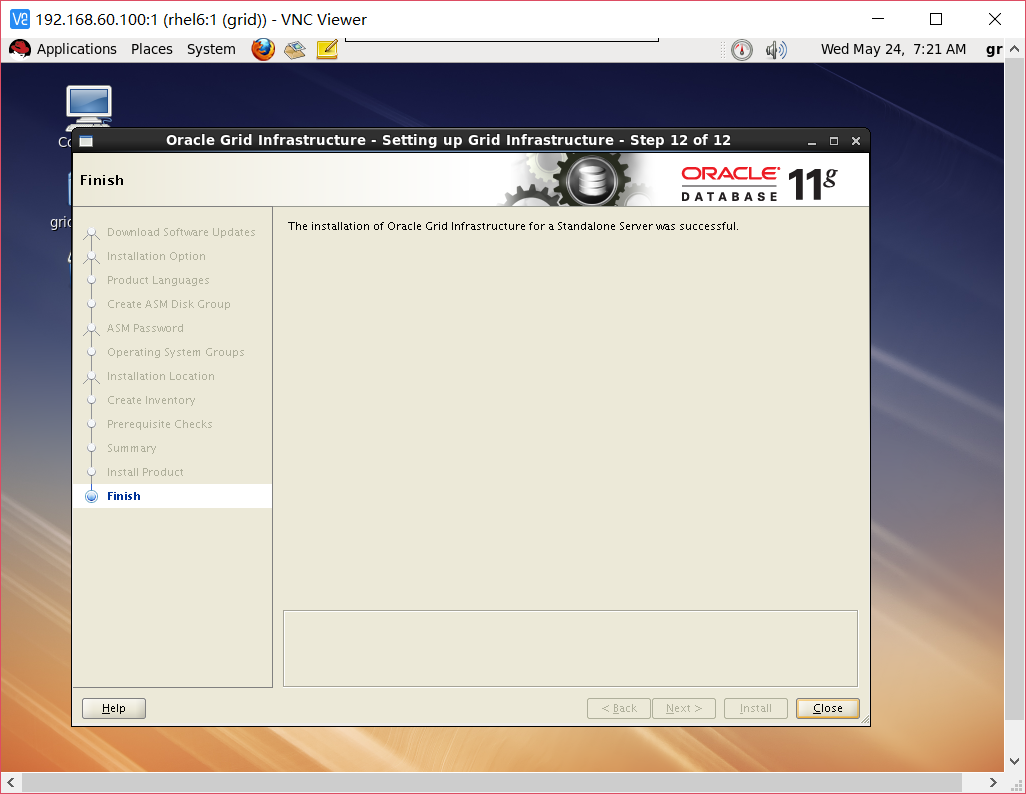

Successfully configured Oracle Grid Infrastructure
for
a Standalone Server
最近在学 Oracle 体系结构等理论知识,在这里总结 RHEL6.5 下安装 Oracle 11g + udev + ASM 安装部署流程。
实验环境
RedHat Enterprise Linux 6.5 x86_64 IP 地址:192.168.60.100
Oracle 11g release 11.2.0.4
系统安装在此略过,IP 地址已经更改完成,首先通过 ssh 协议登陆到 RHEL 系统,配置 YUM 本地源环境,安装 Oracle 所必须的软件依赖包;
[c:\~]$
ssh
root@192.168.60.100
[root@rhel6 ~]
# vi /etc/yum.conf
[
local
]
//
修改本地 YUM 源环境;
name=
local
baseurl=
file
:
///mnt
gpgcheck=0
enabled=1
[root@rhel6 ~]
# mount /dev/sr0 /mnt/ // 挂载本地光盘作为 YUM 源;
mount
: block device
/dev/sr0
is write-protected, mounting
read
-only
[root@rhel6 ~]
# yum repolist // 检测本地 YUM 源配置是否正确;
Loaded plugins: product-
id
, refresh-packagekit, security,
: subscription-manager
This system is not registered to Red Hat Subscription Management. You can use subscription-manager to register.
local
| 3.9 kB 00:00 ...
local
/primary_db
| 3.1 MB 00:00 ...
repo
id
repo name status
local
local
3,690
repolist: 3,690
[root@rhel6 ~]
#yum install binutils -y // 通过 YUM 安装 Oracle 所必须的软件包;
[root@rhel6 ~]
#yum install compat-libcap1 -y
[root@rhel6 ~]
#yum install compat-libstdc++-33 -y
[root@rhel6 ~]
#yum install gcc -y
[root@rhel6 ~]
#yum install gcc-c++ -y
[root@rhel6 ~]
#yum install glibc -y
[root@rhel6 ~]
#yum install glibc-devel -y
[root@rhel6 ~]
#yum install ksh -y
[root@rhel6 ~]
#yum install libgcc -y
[root@rhel6 ~]
#yum install libstdc++ -y
[root@rhel6 ~]
#yum install libstdc++-devel -y
[root@rhel6 ~]
#yum install libaio -y
[root@rhel6 ~]
#yum install libaio-devel -y
[root@rhel6 ~]
#yum install libXext -y
[root@rhel6 ~]
#yum install libXtst -y
[root@rhel6 ~]
#yum install libX11 -y
[root@rhel6 ~]
#yum install libXau -y
[root@rhel6 ~]
#yum install libxcb -y
[root@rhel6 ~]
#yum install libXi -y
[root@rhel6 ~]
#yum install make -y
[root@rhel6 ~]
#yum install sysstat -y
[root@rhel6 ~]
#yum install unixODBC -y
[root@rhel6 ~]
#yum install unixODBC-devel -y
修改相应的系统主机名以及 IP 地址
[root@rhel6 ~]
# vi /etc/hosts
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
192.168.60.100 rhel6
添加相应的 grid 用户及用户组
[root@rhel6 ~]
# groupadd -g 501 oinstall
[root@rhel6 ~]
# groupadd -g 502 dba
[root@rhel6 ~]
# groupadd -g 503 oper
[root@rhel6 ~]
# groupadd -g 504 asmadmin
[root@rhel6 ~]
# groupadd -g 505 asmoper
[root@rhel6 ~]
# groupadd -g 506 asmdba
[root@rhel6 ~]
# useradd -g oinstall -G dba,asmdba,oper oracle
[root@rhel6 ~]
# useradd -g oinstall -G asmadmin,asmdba,asmoper,oper,dba grid
[root@rhel6 ~]
# passwd oracle
[root@rhel6 ~]
# passwd grid
创建 Grid Infrastructure 组件安装目录
[root@rhel6 ~]
# mkdir -p /u01/app/grid
[root@rhel6 ~]
# mkdir -p /u01/app/11.2.0/grid
[root@rhel6 ~]
# chown -R grid:oinstall /u01
[root@rhel6 ~]
# mkdir -p /u01/app/oraInventory
[root@rhel6 ~]
# chown -R grid:oinstall /u01/app/oraInventory
[root@rhel6 ~]
# mkdir -p /u01/app/oracle
[root@rhel6 ~]
# chown -R oracle:oinstall /u01/app/oracle
[root@rhel6 ~]
# chmod -R 775 /u01
修改操作系统参数
[root@rhel6 ~]
# vi /etc/security/limits.conf
grid soft nproc 2047
grid hard nproc 16384
grid soft nofile 1024
grid hard nofile 65536
grid soft stack 10240
grid hard stack 32768
oracle soft nproc 2047
oracle hard nproc 16384
oracle soft nofile 1024
oracle hard nofile 65536
oracle soft stack 10240
oracle hard stack 32768
修改 Linux 服务器 ulmits 限制
[root@rhel6 ~]
# vi /etc/security/limits.d/90-nproc.conf
#* soft nproc 1024
* - nproc 16384
禁用 SELINUX 安全限制
[root@rhel6 ~]
# vi /etc/selinux/config
SELINUX=disabled
//
修改配置文件永久关闭 selinux;
[root@rhel6 ~]
# setenforce 0
关闭 IPTABLES 防火墙
[root@rhel6 ~]
# service iptables stop
iptables: Setting chains to policy ACCEPT: filter [OK]
iptables: Flushing firewall rules: [OK]
iptables: Unloading modules: [OK]
[root@rhel6 ~]
# chkconfig --level 35 iptables off //3、5 级别永久关闭 iptables;
修改 Linux 操作系统的登陆配置文件
[root@rhel6 ~]
# vi /etc/pam.d/login
session required pam_limits.so
修改 Linux 系统内核 Kernel 配置
[root@rhel6 ~]
# vi /etc/sysctl.conf
#kernel.shmmax = 68719476736 // 注释掉原先的系统的配置;
#kernel.shmall = 4294967296
fs.aio-max-nr = 1048576
fs.
file
-max = 6815744
kernel.shmmax = 858993459
//
大于 SGA, 小于物理内存;
kernel.shmall = 1048576
//
物理内存 %4K;
kernel.shmmni = 4096
kernel.sem = 250 32000 100 128
net.ipv4.ip_local_port_range = 9000 65500
net.core.rmem_default = 262144
net.core.rmem_max = 4194304
net.core.wmem_default = 262144
net.core.wmem_max = 1048586
[root@rhel6 ~]
# sysctl -p
配置 grid 和 oracle 用户的环境变量
[root@rhel6 ~]
# su - grid //grid 用户环境变量配置;
[grid@rhel6 ~]$
vi
.bash_profile
PS1=
"[`whoami`@`hostname`:"
'$PWD]$'
export
PS1
umask
022
export
TMP=
/tmp
export
LANG=en_US
export
TMPDIR=$TMP
export
ORACLE_HOSTNAME=rhel6
ORACLE_SID=+ASM;
export
ORACLE_SID
ORACLE_TERM=xterm;
export
ORACLE_TERM
ORACLE_BASE=
/u01/app/grid
;
export
ORACLE_BASE
ORACLE_HOME=
/u01/app/11
.2.0
/grid
;
export
ORACLE_HOME
NLS_DATE_FORMAT=
"yyyy-mm-dd HH24:MI:SS"
;
export
NLS_DATE_FORMAT
PATH=.:$PATH:$HOME
/bin
:$ORACLE_HOME
/bin
;
export
PATH
THREADS_FLAG=native;
export
THREADS_FLAG
if
[$USER =
"oracle"
] || [$USER =
"grid"
];
then
if
[$SHELL =
"/bin/ksh"
];
then
ulimit
-p 16384
ulimit
-n 65536
else
ulimit
-u 16384 -n 65536
fi
umask
022
fi
----------------------------------------------------------------------------
[root@rhel6 ~]
# su - oracle
[oracle@rhel6 ~]$
vi
.bash_profile
TMP=
/tmp
;
export
TMP
TMPDIR=$TMP;
export
TMPDIR
export
LANG=en_US
ORACLE_BASE=
/u01/app/oracle
;
export
ORACLE_BASE
ORACLE_HOME=$ORACLE_BASE
/product/11
.2.0;
export
ORACLE_HOME
ORACLE_SID=itpuxdb;
export
ORACLE_SID
export
ORACLE_UNQNAME=orcl
ORACLE_TERM=xterm;
export
ORACLE_TERM
PATH=
/usr/sbin
:$PATH;
export
PATH
PATH=$ORACLE_HOME
/bin
:$PATH;
export
PATH
LD_LIBRARY_PATH=$ORACLE_HOME
/lib
:
/lib
:
/usr/lib
;
export
LD_LIBRARY_PATH
CLASSPATH=$ORACLE_HOME
/JRE
:$ORACLE_HOME
/jlib
:$ORACLE_HOME
/rdbms/jlib
;
export
CLASSPATH
NLS_DATE_FORMAT=
"yyyy-mm-dd HH24:MI:SS"
;
export
NLS_DATE_FORMAT
NLS_LANG=AMERICAN_AMERICA.ZHS16GBK;
export
NLS_LANG
if
[$USER =
"oracle"
] || [$USER =
"grid"
];
then
if
[$SHELL =
"/bin/ksh"
];
then
ulimit
-p 16384
ulimit
-n 65536
else
ulimit
-u 16384 -n 65536
fi
umask
022
fi
配置 udev 配置 ASM(在此系统所用磁盘为 /dev/sda),
[root@rhel6 ~]# fdisk /dev/(sdb\sdc\sdd\sde\sdf)
// 对磁盘进行分区;
[root@rhel6 ~]# vi /etc/udev/rules.d/
99
-oracle-asmdevices.rules
KERNEL==
"sdb1"
, NAME=
"asm_grid1"
, OWNER=
"grid"
, GROUP=
"asmadmin"
, MODE=
"0660"
KERNEL==
"sdc1"
, NAME=
"asm_system"
, OWNER=
"grid"
, GROUP=
"asmadmin"
, MODE=
"0660"
KERNEL==
"sdd1"
, NAME=
"asm_recovery"
, OWNER=
"grid"
, GROUP=
"asmadmin"
, MODE=
"0660"
KERNEL==
"sde1"
, NAME=
"asm_data01"
, OWNER=
"grid"
, GROUP=
"asmadmin"
, MODE=
"0660"
KERNEL==
"sdf1"
, NAME=
"asm_data02"
, OWNER=
"grid"
, GROUP=
"asmadmin"
, MODE=
"0660"
[root@rhel6 ~]# partprobe /dev/sdb1
[root@rhel6 ~]# partprobe /dev/sdc1
[root@rhel6 ~]# partprobe /dev/sdd1
[root@rhel6 ~]# partprobe /dev/sde1
[root@rhel6 ~]# partprobe /dev/sdf1
[root@rhel6 ~]# udevadm control --reload-rules
[root@rhel6 ~]# start_udev
Starting udev: [OK]
[root@rhel6 ~]# ls -lsa /dev/asm*
0
brw-rw----.
1
grid asmadmin
8
,
65
May
24
05
:
48
/dev/asm_data01
0
brw-rw----.
1
grid asmadmin
8
,
81
May
24
05
:
48
/dev/asm_data02
0
brw-rw----.
1
grid asmadmin
8
,
17
May
24
05
:
48
/dev/asm_grid1
0
brw-rw----.
1
grid asmadmin
8
,
49
May
24
05
:
48
/dev/asm_recovery
0
brw-rw----.
1
grid asmadmin
8
,
33
May
24
05
:
48
/dev/asm_system
上传 Oracle 安装包到服务器
[root@rhel6 ~]
#yum -y install lrzsz // 安装 xshell 所用的 FTP 软件;
[root@rhel6 ~]
#unzip p13390677_112040_Linux-x86-64_3of7.zip
[root@rhel6 ~]
# chown -R grid:oinstall /opt/grid/
配置 VNC 远程桌面
[root@rhel6 ~]
# yum -y install vnc-server
[root@rhel6 opt]
# su - grid
[grid@rhel6:
/home/grid
]$vncserver
You will require a password to access your desktops.
Password:
Verify:
xauth: creating new authority
file
/home/grid/
.Xauthority
New
'rhel6:1 (grid)'
desktop is rhel6:1
Creating default startup script
/home/grid/
.vnc
/xstartup
Starting applications specified
in
/home/grid/
.vnc
/xstartup
Log
file
is
/home/grid/
.vnc
/rhel6
:1.log
VNC 远程桌面连接配置安装 Grid Infrastructure 组件
[grid@rhel6 ~]$
cd
/opt/grid/
[grid@rhel6 grid]$ .
/runInstaller
选择单节点安装配置 Grid Infrastructure
选择语言环境
扫描 ASM 磁盘
更多详情见请继续阅读下一页的精彩内容 :http://www.linuxidc.com/Linux/2017-05/144271p2.htm
配置安装成功
配置安装 Oracle 客户端
[root@rhel6 opt]
# su - oracle
[oracle@rhel6 ~]$ vncserver
You will require a password to access your desktops.
Password:
Verify:
xauth: creating new authority
file
/home/oracle/
.Xauthority
New
'rhel6:2 (oracle)'
desktop is rhel6:2
Creating default startup script
/home/oracle/
.vnc
/xstartup
Starting applications specified
in
/home/oracle/
.vnc
/xstartup
Log
file
is
/home/oracle/
.vnc
/rhel6
:2.log
[root@rhel6 opt]
# unzip p13390677_112040_Linux-x86-64_1of7.zip
[root@rhel6 opt]
# unzip p13390677_112040_Linux-x86-64_2of7.zip
[root@rhel6 opt]
# chown -R oracle.oinstall database/
VNC 远程桌面安装 Oracle 软件
[oracle@rhel6 database]$ .
/runInstaller

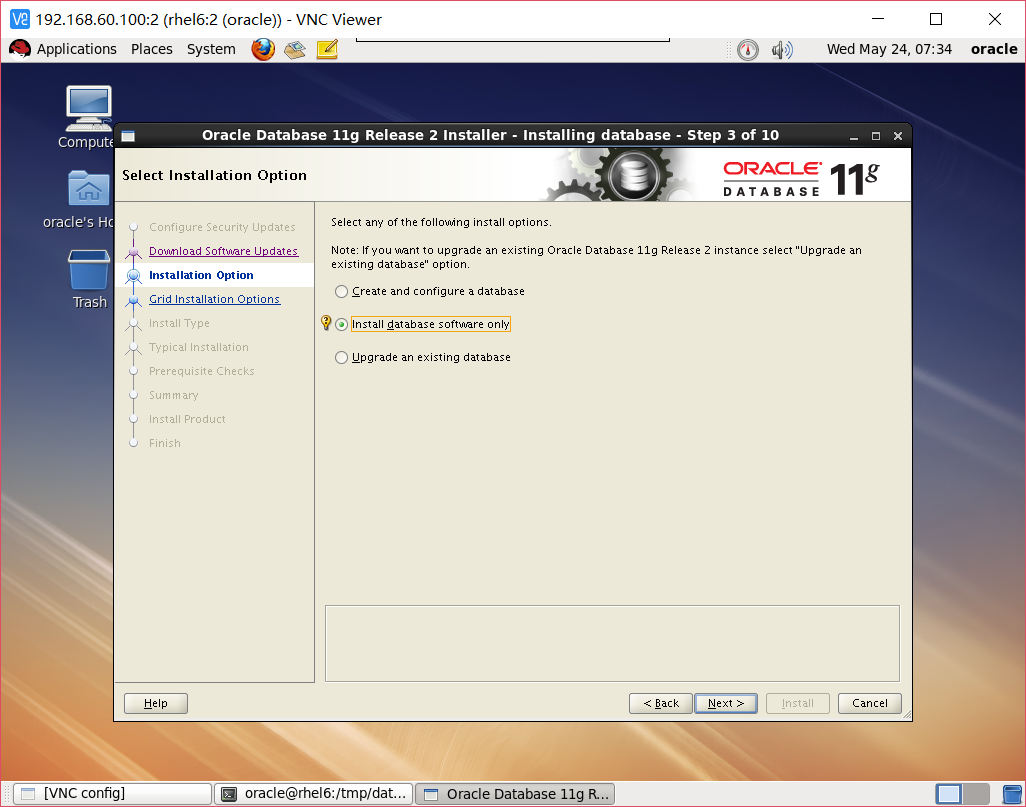

选择只安装 Oracle 软件(后续再建实例)

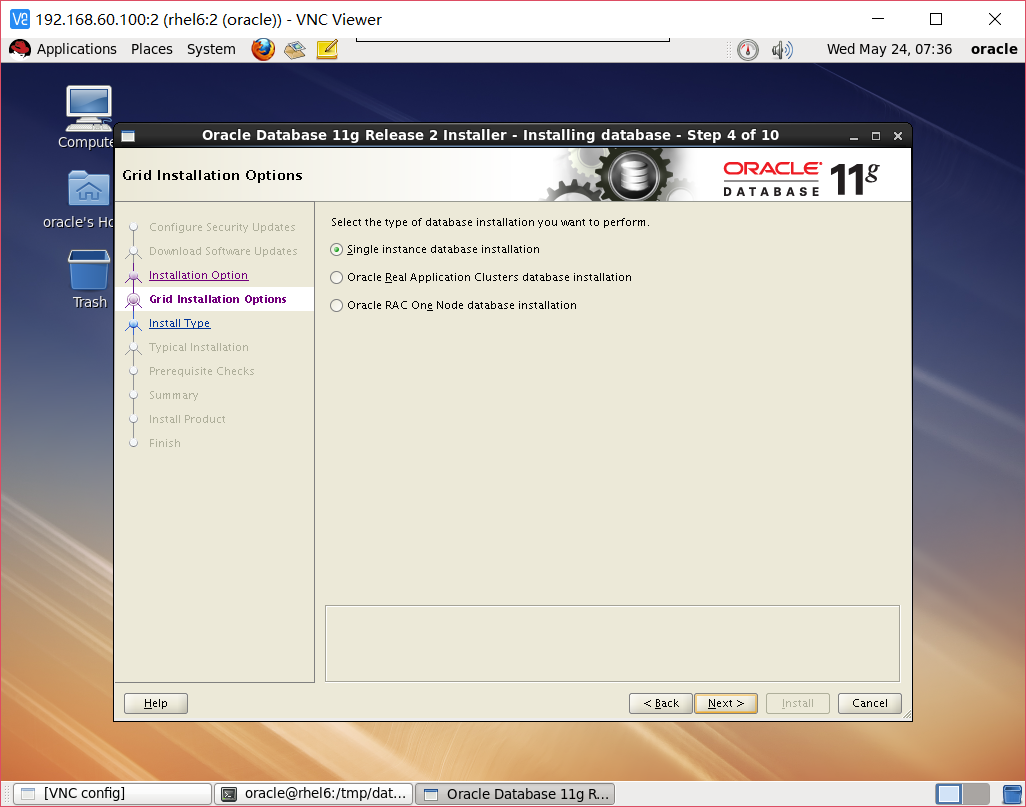

选择单实例节点安装
选择安装企业版
Oracle 数据库软件安装位置(环境变量读取正确不需要修改)
由于测试环境内存偏小,所以这里可以忽略警告继续安装
以 root 用户执行所需的脚本
[root@rhel6 tmp]
# /u01/app/oracle/product/11.2.0/root.sh
Performing root user operation
for
Oracle 11g
The following environment variables are
set
as:
ORACLE_OWNER= oracle
ORACLE_HOME=
/u01/app/oracle/product/11
.2.0
Enter the full pathname of the
local
bin directory: [
/usr/local/bin
]:
The contents of
"dbhome"
have not changed. No need to overwrite.
The contents of
"oraenv"
have not changed. No need to overwrite.
The contents of
"coraenv"
have not changed. No need to overwrite.
Entries will be added to the
/etc/oratab
file
as needed by
Database Configuration Assistant when a database is created
Finished running generic part of root script.
Now product-specific root actions will be performed.
Finished product-specific root actions.

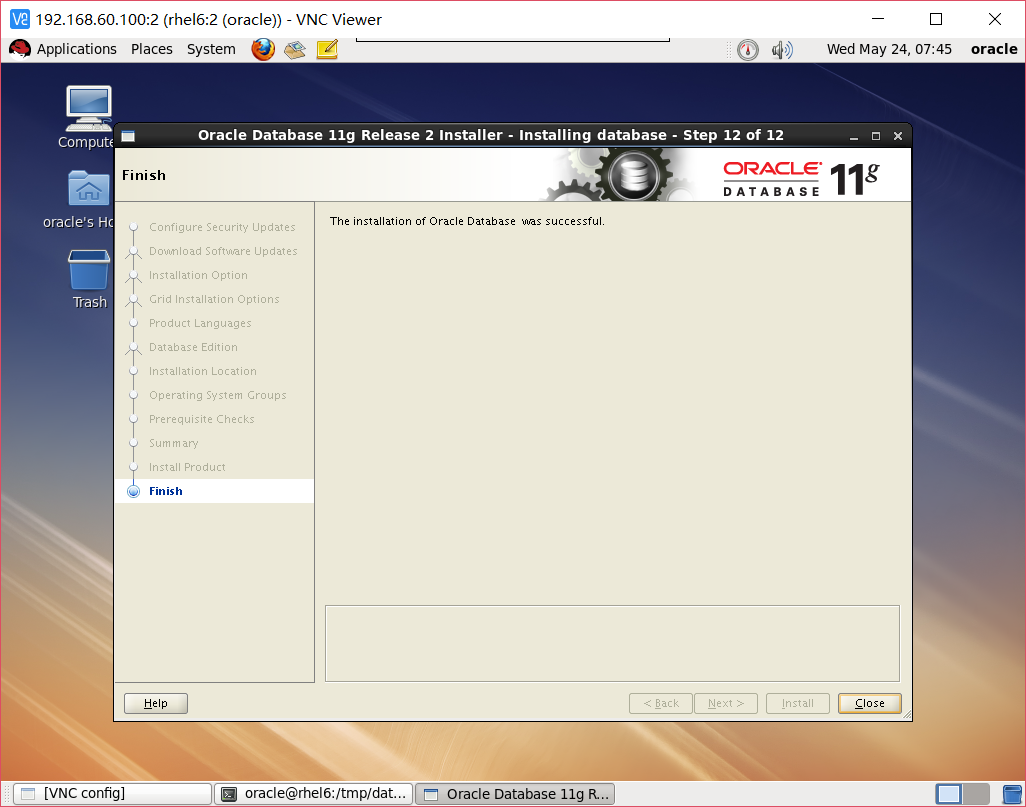

安装完成
Oracle 和 ASM 配置安装完成接下来安装配置 ASM,建 instance
以 grid 用户远程桌面登陆,配置 ASM 磁盘
[grid@rhel6:
/home/grid
]$asmca

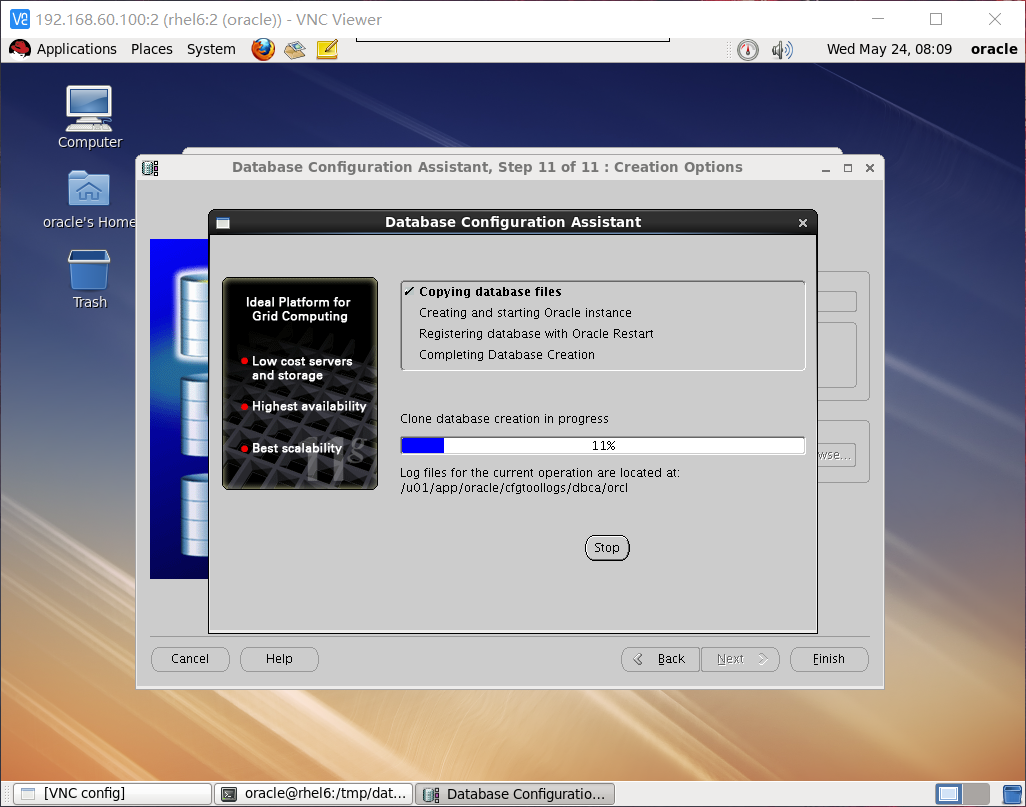

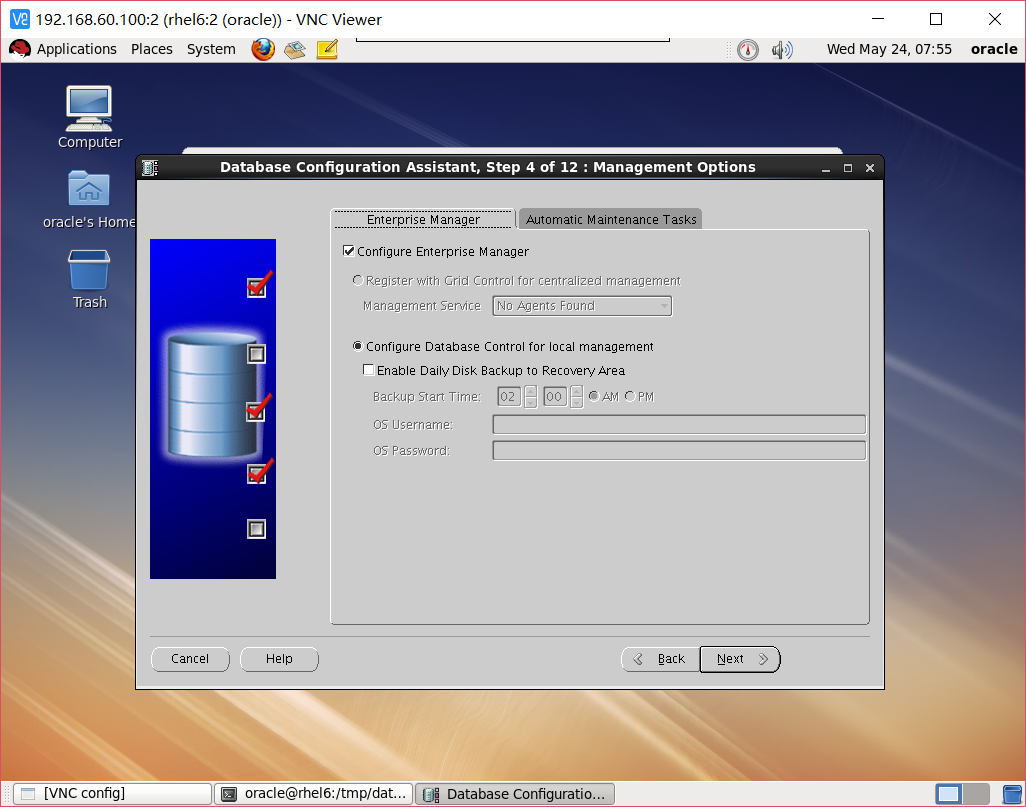

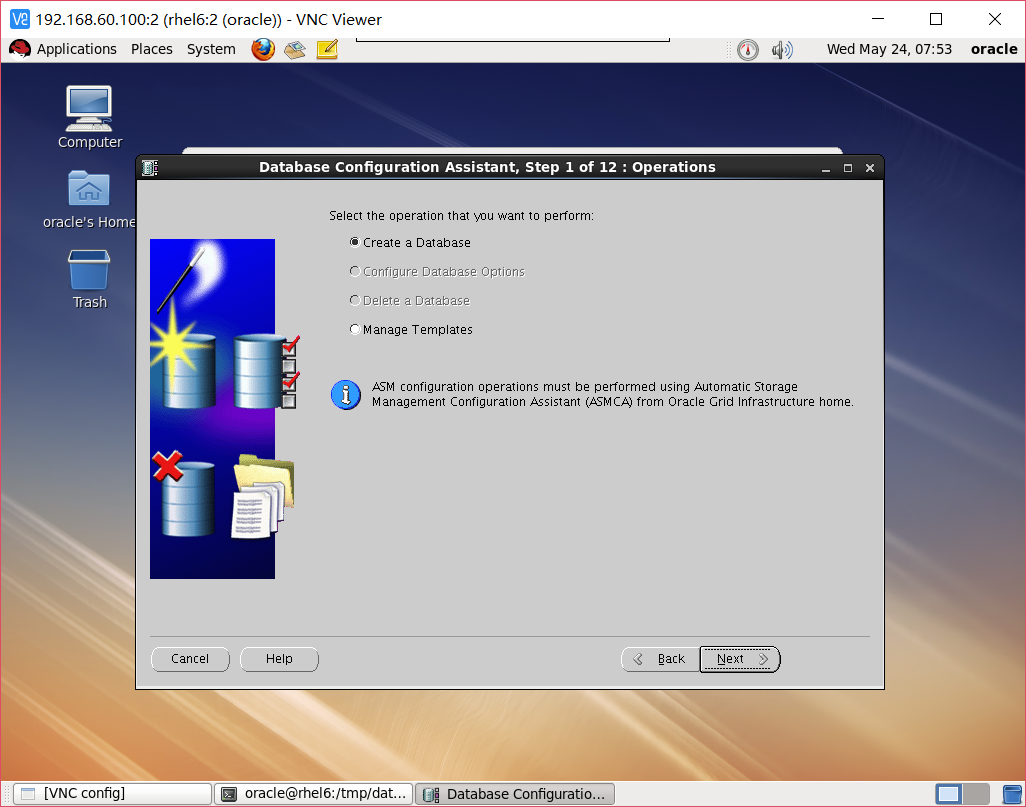

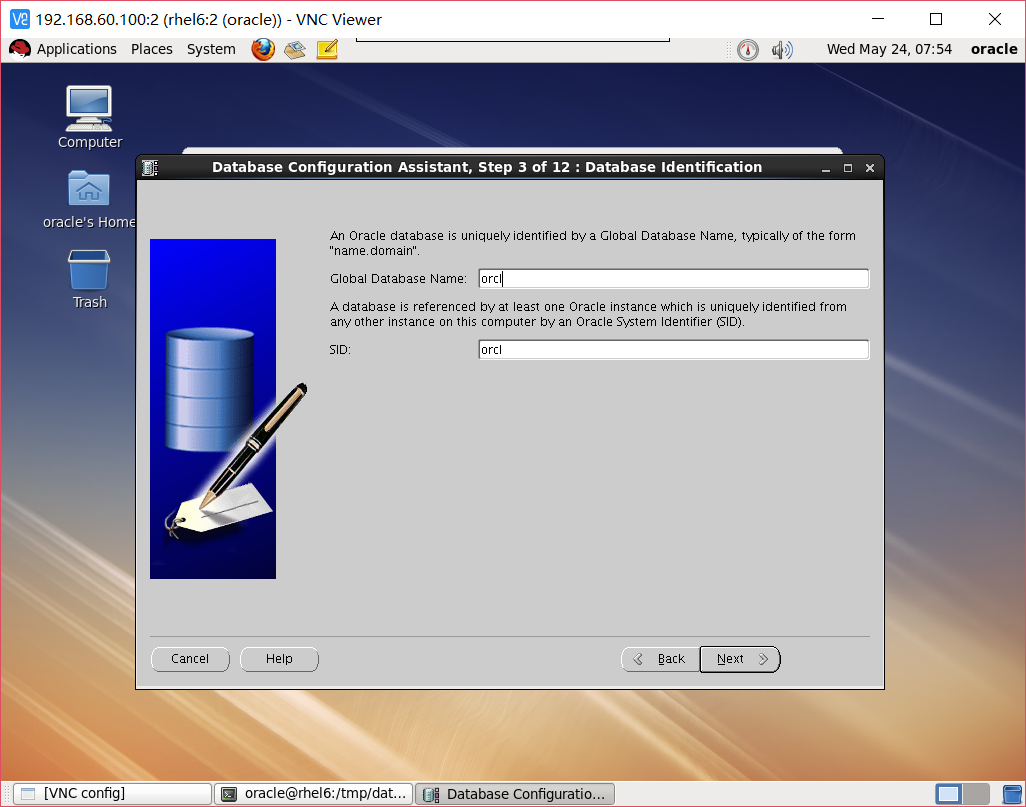

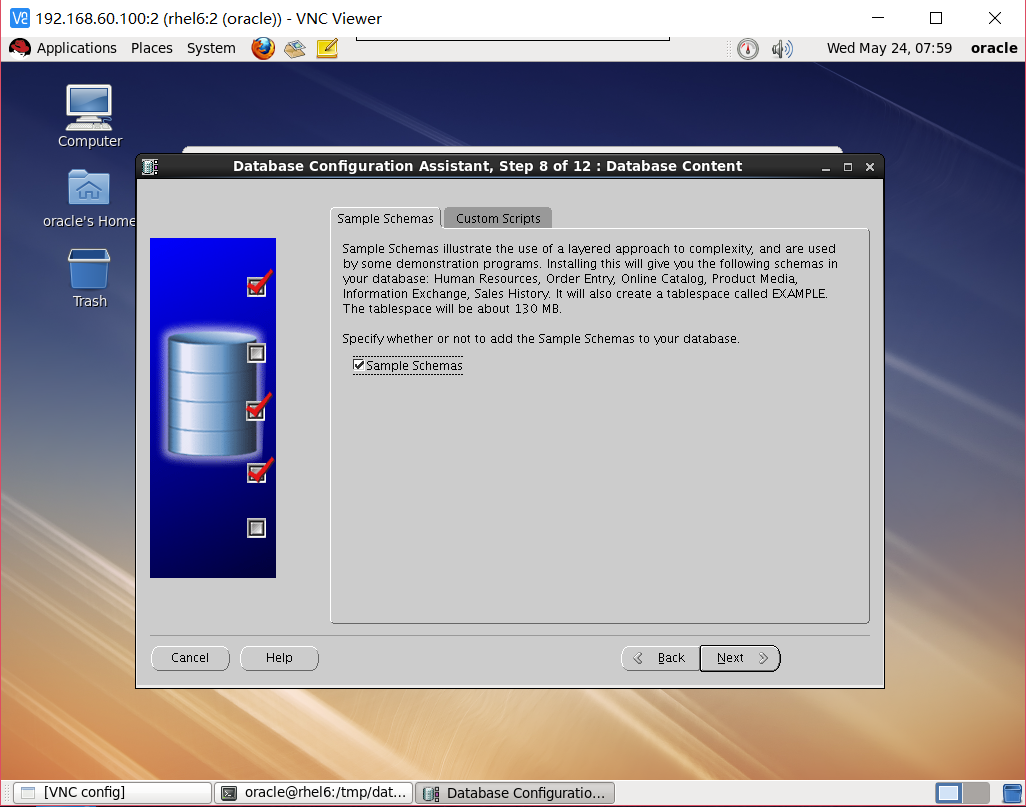

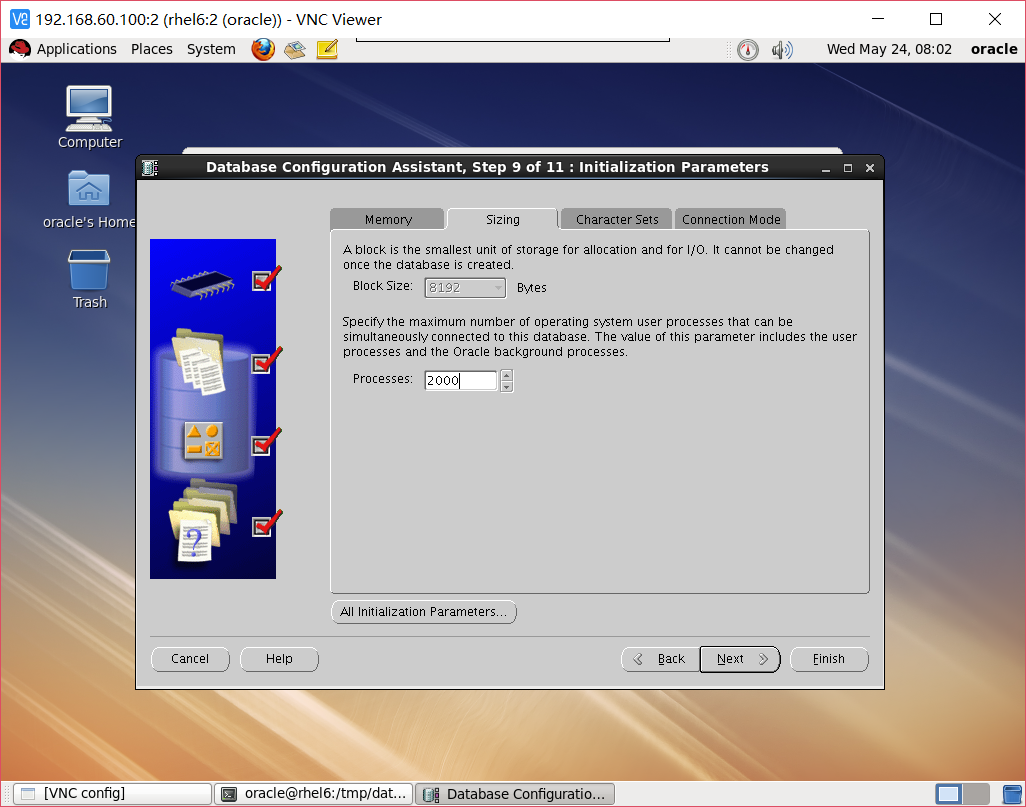

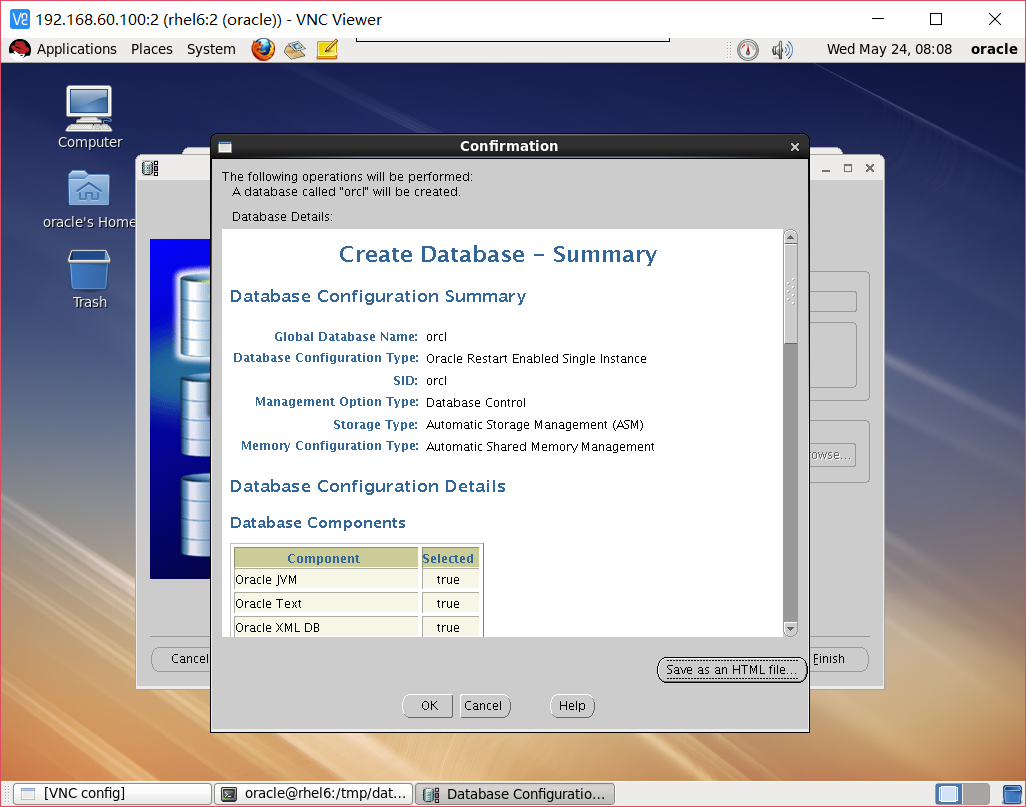

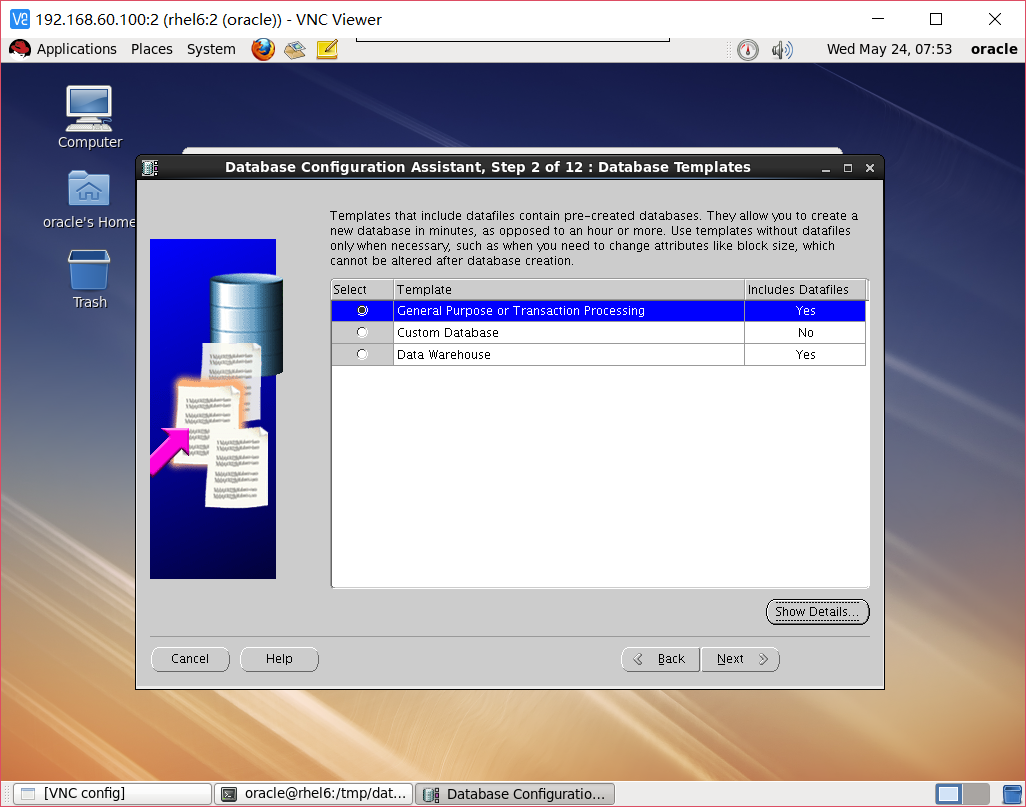

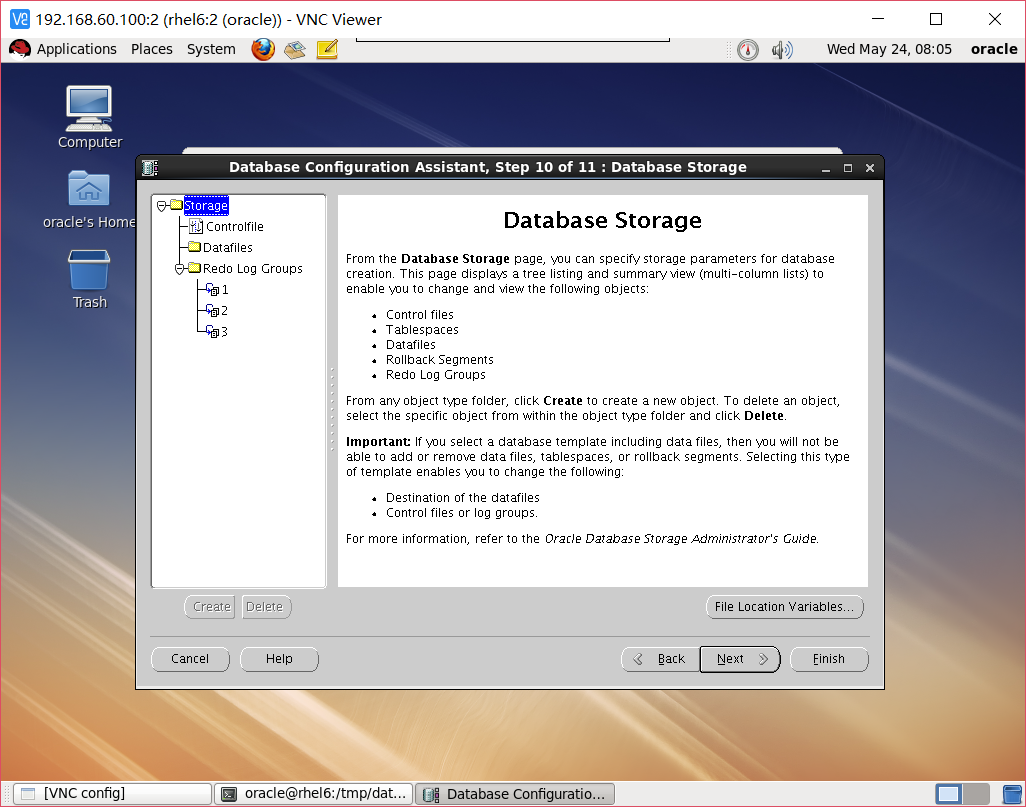

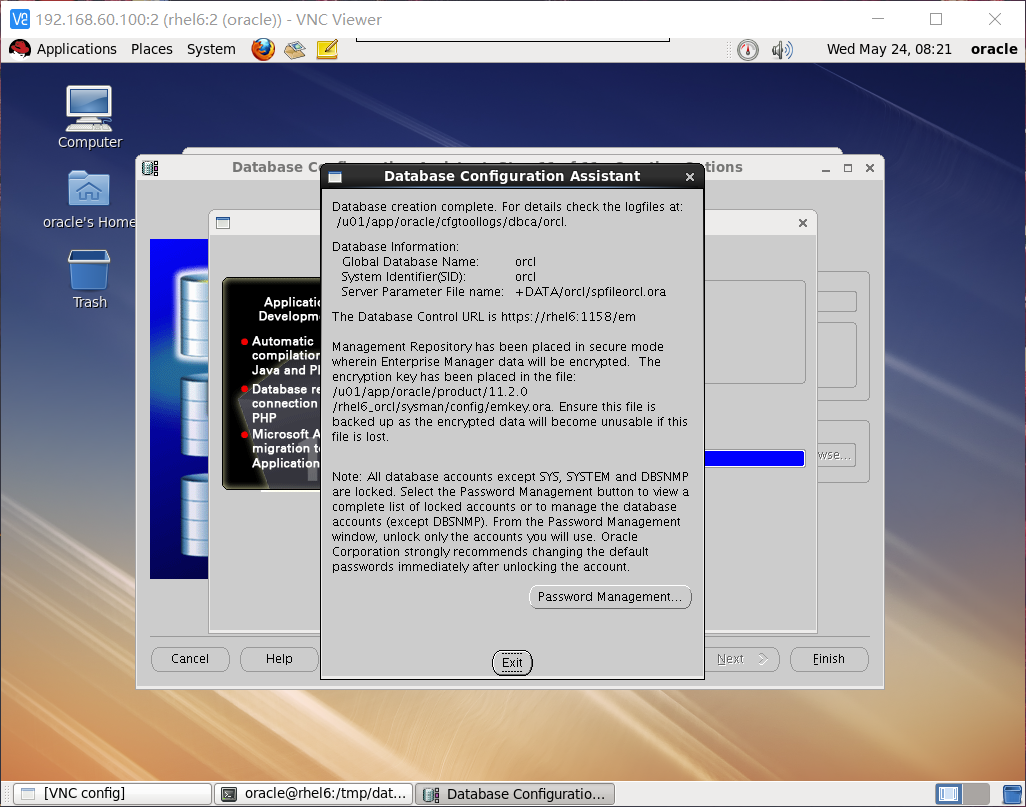

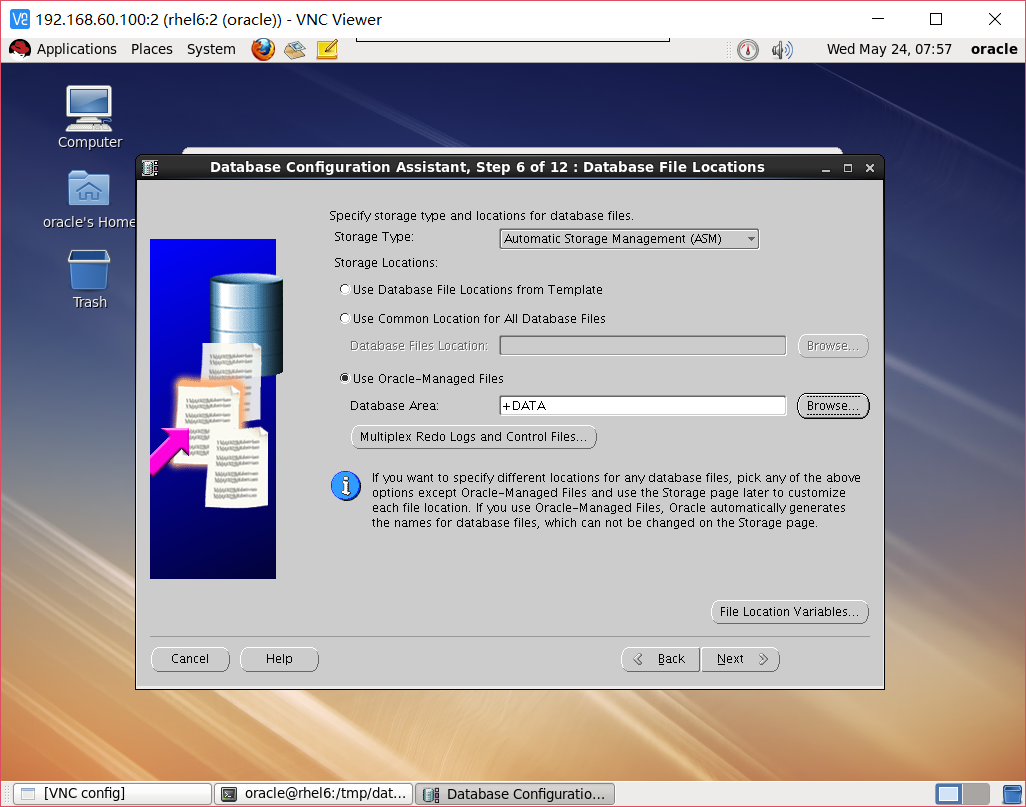

以 oracle 用户远程桌面登陆,配置创建数据库
[oracle@rhel6 database]$ dbca
选择创建数据库
由于这里是实验环境选择第一项
配置 instance 名
由于这里是实验环境,选择启用 OEM,不勾选快速闪回
配置统一的密码
在此选择 ASM 磁盘而非 file system,选择创建的 ASM 磁盘组
实验环境勾选实例
配置 SGA、PGA 空间大小,配置中文字符集 ZHFS16GBK,配置并发连接数,配置专用共享池
在此可配置数据文件大小以及自动扩展、redo log 组配置,(实验环境在此不做过多配置)
在此可将数据配置文件等信息导出(方便后续文档撰写)
创建数据库中 …
数据库安装完成
以 grid 用户查看集群状态及监听状态
[grid@rhel6:
/home/grid
]$crsctl status resource -t
--------------------------------------------------------------------------------
NAME TARGET STATE SERVER STATE_DETAILS
--------------------------------------------------------------------------------
Local Resources
--------------------------------------------------------------------------------
ora.DATA.dg
ONLINE ONLINE rhel6
ora.DSG.dg
ONLINE ONLINE rhel6
ora.LISTENER.lsnr
ONLINE ONLINE rhel6
ora.asm
ONLINE ONLINE rhel6 Started
ora.ons
OFFLINE OFFLINE rhel6
--------------------------------------------------------------------------------
Cluster Resources
--------------------------------------------------------------------------------
ora.cssd
1 ONLINE ONLINE rhel6
ora.diskmon
1 OFFLINE OFFLINE
ora.evmd
1 ONLINE ONLINE rhel6
ora.orcl.db
1 ONLINE ONLINE rhel6 Open
------------------------------------------------------------------------
[grid@rhel6:
/home/grid
]$lsnrctl status
LSNRCTL
for
Linux: Version 11.2.0.4.0 - Production on 24-MAY-2017 08:28:36
Copyright (c) 1991, 2013, Oracle. All rights reserved.
Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=IPC)(KEY=EXTPROC1521)))
STATUS of the LISTENER
------------------------
Alias LISTENER
Version TNSLSNR
for
Linux: Version 11.2.0.4.0 - Production
Start Date 24-MAY-2017 07:15:42
Uptime 0 days 1 hr. 12 min. 53 sec
Trace Level off
Security ON: Local OS Authentication
SNMP OFF
Listener Parameter File
/u01/app/11
.2.0
/grid/network/admin/listener
.ora
Listener Log File
/u01/app/grid/diag/tnslsnr/rhel6/listener/alert/log
.xml
Listening Endpoints Summary...
(DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=EXTPROC1521)))
(DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=rhel6)(PORT=1521)))
Services Summary...
Service
"+ASM"
has 1 instance(s).
Instance
"+ASM"
, status READY, has 1 handler(s)
for
this service...
Service
"orcl"
has 1 instance(s).
Instance
"orcl"
, status READY, has 1 handler(s)
for
this service...
Service
"orclXDB"
has 1 instance(s).
Instance
"orcl"
, status READY, has 1 handler(s)
for
this service...
The
command
completed successfully
以 oracle 用户登录连接数据库,查询表空间
[oracle@rhel6 database]$ sqlplus / as sysdba
SQL*Plus: Release 11.2.0.4.0 Production on Wed May 24 08:27:56 2017
Copyright (c) 1982, 2013, Oracle. All rights reserved.
Connected to:
Oracle Database 11g Enterprise Edition Release 11.2.0.4.0 - 64bit Production
With the Partitioning, Automatic Storage Management, OLAP, Data Mining
and Real Application Testing options
SQL>
select
* from V$TABLESPACE;
TS
# NAME INC BIG FLA ENC
---------- ------------------------------ --- --- --- ---
0 SYSTEM YES NO YES
1 SYSAUX YES NO YES
2 UNDOTBS1 YES NO YES
4 USERS YES NO YES
3 TEMP NO NO YES
6 EXAMPLE YES NO YES
6 rows selected.
在此,Rhel Linux 环境下的 udev + ASM Oracle 11gR2 安装部署完成,状态正常。
完整 PDF 文档可以到 Linux 公社资源站下载:
—————————————— 分割线 ——————————————
免费下载地址在 http://linux.linuxidc.com/
用户名与密码都是 www.linuxidc.com
具体下载目录在 /2017 年资料 / 5 月 /26 日 /RHEL6.5 安装 Oracle 11g + udev + ASM 安装部署详解 /
下载方法见 http://www.linuxidc.com/Linux/2013-07/87684.htm
—————————————— 分割线 ——————————————
更多 Oracle 相关信息见 Oracle 专题页面 http://www.linuxidc.com/topicnews.aspx?tid=12
本文永久更新链接地址 :http://www.linuxidc.com/Linux/2017-05/144271.htm
