MySQL 5.7 多实例安装部署实例

170次阅读
没有评论

共计 5487 个字符,预计需要花费 14 分钟才能阅读完成。

1. 背景

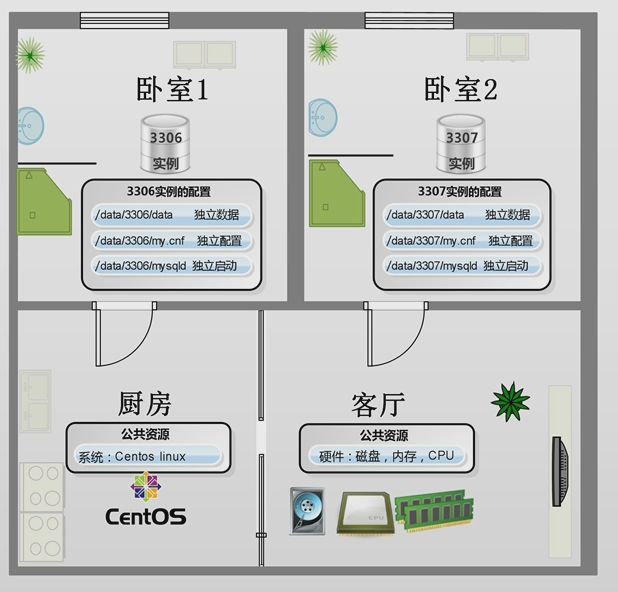

  MySQL 数据库的集中化运维,可以通过在一台服务器上,部署运行多个 MySQL 服务进程,通过不同的 socket 监听不同的服务端口来提供各自的服务。各个实例之间是相互独立的,每个实例的 datadir, port, socket, pid 都是不同的。

2. 多实例特点
  * 有效利用服务器资源,当单个服务器资源有剩余时,可以充分利用剩余的资源提供更多的服务。
  * 资源互相抢占问题,当某个服务实例服务并发很高时或者开启慢查询时,会消耗更多的内存、CPU、磁盘 IO 资源,导致服务器上的其他实例提供服务的质量下降。

MySQL 5.7 多实例安装部署实例

3. 环境 [关闭 SeLinux]
[root@MySQL ~]# cat /etc/RedHat-release
CentOS release 6.9 (Final)

[root@MySQL ~]# uname -r
2.6.32-696.3.2.el6.x86_64

[root@MySQL ~]# getenforce
Disabled

4. 部署 [4 个实例]
  * 下载 MySQL 5.7 二制包 [推荐官方下载] 此下载版本大于 5.7.5
[root@MySQL ~]# wget wget https://dev.mysql.com/get/Downloads/MySQL-5.7/mysql-5.7.18-linux-glibc2.5-x86_64.tar.gz

* 解压 MySQL 5.7 二进制包到指定目录
[root@MySQL ~]# tar zxvf mysql-5.7.18-linux-glibc2.5-x86_64.tar.gz -C /usr/local/

* 创建 MySQL 软链接
[root@MySQL ~]# ln -s /usr/local/mysql-5.7.18-linux-glibc2.5-x86_64 /usr/local/mysql

* 创建 MySQL 用户
[root@MySQL ~]# useradd -r -s /sbin/nologin mysql

* 在 MySQL 二进制包目录中创建 mysql-files 目录 [MySQL 数据导入 / 导出数据专放目录]
[root@MySQL ~]# mkdir -v /usr/local/mysql/mysql-files
mkdir: created directory `/usr/local/mysql/mysql-files’

* 创建多实例数据目录
[root@MySQL ~]# mkdir -vp /data/mysql_data{1..4}
mkdir: created directory `/data’
mkdir: created directory `/data/mysql_data1′
mkdir: created directory `/data/mysql_data2′
mkdir: created directory `/data/mysql_data3′
mkdir: created directory `/data/mysql_data4′

* 修改 MySQL 二进制包目录的所属用户与所属组
1 [root@MySQL ~]# chown root.mysql -R /usr/local/mysql-5.7.18-linux-glibc2.5-x86_64

* 修改 MySQL 多实例数据目录与 数据导入 / 导出专放目录的所属用户与所属组
[root@MySQL ~]# chown mysql.mysql -R /usr/local/mysql/mysql-files /data/mysql_data{1..4}

* 配置 MySQL 配置文件 /etc/my.cnf
[mysqld_multi]
mysqld    = /usr/local/mysql/bin/mysqld
mysqladmin = /usr/local/mysql/bin/mysqladmin
log        = /tmp/mysql_multi.log

[mysqld1]
# 设置数据目录 [多实例中一定要不同]
datadir = /data/mysql_data1
# 设置 sock 存放文件名 [多实例中一定要不同]
socket = /tmp/mysql.sock1
# 设置监听开放端口 [多实例中一定要不同]
port = 3306
# 设置运行用户
user = mysql
# 关闭监控
performance_schema = off
# 设置 innodb 缓存大小
innodb_buffer_pool_size = 32M
# 设置监听 IP 地址
bind_address = 0.0.0.0
# 关闭 DNS 反向解析
skip-name-resolve = 0

[mysqld2]
datadir = /data/mysql_data2
socket = /tmp/mysql.sock2
port = 3307
user = mysql
performance_schema = off
innodb_buffer_pool_size = 32M
bind_address = 0.0.0.0
skip-name-resolve = 0

[mysqld3]
datadir = /data/mysql_data3
socket = /tmp/mysql.sock3
port = 3308
user = mysql
performance_schema = off
innodb_buffer_pool_size = 32M
bind_address = 0.0.0.0
skip-name-resolve = 0

[mysqld4]
datadir = /data/mysql_data4
socket = /tmp/mysql.sock4
port = 3309
user = mysql
performance_schema = off
innodb_buffer_pool_size = 32M
bind_address = 0.0.0.0
skip-name-resolve = 0

* 初始化各个实例 [初始化完成后会自带随机密码在输出日志中]
[root@MySQL ~]# /usr/local/mysql/bin/mysqld –initialize –user=mysql –basedir=/usr/local/mysql –datadir=/data/mysql_data1
[root@MySQL ~]# /usr/local/mysql/bin/mysqld –initialize –user=mysql –basedir=/usr/local/mysql –datadir=/data/mysql_data2
[root@MySQL ~]# /usr/local/mysql/bin/mysqld –initialize –user=mysql –basedir=/usr/local/mysql –datadir=/data/mysql_data3
[root@MySQL ~]# /usr/local/mysql/bin/mysqld –initialize –user=mysql –basedir=/usr/local/mysql –datadir=/data/mysql_data4

* 各实例开启 SSL 连接
[root@MySQL ~]# /usr/local/mysql/bin/mysql_ssl_rsa_setup –user=mysql –basedir=/usr/local/mysql –datadir=/data/mysql_data1
[root@MySQL ~]# /usr/local/mysql/bin/mysql_ssl_rsa_setup –user=mysql –basedir=/usr/local/mysql –datadir=/data/mysql_data2
[root@MySQL ~]# /usr/local/mysql/bin/mysql_ssl_rsa_setup –user=mysql –basedir=/usr/local/mysql –datadir=/data/mysql_data3
[root@MySQL ~]# /usr/local/mysql/bin/mysql_ssl_rsa_setup –user=mysql –basedir=/usr/local/mysql –datadir=/data/mysql_data4

* 复制多实例脚本到服务管理目录下 [/etc/init.d/]
[root@MySQL ~]# cp /usr/local/mysql/support-files/mysqld_multi.server /etc/init.d/mysqld_multi

* 添加脚本执行权限
[root@MySQL ~]# chmod +x /etc/init.d/mysqld_multi

* 添加进 service 服务管理
[root@MySQL ~]# chkconfig –add mysqld_multi

5. 启动测试
  * 查个多实例状态
[root@MySQL ~]# /etc/init.d/mysqld_multi report
Reporting MySQL servers
MySQL server from group: mysqld1 is not running
MySQL server from group: mysqld2 is not running
MySQL server from group: mysqld3 is not running
MySQL server from group: mysqld4 is not running

* 启动多实例
 [root@MySQL ~]# /etc/init.d/mysqld_multi start

* 查看多实例状态
Reporting MySQL servers
MySQL server from group: mysqld1 is running
MySQL server from group: mysqld2 is running
MySQL server from group: mysqld3 is running
MySQL server from group: mysqld4 is running

* 查看实例监听端口
[root@MySQL ~]# netstat -lntp | grep mysqld
tcp        0      0 0.0.0.0:3306        0.0.0.0:*                LISTEN      2673/mysqld
tcp        0      0 0.0.0.0:3307        0.0.0.0:*                LISTEN      2676/mysqld
tcp        0      0 0.0.0.0:3308        0.0.0.0:*                LISTEN      2679/mysqld
tcp        0      0 0.0.0.0:3309        0.0.0.0:*                LISTEN      2682/mysqld

6. 连接测试
* 实例 1
[root@MySQL ~]# /usr/local/mysql/bin/mysql -S /tmp/mysql.sock1  -p’z+Ilo*>s:3kw’
mysql: [Warning] Using a password on the command line interface can be insecure.
Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 6
Server version: 5.7.18

Copyright (c) 2000, 2017, Oracle and/or its affiliates. All rights reserved.

Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.

Type ‘help;’ or ‘\h’ for help. Type ‘\c’ to clear the current input statement.

mysql> set password = ‘123456’;
Query OK, 0 rows affected (0.00 sec)

* 实例 2
[root@MySQL ~]# /usr/local/mysql/bin/mysql -S /tmp/mysql.sock2  -p’b*AHUrTgu1rl’
mysql: [Warning] Using a password on the command line interface can be insecure.
Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 7
Server version: 5.7.18

Copyright (c) 2000, 2017, Oracle and/or its affiliates. All rights reserved.

Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.

Type ‘help;’ or ‘\h’ for help. Type ‘\c’ to clear the current input statement.

mysql> set password = ‘123456’;
Query OK, 0 rows affected (0.00 sec)

本文永久更新链接地址 :http://www.linuxidc.com/Linux/2017-07/145343.htm
